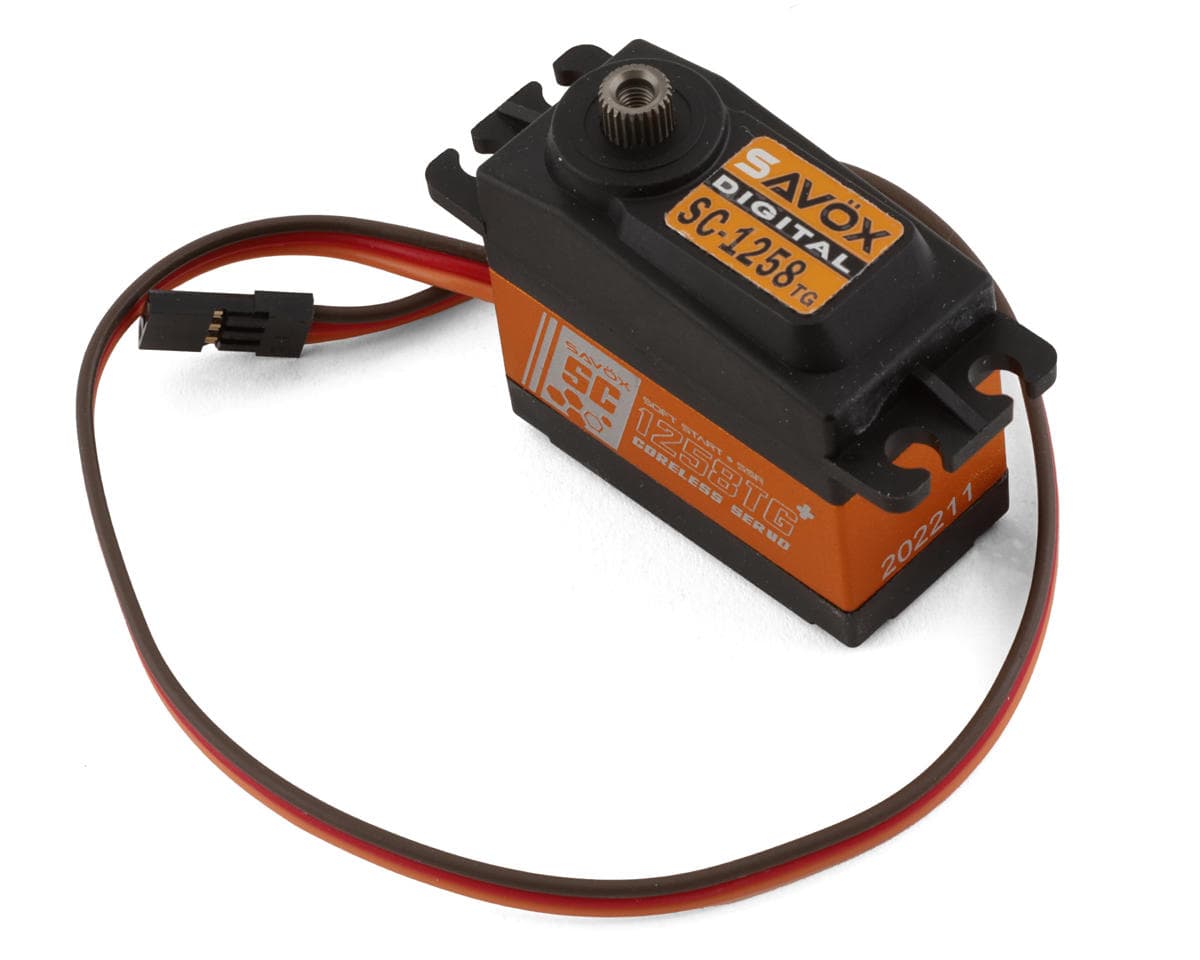

Savox SC-1258TGP Standard Digital "High Speed" Titanium Gear Servo
About this part
High Speed Titanium Gear Servo Overview:
The Savox SC-1258TGP is a high-speed digital servo designed for applications that demand fast, precise response and dependable performance. Combining titanium gears, high-resolution electronics, and a durable aluminum center case, this servo is an excellent choice for RC vehicles and helicopters where speed and accuracy are critical.
About the SC-1258TGP
High-Speed Performance
Built for rapid response, the SC-1258TGP delivers impressive transit speeds of up to 0.08 seconds at 6.0V. Its high-speed design makes it well suited for steering duties in competitive RC vehicles and cyclic control in larger helicopter applications.
Titanium Gear Durability
A full titanium geartrain provides exceptional strength while remaining lightweight. This durable gear set is engineered to withstand the demands of high-performance RC use, helping to ensure long service life and reliable operation.
Advanced Digital Technology
Featuring high-resolution 12-bit (4096) processing, the SC-1258TGP delivers smooth and precise servo movement for enhanced control. Plus Series features such as Soft Start and Sanwa SSR compatibility further improve performance and responsiveness for compatible systems.
Features:
- High-Speed motor
- Extremely strong titanium gears
- Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies
- Aluminum middle case allows for cooler operating temperatures
- Fast 0.08 sec/60° speed at 6.0V
- Strong 166 oz-in (12.0 kg-cm) torque at 6.0V
- Full Titanium Gear drivetrain
- 1/10 scale compatibility
Includes:
- (1) SC-1258TGP Standard Digital "High Speed" Titanium Gear Servo

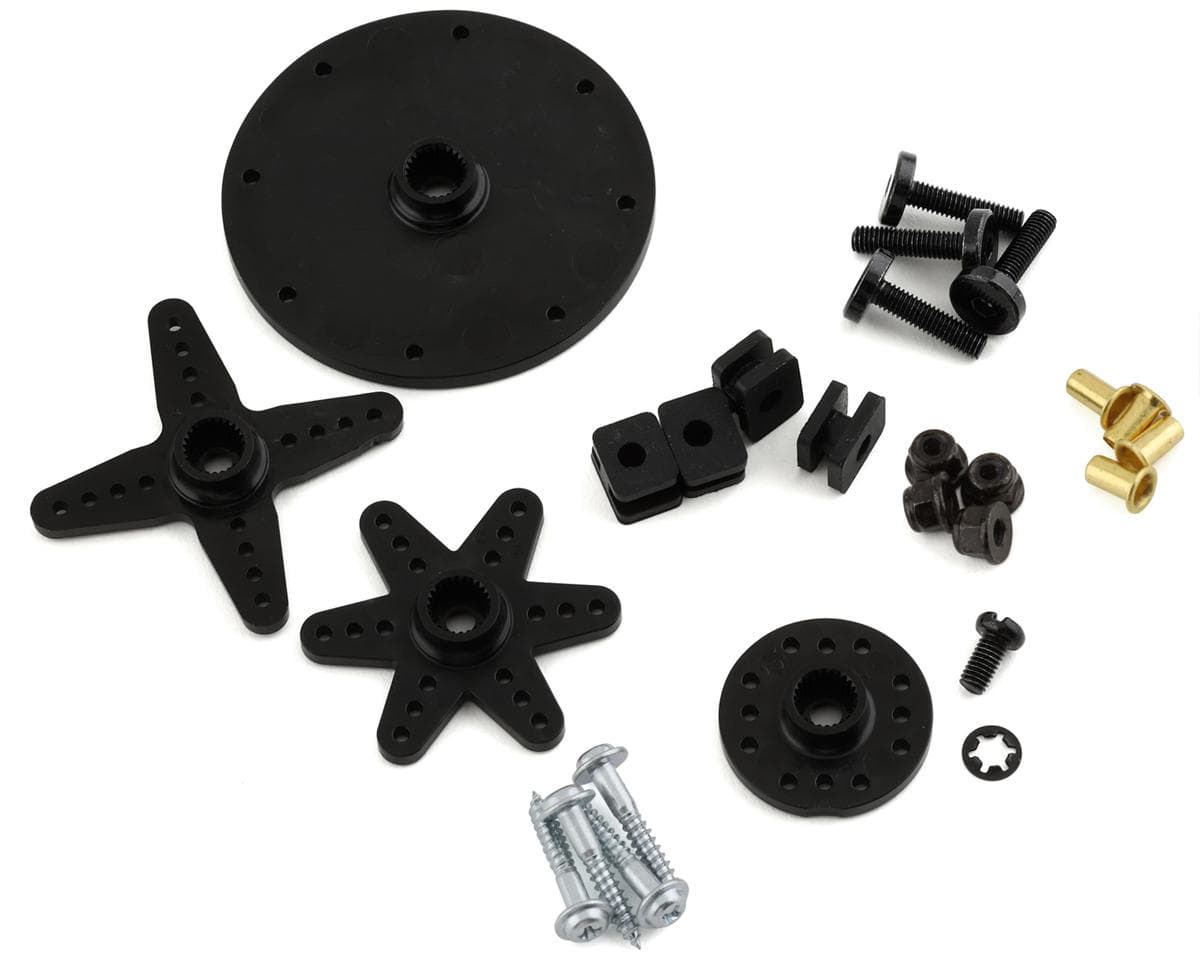

- Servo Hardware and Grommets
Specifications:
| Application | 1:10 |
|---|---|
| Operating Voltage | 4.8V - 6.0V |
| Operating Temperature | - |
| Operating Speed @ 4.8V | 0.10/60° sec |
| Operating Speed @ 6.0V | 0.08/60° sec |
| Dynamic Torque @ 4.8V | 133.3oz-in (9.6 kg-cm) |
| Dynamic Torque @ 6.0V | 166.6oz-in (12.0 kg-cm) |
| Motor Type | Coreless |
| Output Shaft | 25T |
| Gears | Titanium |
| Weight | 2.2oz (64g) |
| Dimensions | 1.58x0.79x1.46in (40.3x20.2x37.2mm) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
I've put this servo into multiple cars... and I love it. I only drive 10th scale electric, 4WD Touring, 2WD Buggy, 4WD Buggy... and this little guy doesn't a stellar job with all of them. For the price... this is a fantastic choice. The black edition is better for my purposes, cause I like the shortened wiring... but, it is MUCH shorter... so I have bought these in standard as well to make sure they fit. Please don't be that guy who blindly orders the Black Edition and then returns it for this one cause the wire is too short. DO YOUR RESEARCH. I can tell you from experience that the Black Edition DOES fit in a B6.3D and B74.1D with ease. Also fit well into my 3Racing Sakura S64GA. Better servos ARE available... but... they generally cost more, or are not as proven as Savox.
