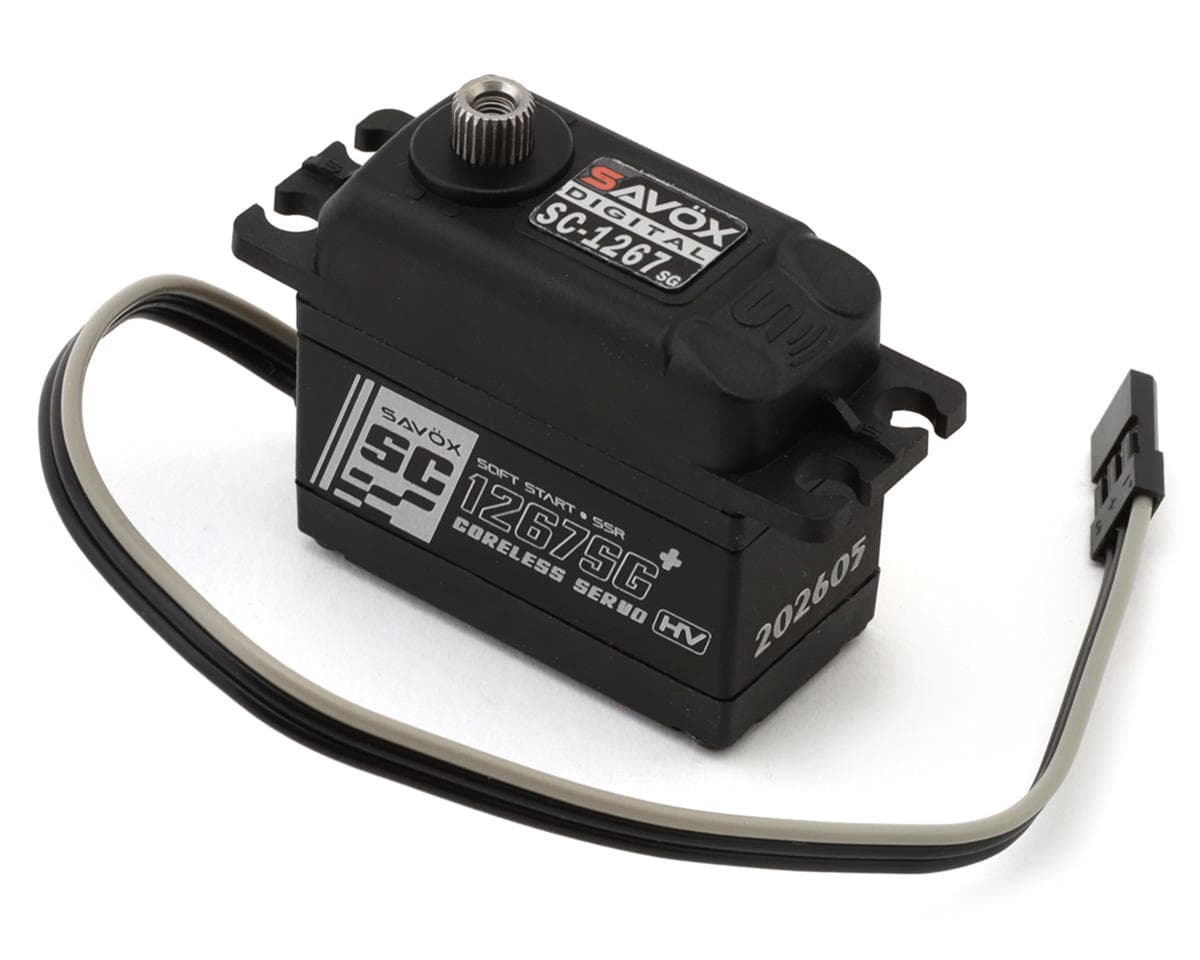

Savox SC-1267SGP Hybrid "High Torque" Steel Gear Digital Servo (HV) (Black Edition)
About this part
Servo Overview:
Looking to upgrade your RTR servo without breaking the bank? The Savox SC-1267SGP Black Edition combines strong high-voltage torque, durable steel gears, and sleek stealth styling to deliver reliable performance and precision control for a wide range of RC vehicles.
About the SC-1267SGP Black Edition Servo
High Torque Performance
The Savox SC-1267SGP Black Edition delivers an excellent balance of speed and power, producing up to 347.2 oz-in of torque at 8.4V. Its high-voltage capability makes it a strong upgrade for 1/10 and 1/8 scale RTR vehicles that need more steering authority and responsiveness.
Durable Construction
Built with precision-machined steel gears, this servo is designed to withstand heavy use and demanding driving conditions. The robust gear train provides long-lasting durability and reliable performance for a wide range of RC applications.
Smooth Control
Featuring Soft Start technology and Sanwa SSR compatibility, the SC-1267SGP offers smooth, accurate control. Its sleek all-black design, laser-etched details, and shorter black lead wire create a clean, professional look while delivering dependable performance.
Features:
- High-voltage operation supports 7.4V and 8.4V power systems
- Produces up to 347.2 oz-in of torque at 8.4V
- Fast response speed reaches 0.085 sec/60° at 8.4V
- Precision steel gears provide excellent durability
- Soft Start technology delivers smoother servo movement
- Sanwa SSR compatibility allows enhanced servo response
- Sleek all-black design creates a clean, stealthy appearance
- Perfect upgrade for 1/10 and 1/8 scale RTR vehicles

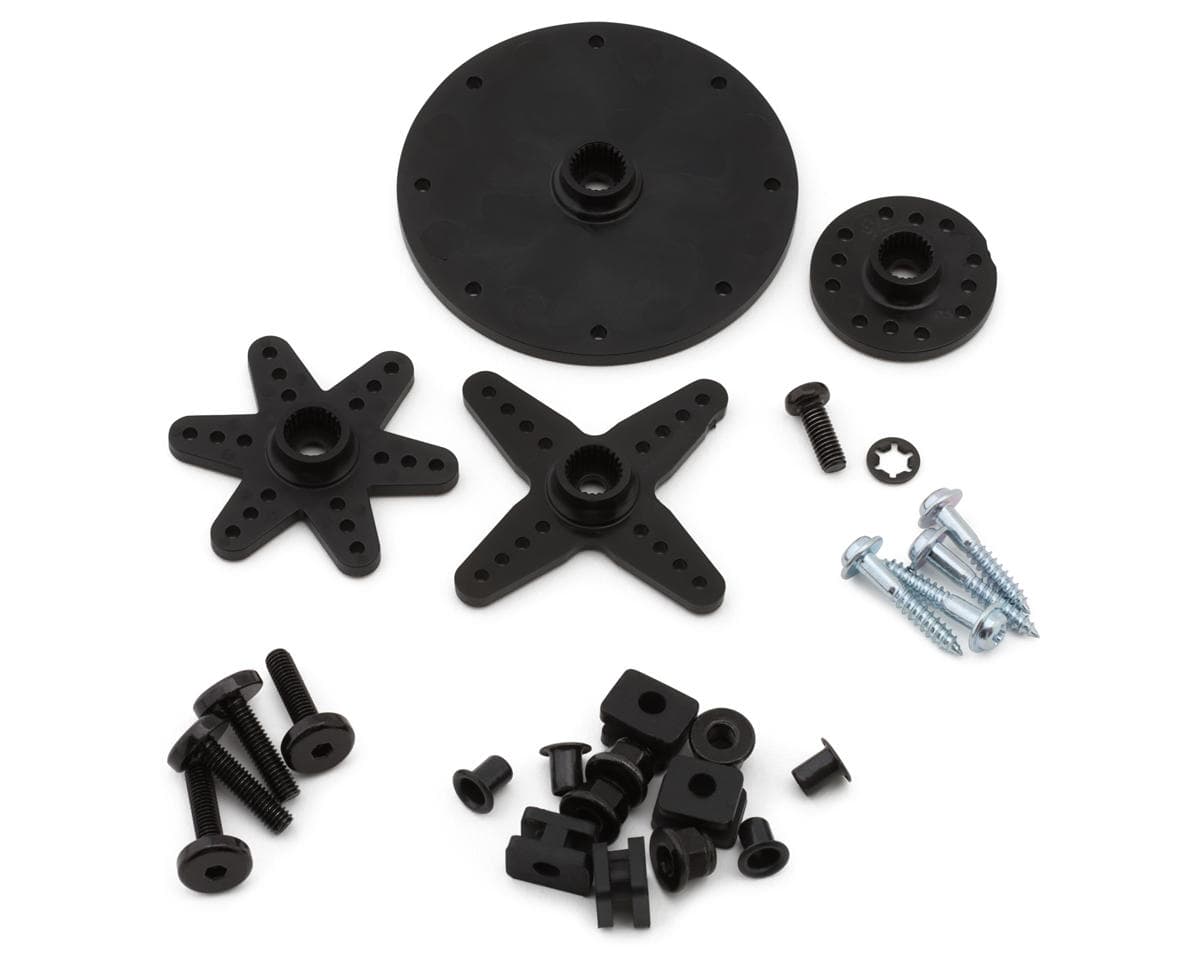

Includes:
- (1) SC-1267SGP Hybrid "High Torque" Steel Gear Digital Servo (HV) (Black Edition)
- Composite Servo Horns & Accessories
Specifications:
| Application | 1/10 to 1/7 On-Road & Off-Road |
|---|---|
| Input Voltage | 6-8.4V |
| Operating Speed @ 6.0V | sec/60° |
| Operating Speed @ 7.4V | 0.095 sec/60° |
| Operating Speed @ 8.4V | 0.085 sec/60° |
| Dynamic Torque @ 6.0V | oz-in (5kg-cm) |
| Dynamic Torque @ 7.4V | 277.7oz-in (20kg-cm) |
| Dynamic Torque @ 8.4V | 347.2oz-in (25kg-cm) |
| Gear Material | Steel |
| Motor Type | Brushed |
| Output Shaft Spline | 25T |
| Dimensions | 1.59x0.8x1.46in (40.3x20.2x37.2mm) |
| Weight | 2.19oz (62g) |
