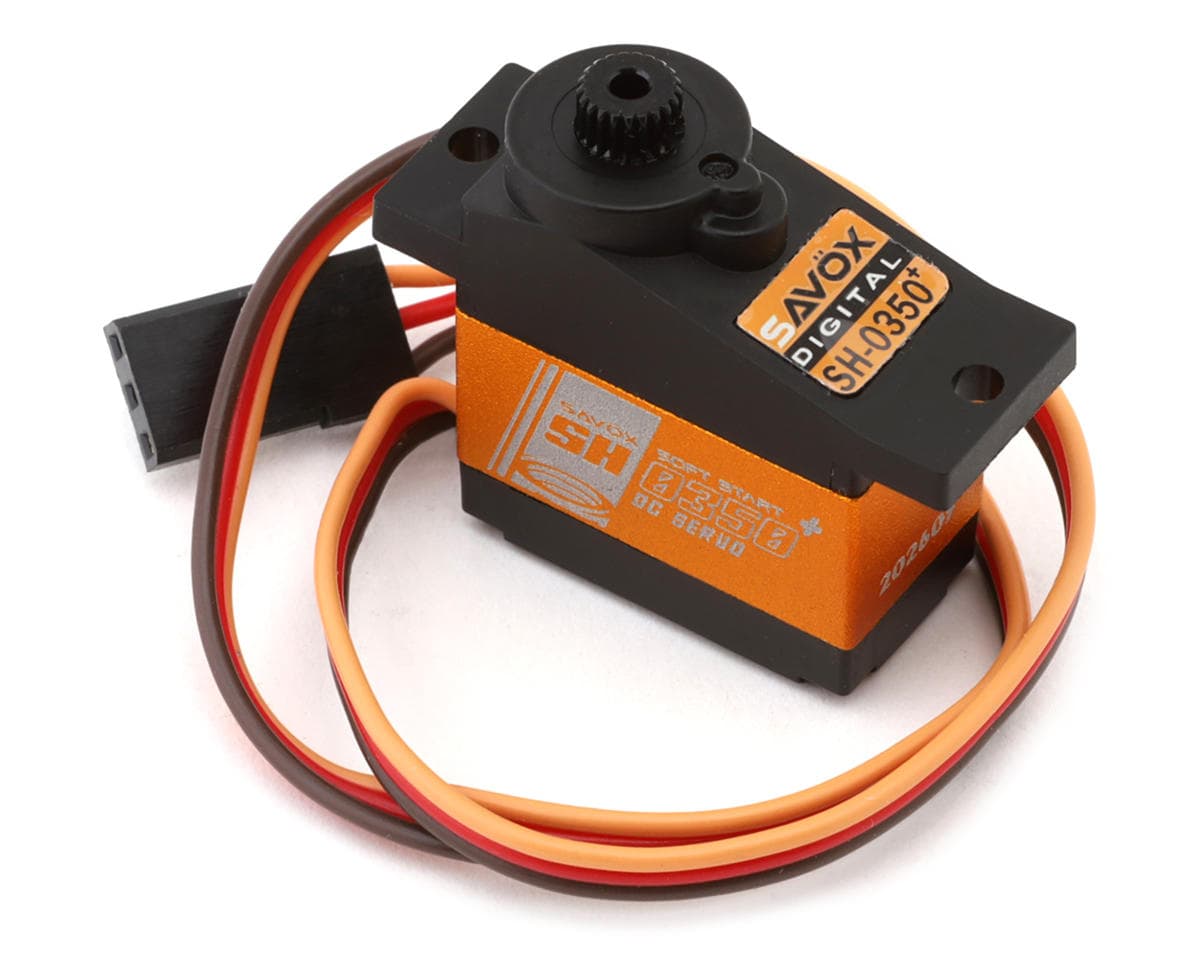

Savox SH-0350P Hybrid Micro Digital Plane/Heli Servo w/Soft Start
About this part
Servo Overview:
Lightweight, affordable, and built for dependable control, the Savox SH-0350P micro digital servo delivers smooth performance and cool-running durability in a compact design ideal for small planes and 450-size helicopters.
About the SH-0350P Servo
Compact Flight Control
The Savox SH-0350P delivers reliable digital performance in a micro-sized package designed for small aircraft and 450-size helicopters. It provides solid torque and smooth response, making it a dependable choice for lightweight flight control setups.
Cool Running Design
A hybrid aluminum middle case helps strengthen the servo while improving heat dissipation. This keeps operating temperatures lower, ensuring more consistent performance during longer flight sessions and demanding maneuvers.
Budget Friendly Power
Designed as a cost-effective solution, the SH-0350P offers dependable torque up to 2.6kg (36.1 oz-in) at 6.0V with fast response times. It combines affordability with reliable Savox quality, making it a strong option for entry-level and sport builds.
Features:
- Micro-sized servo designed for small planes and 450-size helicopters
- Budget-friendly option for entry-level and sport builds
- Hybrid aluminum middle case improves strength and cooling
- Delivers up to 2.6kg (36.1 oz-in) torque at 6.0V
- Fast response speed down to 0.16 sec/60° at 6.0V
- Lightweight design at only 12.3g for easy installation
- Reliable digital performance for stable flight control
- Compact dimensions fit tight aircraft mounting spaces
Includes:

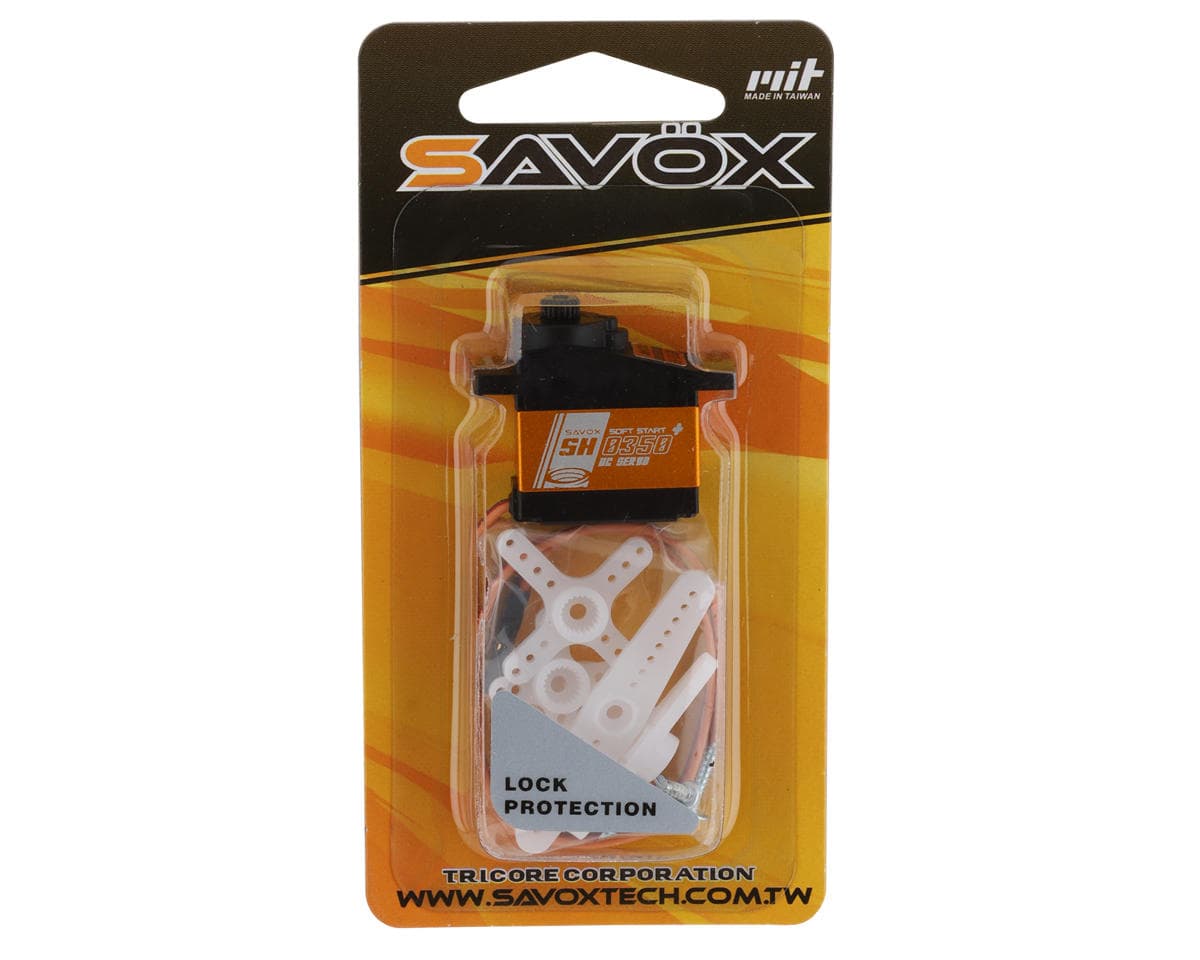

- (1) SH-0350P Hybrid Micro Digital Plane/Heli Servo
- Composite Servo Horns & Accessories
Specifications:
| Application | Small Planes & Helicopters |
|---|---|
| Input Voltage | 4.8-6.0V |
| Operating Speed @ 4.8V | 0.21 sec/60° |
| Operating Speed @ 6.0V | 0.16 sec/60° |
| Dynamic Torque @ 4.8V | 30.6oz-in (2.2kg-cm) |
| Dynamic Torque @ 6.0V | 36.1oz-in (2.6kg-cm) |
| Gear Material | Composite |
| Motor Type | Brushed |
| Output Shaft Spline | 21T |
| Dimensions | 0.89x0.47x1in (22.8x12x25.4mm) |
| Weight | 0.43oz (12.3g) |
