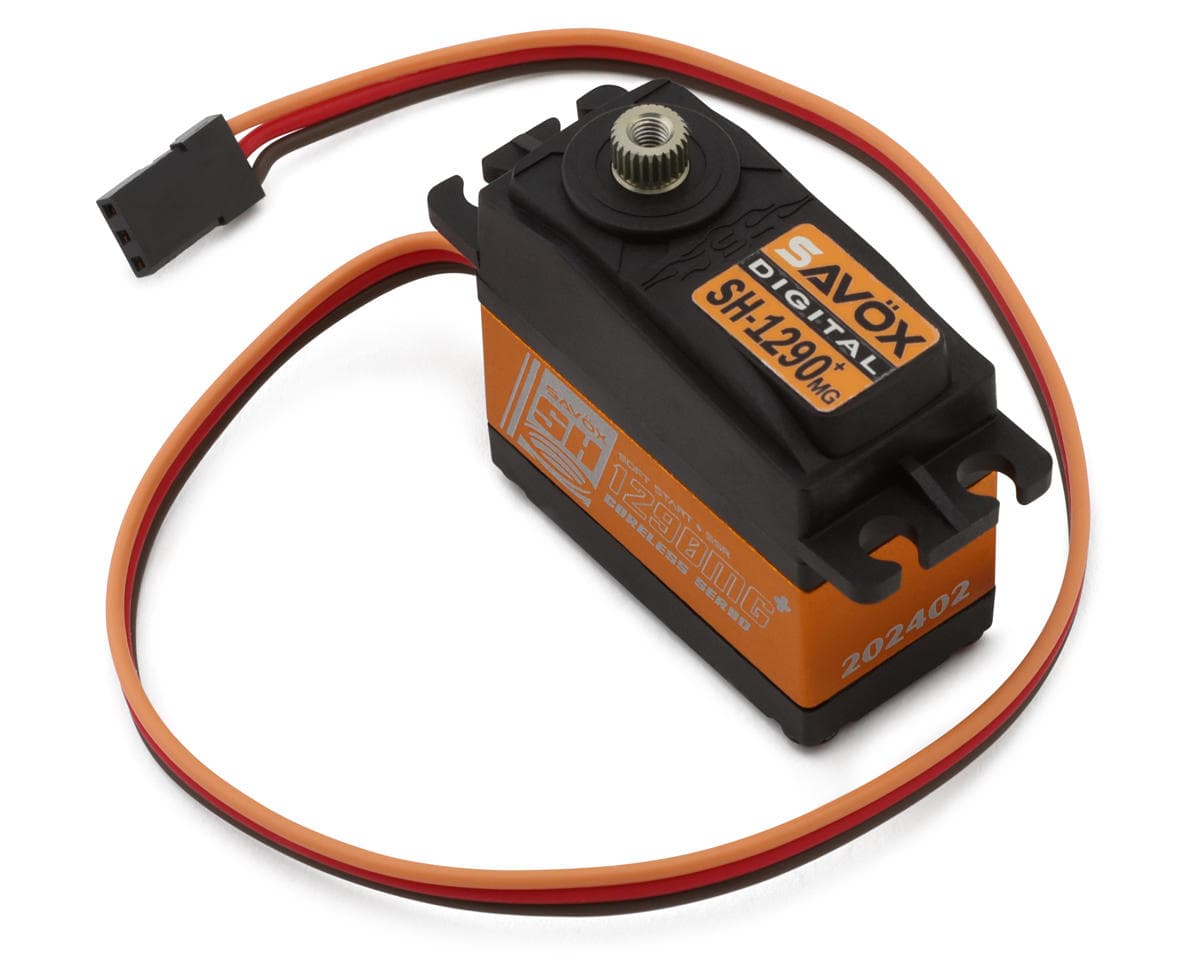

Savox SH-1290MGP Digital Metal Gear "Ultra Speed" Tail Servo

Servo Overview:

Savox SH-1290MGP Digital Metal Gear "Ultra Speed" Tail Servo. This servo is engineered for high-speed performance without compromising durability. Featuring a robust metal gear train and dual ball bearing support, this servo provides a fast and precise response, making it ideal for rudder control on 500, 600, and 700-class helicopters. The aluminum middle case ensures cooler operating temperatures during demanding use. As part of the Savox "Plus" series, it also includes Soft Start and Sanwa SSR compatibility, ensuring smooth operation and optimal performance.

Features:

• Ultra-fast response for quick control
• Durable metal gear train for longevity
• Soft Start and Sanwa SSR compatibility
• Aluminum middle case for cooler operation
• Dual ball bearing support for smooth performance
• Perfect for rudder applications on 500, 600, and 700 class helicopters

Specifications:

• Input Voltage: 4.8-6V
• Speed:
  • @4.8V: 0.06sec/60°
  • @6V: 0.05sec/60°
• Torque:
  • @4.8V: 55.5oz-in
  • @6V: 69.4oz-in
• Pulse/Frequency: -
• Motor Type: Coreless
• Output Shaft: 25T
• Gear Material: Metal
• Dimensions: 1.59x0.8x1.46in (40.3x20.2x37.2mm)
• Servo Lead Length: -
• Weight: 1.99oz (56.4g)

Includes:

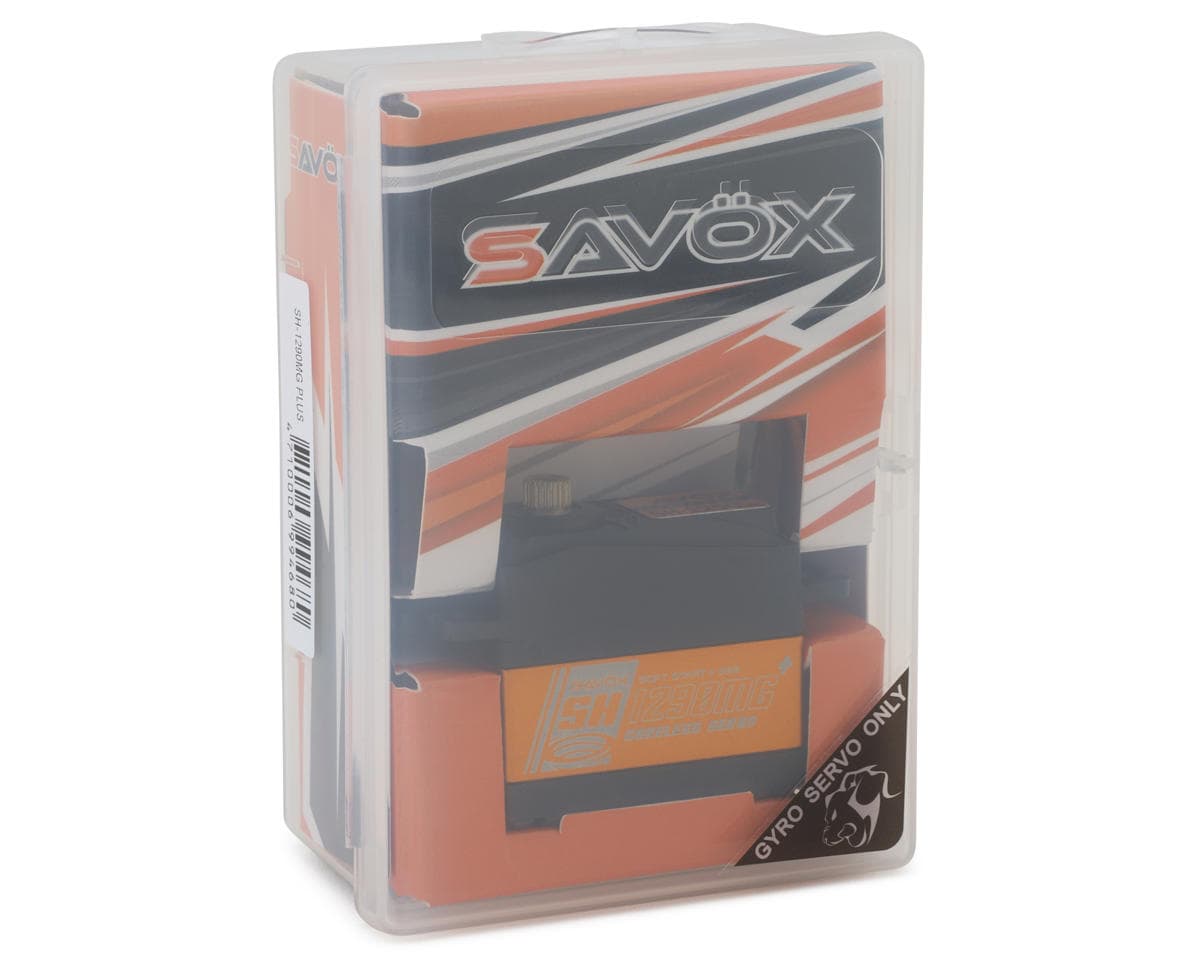

• (1) SH-1290MGP Digital Metal Gear "Ultra Speed" Tail Servo

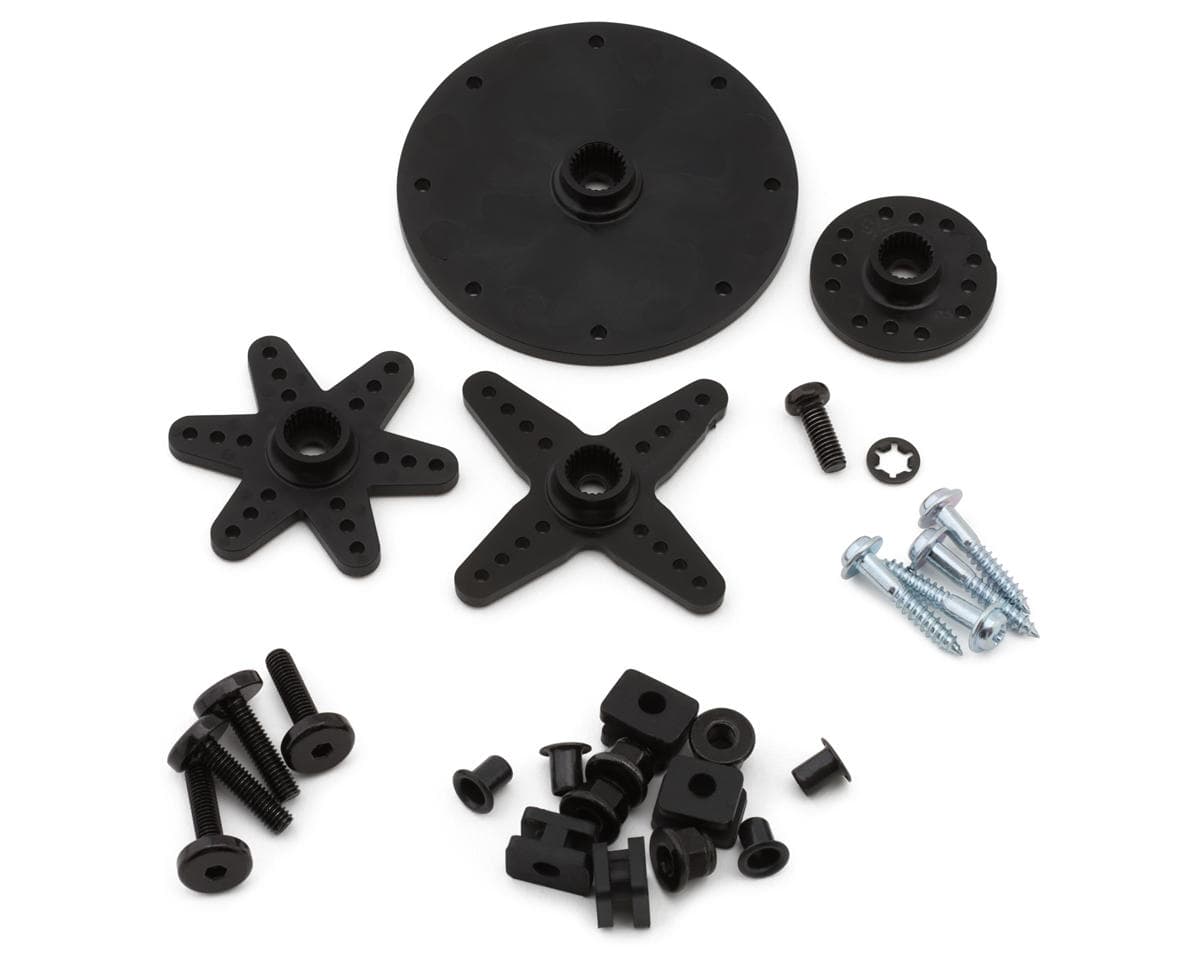

• (4) Composite Servo Horns
• Mounting Hardware
