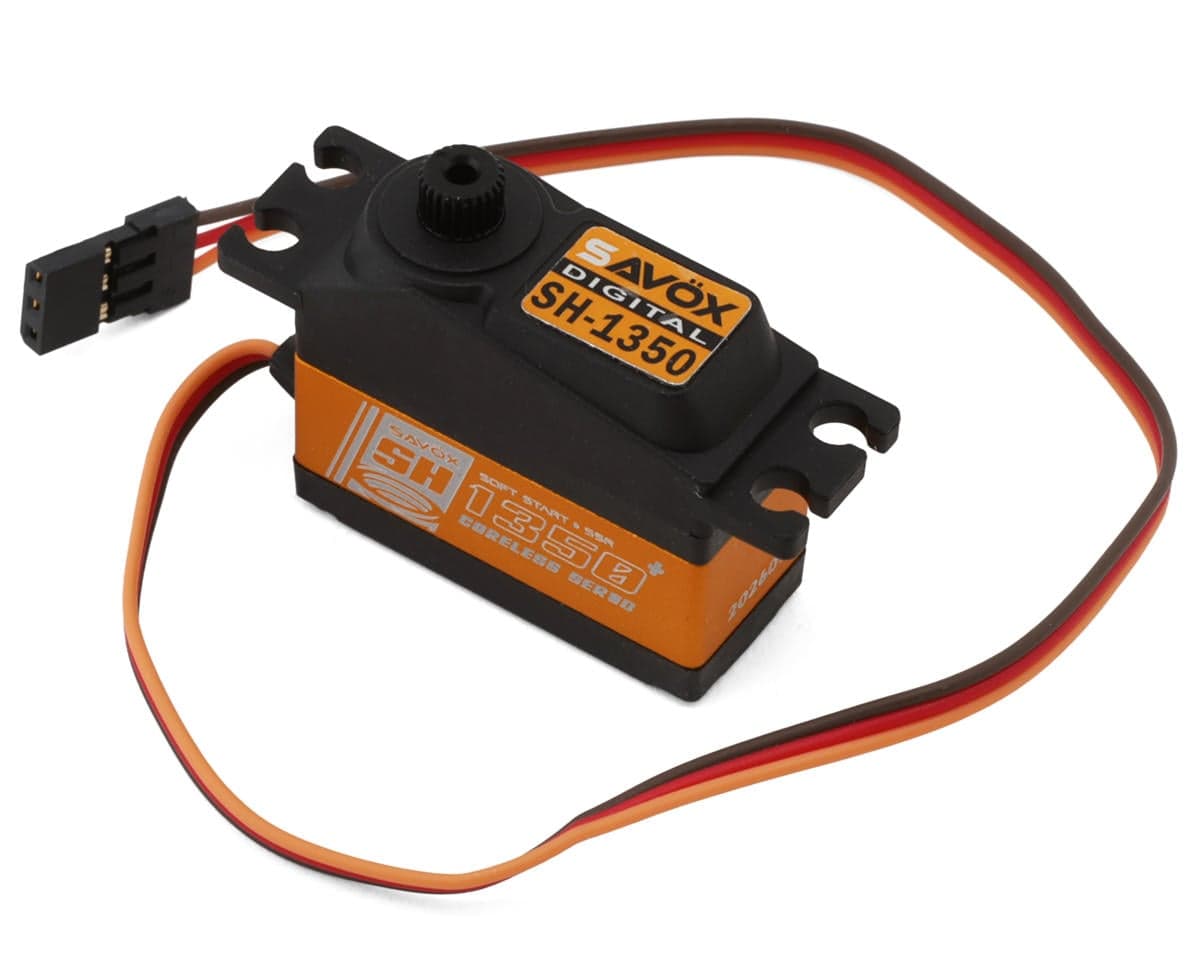

Savox SH-1350P Hybrid "High Torque" Coreless Mini Digital Servo
About this part
SH-1350P Hybrid “High Torque” Mini Servo
The Savox SH-1350P Hybrid Coreless “High Torque” Mini Digital Servo is designed to deliver powerful performance in a compact and efficient package. Ideal for a wide range of RC applications, this servo provides strong torque without requiring high-voltage setups. Its compact mini size makes it perfect for tight installations while still offering dependable control. Built with advanced features and durable materials, it’s a reliable choice for both casual users and performance-focused enthusiasts.
About the SH-1350P Hybrid Coreless Servo
Coreless Motor Performance And Torque
At the heart of the SH-1350P is a coreless motor that delivers smooth, efficient power with quick response times. Producing up to 63.9 oz-in of torque at 6V, it offers strong output for its size without the need for higher voltage systems. This makes it an excellent option for users seeking performance and efficiency in standard voltage applications.
Smooth Operation And Durable Gear Design
The hybrid design features industrial plastic gears that provide quiet, smooth operation while maintaining durability for long-term use. Dual ball bearing support enhances precision and reduces wear, ensuring consistent performance over time. This combination of materials and engineering results in reliable operation across a variety of conditions.
Advanced Features And Cooling Efficiency
As part of the “Plus” series, the SH-1350P includes Soft Start functionality and Sanwa SSR compatibility for improved control and system protection. The aluminum middle case helps dissipate heat, keeping operating temperatures lower during extended use. These features combine to deliver a servo that is both advanced and dependable in demanding environments.
Features:
- Coreless Motor Design
- High Torque Output Up To 63.9 oz-in
- Compact Mini Servo Size
- Aluminum Middle Case For Cooling
- Hybrid Industrial Plastic Gear Train
- Smooth And Quiet Operation
- Dual Ball Bearing Support
- Soft Start Functionality
- Sanwa SSR Compatibility
- Operates On Standard 4.8V–6V Power
Includes:
- (1) SH-1350P Hybrid Coreless "High Torque" Mini Digital Servo

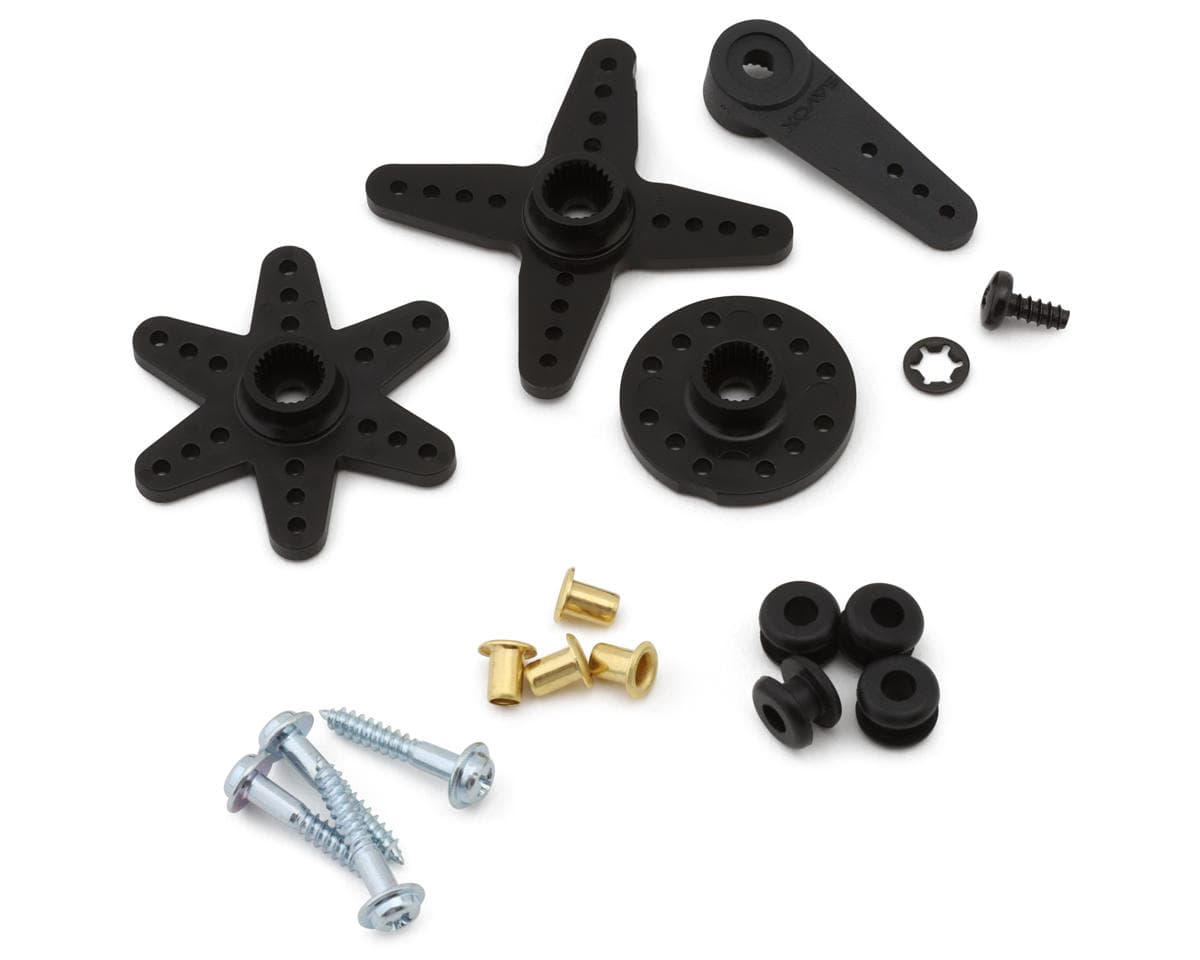

- Servo Horns & Accessories
Specifications:
| Application | Mini |
|---|---|
| Input Voltage | 4.8-6.0V |
| Operating Speed @ 4.8V | 0.13 sec/60° |
| Operating Speed @ 6.0V | 0.11 sec/60° |
| Dynamic Torque @ 4.8V | 51.4oz-in (3.7kg-cm) |
| Dynamic Torque @ 6.0V | 63.9oz-in (4.6kg-cm) |
| Gear Material | Composite |
| Motor Type | Coreless |
| Output Shaft Spline | 25T |
| Dimensions | 1.38x0.59x1.15in (35x15x29.2mm) |
| Weight | 0.92oz (26g) |
