About this part
Budget-Friendly Servo with Versatile Performance

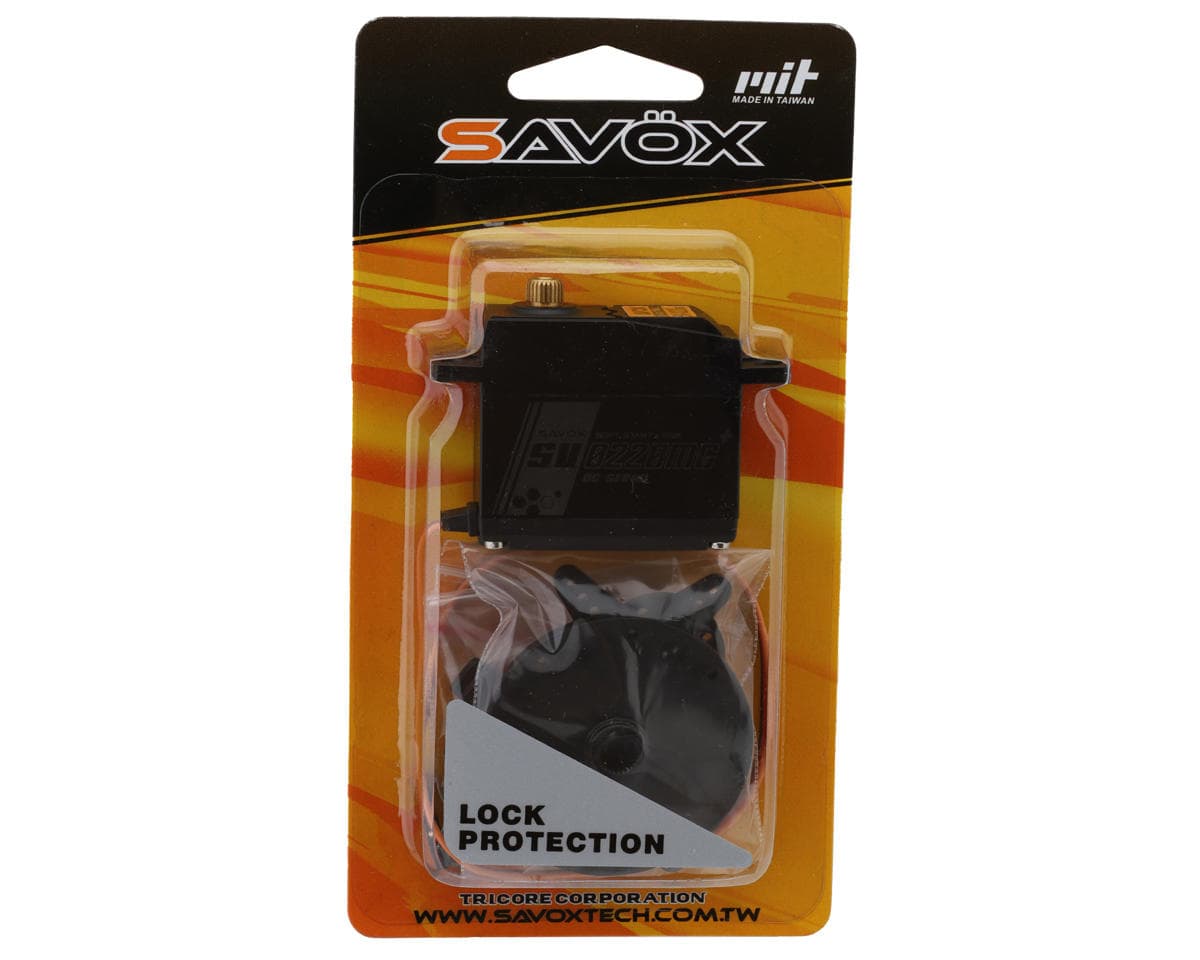

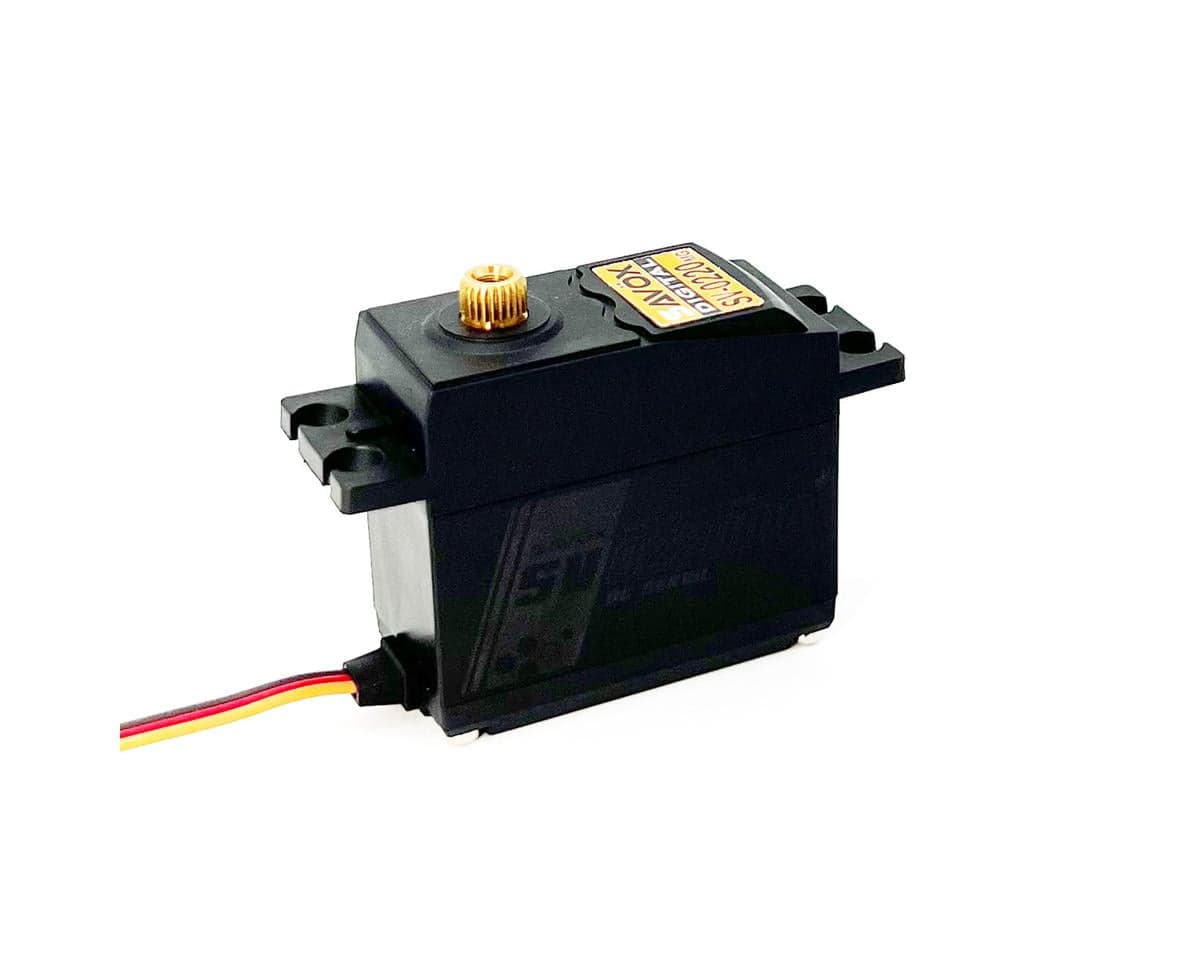

The Savox SV-0220MGP Standard Digital Metal Gear Servo is a budget-friendly choice for those who still expect solid performance and reliability. Its durable metal gear train and digital control deliver smooth, consistent movement under repeated use. High-voltage capability adds flexibility across a variety of 1/10 surface and some aircraft applications, making it easy to integrate into different setups. With Plus-series refinements like Soft Start and Sanwa SSR compatibility, this servo offers a polished, precise feel at an accessible price point.
About the SV-0220MGP Servo
Durable Metal Gears
The SV-0220MGP features a robust metal gear train designed to handle demanding use over the long term. This internal layout helps maintain smooth operation even when the servo is subjected to frequent direction changes and load. The result is dependable performance that supports accurate control in standard-size installations.
High-Voltage Versatility
Capable of operating on high voltage, this servo gives users more options when configuring their power systems. The added voltage range helps the servo maintain strong, consistent behavior across different 1/10-scale platforms. This versatility makes it a practical choice for both casual and more demanding applications.
Plus-Series Control Refinements
As a Plus-series model, the SV-0220MGP includes Soft Start for gentle, controlled movement when first powered, reducing stress on linkages and electronics. Sanwa SSR compatibility provides faster, more responsive communication with supported radios. Combined with its digital precision, these features contribute to a smooth, connected driving feel.
Features:
- Standard-size digital metal gear servo
- Durable metal gear train for long service life
- Supports high-voltage operation
- Soft Start function for smooth initial movement
- Sanwa SSR compatible for faster response
- Budget-friendly performance option
- Suitable for a variety of 1/10 applications
- Precision digital control for accurate movements
- Reliable operation under demanding use
- Versatile choice for standard RC installations
Includes:
- (1) SV-0220MGP Standard Digital Metal Gear Servo

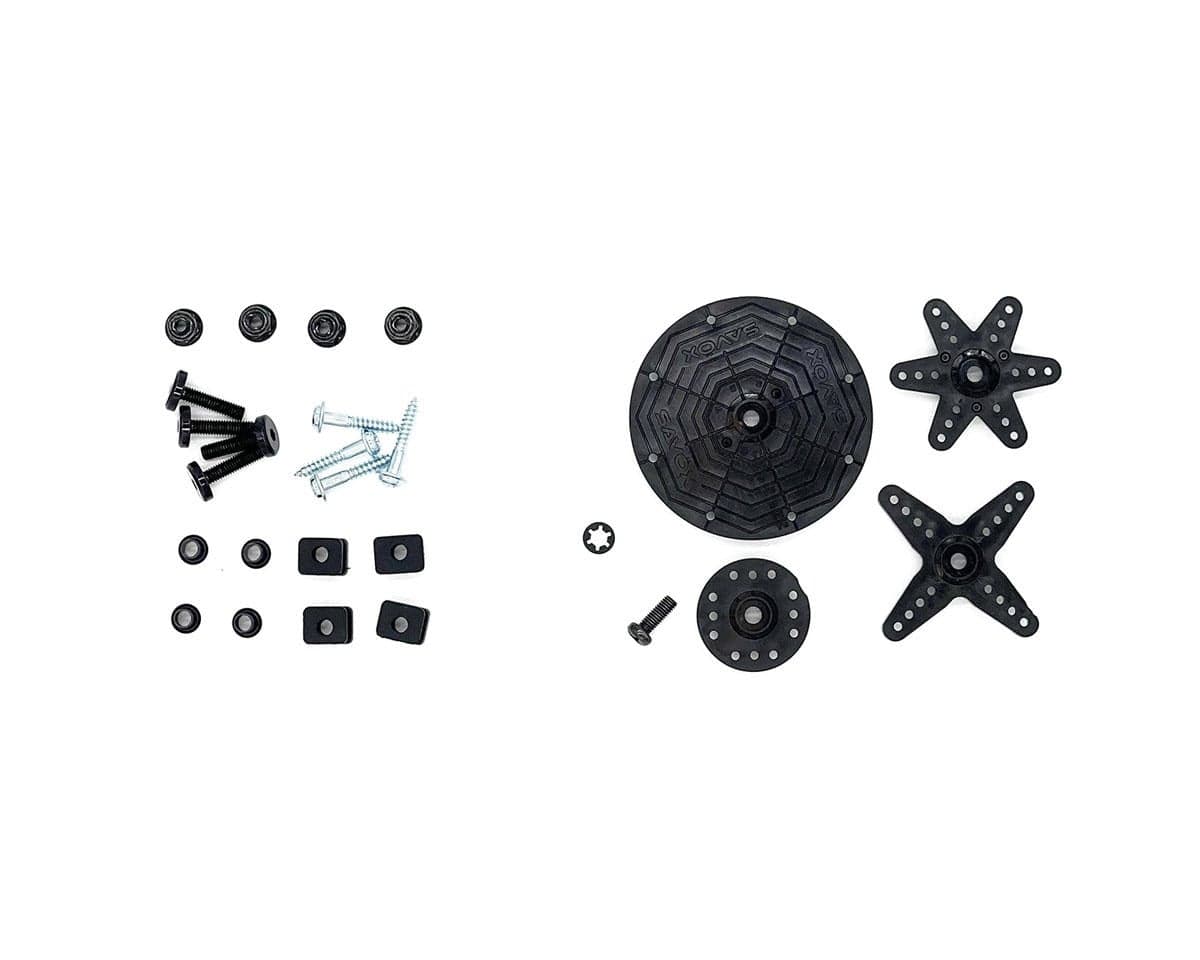

- Servo Horns & Accessories
Specifications:
| Application | 1/10 & Aircraft |
|---|---|
| Input Voltage | 6.0-7.4V |
| Operating Speed @ 6.0V | 0.16 sec/60° |
| Operating Speed @ 7.4V | 0.13 sec/60° |
| Dynamic Torque @ 6.0V | 90.3oz-in (6.5kg-cm) |
| Dynamic Torque @ 7.4V | 111.1oz-in (8kg-cm) |
| Gear Material | Metal |
| Motor Type | Brushed |
| Output Shaft | 25T |
| Dimensions | 1.6x0.79x1.46in (40.7x20x37mm) |
| Weight | 2.08oz (59g) |
