About this part

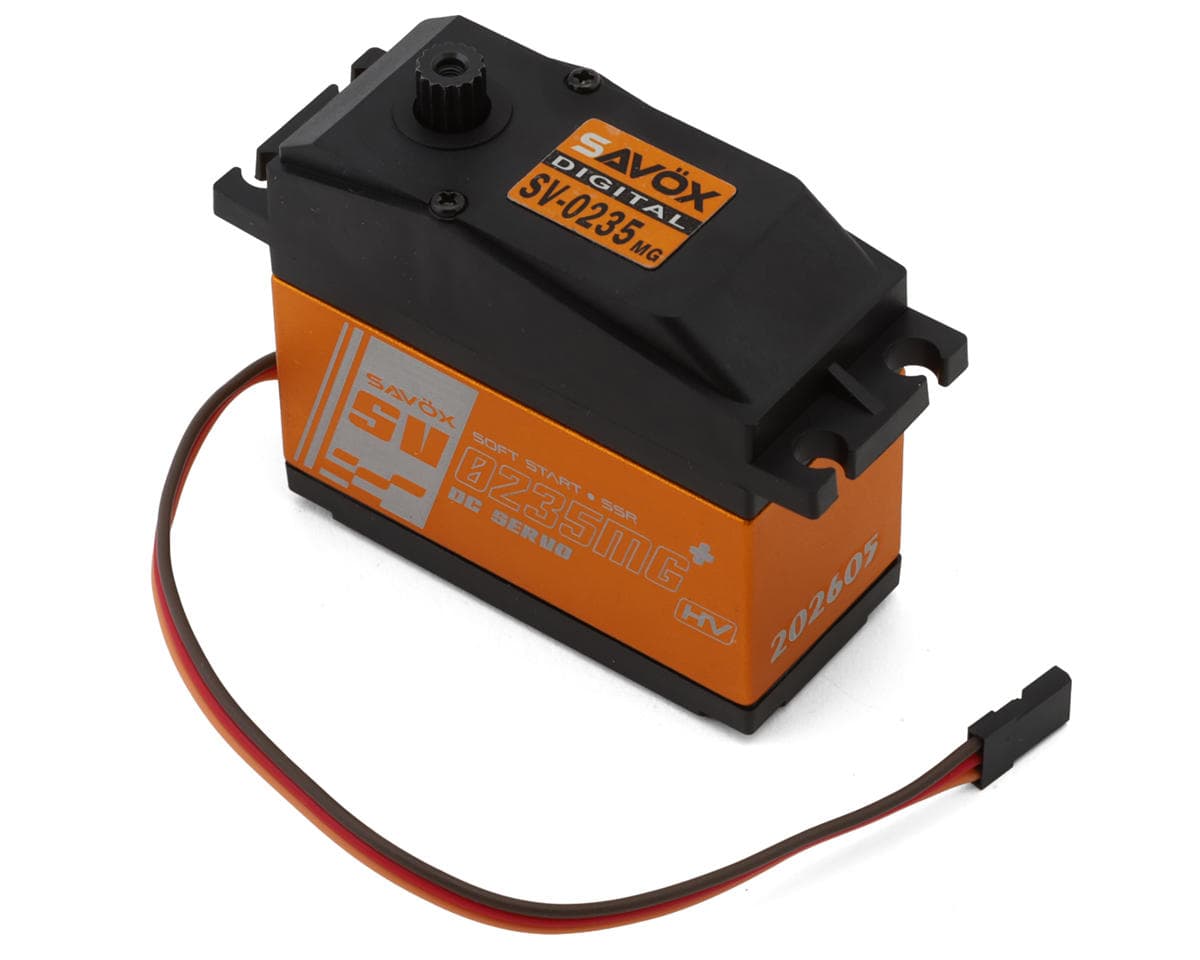

Steel Gear Digital 1/5 Scale Servo Overview:
The Savox SV-0235MGP is a high-speed, high-voltage digital servo designed specifically for 1/5 scale and other large-scale RC applications. Built around a heavy-duty metal geartrain and Savox Plus Series electronics, it delivers the speed, torque, and durability required for demanding off-road vehicles and large aircraft.
About the SV-0235MGP
Large-Scale Performance
Engineered for big platforms, the SV-0235MGP provides strong torque output and fast response times to maintain precise control under heavy loads. Its performance characteristics make it well-suited for aggressive driving and high-stress operating conditions.
Durable Steel Gear Construction
A full steel geartrain ensures long-term durability and resistance to wear, even under extreme mechanical stress. This robust construction helps maintain consistent performance in large-scale applications where loads are significantly higher than standard RC setups.
Plus Series Control Technology
As part of Savox's Plus Series, the servo includes Soft Start functionality and Sanwa SSR compatibility for smoother and more responsive control. These features improve servo behavior at startup and enhance overall precision during operation.
Features:
- High-speed performance for large-scale models
- Ideal for 1/5 scale off-road and large-scale aircraft
- Strong metal gears for increased durability
- Capable of high voltage operation
- Soft Start feature for smoother control
- Sanwa SSR compatibility for enhanced response
- Perfect balance of torque and speed
- Digital design for precise performance
Includes:
- (1) SV-0235MGP "Super Speed" Steel Gear Digital 1/5 Scale Servo
Specifications:
| Application | 1/5 |
|---|---|
| Operating Voltage | 6.0-7.4V |
| Operating Temperature | - |
| Operating Speed @ 6.0V | 0.18sec/60° sec |
| Operating Speed @ 7.4V | 0.15sec/60° sec |
| Dynamic Torque @ 6.0V | 388.8oz-in (35 kg-cm) |
| Dynamic Torque @ 7.4V | 486.1oz-in (40 kg-cm) |
| Motor Type | - |
| Output Shaft | 15T |
| Gears | Steel |
| Weight | 7.0oz (200g) |
| Dimensions | 2.59x1.18x2.26in (65.8x30x57.4mm) |
