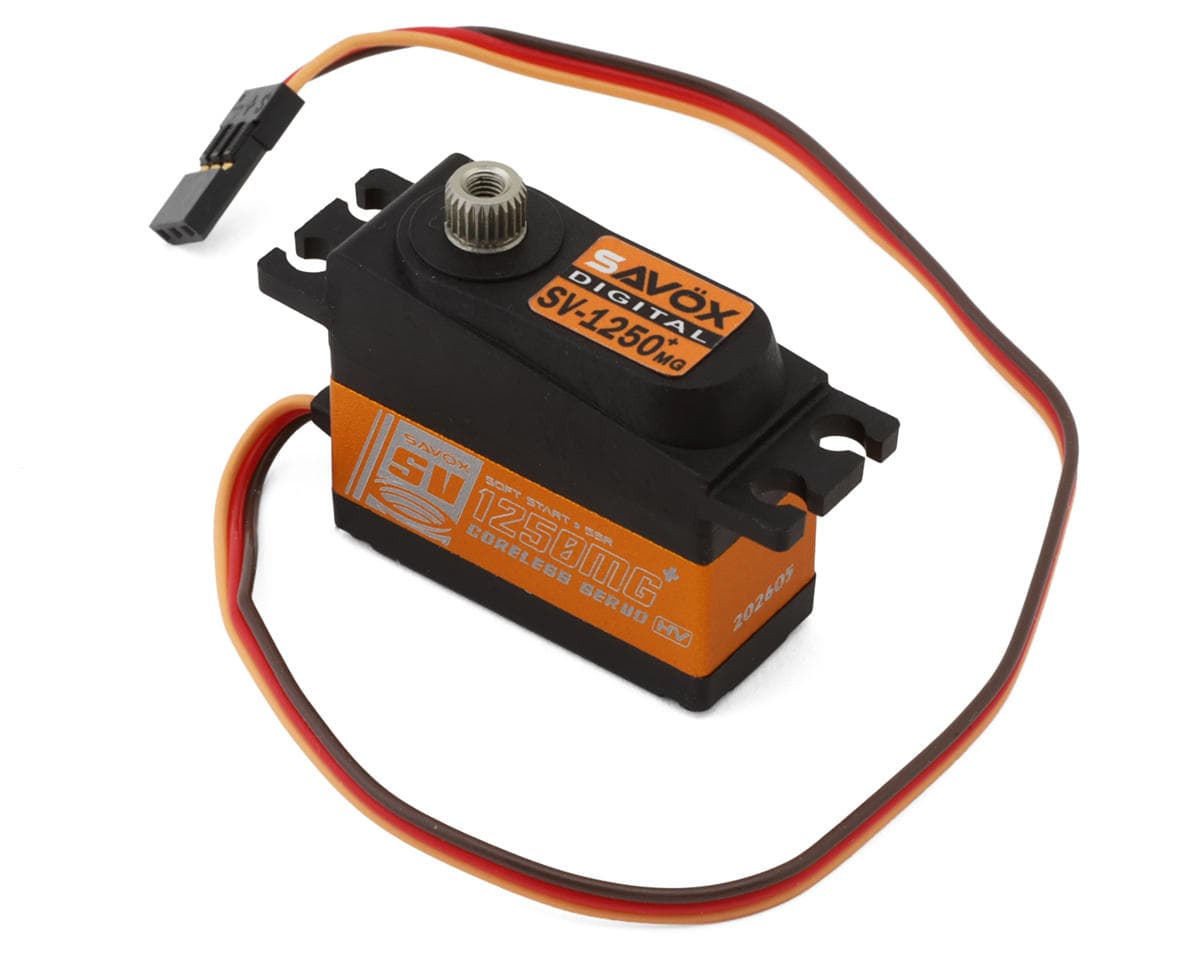

Savox SV-1250MGP Hybrid Metal Gear Mini Digital Servo (High Voltage) w/Soft Start
About this part
Servo Overview:
Small in size but serious in power, the Savox SV-1250MGP delivers high-voltage performance, fast digital response, and rugged metal gear durability in a mini package built for precision-demanding applications like helicopter tail control and tight-space installations.
About the SV-1250MGP Servo
Compact High Power
The Savox SV-1250MGP delivers impressive torque and speed in a compact mini-sized package. With high-voltage compatibility and up to 8.0kg (111.1 oz-in) of torque at 7.4V, it provides exceptional performance where installation space is limited.
Durable Design
Built with a rugged metal gear train and aluminum center case, this servo is designed for long-lasting reliability. The durable construction resists wear under heavy use while the aluminum case helps dissipate heat for consistent operation.
Advanced Control
As a Plus Series servo, the SV-1250MGP includes Soft Start technology for smooth servo movement and Sanwa SSR compatibility for enhanced response. Its fast digital performance makes it an excellent choice for helicopter tail applications and other precision-demanding setups.
Features:
- High-voltage capability delivers strong performance in a mini servo size
- Metal gear train provides excellent durability under heavy use
- Aluminum center case helps keep operating temperatures low
- High torque output reaches up to 8.0kg (111.1 oz-in) at 7.4V
- Fast response speed down to 0.095 sec/60° at 7.4V
- Soft Start function ensures smooth and controlled movement
- Sanwa SSR compatibility supports advanced tuning and responsiveness
- Ideal for helicopter tail systems and tight mounting spaces
Includes:
- (1) SV-1250MGP Hybrid Metal Gear Mini Digital Servo (High Voltage)

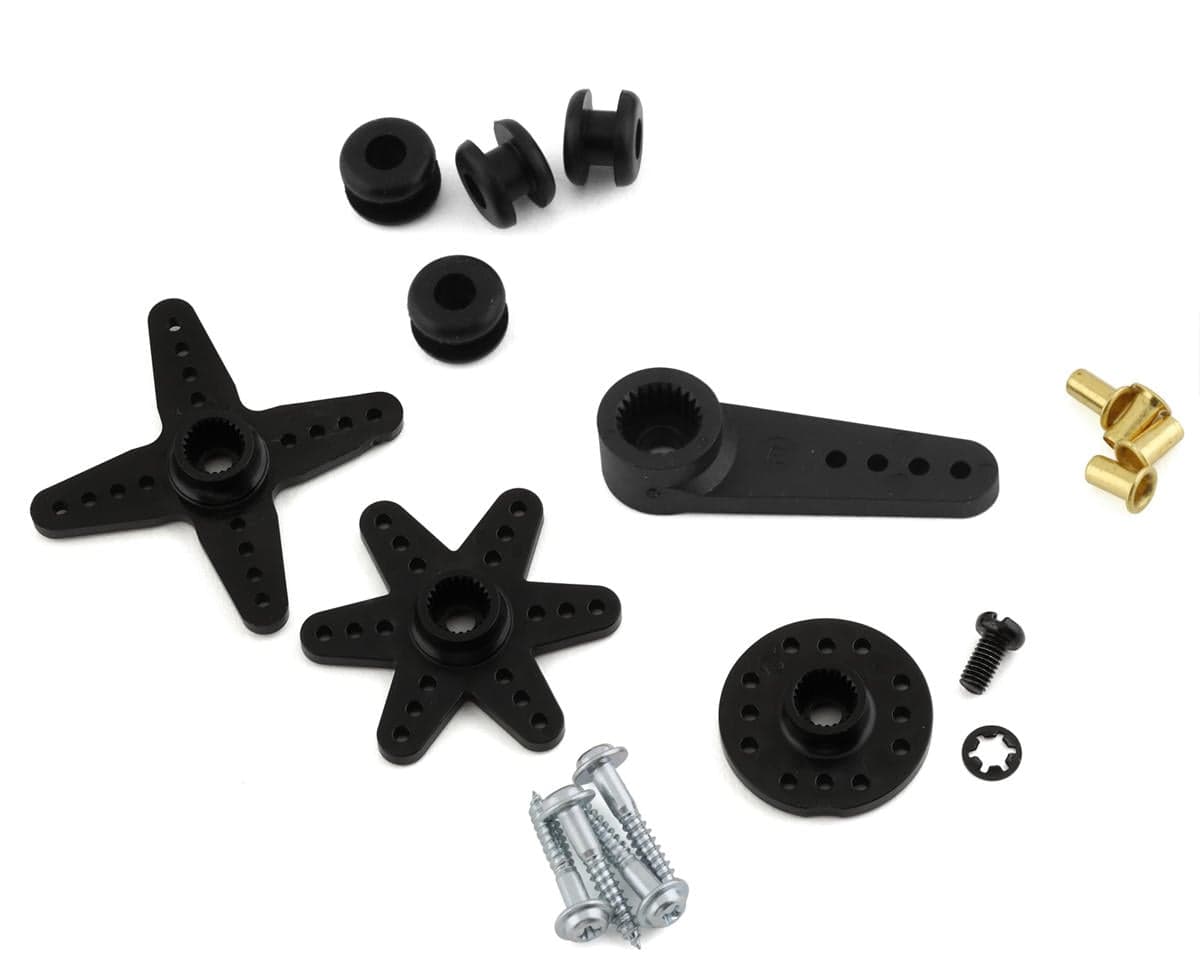

- Composite Servo Horns & Accessories
Specifications:
| Application | Mini |
|---|---|
| Input Voltage | 6-8.4V |
| Operating Speed @ 6.0V | 0.11 sec/60° |
| Operating Speed @ 7.4V | 0.095 sec/60° |
| Operating Speed @ 8.4V | 0.085sec/60° |
| Dynamic Torque @ 6.0V | 63.9oz-in (4.6kg-cm) |
| Dynamic Torque @ 7.4V | 111.1oz-in (8kg-cm) |
| Dynamic Torque @ 8.4V | 138.9oz-in (10kg-cm) |
| Gear Material | Metal |
| Motor Type | Coreless |
| Output Shaft Spline | 25T |
| Dimensions | 1.38x0.59x1.17in (35x15x29.8mm) |
| Weight | 1.04oz (29.6g) |
