Savox SV-1254MGP Hybrid "High Speed" Low Profile Digital Steel Gear Servo (High Voltage)
About this part
Low Profile Servo with High Voltage Performance

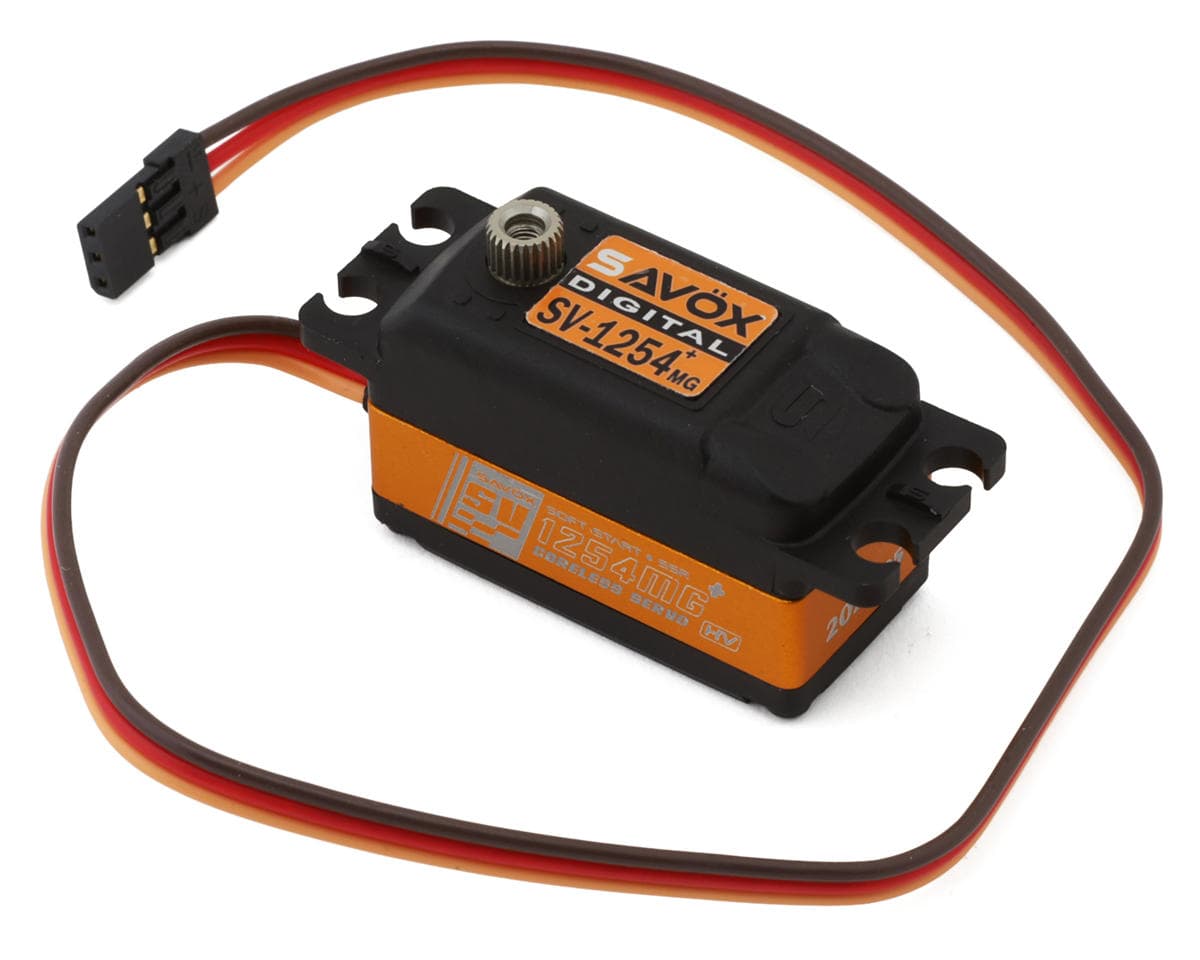

The Savox SV-1254MGP Hybrid "High Speed" Low Profile Digital Steel Gear Servo is designed for builds that need fast response and dependable torque in a compact footprint. Its low-profile layout makes it a strong fit for tighter chassis spaces while still offering performance comparable to standard-size servos. With a coreless motor, steel gear train, and high-voltage capability, it provides a balanced combination of speed, strength, and durability. As part of the Plus series, it also includes Soft Start and Sanwa SSR compatibility for smoother activation and improved radio responsiveness.
About the SV-1254MGP Servo
Low Profile Design
The SV-1254MGP delivers the feel and capability of a standard servo while fitting into a slimmer, low-profile case. This makes it ideal for vehicles where space is limited but consistent performance is still required. Its coreless motor supports fast transit times, giving the servo a responsive character during operation. The compact size helps reduce weight and improve layout flexibility without sacrificing output.
Steel Gear Durability & Hybrid Case Construction
A steel gear train provides the durability needed for repeated use and long-term reliability. These gears are designed to handle steady operation and resist wear over time. The hybrid case design features an aluminum middle section that helps dissipate heat, supporting stable performance during extended sessions. This combination of materials helps maintain smooth movement and structural rigidity.
Plus-Series Enhancements
As a Plus-series model, the SV-1254MGP includes Soft Start for gentle, controlled engagement when powering on, reducing stress on linkages and electronics. Sanwa SSR compatibility ensures improved communication with supported radios, offering a more responsive feel. With high-voltage capability and a torque rating of 250oz-in at 8.4V, the servo provides dependable output for a variety of applications. These features make it a versatile option for users who need reliable performance in a compact package.
Features:
- Low profile design suited for tighter chassis spaces
- Steel gear train built for durability and long-term reliability
- Hybrid case with aluminum middle section for heat dissipation
- Coreless motor supporting fast transit performance
- Soft Start function included as part of the Plus series
- Sanwa SSR compatibility for improved radio response
- 250oz-in torque rating at 8.4V
- High-voltage capable for expanded setup options
- Standard-size performance in a compact footprint
- Durable construction intended for repeated use
Includes:
- (1) SV-1254MGP Hybrid "High Speed" Low Profile Digital Steel Gear Servo

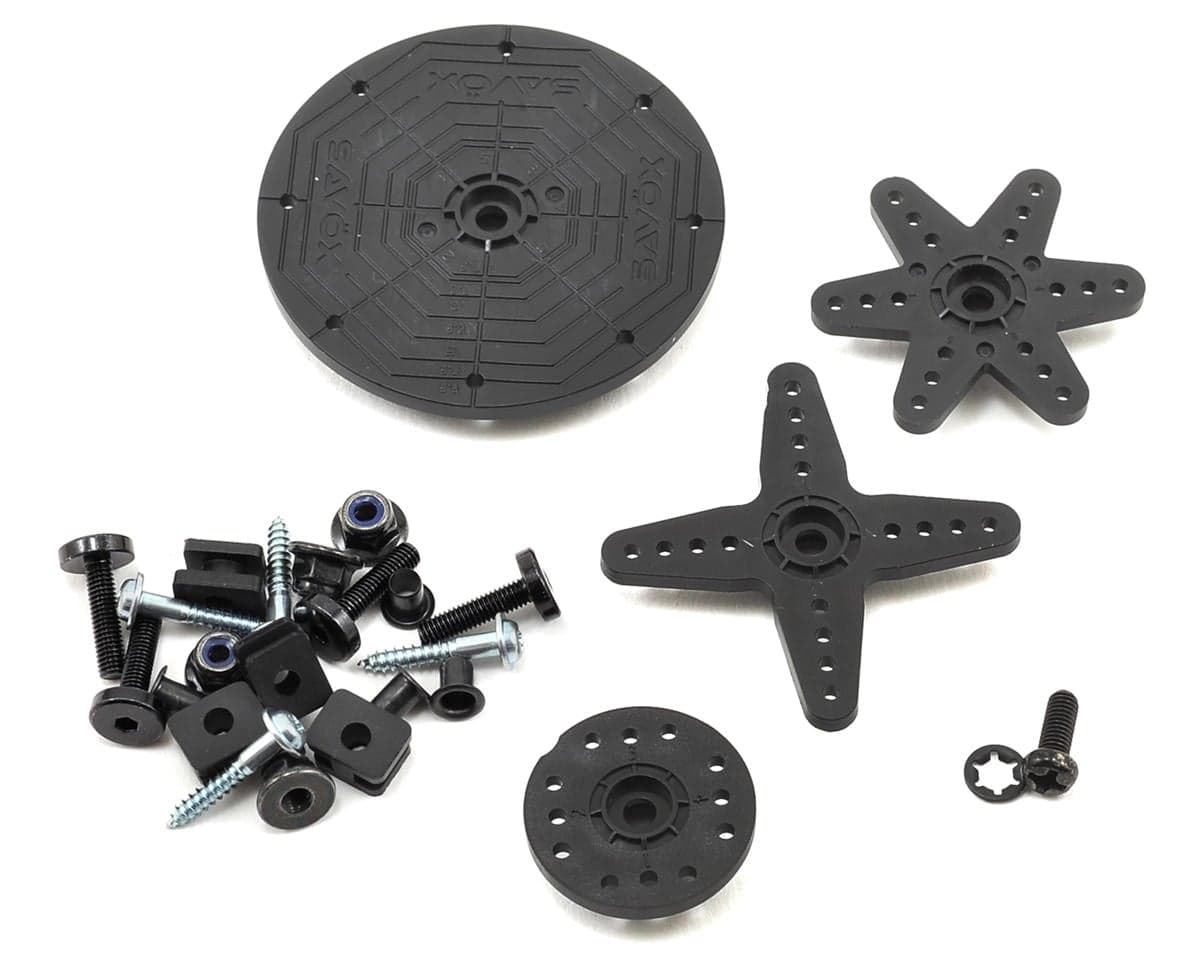

- Servo Horns & Accessories
Specifications:
| Application | 1/10 |
|---|---|
| Input Voltage | 7.4-8.4V |
| Operating Speed @ 7.4V | 0.085 sec/60° |
| Operating Speed @ 8.4V | 0.075 sec/60° |
| Dynamic Torque @ 7.4V | 208.3oz-in (15kg-cm) |
| Dynamic Torque @ 8.4V | 250oz-in (18kg-cm) |
| Gear Material | Steel |
| Motor Type | Brushed - Coreless |
| Output Shaft | 25T |
| Dimensions | 1.61x0.8x1in (40.8x20.2x25.4mm) |
| Weight | 1.62oz (46g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews2.0 · 1 review
Many issues. Difficult to install because the wire is placed directly where the mounts go. Way off mechanical center for servo horn to be 90°. Demonstrates brown out so I got a glitch buster capacitor to solve its ridiculous performance. I have had it in 2 models with completely different electronics. Same exact issues. Maybe I received a lemon.
