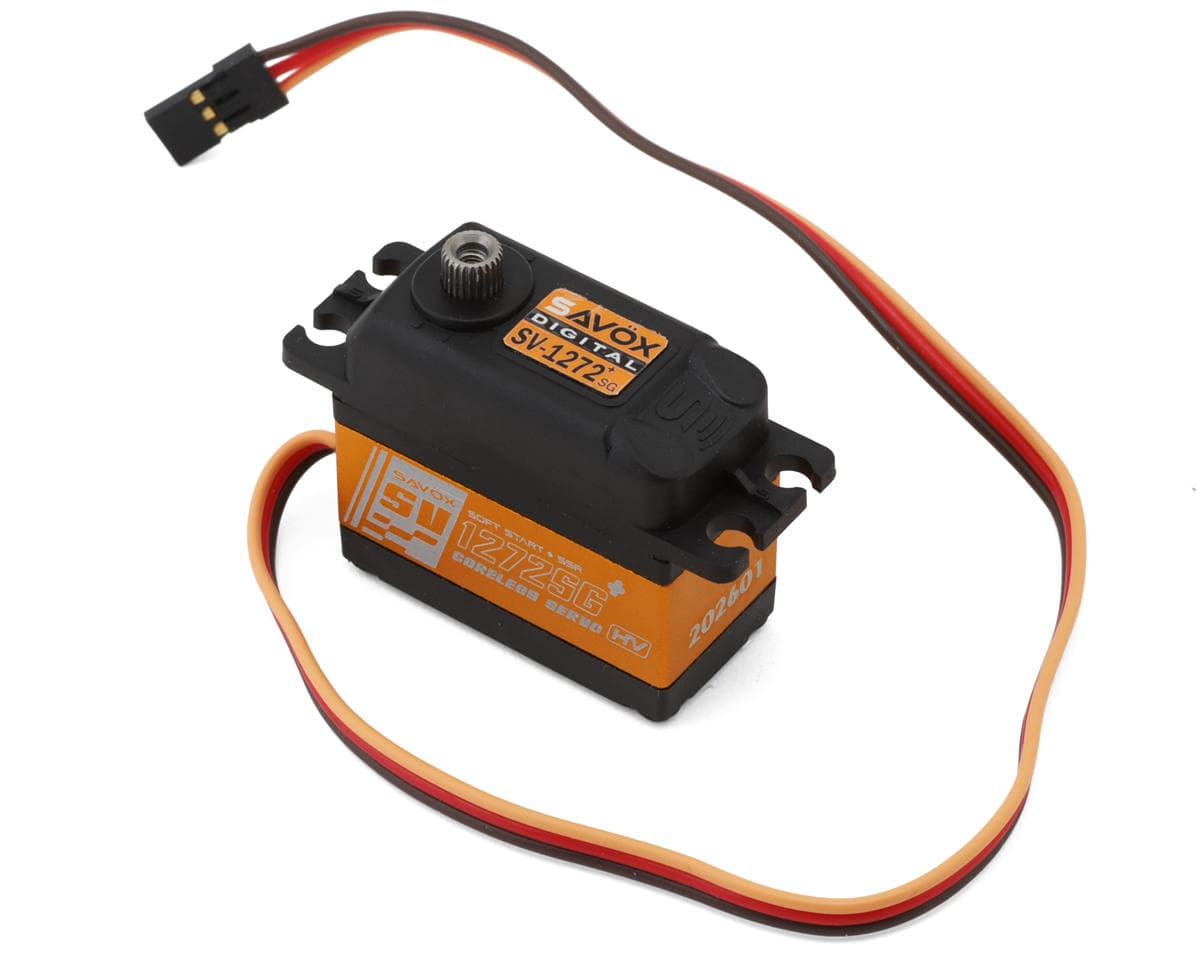

Savox SV-1272SGP Hybrid "Monster Torque" Metal Gear Digital Servo (High Voltage)
About this part
Metal Gear Digital Servo Overview:
The Savox SV-1272SGP Monster Torque Digital Servo delivers massive steering authority in a standard-size package. Designed for high-demand RC applications, this high-voltage servo combines impressive torque output, dependable metal gear durability, and advanced Plus Series technology to provide reliable performance in aircraft, monster trucks, and 1/8 scale off-road vehicles.
About the SV-1272SGP
Monster Torque Performance
With up to 30kg-cm (416.6 oz-in) of torque at 7.4V, the SV-1272SGP is built to handle heavy-duty steering and control tasks with ease. Its powerful output makes it an excellent choice for larger models that require maximum control authority under load.
High-Voltage Capability
The high-voltage design allows the servo to take full advantage of modern power systems while maintaining consistent speed and strength. A transit speed of 0.13 sec/60° provides responsive control without sacrificing the torque needed for demanding applications.
Plus Series Technology
As part of the Savox Plus Series lineup, the SV-1272SGP includes Soft Start technology and Sanwa SSR compatibility. These advanced features improve servo smoothness, responsiveness, and overall driving or flying precision.
Features:
- Capable of HV operation
- Extreme amount of torque in a standard case
- Ideal for large scale aircraft, 1/8 off road buggies and trucks, and Monster Trucks
- Durable metal geartrain
- Soft Start technology
- Sanwa SSR compatible
- Designed for accuracy and longevity
- Suitable for a wide range of applications
Includes:
- (1) SV-1272SGP "Monster Torque" Metal Gear Digital Servo
Specifications:
| Application | 1/8 |
|---|---|
| Operating Voltage | 6.0-7.4V |
| Operating Temperature | - |
| Operating Speed @ 7.4V | 0.10sec/60° sec |
| Operating Speed @ 8.4V | 0.009sec/60° sec |
| Dynamic Torque @ 7.4V | 486.1oz-in (35 kg-cm) |
| Dynamic Torque @ 8.4V | 555.5oz-in (40 kg-cm) |
| Motor Type | - |
| Output Shaft | 25T |
| Gears | Metal |
| Weight | 1.4oz (41.0g) |
| Dimensions | 1.6x0.7x1.4in (40.7x20.0x37.0mm) |
