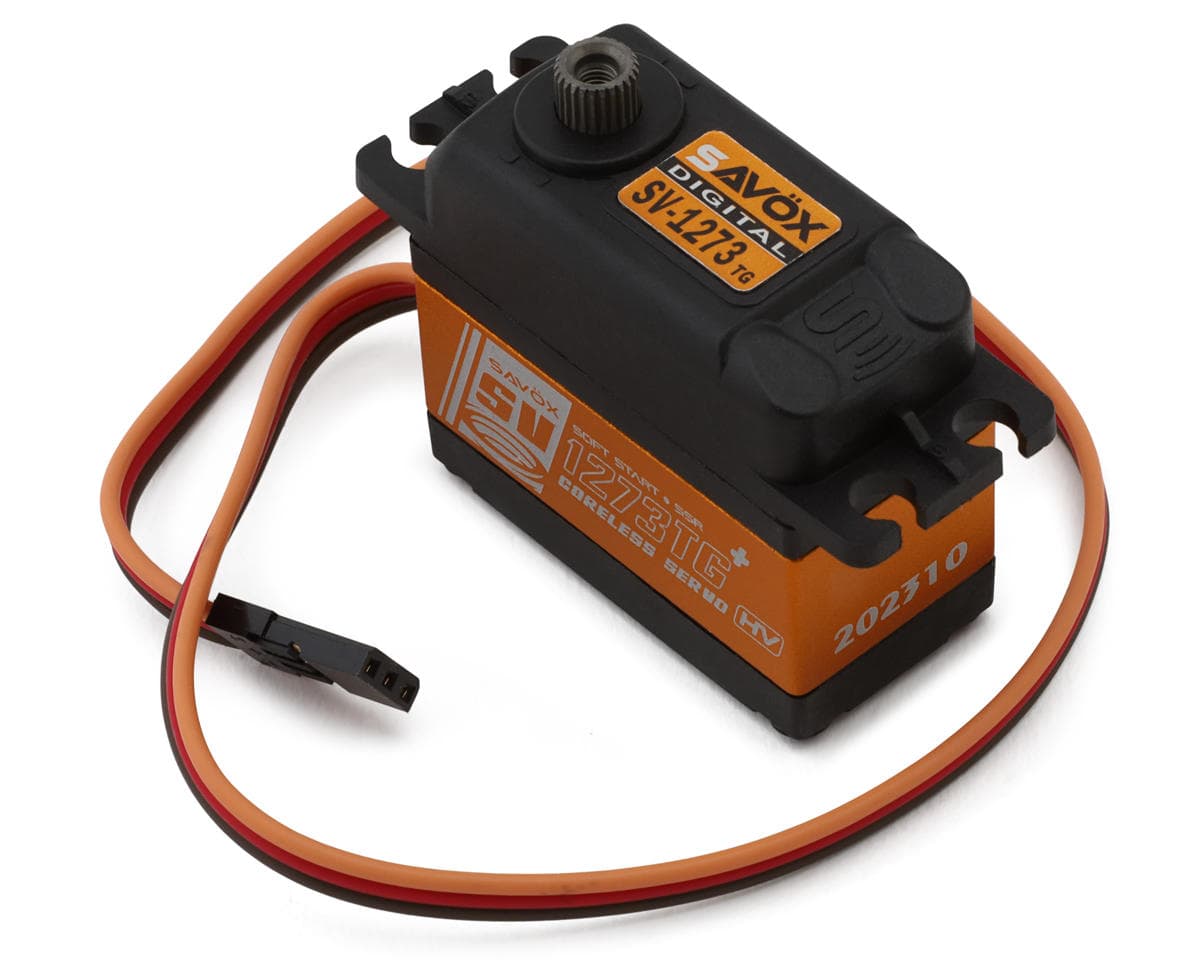

Savox SV-1273TGP Hybrid "Ultra Speed" Titanium Gear Digital Servo (HV) w/Soft Start
About this part
Servo Overview:
Built for extreme speed and precision control, the Savox SV-1273TGP combines ultra-fast digital response, rugged titanium gears, and high-voltage performance to deliver elite-level reliability for 1/10 buggies and helicopter applications.
About the SV-1273TGP Servo
Ultra Speed Response
The Savox SV-1273TGP delivers lightning-fast digital performance with speeds as quick as 0.055 sec/60° at 8.4V. Built for high-voltage operation, it provides sharp, responsive control ideal for 1/10 buggies and helicopter applications.
Heavy Duty Titanium Performance
Precision-made titanium gears give this servo outstanding strength and durability under heavy use. Combined with coreless motor technology, it ensures smooth operation while handling high loads with consistent reliability.
Advanced Contro Tech
As part of Savox’s Plus series, it features Soft Start for smoother movement and Sanwa SSR compatibility for enhanced responsiveness. Its compact, lightweight design delivers professional-grade control in demanding RC racing and flight setups.
Features:
- Ultra-speed digital servo for rapid response control
- High-voltage compatible for strong and consistent power
- Titanium gears provides extreme durability
- Fast speed down to 0.055 sec/60° at 8.4V
- Delivers up to 25.0kg (347.2 oz-in) of torque at 8.4V
- Coreless motor ensures smooth and efficient operation
- Soft Start technology improves movement smoothness
- Ideal for 1/10 buggies and helicopter applications
Includes:
- (1) SV-1273TGP Hybrid "Ultra Speed" Titanium Gear Digital Servo (HV)

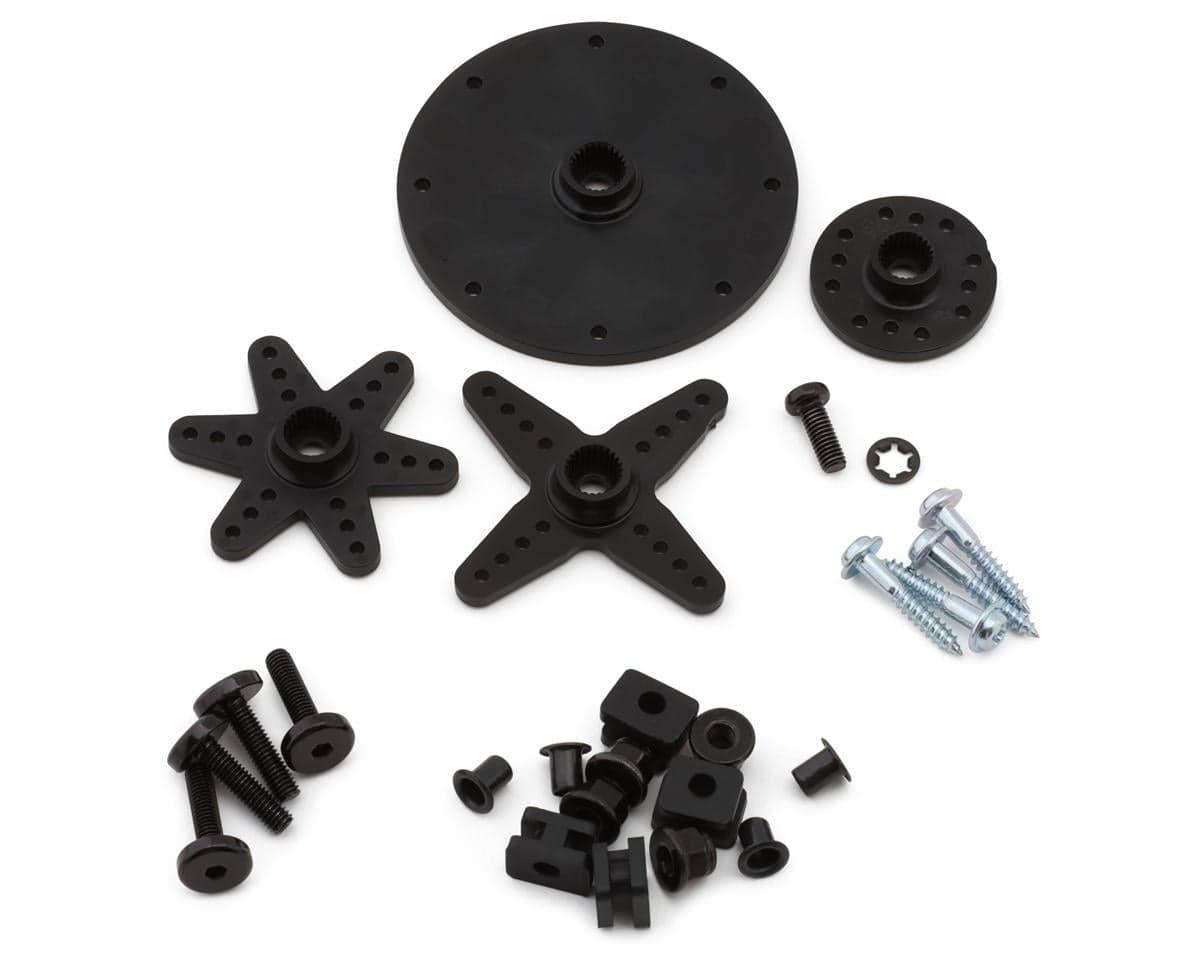

- Composite Servo Horns & Accessories
Specifications:
| Application | 1/10 Off-Road & Some Helicopters |
|---|---|
| Input Voltage | 6-8.4V |
| Operating Speed @ 6.0V | sec/60° |
| Operating Speed @ 7.4V | 0.065 sec/60° |
| Operating Speed @ 8.4V | 0.055sec/60° |
| Dynamic Torque @ 6.0V | oz-in (25kg-cm) |
| Dynamic Torque @ 7.4V | 277.7oz-in (20kg-cm) |
| Dynamic Torque @ 8.4V | 347.2oz-in (25kg-cm) |
| Gear Material | Titanium |
| Motor Type | Brushed |
| Output Shaft Spline | 25T |
| Dimensions | 1.59x0.8x1.46in (40.3x20.2x37.2mm) |
| Weight | 2.26oz (64g) |
