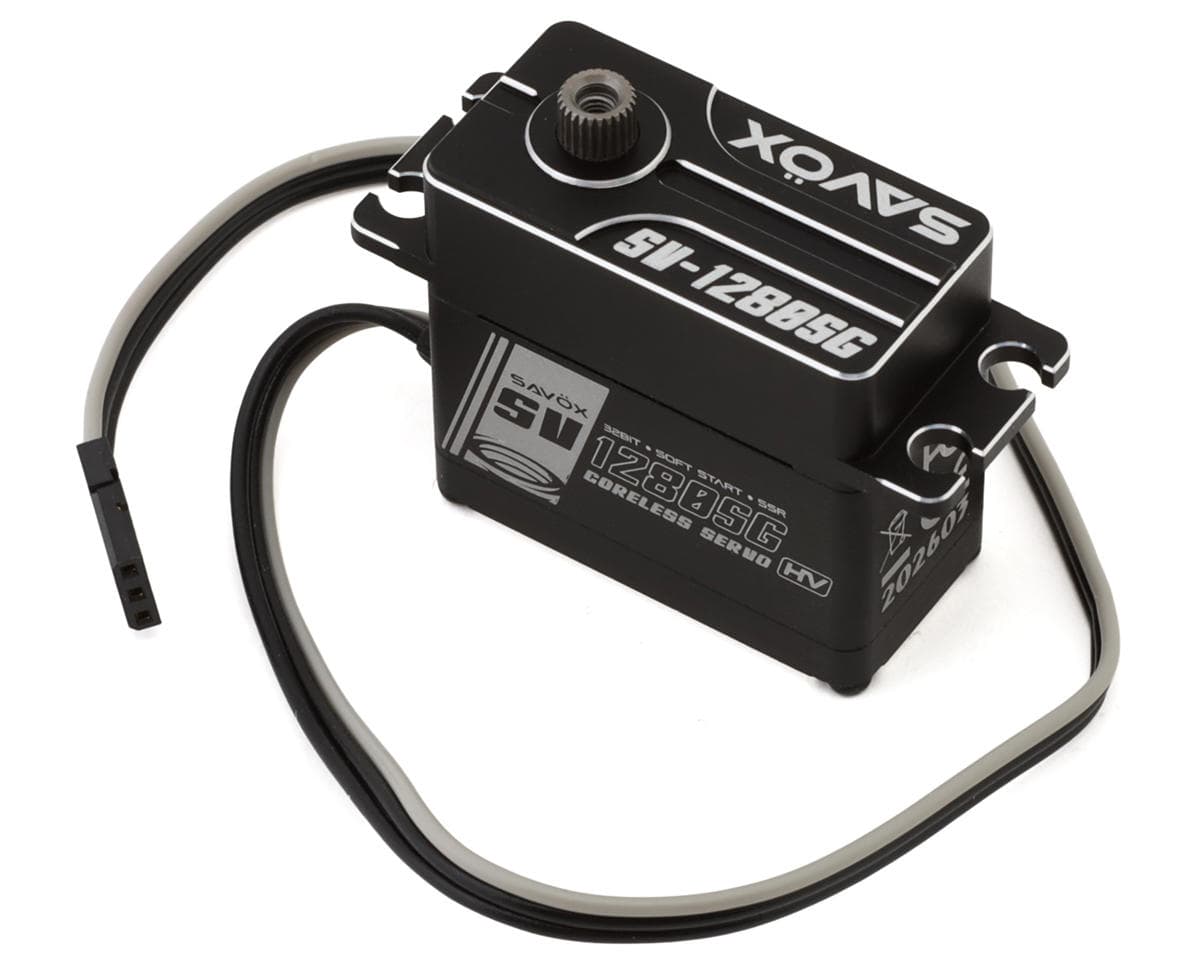

Savox SV-1280SGP Black Edition Digital "Monster Torque" Steel Gear Servo (High Voltage)
About this part
Monster Torque Steel Gear Servo Overview:
The Savox SV-1280SGP Black Edition Servo is a high-voltage digital servo engineered to deliver exceptional torque, speed, and durability for demanding RC applications. Featuring a powerful coreless motor, CNC-machined steel gears, and an aluminum case, this servo is built to provide reliable performance in everything from large-scale aircraft to 1/8 scale off-road vehicles.
About the SV-1280SGP
Monster Torque Performance
Designed for applications where steering authority and holding power are critical, the SV-1280SGP generates up to 55kg-cm (763.8 oz-in) of torque when powered by 8.4V. This impressive output provides the strength needed to handle large tires, heavy vehicles, and high-load control surfaces with confidence.
Steel Gear Durability
The servo utilizes a full set of CNC-machined steel gears for maximum durability under demanding conditions. Combined with a rugged aluminum case, the drivetrain is built to withstand heavy impacts and prolonged use while helping dissipate heat for consistent performance.
High-Voltage
Compatible with input voltages up to 8.4V, the SV-1280SGP takes full advantage of modern HV power systems to deliver increased speed and torque. Features such as Soft Start and Sanwa SSR compatibility further enhance responsiveness and control, making this servo an excellent choice for high-performance RC builds.
Features:
- High-voltage operation up to 8.4V
- Delivers up to 55kg-cm (763.8 oz-in) of torque
- Fast 0.12 sec/60° transit speed at 8.4V
- Powerful digital coreless motor
- CNC-machined steel geartrain for maximum durability
- Aluminum case improves heat dissipation
- Soft Start technology for smoother operation
- Sanwa SSR compatible for enhanced response speed

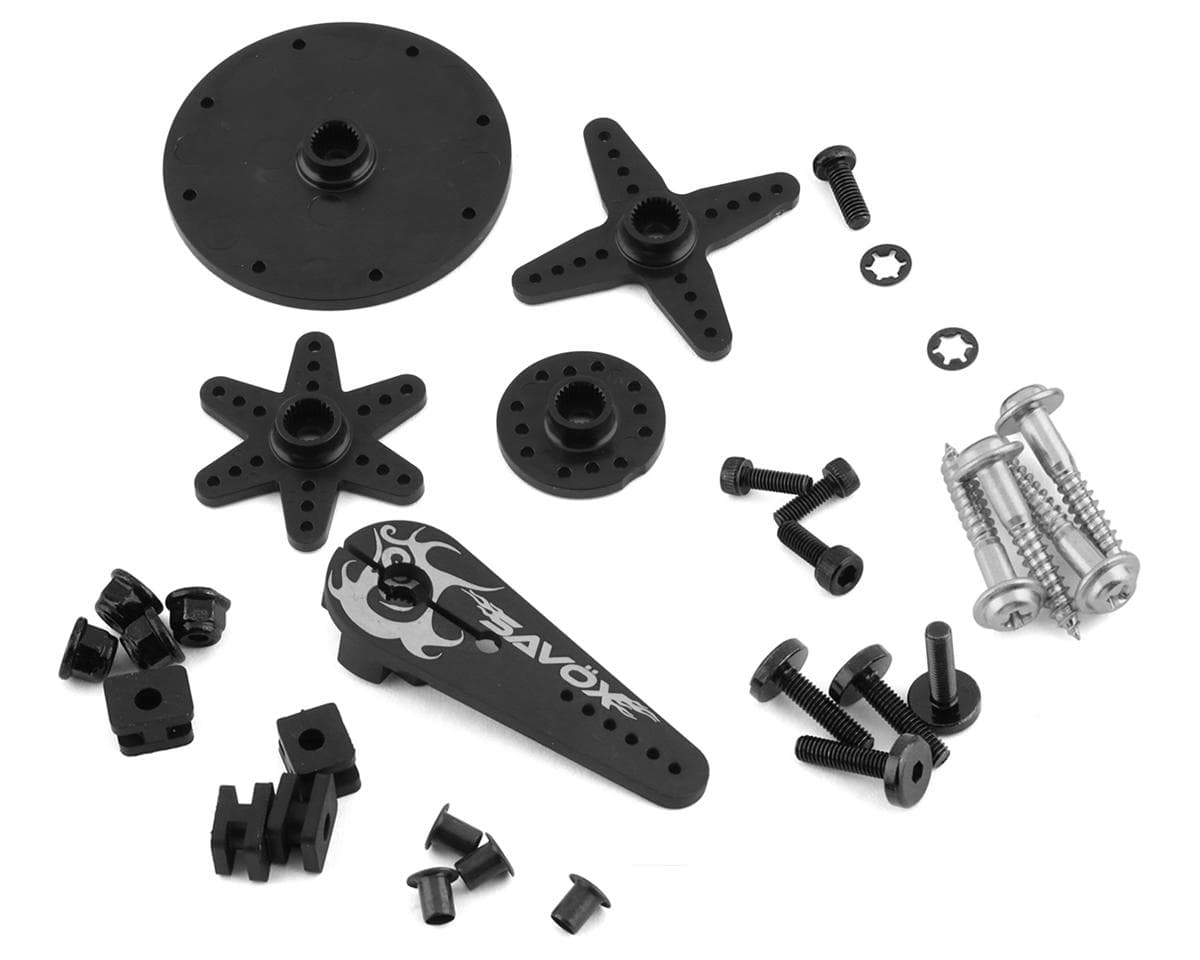

Includes:
- (1) SV-1280SGP Black Edition Digital "Monster Torque" Steel Gear Servo
- (1) Aluminum Servo Horn
Specifications:
| Application | 1:8 |
|---|---|
| Operating Voltage | 7.4V - 8.4V |
| Operating Temperature | - |
| Operating Speed @ 7.4V | 0.14sec/60° sec |
| Operating Speed @ 8.4V | 0.12sec/60° sec |
| Dynamic Torque @ 7.4V | 624.9oz-in (45 kg-cm) |
| Dynamic Torque @ 8.4V | 763.8oz-in (55 kg-cm) |
| Motor Type | Corless Digital |
| Output Shaft | 25T |
| Gears | Steel |
| Weight | 2.6oz (76g) |
| Dimensions | 1.58x0.79x1.5in (40.3x20.2x38.2mm) |
