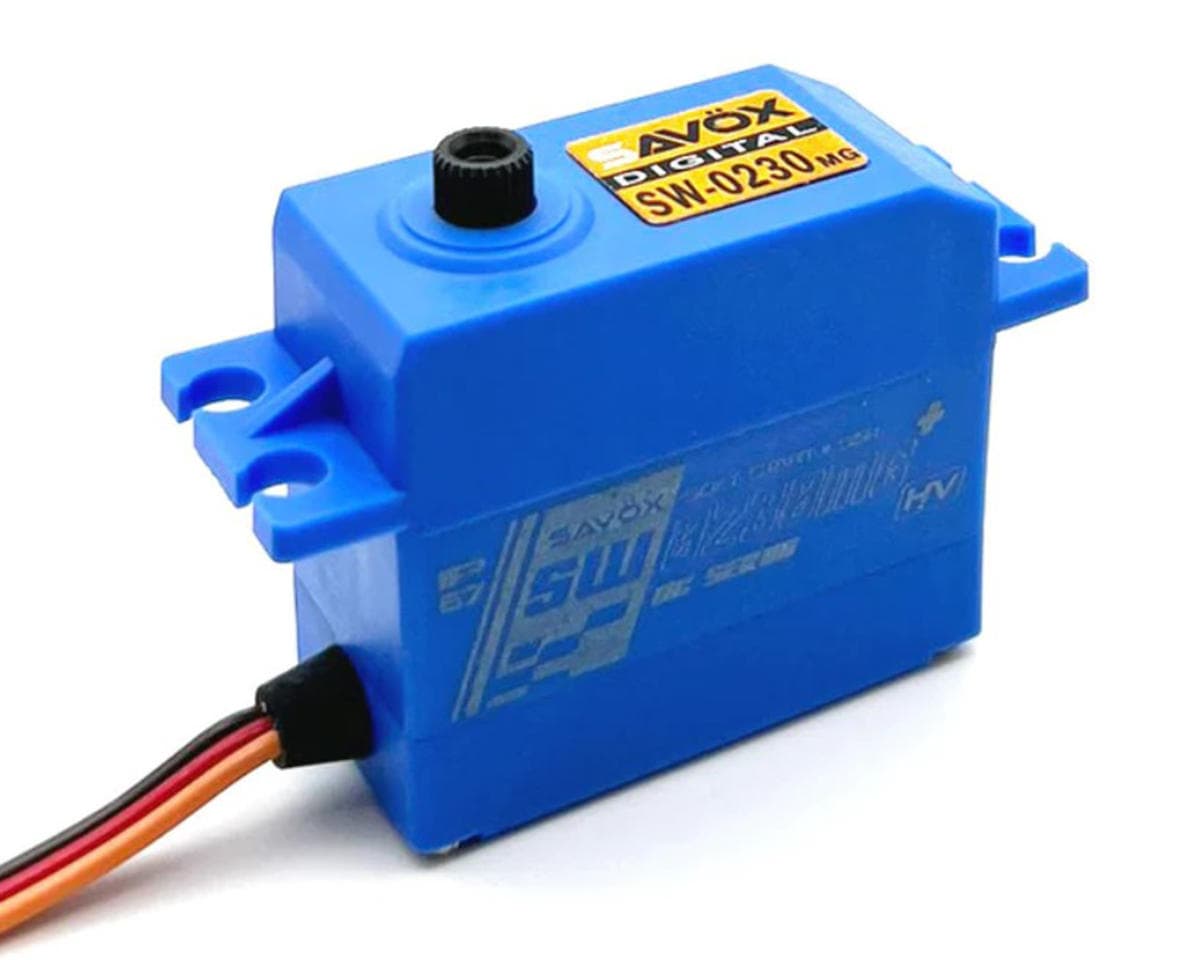

Savox SW-0230MGP Waterproof Metal Gear Digital Servo (High Voltage)
About this part
Waterproof Metal Gear Digital Servo
The Savox SW-0230MGP Waterproof Metal Gear Digital Servo is a reliable and budget-friendly upgrade designed for all-weather RC performance. Built to handle harsh conditions, this servo delivers consistent power and control whether you're driving through mud, rain, or snow. Its rugged construction and high-voltage capability make it a versatile option for a wide range of RC cars, trucks, and boats. Combining durability with smooth digital performance, it’s a dependable choice for everyday bashing and beyond.
About the SW-0230MGP Waterproof Servo
All-Weather Waterproof Performance
Engineered with a waterproof case design, the SW-0230MGP is ready to tackle wet and unpredictable environments. Whether you're splashing through puddles or running in snowy conditions, this servo maintains consistent operation without compromise. This makes it an ideal upgrade for drivers who push their vehicles in all types of terrain and weather.
Durable Metal Gear Strength
Equipped with a strong metal gear train, this servo is built to handle the stress of demanding applications. The durable gears provide long-lasting performance and resistance to wear, ensuring reliable operation even under heavy loads. This added toughness makes it well-suited for off-road vehicles and high-impact driving.
High-Voltage Performance And Advanced Features
Capable of operating on high voltage up to 7.4V, the SW-0230MGP delivers increased torque and faster speeds for improved responsiveness. “Plus” series features like Soft Start and Sanwa SSR compatibility enhance control and protect internal components during operation. With a balance of speed, torque, and advanced functionality, this servo offers excellent performance for its class.
Features:
- Waterproof Case Design
- Metal Gear Train Construction
- High-Voltage (HV) Compatible
- Soft Start Functionality
- Sanwa SSR Compatibility
- Torque Up To 111.1 oz-in At 7.4V
- Fast 0.13 sec/60° Speed At 7.4V
- Durable For Harsh Conditions
- Ideal For Cars, Trucks, And Boats
- Budget-Friendly Performance Upgrade
Includes:

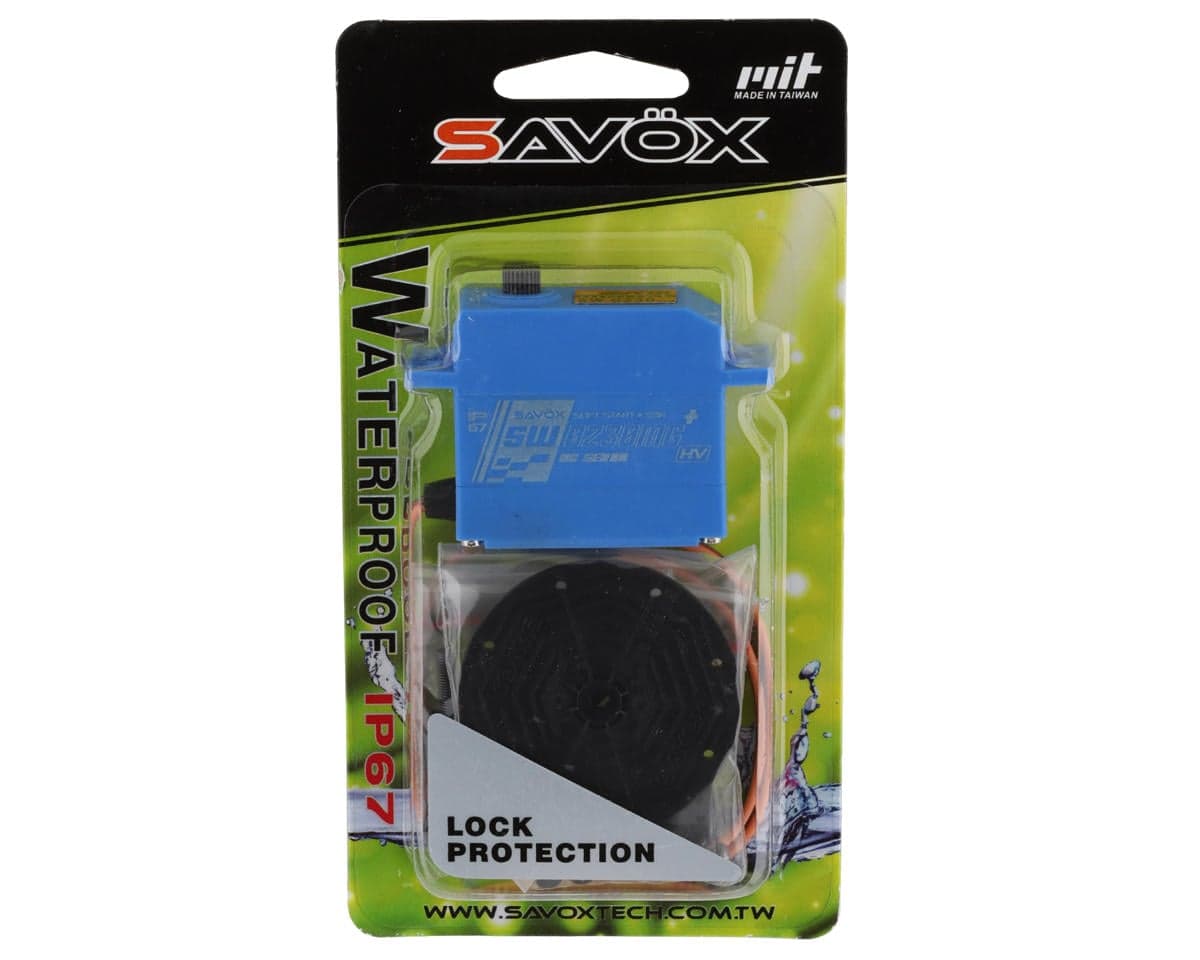

- (1) SW-0230MGP Waterproof Metal Gear Digital Servo (High Voltage)
- Servo Horns & Accessories
Specifications:
| Application | 1/10 |
|---|---|
| Input Voltage | 6.0-8.4V |
| Operating Speed @ 6.0V | 0.16 sec/60° |
| Operating Speed @ 7.4V | .13 sec/60° |
| Dynamic Torque @ 6.0V | 90.3oz-in (6.5kg-cm) |
| Dynamic Torque @ 7.4V | 111.1oz-in (8.0kg-cm) |
| Gear Material | Metal |
| Motor Type | Coreless |
| Output Shaft Spline | 25T |

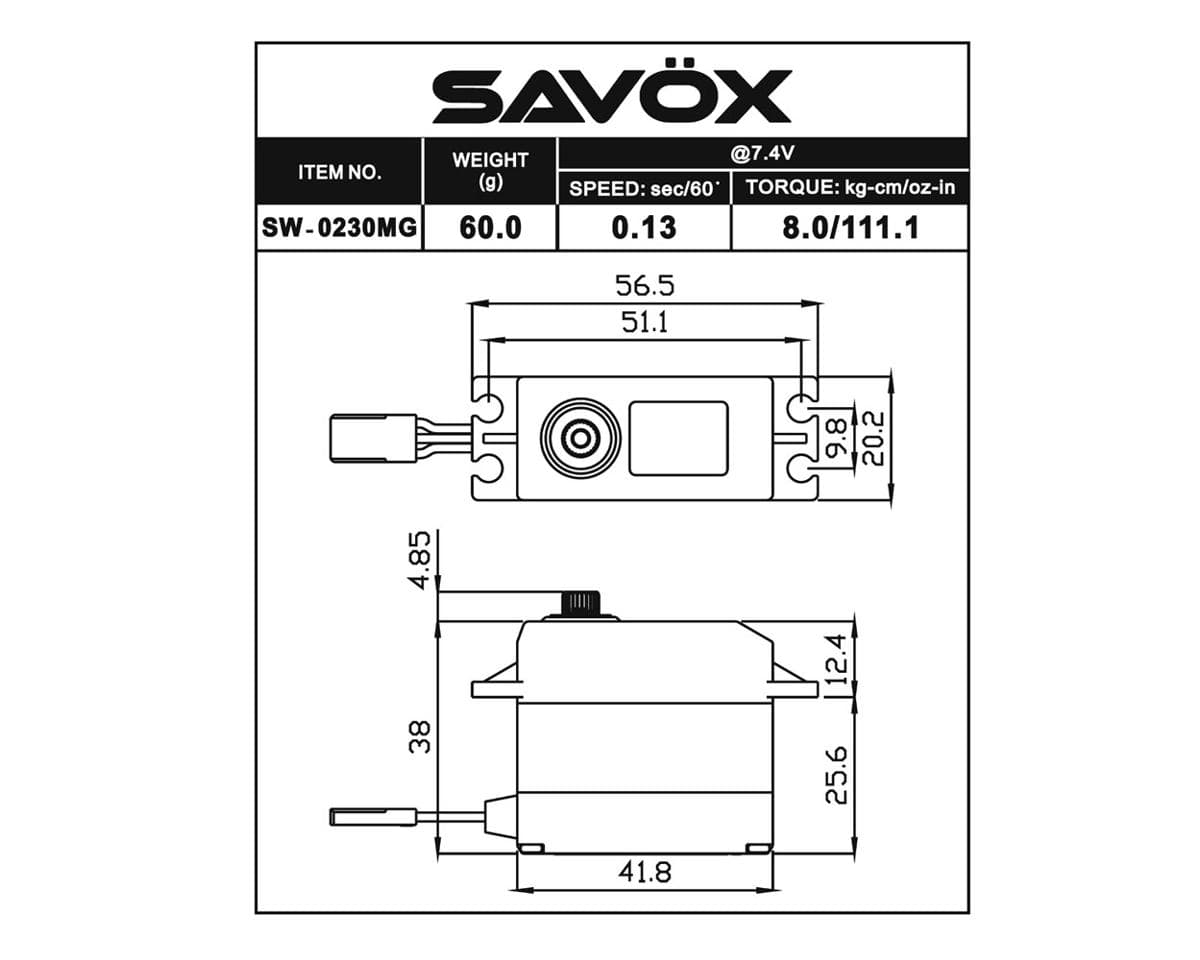

| Dimensions | 1.65x0.80x1.50in (41.8x20.2x38mm) |
| Weight | 2.12oz (60g) |
