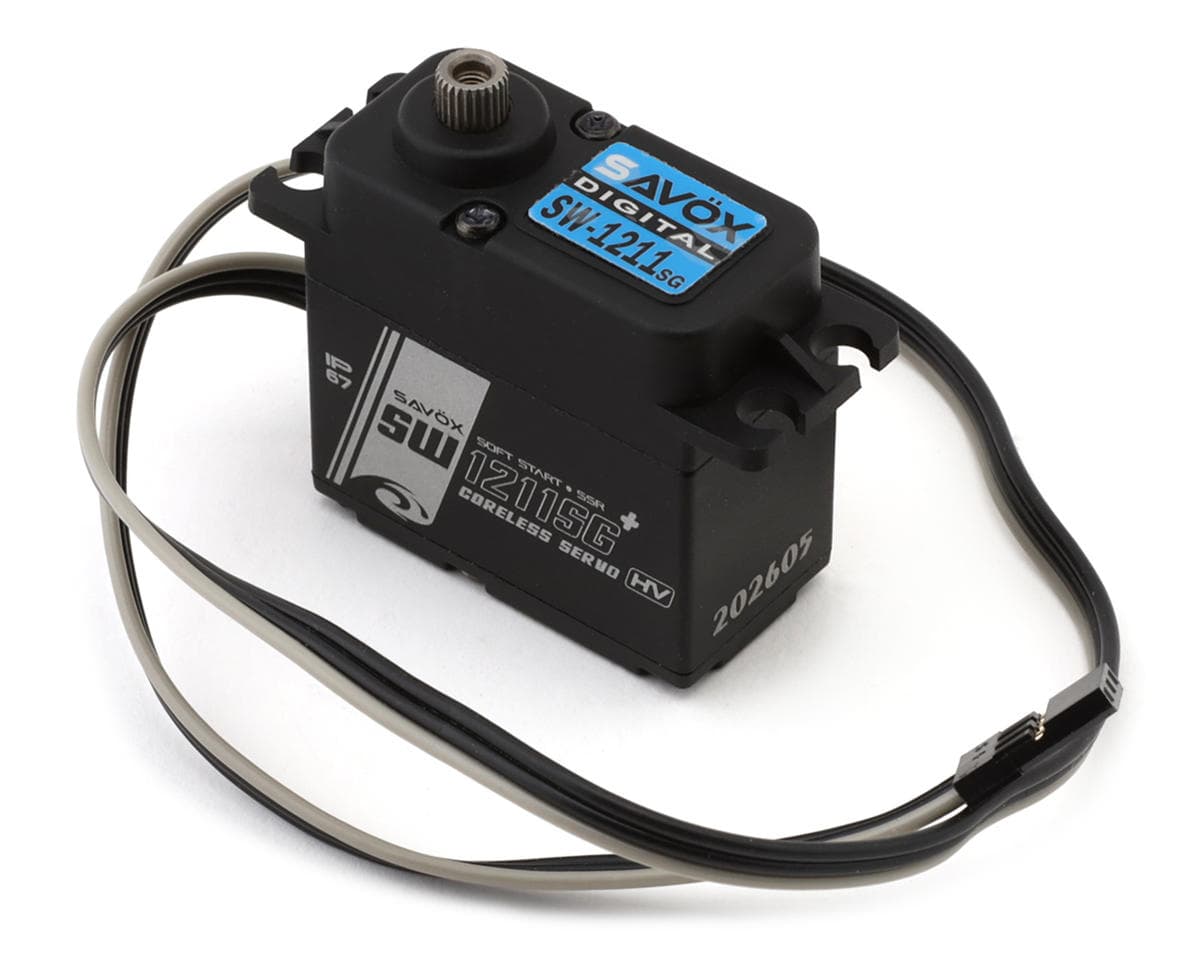

Savox SW-1211SGP Black Edition Hybrid Waterproof Steel Gear Digital Servo (High Voltage)
About this part
SV-1261MG Mini “High Torque” Digital Servo
The Savox SW-1211SGP Black Edition Hybrid Waterproof Steel Gear Digital Servo is built for drivers who demand power, durability, and all-weather reliability. Designed as a versatile upgrade over standard RTR servos, it delivers exceptional torque and speed for a wide range of RC applications. Its rugged waterproof construction ensures dependable performance in harsh environments like mud, rain, and snow. With high-voltage capability and premium components, this servo is ready for serious performance right out of the box.
About the SV-1261MG Mini Digital Servo
Extreme Torque And High-Voltage Performance
The SW-1211SGP delivers massive torque output, reaching up to 416.6 oz-in at 8.4V, making it ideal for high-demand steering and throttle applications. Its HV capability allows it to take full advantage of modern LiPo power systems for increased performance. Combined with fast speeds of up to 0.07 sec/60°, it provides both strength and responsiveness for competitive driving.
Durable Steel Gear Construction
Equipped with a strong steel gear train, this servo is built to handle heavy loads and punishing conditions. The hybrid gear design ensures long-lasting durability while maintaining smooth and reliable operation. This makes it an excellent choice for off-road vehicles, trucks, and boats that experience high stress during use.
Waterproof Design And Advanced Features
The fully waterproof case protects internal components from water, dirt, and debris, allowing for consistent performance in all weather conditions. As part of the “Plus” series, it includes Soft Start functionality and Sanwa SSR compatibility for enhanced control and system protection. These features combine to create a servo that is both tough and technologically advanced.
Features:
- Waterproof Construction For All-Weather Use
- High Torque Output Up To 416.6 oz-in
- High-Voltage (HV) Compatible
- Fast 0.07 sec/60° Speed At 8.4V
- Durable Steel Gear Train
- Hybrid Gear Design
- Soft Start Functionality
- Sanwa SSR Compatibility
- Ideal For 1/10 Vehicles And Boats
- Black Edition Styling
Includes:
- (1) SW-1211SGP Black Edition Hybrid Waterproof Steel Gear Digital Servo

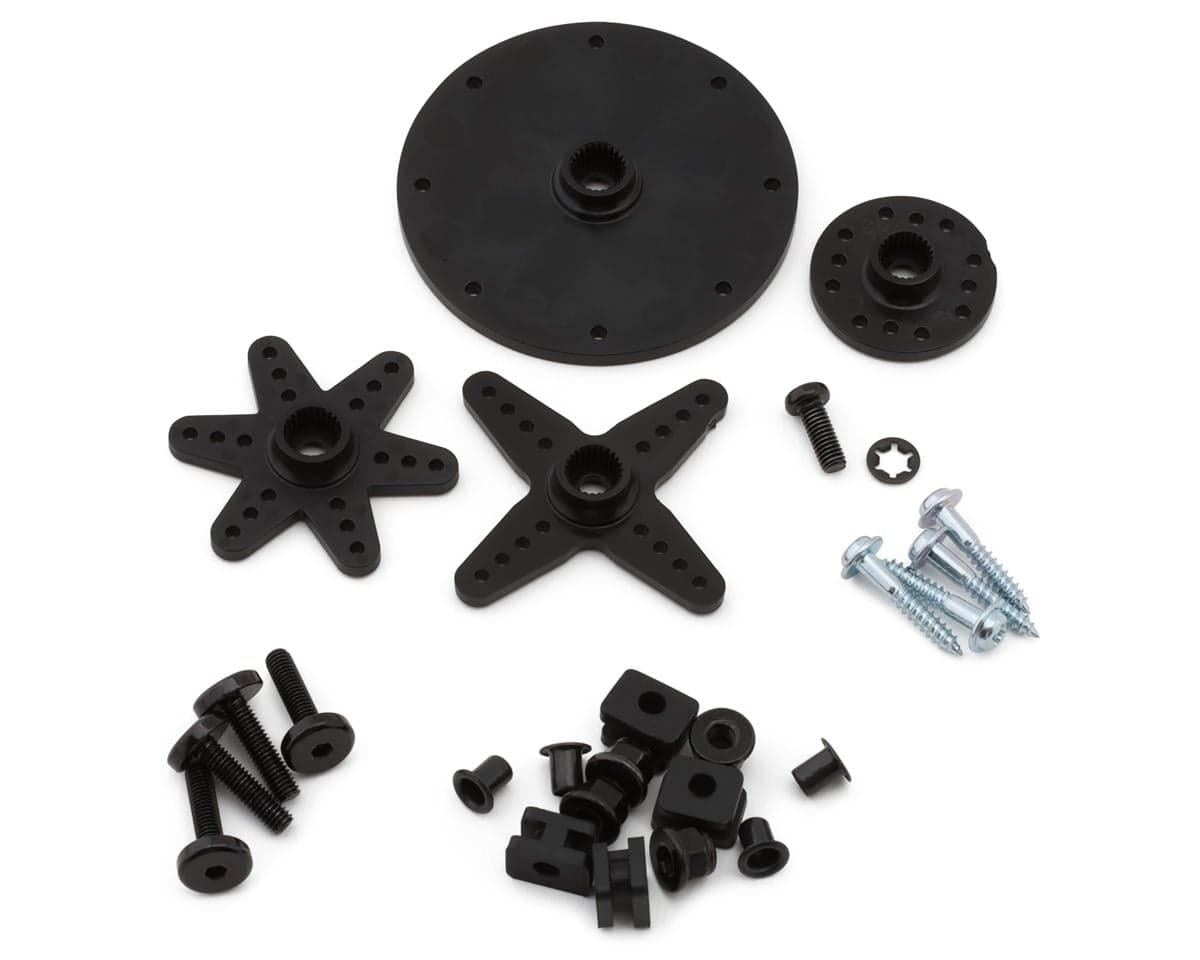

- Servo Horns & Accessories
Specifications:
| Application | 1/10 |
|---|---|
| Input Voltage | 6.0-8.4V |
| Operating Speed @ 7.4V | 0.08 sec/60° |
| Operating Speed @ 8.4V | .07 sec/60° |
| Dynamic Torque @ 7.4V | 347.2oz-in (25.0kg-cm) |
| Dynamic Torque @ 8.4V | 416.6oz-in (30.0kg-cm) |
| Gear Material | Metal |
| Motor Type | Coreless |
| Output Shaft Spline | 25T |
| Dimensions | 1.60x0.82x1.65in (40.6x20.7x42.0mm) |
| Weight | 2.5oz (71g) |
