Savox SW-2290SG-BE Aluminum "Monster Torque" Waterproof Brushless Servo (HV) (Black Edition)
About this part
Servo Overview:
When maximum torque and durability are non-negotiable, the Savox SW-2290SG-BE delivers. Featuring a powerful brushless motor, full aluminum construction, waterproof protection, and an incredible 972.1 oz-in of torque, this Black Edition servo is built to dominate the toughest crawling and bashing conditions.
About the SW-2290SG-BE Servo
Monster Torque Power
The Savox SW-2290SG-BE delivers incredible steering authority with up to 70.0kg (972.1 oz-in) of torque at 8.4V. Its advanced brushless motor and controller technology provide up to 35% more power than previous generations, making it ideal for heavy crawlers, bashers, and oversized tire setups.
Built For Heavy-Duty Tasks
A full aluminum case, hardened steel gears, and three precision ball bearings give this servo exceptional durability. Designed to handle harsh terrain, hard landings, and aggressive driving, it offers long-lasting reliability while efficiently dissipating heat during demanding runs.
All Weather Construction
With an IP67 waterproof rating and high-voltage compatibility, this servo is ready for any adventure. Its sealed design protects against mud, rain, snow, and water crossings, while delivering smooth, responsive control for 1/10, 1/8, and 1/7 scale crawling and bashing applications.
Features:
- Powerful brushless motor delivers smooth and efficient performance
- Produces up to 70.0kg (972.1 oz-in) of torque at 8.4V
- Full aluminum case improves strength and heat dissipation
- IP67 waterproof design handles mud, rain, and water crossings
- Hardened steel gears provide exceptional durability
- High-voltage compatibility supports maximum power output
- Three precision ball bearings ensure smooth operation
- Ideal for 1/10, 1/8, and 1/7 scale crawlers and bashers
Includes:

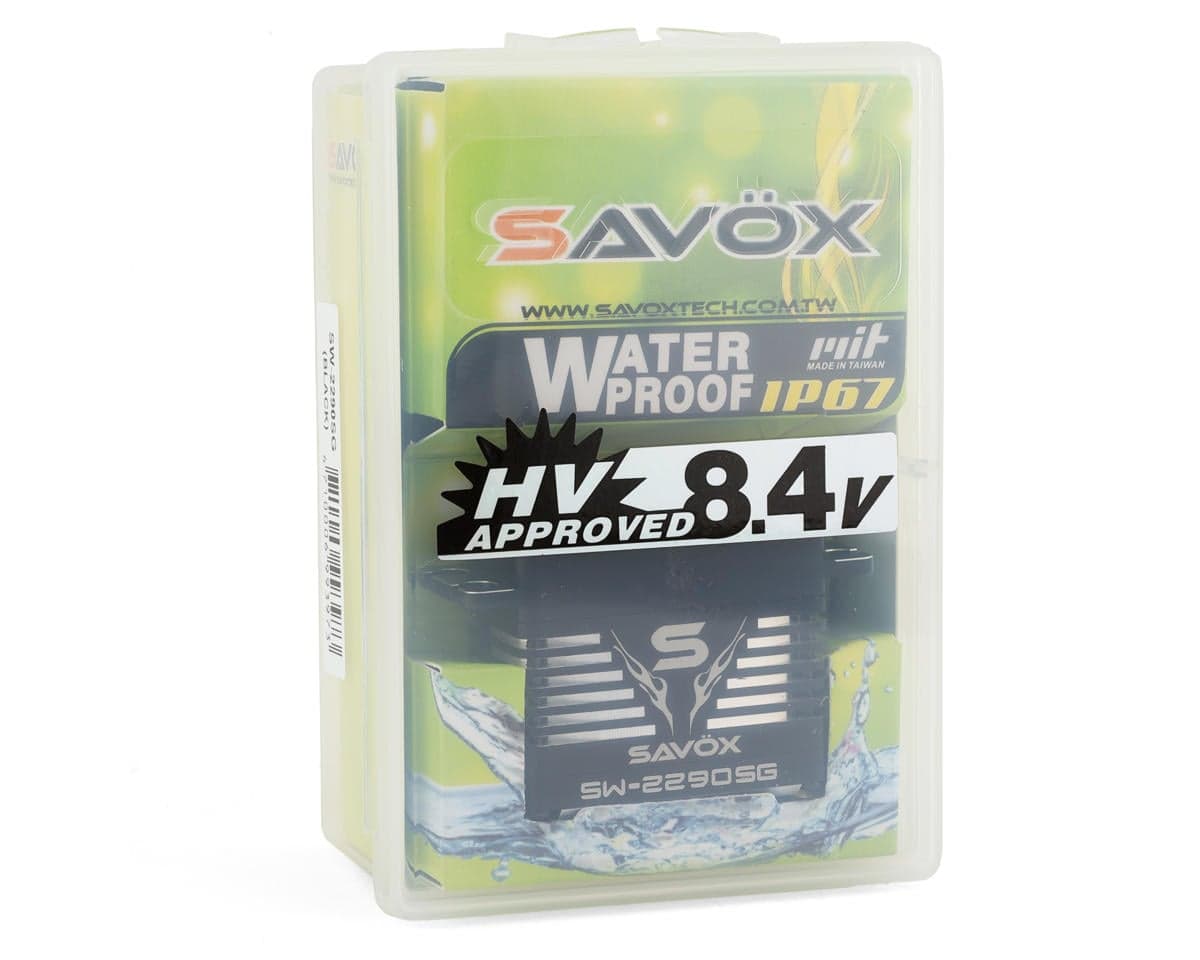

- (1) SW-2290SG-BE Aluminum "Monster Torque" Waterproof Brushless Servo (HV) (Black Edition)

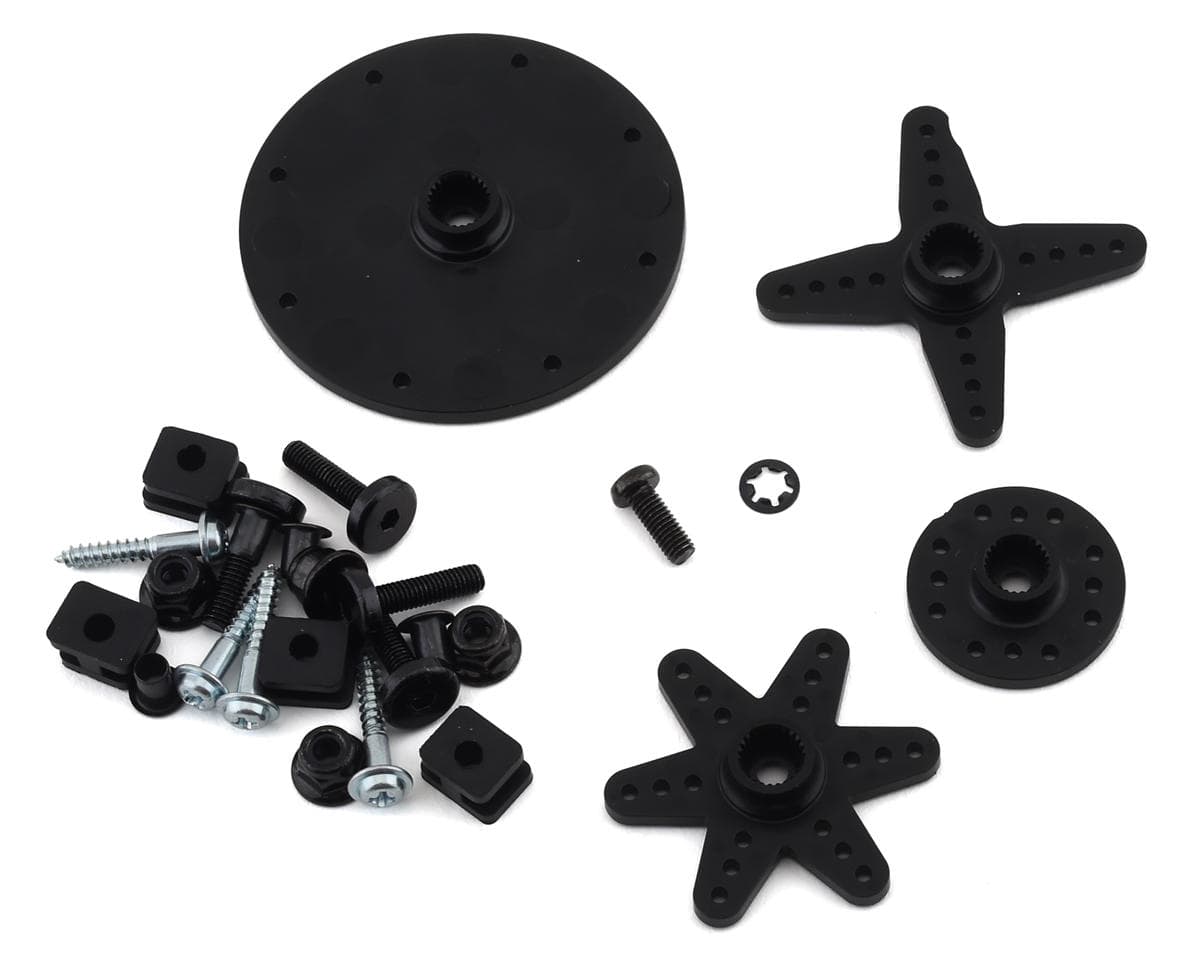

- Composite Servo Horns & Accessories
Specifications:
| Application | 1/10 to 1/7 Bashers & Crawlers |
|---|---|
| Input Voltage | 6-8.4V |
| Operating Speed @ 6.0V | 0.16 sec/60° |
| Operating Speed @ 7.4V | 0.13 sec/60° |
| Operating Speed @ 8.4V | 0.11 sec/60° |
| Dynamic Torque @ 6.0V | 624.9oz-in (45kg-cm) |
| Dynamic Torque @ 7.4V | 763.8oz-in (55kg-cm) |
| Dynamic Torque @ 8.4V | 972.1oz-in (70kg-cm) |
| Gear Material | Steel |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.59x0.8x1.52in (40.3x20.2x38.7mm) |
| Weight | 2.85oz (81g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.8 · 19 reviews
Great servo. Good power and speed. Only complaint it’s noisy compared to reefs. I have never seen a quiet savox servo though lol. Would recommend it.
These are the best servos I’ve ever owned. Incredibly strong and fast. Just put them on my Kyosho MP10 TK12. Super smooth and quiet as well. Worth every penny.
I always have good luck with every savox servo I buy and this one by far is the best of them all
Absolute beast of a servo. Super well made, looks awesome, tons of power, long wires so you can run them how you like. It's worth it. I love it.
Works great in my xmaxx once I set the end points.
Reviewers broadly rate this Savox high-voltage brushless servo highly for strength, speed and torque, with many running it in large trucks, buggies and crawlers. Several praise its build quality and long-term reliability, including one reviewer who reports years of trouble-free use. Noise is the most frequent point of disagreement: some describe it as quiet, while others call it loud or not the quietest option. Reviewers also note fitment issues, including needing to trim a bracket on an X-Maxx and a fitting problem with a chassis adapter on a Mini Maxx. One reviewer reported an O-ring breaking on arrival, and another reported a unit failing out of the box, which was replaced. Several reviews mention the servo running at 6V and 8.4V. Ratings are mostly 5/5, with two 4/5 and one 3/5.
- + Strong torque and power
- + Fast response
- + Solid, well-built construction
- + Reliable long-term performance
- − Noisy operation for some owners
- − Requires bracket trimming or adapter for some chassis
- − O-ring damage reported on arrival
- − Occasional out-of-box failure
