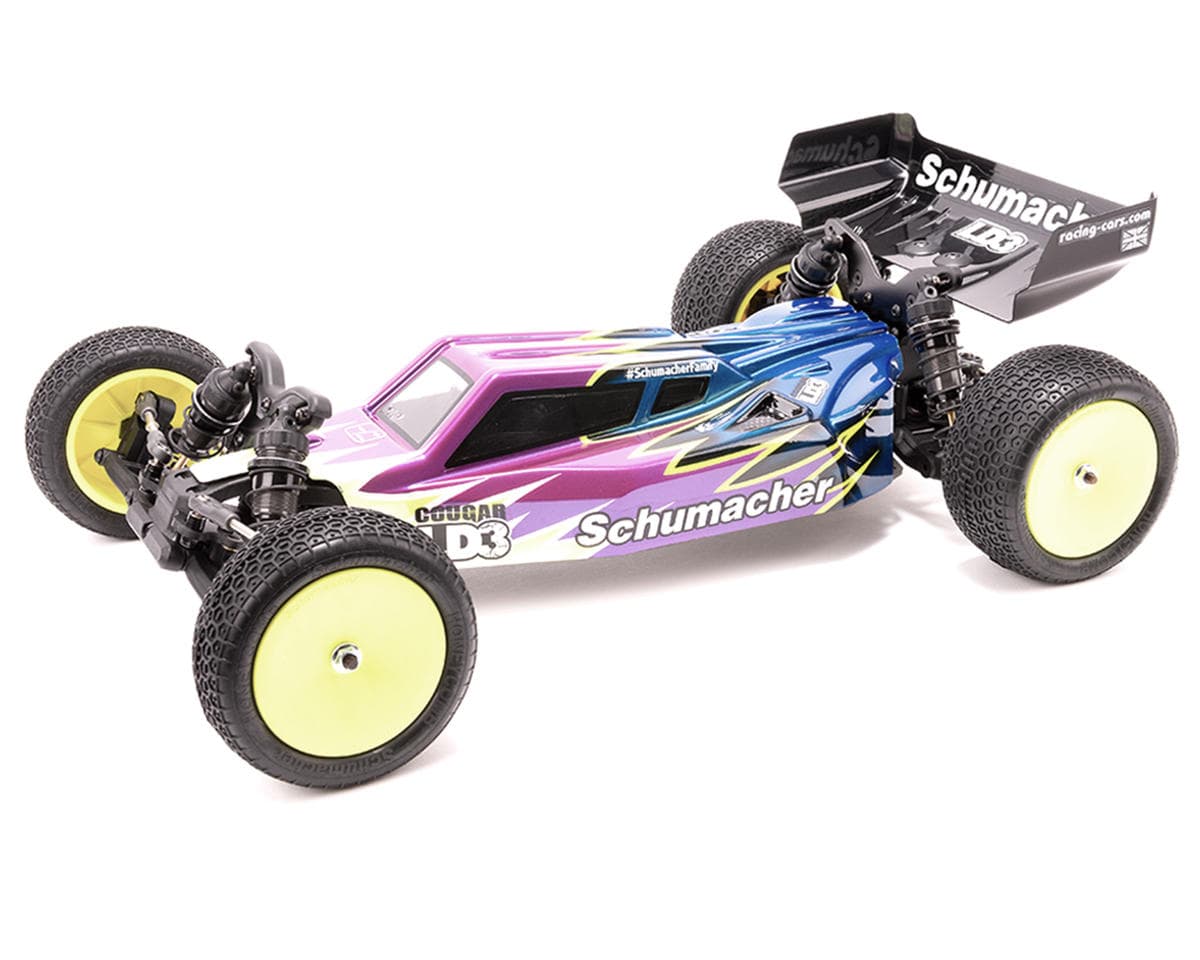

Schumacher Cougar LD3D 1/10 2WD Buggy Kit (Dirt Spec)
About this part
Schumacher Cougar LD3D Racing Buggy
The LD3 is Schumacher's enhanced 1/10th 2WD racing buggy, already a proven winner in numerous national and international races, even earning a World Championship Podium finish. This upgraded model excels in terms of durability, tuneability, weight reduction, and speed. With three distinct chassis specifications available, the LD3 conquers all types of tracks and conditions.
The LD3D is designed for dirt and low-grip racing environments, providing a competitive edge for racers seeking high performance. This LD3D variant of Schumacher's 1/10th 2WD racing buggy lineup incorporates a specialized 'Layback' transmission that moves the motor 6mm more rearward, optimizing it for low-grip dirt and wet astro tracks. Its features are meticulously tailored to excel under challenging conditions. The LD3D's updated motor mount, smaller idler gear, RF (Rear Front) alloy strap, gear shield, and rear hub with inserts all combine to greatly increase rear grip and allow the rear end to follow the front end effortlessly. Additionally, it includes longer rear CVD driveshafts measuring 69.5mm, -2.00mm rear hex, yellow wheels, and wide 2WD front wheels. These enhancements empower the LD3D to deliver superior control and performance, ensuring that racers are well-prepared for the unique demands of loose track competitions.
A combination of class-leading front suspension geometry, lightweight steel CVD driveshafts, an easy-access battery fitting system, updated shock tower geometry to lower CG and improve suspension feel, and meticulous attention to design details make the LD3Ds a standout choice for both experienced and novice racers. Whether you're striving for better lap times or aiming to dominate the competition, the LD3D is a top-notch 2WD buggy you can count on.
Note: Finished kit shown in photos is for illustrative purposes only. See the needed to complete list below for a list of items required to complete the model
LD3D Features:
- Rear layback gearbox
- Updated Motor mount
- Updated transmission housings
- Redesigned smaller idler gear
- Updated Rear Front alloy strap
- Updated Rear hub and inserts for improved rear grip
- Longer 69.5mm rear CVD driveshafts
- 2mm Rear Hexs
Shared Features:
- Front wishbone
- Front hub carrier with increased adjustability
- Front 5 deg caster block
- Improved pivot system for the king pin and outer hinge pin
- 4mm S2 lightened front and rear shock towers for a lower center of gravity and improved geometry
- 13mm Big Bore shocks
- 2.5mm reduced weight alloy chassis design, recessed radio tray, and redesigned rear end
- Internal transmission with redesigned twin pad through slipper for a more centralized assembly
- Moulded internal idler gear with improved Teflon-coated material
- Rear suspension wishbones and alloy rear strap with greater wheelbase adjustment and updated shock positions
Specifications:
- Scale: 1/10
- Length: 15.5in (395mm)
- Width: 9.6in (245mm)
- Wheelbase: 10.8-11.2in (275-285mm)
- Drive: 2WD
- Power Source: Electric
- Assembly Level: Kit
Includes:
- (1) LD3D 2WD Buggy
Needed to Complete:
- 1/10 scale electric motor and electronic speed control
- 7.4V-7.6V 2S LiPo with "shorty" battery dimensions
- Compatible Battery Charger
- 2-channel surface transmitter, 2-channel receiver, and steering servo
- Polycarbonate specific spray paint for body
- 1/10 scale off-road tires
- Tools & Silicone Fluids
Reviews5.0 · 1 review
Just finished the build and went for a quick test run. Its a very well designed buggy, typical Schumacher world class quality. Some elements of note: the kit comes with all the adjustment inserts you will need to effect various major setup changes you may finally need, while aftermarket options are available I have always found the supplied elements to be more than enough. The good news is you don't need to source very much separately if you are worried about that. Some things like the springs for the shocks and what not will need to be sourced separately but the setup out of box is very nice and not leaving me feeling like I need to seek that out. Durability of this vehicle is the best I have seen in many prior products from this or indeed many other companies (having built many over the years). The caster blocks/bearing carriers fell amazingly beefy and the overall quality of the parts is enough to keep me from buying the alloy upgrades, you wont need them (its a bling thing in the case of this kit). My final feeling: if you're on the fence give this one a try, if you are at a track with loose dirt this will fell right at home.
