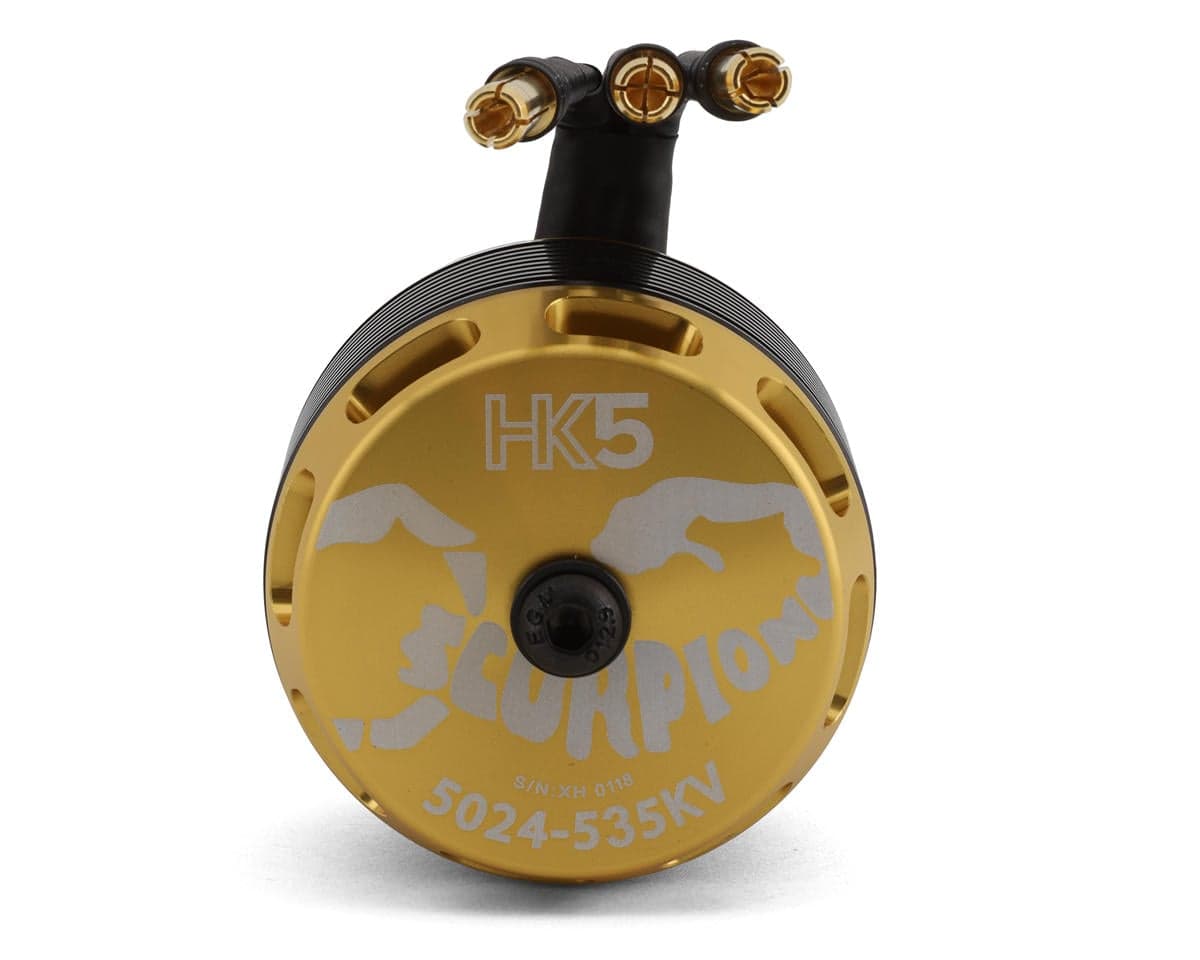

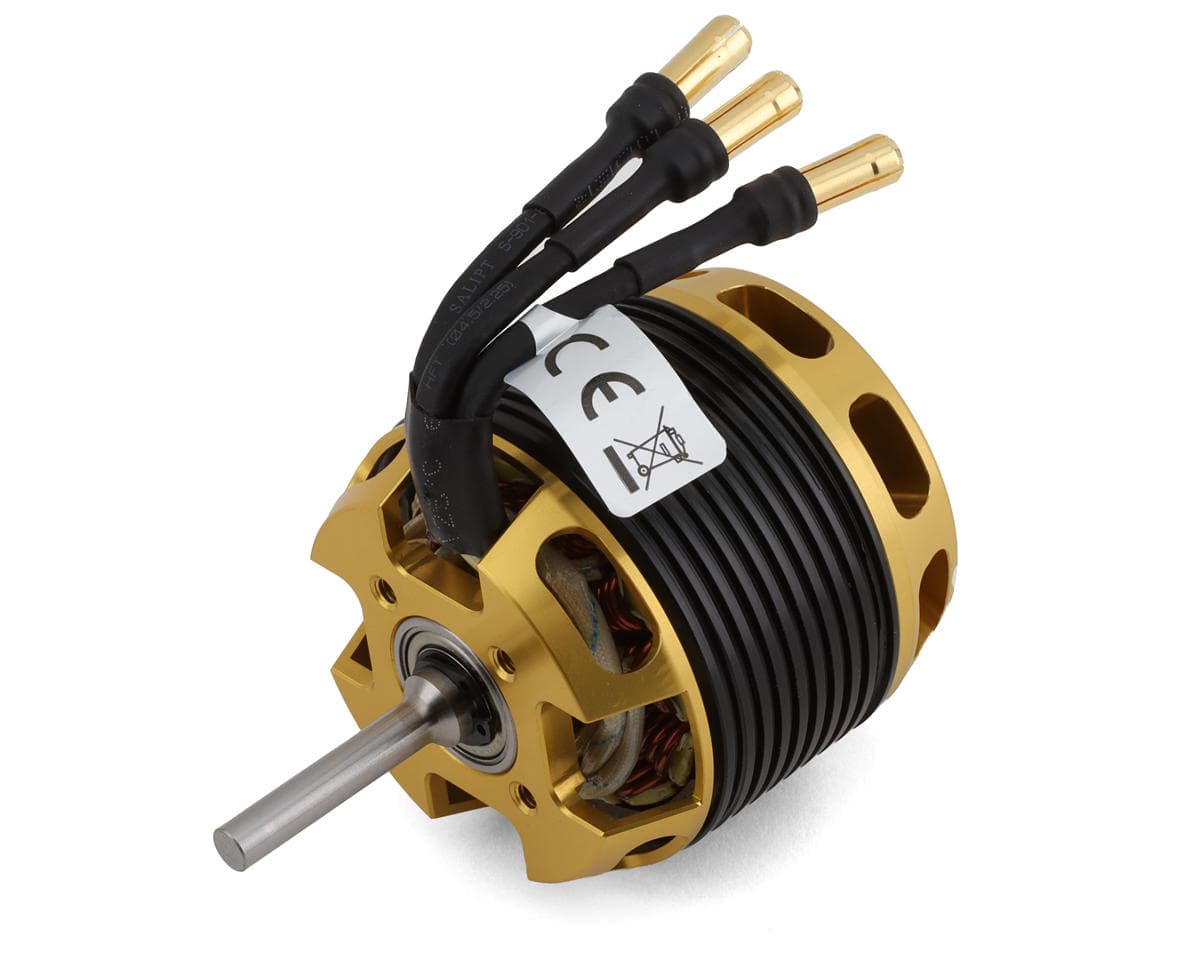

Scorpion HK5 5024 535kV Brushless Motor (6x36mm Shaft)

HK5 Motor Overview:

Introducing the Scorpion HK5 5024 535kV Brushless Motor, the fifth generation of Scorpion's acclaimed "HK - Series" motors. This iteration sets a higher standard in power and efficiency, exceeding expectations with unmatched torque per amp capabilities. The HK5 Series combines power and efficiency with a focus on motor cooling and temperature management. The motor features an innovative internal fan design along with a proven external centrifugal fan, doubling the airflow and resulting in improved cooling and lower operating temperatures.

The HK5 5024 535kV is specifically crafted for high-power 700-class helicopters. Its larger stator diameter provides increased torque and power while maintaining an equal weight compared to previous models, such as the HKII 4530 540kV motor.

Features:

• Market-leading Torque per Amp capabilities
• Enhanced motor cooling with an innovative internal fan and proven external centrifugal fan
• Optimized power and torque for high-power 700-class helicopters
• Efficient design to achieve superior power-to-weight ratio

Specifications:

• Kv Rating: 535kV RPM/Volt
• Input Voltage (Max): 12S (44.4V)
• Continuous Current: 130 Amps
• Continuous Power: 5772W
• Peak Current: 260A
• Peak Power: 11500W
• Motor Wind: 5T
• External Shaft Dimensions: 5.98x36mm (0.235"x1.417")
• Overall Diameter: 62.8mmx61.40mm (2.47"x2.42")
• Stator Diameter: 50mm (1.97")
• Stator Thickness: 24mm (0.94")
• Arms: 12
• Poles: 10
• Weight: 598.0g (21.09oz)

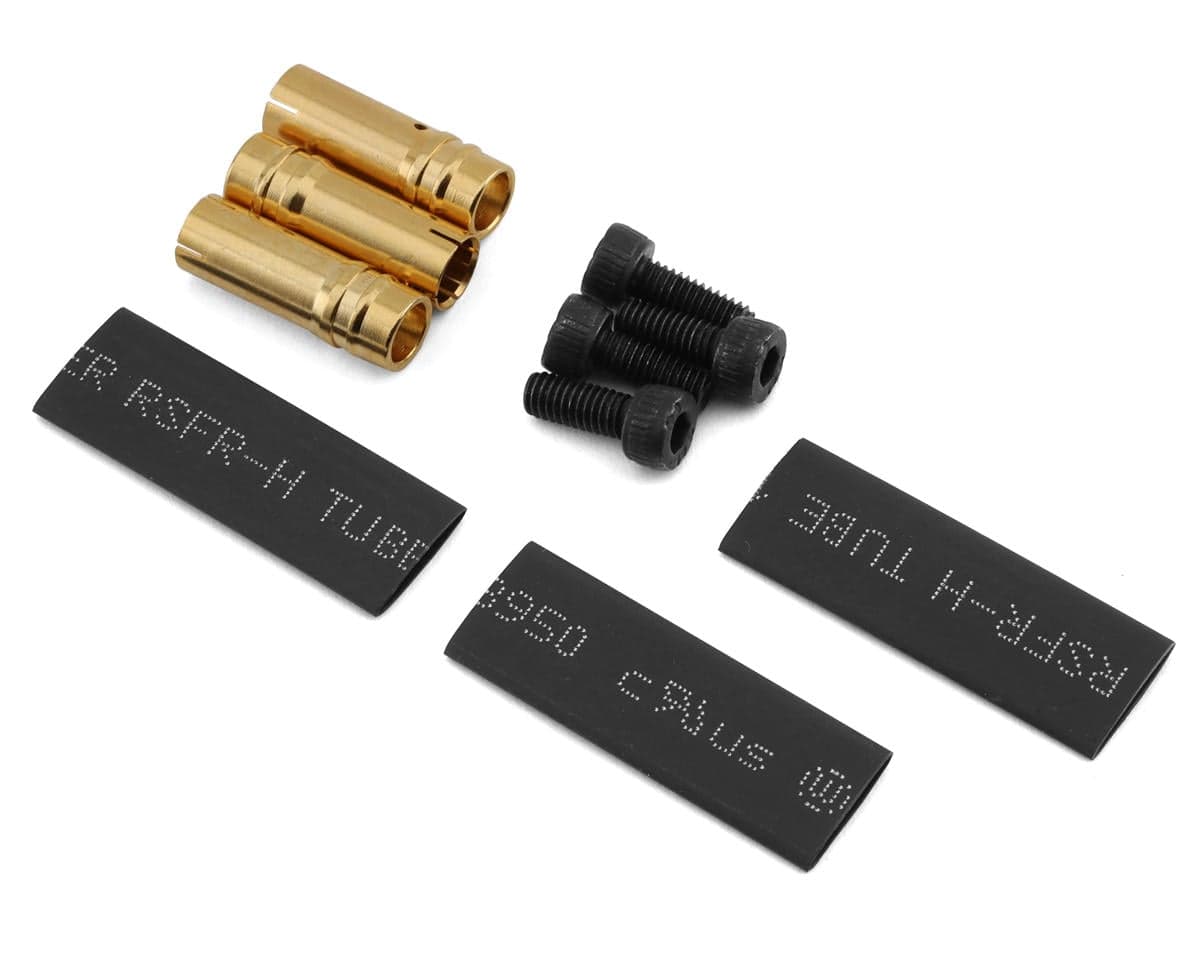

Includes:

• (1) Scorpion HK5 5024kV
• (3) 6mm Female Bullet Connectors
• (3) Heat Shrink
• (1) Accessory bag / Mounting Hardware
