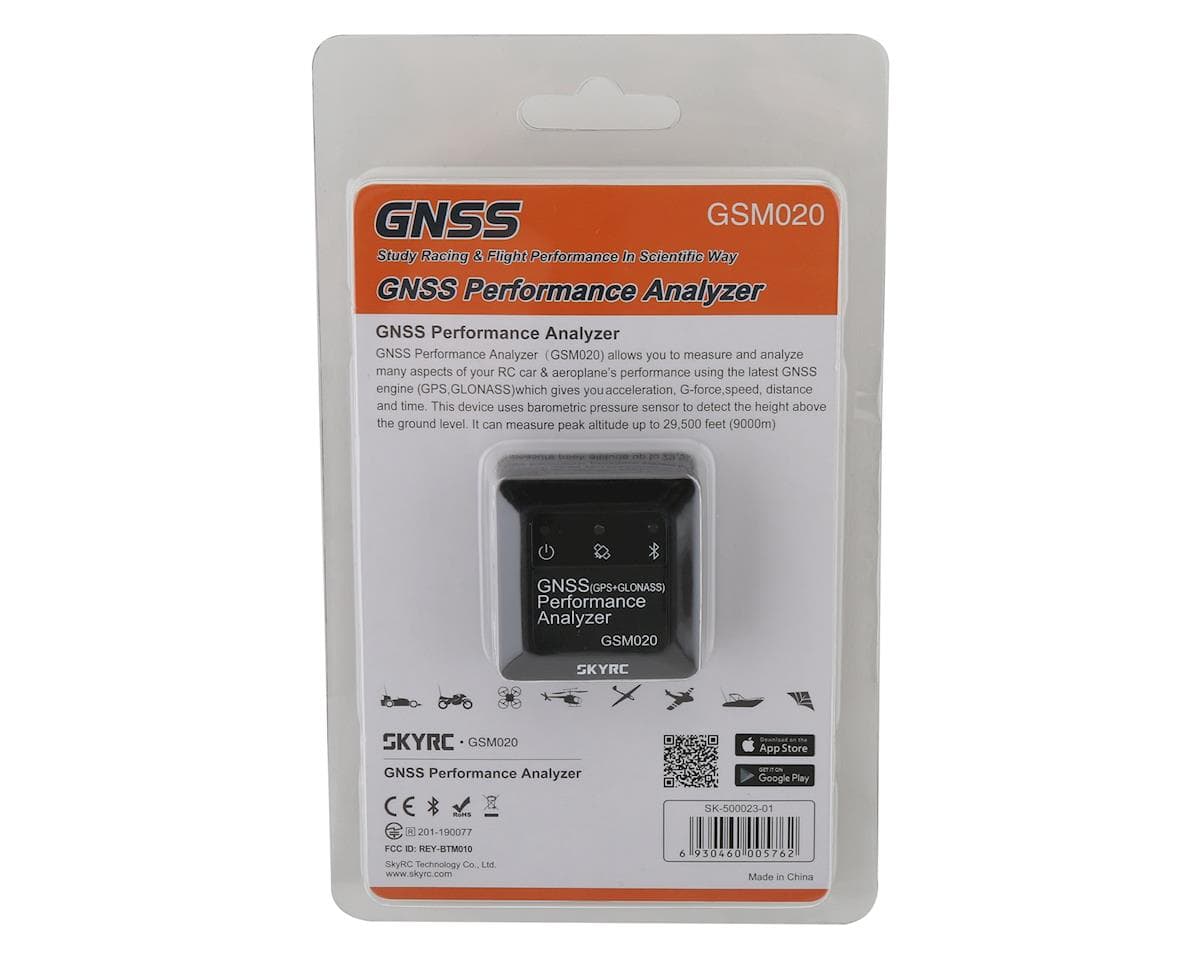

SkyRC GNSS Performance Analyzer Bluetooth GPS Speed Meter & Data Logger
About this part
Perfect Way To Check Your RC Drag Times, Track Data, & More!
The SkyRC GNSS Performance Analyzer Bluetooth Speed Meter & Data Logger makes it easy to see who really is the fastest. How many times have the bragging sessions gotten out of hand? Now, you can prove your RC car or plane is the fastest on earth! The app-enabled GNSS Performance Analyzer is an affordable, compact device that will give you a cutting edge to measure the overall performance of your model accurately.
About the SkyRC GPS Speed Meter:
Drag Racing
In Drag racing mode, you can set a start and finish distance to measure the time it took to cross the finish line. Built-in logging allows you to read back crucial data to make educated decisions on any setup changes. Using the GNSS Analyzer like this can be a powerful tool to keep you launching at your hardest and crossing the line at blistering speeds.
Track Racing
This GNSS Analyzer is not meant just for users aiming at high speeds. This analyzer can also accurately log and store track data giving you readouts of speeds and G-forces over time. Like with Drag Mode, this allows you to learn how your car is handling around the track and make precise adjustments based on learned data.
Flying Mode
In Flying Mode, the analyzer measures average speed, maximum speed, time elapsed, distance, and altitude. When tuning your drone, plane, or helicopter, you can see the effects of props or blades, batteries, and much more. Plus, weighing only 38-grams and being extremely compact, this is the perfect solution to log data while in the air.
Features:
- See results in real time
- Improved accuracy by using two satellite constellations
- Up to 5hrs of use per charge
- Free mobile app for easy connectivity
- Three modes for collecting data
- Visual LED indicator
- Built-in 1M memory stores up to 50 runs
- Allows for metric or imperial units
- Uses GNSS (Global Navigation Satellite System)
- Compact size allows for easy installation
Includes:
- (1) GPS Speed Meter/Data Logger

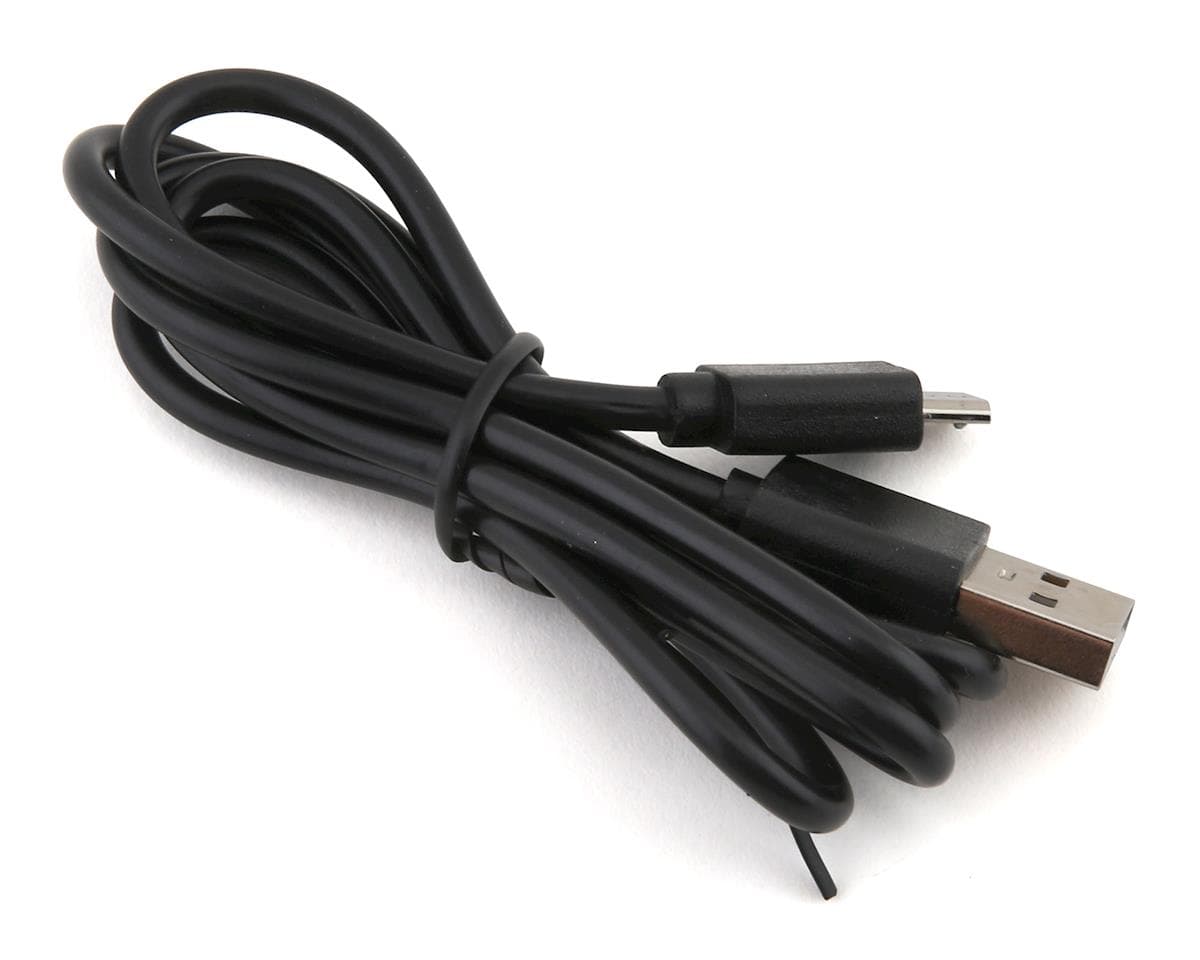

- (1) USB Charge Cable
Specifications:
| Dimensions: | 1.57x1.53x0.62in (40x39x16mm) |
|---|---|
| Weight: | 0.035oz (38g) |
| Concurrent Reception: | GPS & GLONASS |
| Receiver: | L1, 1575.42 MHZ |
| Update Frequency: | 10 Hz |
| Antenna Type: | Built-In |
| Satellite Signal Sensitivity: | -167dBm |
| Operating Temperature: | 0°C - +40°C |
| Storage Temperature: | -10°C - +70°C |
| Operating Humidity: | 5% - 90% |
User Manual
Reviews4.1 · 9 reviews
For all you RC lovers. This is a must have item for when you want to know your true speed or altitude. It's easy to setup and very accurate. I highly recommend it.
High quality unit. It's really fun to do speed runs on everything! The results can't be argued with. That's cool
This gps will not keep a charge don't know what to do????? I charge it only last 5 minutes then it's dead only used it 4 times
This was my first time with a dedicated GPS performance analyzer, and I’m very impressed! It updates speed 10 times per second (much better than the average 1 time per second) and it can also measure altitude and G-force. It’s really responsive and the logs pull up on the app right away. However, the limiting factor is the app. The app has some bugs (you can’t name a log right after the reading is taken, you have to go in through the menu) and the Excel export doesn’t seem to work really well (20382.84mph indicated? Really?). If the app would eliminate those bugs, it would be a 5 star product. But overall it’s very, very good and I can see myself using it for years to come!
Works great. Simple app and works flawlessly. Gotta love sky rc products
Reviewers generally find the SkyRC GNSS Performance Analyzer easy to set up and use, with several describing its speed and altitude readings as accurate and responsive, and praising the companion app. Ratings are mostly 4 or 5 out of 5. One verified owner reported the unit would not hold a charge after a few uses, a problem not echoed by other reviewers. One reviewer noted app issues: a log cannot be named immediately after a reading, requiring navigation through the menu, and the Excel export produced an implausible speed value. That reviewer still rated it highly and said the app bugs were the main limitation. Reviews are all for the same variant.
- + Easy to set up and use
- + Accurate speed readings
- + Responsive, 10 updates per second
- + Smooth, simple app
- − Battery does not hold charge (one report)
- − App bugs with naming logs
- − Excel export gave implausible values
