Parts/Batteries & charging/LiPo batteries/Spektrum RC 1S LiPo Battery 50C (3.7V/150mAh) w/JST PH1.25 Connector

Spektrum RC

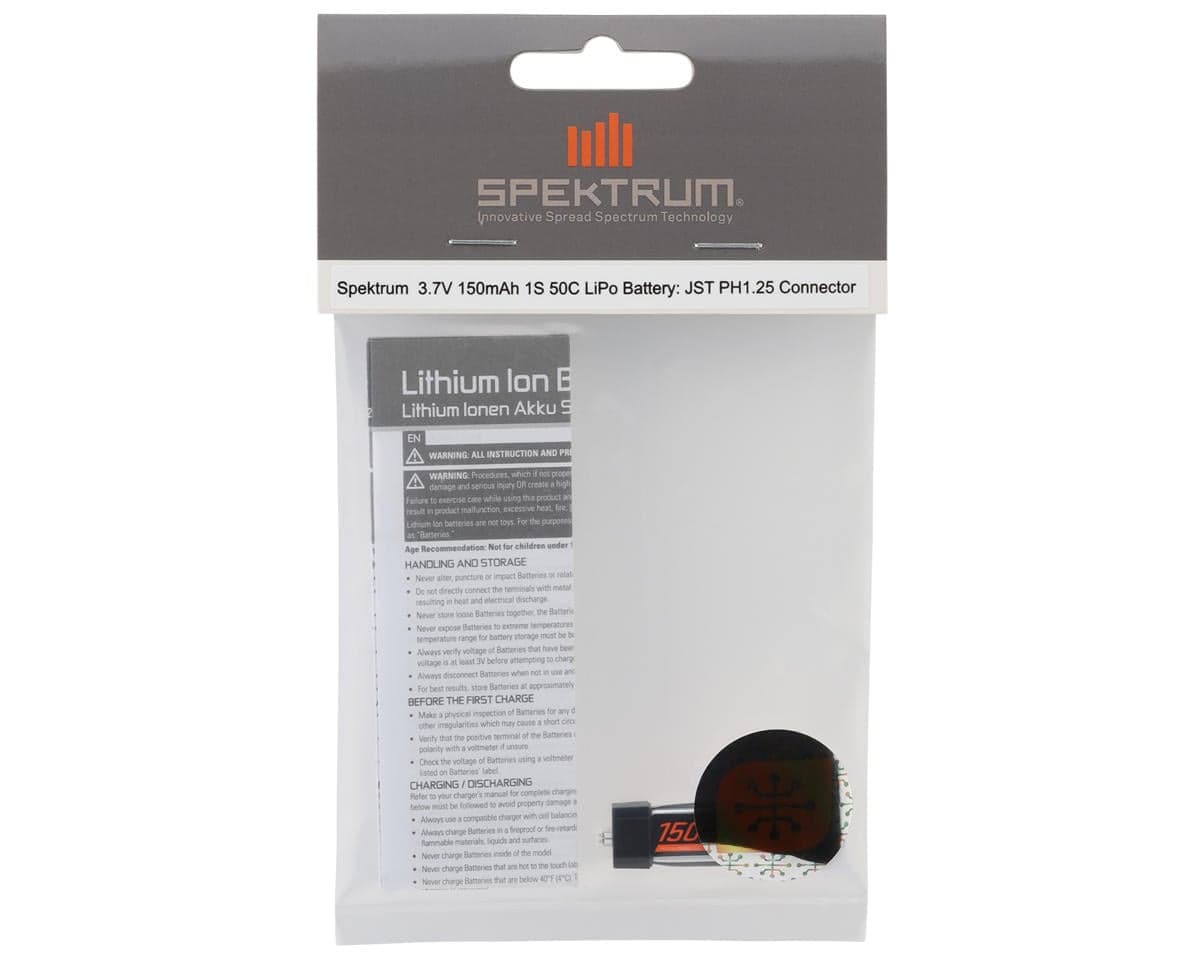

Spektrum RC 1S LiPo Battery 50C (3.7V/150mAh) w/JST PH1.25 Connector
Part # SPMX1501S501.0(1)
Where to buy
$6.39
Prices are as last seen at the store; stock is not tracked.
About this part
Battery Overview:
Spektrum RC 1S LiPo Battery 50C (3.7V/150mAh) with JST PH1.25 Connector. Features compact and lightweight design, this LiPo battery pack is a great option for smaller lightweight size R/C Airplanes such as the E-flite UMX Slow Ultra Stick.
Features:
- Supreme low resistance
- 50C Discharge rate
- Compact and lightweight design
- High quality JST Connector
IMPORTANT LITHIUM POLYMER SAFETY INFORMATION
- DO NOT leave a battery in your model when charging
- DO NOT leave lithium batteries unattended when charging
- ALWAYS balance charge lithium battery
- ALWAYS use a LiPo Safe charging bag/box
- YOU MUST use a Li-Poly specific charger to charge lithium batteries (NiMH or NiCD only chargers WILL NOT WORK!)
- YOU MUST not over discharge lithium battery packs
- READ & UNDERSTAND the instructions carefully before operating this battery
NOTE: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in overheated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for the first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use a battery that has too low a voltage. Do not expose batteries to sunshine or store/charge batteries at temperatures above 35°C or in a closed car. The high-temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging, or racing, do not charge it until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
Includes:
- (1) 1S LiPo Battery 50C (3.7V/150mAh) w/JST PH1.25 Connector
Specifications
| Nominal Voltage: | 3.7V (1S) |
|---|---|
| Capacity: | 150mAh |
| Maximum Charge Rate: | 1C (0.15A) |
| Discharge Rates | |
| Continuous: | (Not Available) |
| Peak: | 50C |
| Cell Configuration: | 1S1P |
| Watt Hours: | 0.555Wh |
| ROAR Approved: | Yes |
| Connectors | |
| Battery: | JST PH |
| Balance: | (Not Available) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews1.0 · 1 review
Michael Douglas Amoson Spektrum RC 1S LiPo Battery 50C (3.7V/150mAh) w/JST PH1.25 Connector
I had 2 brand new batts and they both caught on fire. do not buy or charge them while your at home monitoring them charge. safety doesnt take a holiday... :(
2 found this helpful
Builds using this part
No builds use this part yet — add it to yours from the build editor.
