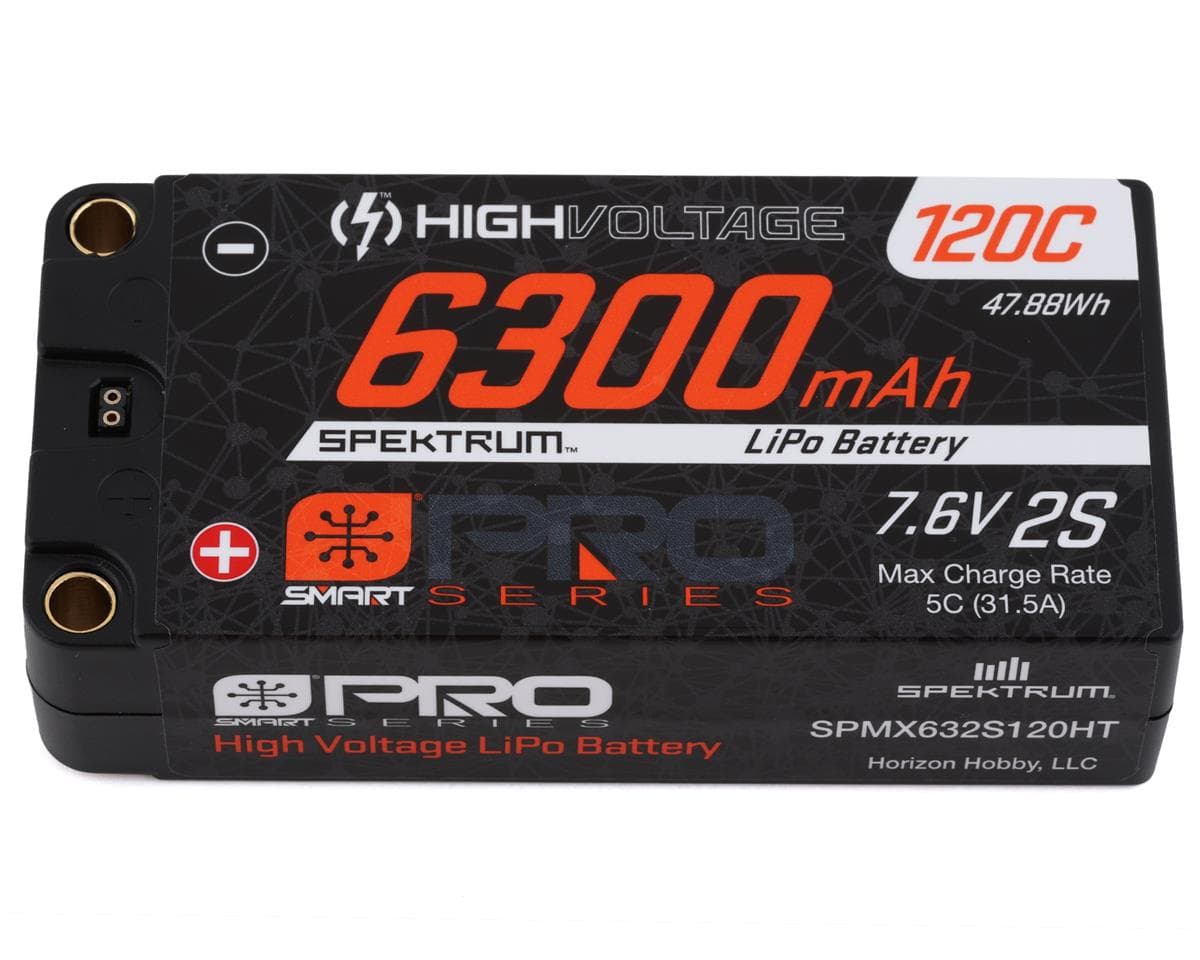

Spektrum RC 2S Hard Case LiPo 120C Shorty LiPo Battery (7.6V/6300mAh) w/5mm Bullets
Spektrum RC

Spektrum RC 2S Hard Case LiPo 120C Shorty LiPo Battery (7.6V/6300mAh) w/5mm Bullets

Part # SPMX632S120HT4.0(5)
Where to buy
$74.99
AMain Hobbies
Seen Oct 12, 2026
$74.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

The Spektrum RC 2S Hard Case LiPo 120C Shorty LiPo Battery is a high voltage battery option designed for the most extreme amperage loads. With high discharge ratings, exclusive Pro Series LiHV Battery chemistry, and Smart's added benefits, the Smart Pro Race batteries are game changers for the RC racing community. These batteries are available in all popular sizes and configurations for 1/10 and 1/8th scale racing models, drivers get top-of-the-line LiPo performance with the added benefits of Smart, guaranteeing successful races with each pack cycle, lap after lap, and heat after heat.

When a Smart Pro-Series LiHV Battery is connected to a Spektrum Smart charger, its unique charging parameters and health information are uploaded to the charger from its integrated memory microchip. You can view and set preferences through the charger, such as charge rates, so all that’s required to charge the pack is connecting it to your Smart charger. Smart technology takes care of the rest.

Spektrum Smart Pro-Series surface batteries store a wide variety of essential information, including:

  • Battery Brand
  • Battery Type
  • Battery Capacity
  • Battery C Rating
  • Individual Cell Voltage
  • Battery Temperature
  • Charge/Discharge Cycles
  • Spektrum Smart Pro-Series surface batteries also maintain an error log, including over-heat, over-discharge, and over-charge incidents. This data can help assure that the battery you've chosen is suitable for the application.
Innovative Spektrum Smart Pro-Series surface batteries are so easy to use that they nearly take care of themselves. Smart technology makes it easy to achieve peak battery performance, reliability, and longevity!

Features:
  • Shorter, more compact design helps promote a low center of gravity
  • High Voltage Capable
  • Powerful and consistent 120C Discharge Rate
  • High-performance 5C max Charge rate for super-fast charge times without damaging the health of the pack
  • Can be charged on any non-Smart charger with included adapter
  • Automatic Charging on Spektrum Smart charger reduces time in the pits
  • High-capacity packs in Shorty style and standard sizes versus original/previous generation Spektrum Race batteries
  • Double-sided main connector for added user-friendliness featuring flush mount bullets
  • Improved design allows for an extremely durability case with improved balance/Smart port connector

Specifications:

  • Nominal Voltage: 7.6V (2S)
  • Capacity: 6300mAh
  • Maximum Charge Rate: 5C (31.5A)
  • Discharge Rate:
    • Continuous: 120C
    • Peak: (Not Available)
  • Cell Configuration: 2S1P
  • Watt Hours: 47.88Wh
  • ROAR Approved: (Not Available)
  • Connector:
    • Battery: 5mm Bullet
    • Balance: Pro Race Series 2-Pin Balance Connector
  • Dimensions (LxWxH): 3.77x1.85x0.98in (95.76x46.99x24.89mm)
  • Weight: 7.05oz (200g)
Includes:
  • (1) 7.6V 6300mAh 2S 120C Smart Pro Race Shorty Hardcase LiHV Battery

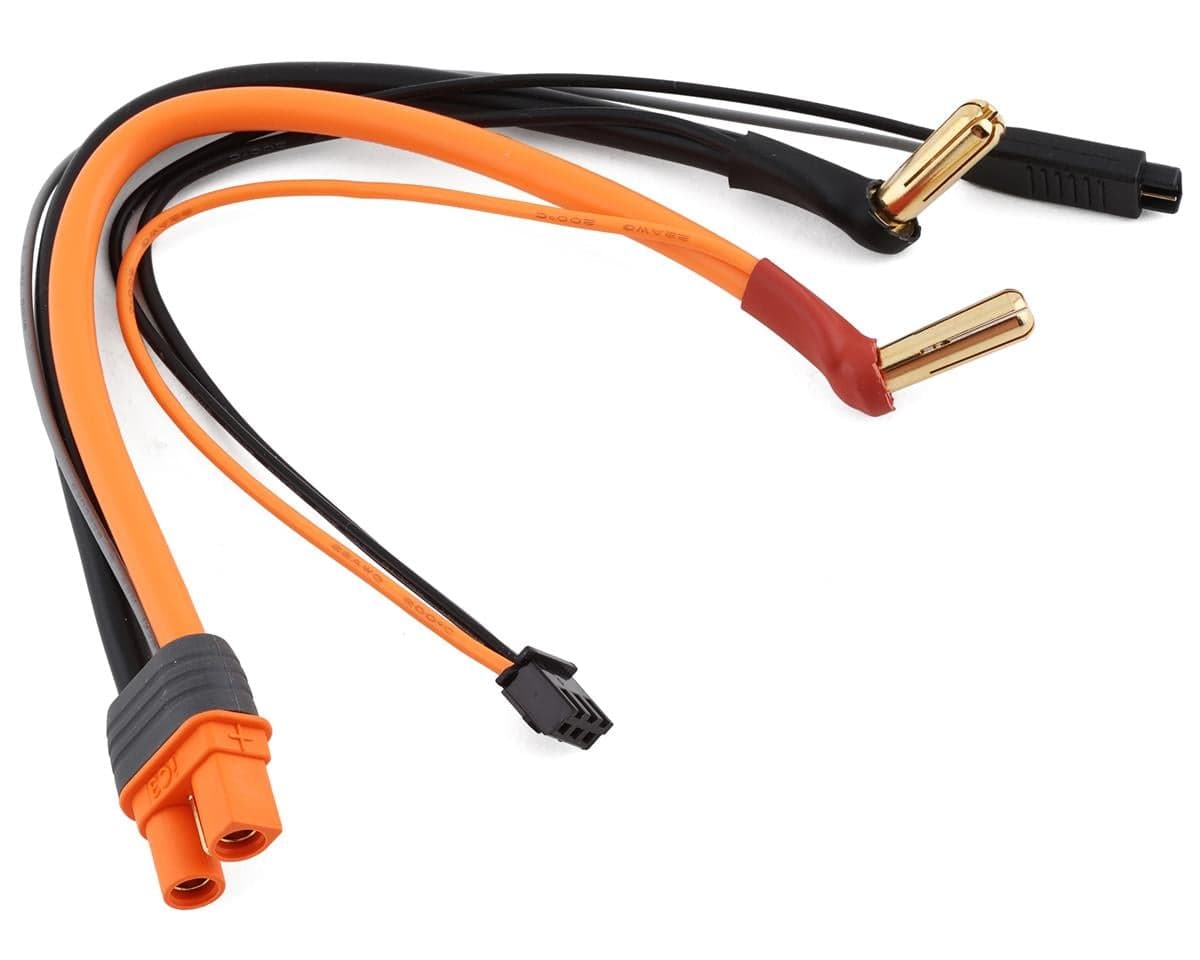

  • (1) Conventional Charge Adapter with IC3 connector
Needed to Complete:
  • Compatible LiPo Battery Charger

Reviews4.0 · 5 reviews

John BarnicoatVerified owneron Spektrum RC 2S Hard Case LiPo 120C Shorty LiPo Battery (7.6V/6300mAh)

Can't speak to the quality but gets uniformly good ratings. I do want to comment on Amain customer service however. Bought two of these batteries and followed the shipment tracking. Said they were delivered but they were not, either lost or maybe delivered to the wrong address. Without question, Amain immediately sent out replacements free of charge and picked up the shipping cost as well. Doesn't get any better than this.

2 found this helpful
Justin B.Verified owneron Spektrum RC 2S Hard Case LiPo 120C Shorty LiPo Battery (7.6V/6300mAh)

The battery weight to power ratio is excellent and the build quality is excellent as well. I’ve tested the new Spektrum Smart Pro 6300mAh LiHV battery against a Maclan 6400mAh LiHV battery, a Protek 6400mAh LiHV battery, and lastly a Fantom 6400mAh LiHV battery. In my opinion they all performed the same. The tempatures after use felt the same, the weight on the Spektrum is 19g lighter then all the other batteries, the time the batteries lasted was the same. The 100mAh difference makes absolutely zero difference. As of this review the price is 20% less for the Spektrum Smart Pro batteries than the competitors batteries I tested. Now for the reason I couldn’t give this battery review 5 stars. First reason is it’s not ROAR approved. Secondly I feel a little mislead by how Spektrum markets it as a G2 smart battery. It’s more like half smart because you have to plug in the balance connector. I understand having to plug in a 3rd cable to the battery…Two 5mm bullets and a 3rd balance. This makes sense obviously, but you would think the IC5/IC3 connector would relay the balance information. Unfortunately, this is not the case and you need to plug in the balance connector as well or you will get an error. After everything is connected though it’s SMART like your used to….picking charge setting automatically, battery diagnostics and health, auto discharge, etc. So I have to hookup the battery like all the competitors. If the battery wasn’t 20% less then the competitors I would feel a little more advertised simplicity deceived. In summary these batteries are the best 6300/6400mAh LiHV Shorties available. I plan on using these exclusively going forward and also stocking up before they raise the price.

1 found this helpful
David SpiveyVerified owneron Spektrum RC 2S Hard Case LiPo 120C Shorty LiPo Battery (7.6V/6300mAh)

So far very pleased have a couple runs on this battery and all good so far

UnknownVerified owneron Spektrum RC 2S Hard Case LiPo 120C Shorty LiPo Battery (7.6V/6300mAh)

Out of all my batteries in the past I have always had good luck with Spektrum. With many of my RTR packs having over 100 cycles on them and still working as good as new. First, I went with another well know battery brand for my 1/8 scale race application but almost immediately had one puff. I then decided to give these a try. They are the lightest battery I have found on the market (198-201g). Which is almost 25g lighter than the average competitor. Most are going to be running these in a saddle configuration so times that weight savings x2. They are very powerful and have a ton of punch. Last plenty long enough for my 1/8 scale truggy (off road race application) and have a really nice case. The charge lead is well made and it's nice that every pack you order comes with one. There is a comment stating they are not ROAR approved, but Spektrum does claim they are in the description, so I'm not exactly positive on that. I will say the balance port on the battery is different than all other brands. It seems fine and sturdy, I don't expect to have any issues with them, but I will report back if those changes. This is now my go to battery.

Travis Barnsdaleon Spektrum RC 2S Hard Case LiPo 120C Shorty LiPo Battery (7.6V/6300mAh)

Its really a shame that Spektrum ruined what could have been a great battery with this worthless balance plug. It will wear out within less than 10 charges and then is a complete nightmare to try and get the battery to charge. DO NOT PURCHACE until Spektrum redesigns this plug.

What reviewers say

Reviewers generally rate this 2S 6300mAh hard-case LiPo highly, praising its light weight, punch and build quality, with several owners running it in 1/8 scale racing and reporting good cycle life. One owner compared it with competitor packs and found similar performance and runtime, with the main difference being lower price and lighter weight. Customer service from the seller was praised after a lost shipment was replaced free. One verified-free reviewer reported the balance plug wore out within about ten charges and made charging difficult, a problem not mentioned by the other reviewers. Reviews are few and short-term in some cases.

  • + Light weight for capacity
  • + Strong punch and power
  • + Solid hard case build
  • + Seller replaced lost shipment free
  • − Balance plug wears out quickly (one report)
  • − Difficult to charge after plug wear
  • − Performance similar to competitor packs
Summary generated from the reviews above.
