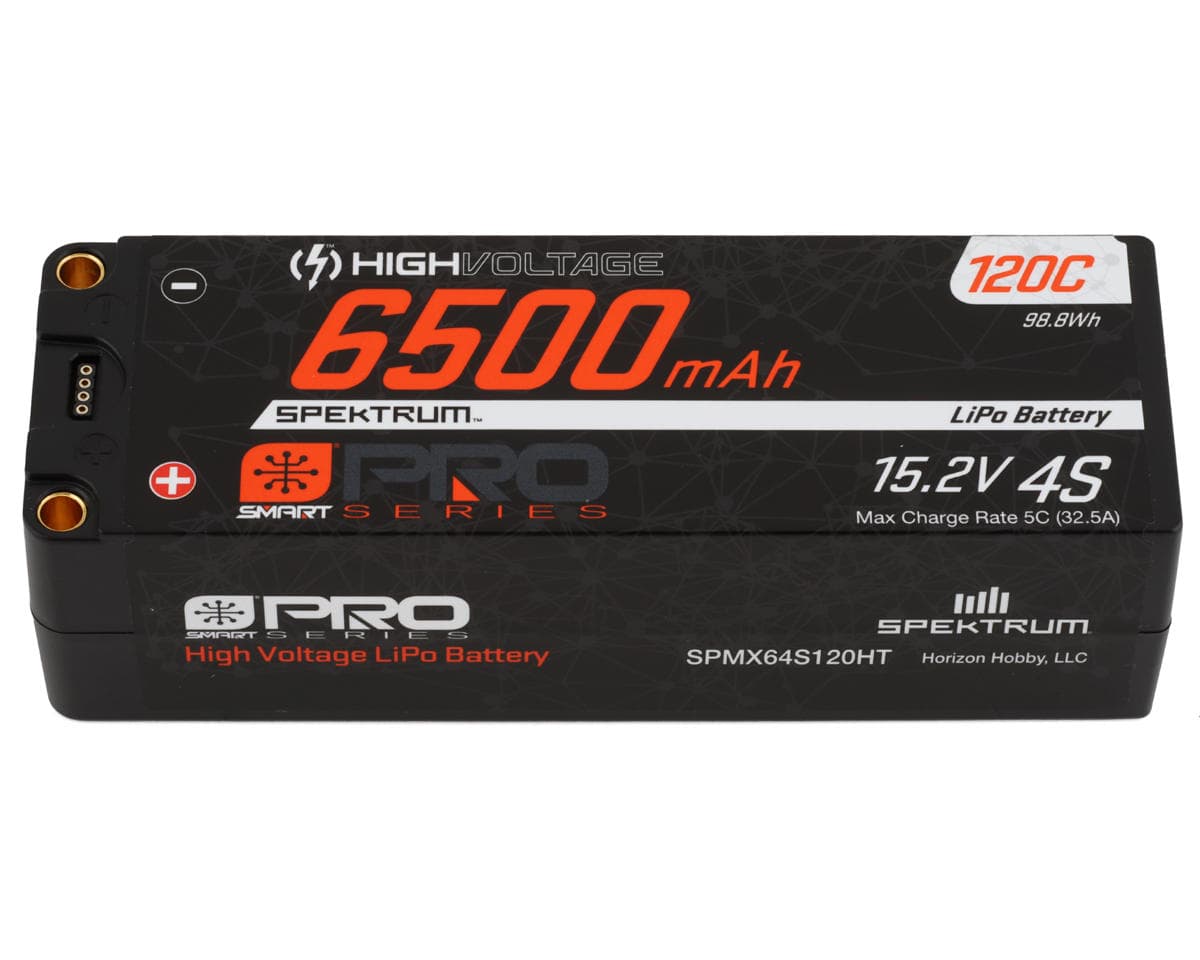

Spektrum RC 4S Smart Pro Race Hardcase HV-LiPo 120C Battery (15.2V/6500mAh) w/5mm Bullets
About this part
The Spektrum RC 4S Smart Pro Race Hardcase 120C LiPo Battery is a high voltage battery option designed for the most extreme amperage loads. With high discharge ratings, exclusive Pro Series LiHV Battery chemistry, and Smart's added benefits, the Smart Pro Race batteries are game changers for the RC racing community. These batteries are available in all popular sizes and configurations for 1/10 and 1/8th scale racing models, drivers get top-of-the-line LiPo performance with the added benefits of Smart, guaranteeing successful races with each pack cycle, lap after lap, and heat after heat.
When a Smart Pro-Series LiHV Battery is connected to a Spektrum Smart charger, its unique charging parameters and health information are uploaded to the charger from its integrated memory microchip. You can view and set preferences through the charger, such as charge rates, so all that’s required to charge the pack is connecting it to your Smart charger. Smart technology takes care of the rest.
Spektrum Smart Pro-Series surface batteries store a wide variety of essential information, including:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
- Spektrum Smart Pro-Series surface batteries also maintain an error log, including over-heat, over-discharge, and over-charge incidents. This data can help assure that the battery you've chosen is suitable for the application.
Features:
- Shorter, more compact design helps promote a low center of gravity
- High Voltage Capable
- Powerful and consistent 120C Discharge Rate
- High-performance 5C max Charge rate for super-fast charge times without damaging the health of the pack
- Can be charged on any non-Smart charger with included adapter
- Automatic Charging on Spektrum Smart charger reduces time in the pits
- High-capacity packs in Shorty style and standard sizes versus original/previous generation Spektrum Race batteries
- Double-sided main connector for added user-friendliness featuring flush mount bullets
- Improved design allows for an extremely durability case with improved balance/Smart port connector
Specifications:
- Nominal Voltage: 15.2V (4S)
- Capacity: 6500mAh
- Maximum Charge Rate: 5C
- Discharge Rate:
- Peak: 120C
- Cell Configuration: 4S1P
- Watt Hours: 98.8Wh
- ROAR Approved: (Not Available)
- Connector:
- Battery: 5mm Bullet
- Balance: Pro Race Series 2-Pin Balance Connector
- Dimensions (LxWxH): 5.47x1.85x1.57in (139x46.99x40mm)
- Weight: 17.63oz (500g)
- (1) 15.2V 6500mAh 4S 120C Smart Pro Race Hardcase LiHV Battery

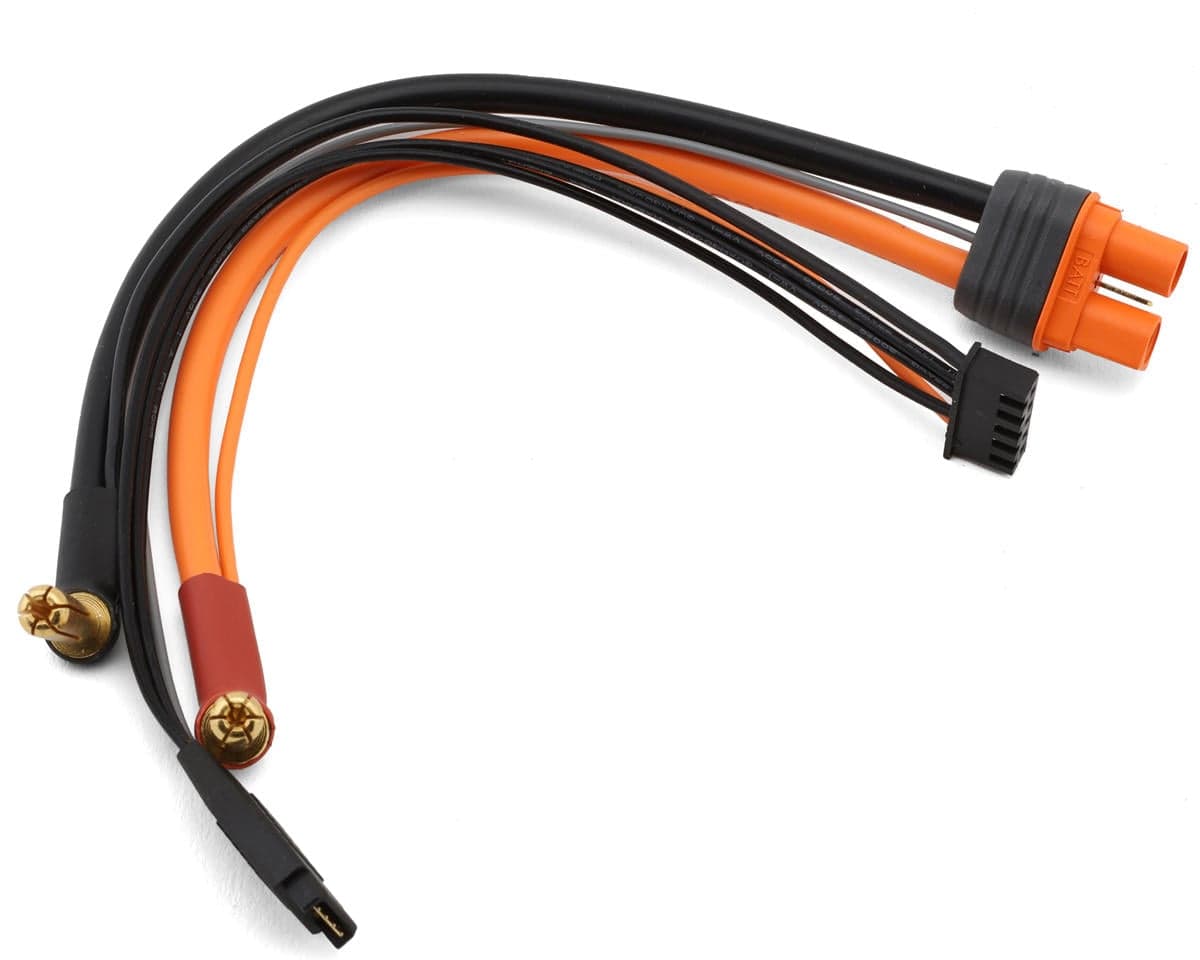

- (1) Conventional Charge Adapter with IC3 connector
- Compatible LiPo Battery Charger
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.0 · 4 reviews
Very Powerful , I lost one battery after a few months . These have a year warranty and Amain helped me with the warranty. Spektrum has an always been reliable for me .
I like the battery a lot, but I had to modify the charging cable in order for it to work with my charger. I had to cut off the gray wire.
I have been racing with these batteries in both EBuggy and ETruggy for 2-ish years with about 120 cycles on each. One is still going strong while the other is starting to lose a cell. They have never puffed, even in extreme race day conditions like 100+ degrees out with 10 minute triple A-Mains. I have tried multiple other brands and have little to no luck. I have a stack of other 4S batteries the end up on the shelf after only a few charge/drive cycles. My only complaint, they don't make a 4S shorty!!!
Straight out of the box 1 of my new Spektrum 4S Smart Pro Race Hardcase HV-Lipos is dead. Charger won’t recognize it and even with a voltmeter I can only read one cell. Internal resistance says it 114mohms. The other one was very low voltage and not balanced at all. All cells are reading 3mohms per cell of internal resistance. Which is good. But one cell won’t go above 3.77 when trying to charge the pack to storage voltage. Hard case looks fancy and seems nice. Balance port connection sucks though! It doesn’t click in it just sits in there and comes out if you move the pack while trying to charge it. It’s a horrible design. So far i’m not impressed.
Reviewers generally report strong power and good longevity. One reviewer ran these packs in EBuggy and ETruggy for about two years and roughly 120 cycles each, with one pack still performing well and the other beginning to lose a cell; they reported no puffing even in hot race-day conditions. Another reviewer said the warranty process was handled through Amain. Reviewers disagree on reliability: one reviewer received a pack that was dead out of the box with a high internal resistance reading and unbalanced cells, and criticised the balance port connection, which does not lock in and can pull out. One reviewer needed to cut a wire on the charging cable to work with their charger. The hard case was described as attractive.
- + Strong power output
- + Long cycle life in racing use
- + No puffing in extreme heat
- + Hard case looks nice
- − Dead pack out of the box
- − Balance port connection loose
- − Charging cable incompatibility
- − Cell imbalance on arrival
