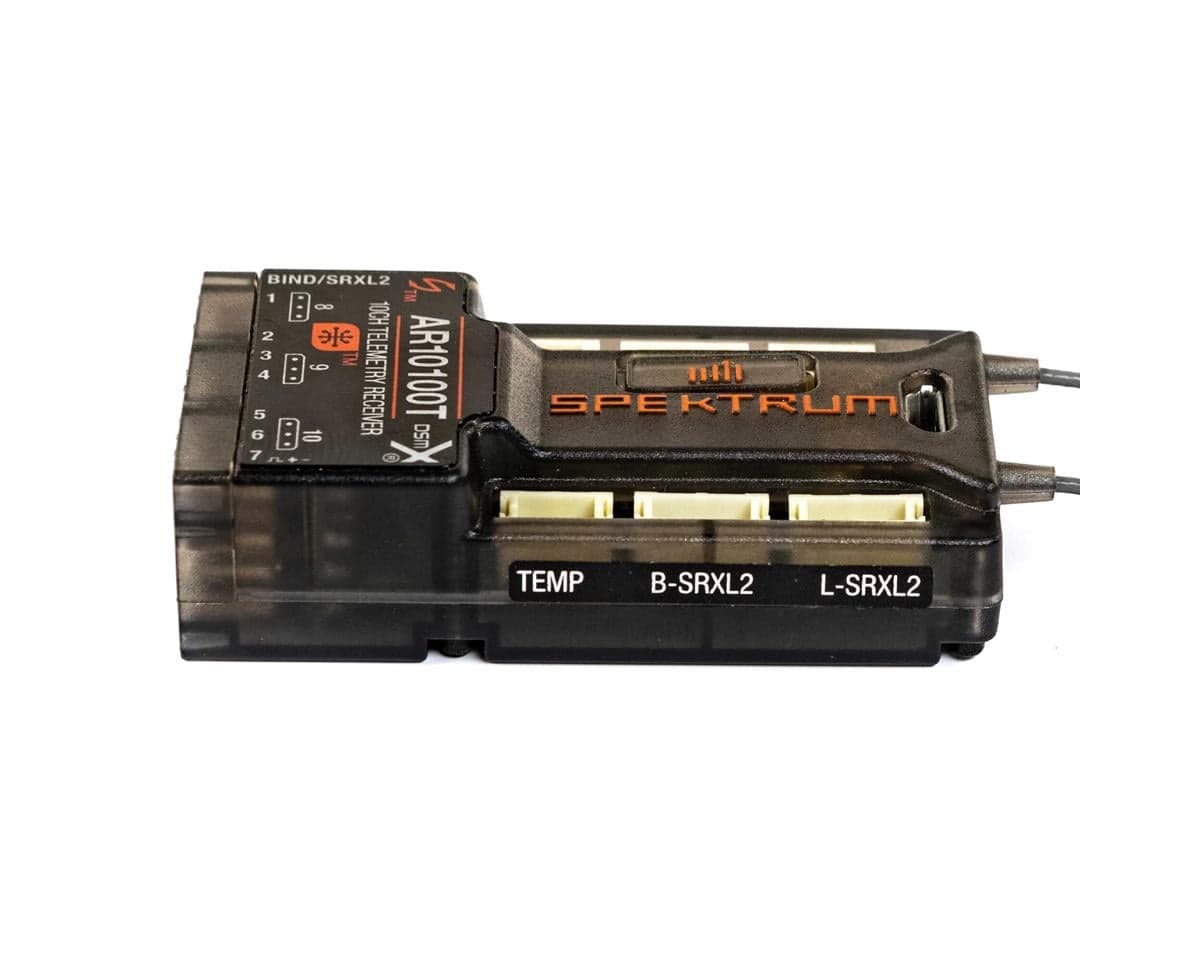

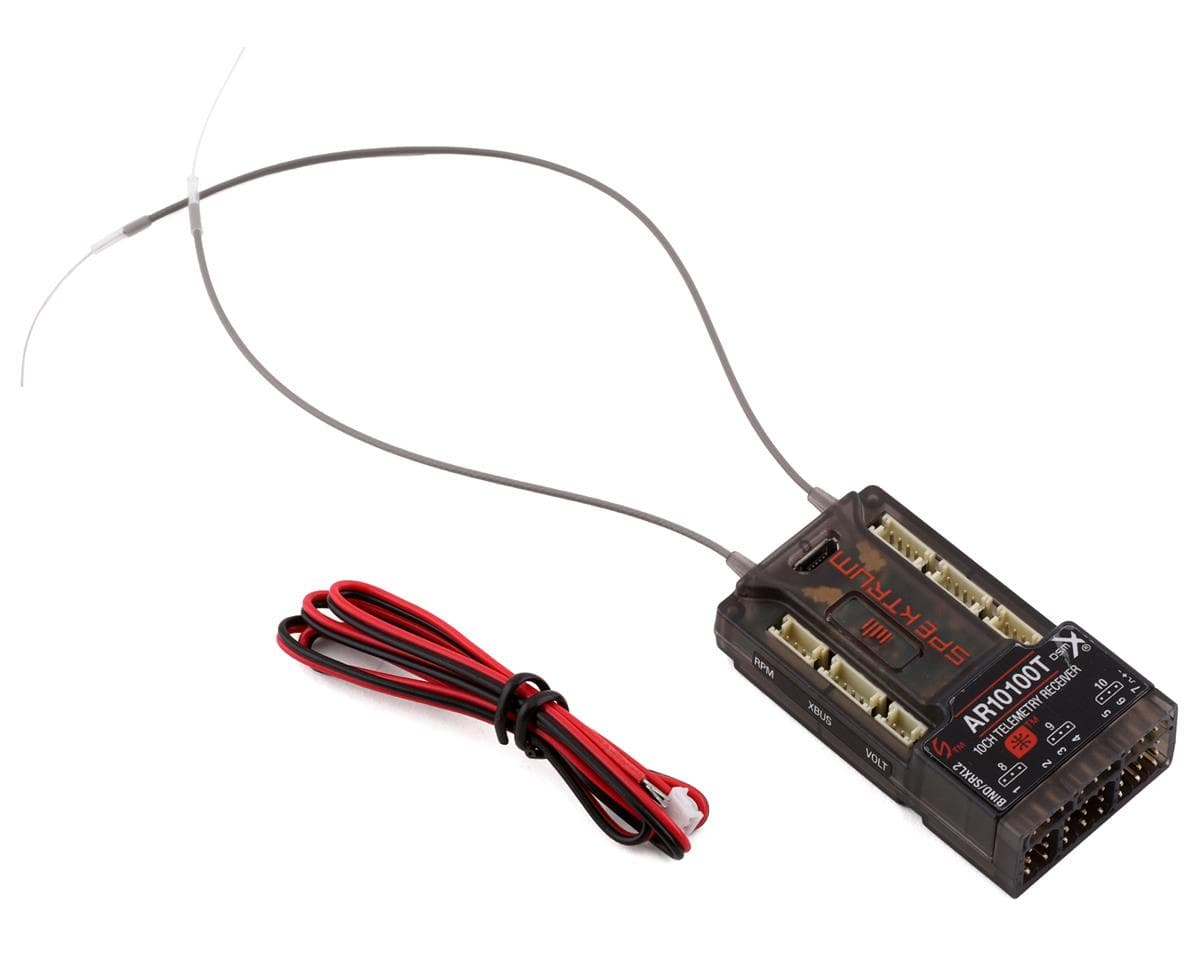

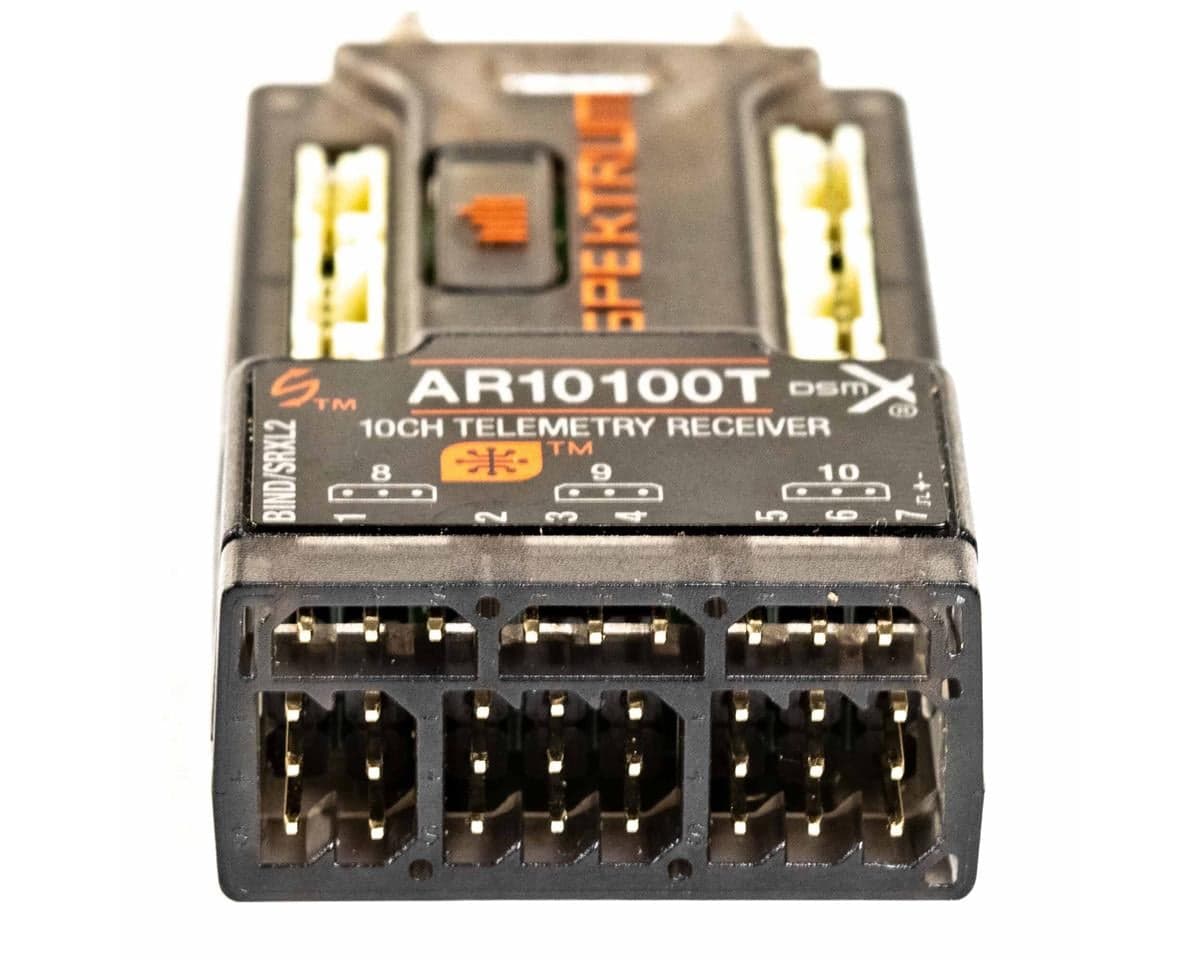

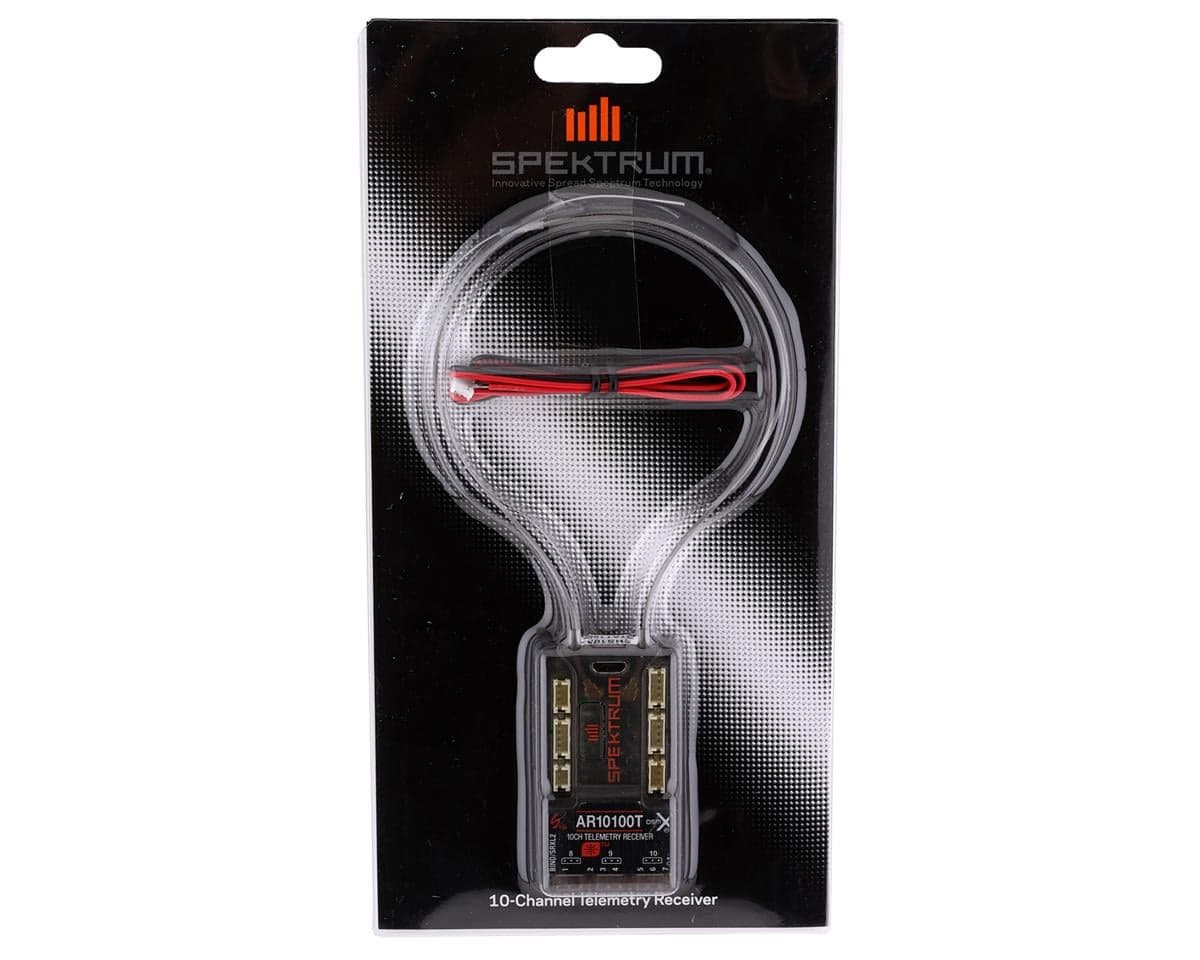

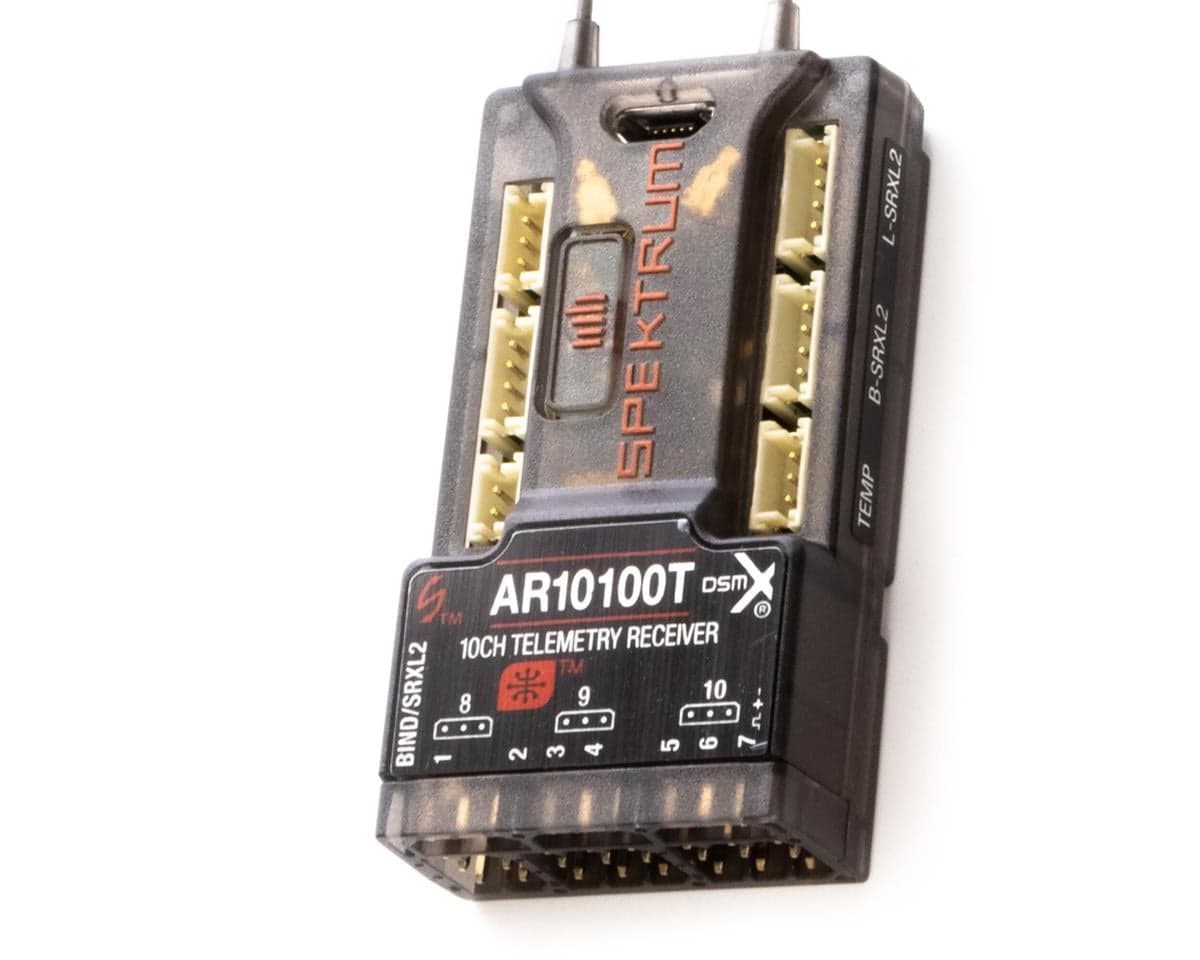

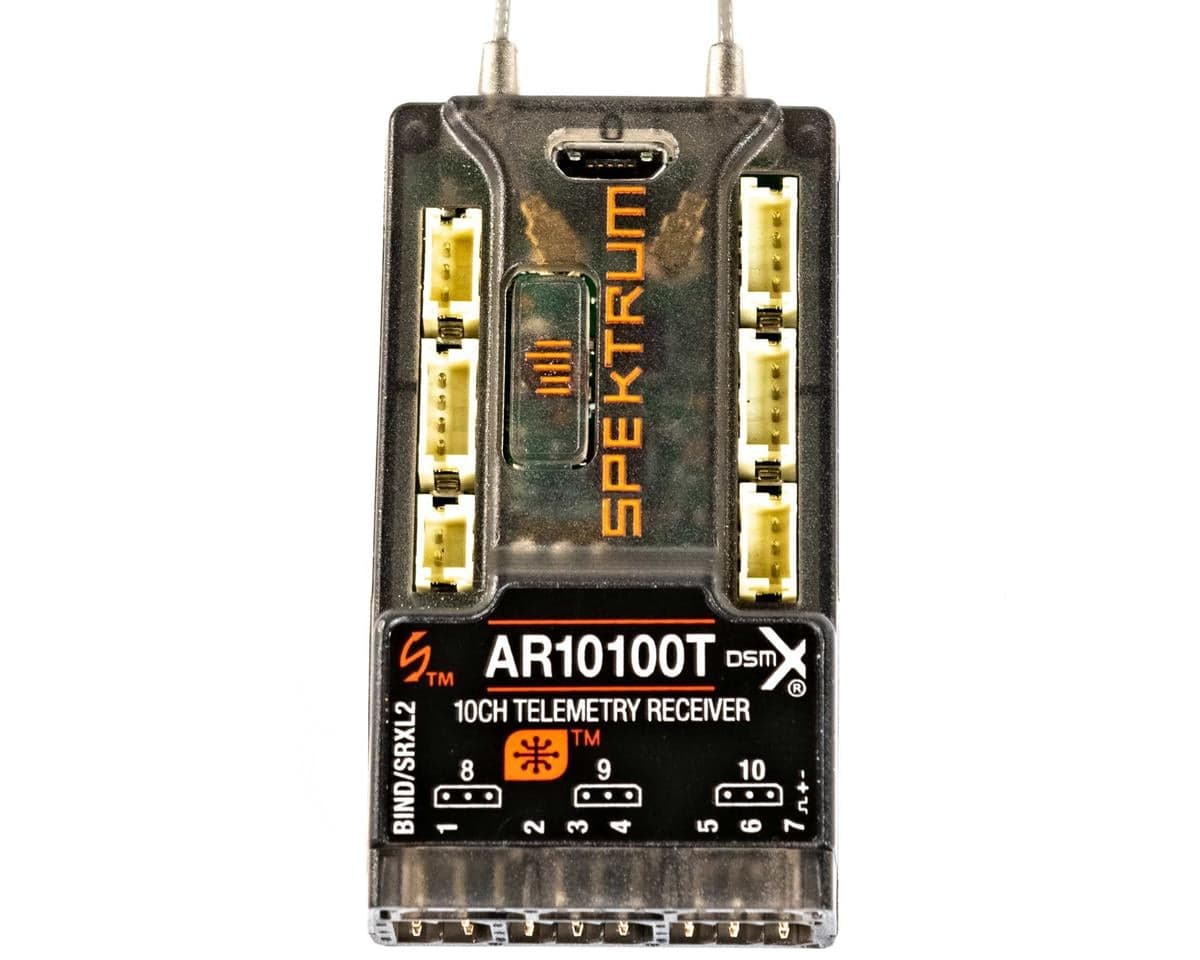

Spektrum RC AR10100T 10-Channel DSMX Telemetry Receiver
Spektrum RC

Spektrum RC AR10100T 10-Channel DSMX Telemetry Receiver

Part # SPMAR10100T3.0(2)
Where to buy
$89.99
AMain Hobbies
Seen Oct 12, 2026
$89.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

The AR10100T DSMX/DSMN2 10 Channel Telemetry Receiver from Spektrum RC is a compact receiver that supports a host of advanced level features to suit the needs of a wide variety of pilots. It boasts full range telemetry, an included barometer, a built in bind button, and an onboard micro USB port for quick connection to the Spektrum RC PC Programmer and it's application. With the ability to connect with up to two additional SRXL2 remote receivers (such as SPM9747, or SPM4651T), receiver performance will be incredibly high thanks to not only the two on board antennas, but the option to add additional receivers for the best reception in any aircraft. Spektrum SMART users will also enjoy SMART functionality for SMART equipped ESCs that feature one wire telemetry data without the need of modules, links, or wires.

Features:
  • DSM2 & DSMX compatibility
  • Full range telemetry
  • Integrated barometer
  • Volt, RPM, and Temp on board telemetry ports
  • XBus telemetry port expansion
  • On-board micro USB port
  • On-board bind button
  • Two external RF antennas
  • Two additional SRXL2 Remote Receiver ports
  • SMART Compatible
  • End pin design
  • Forward programming
Specifications:
Band: 2.4GHz
Bind Method: Bind Button
Telemetry: Yes
Input Voltage: 3.5 - 9V
Modulation: DSMX/DSM2
Channels: 10
Antenna Length: 7.32" (186 mm)
Dimensions:
2.16x1.18x0.59" (55x30x15mm)
Failsafe: Yes
Range: Full
