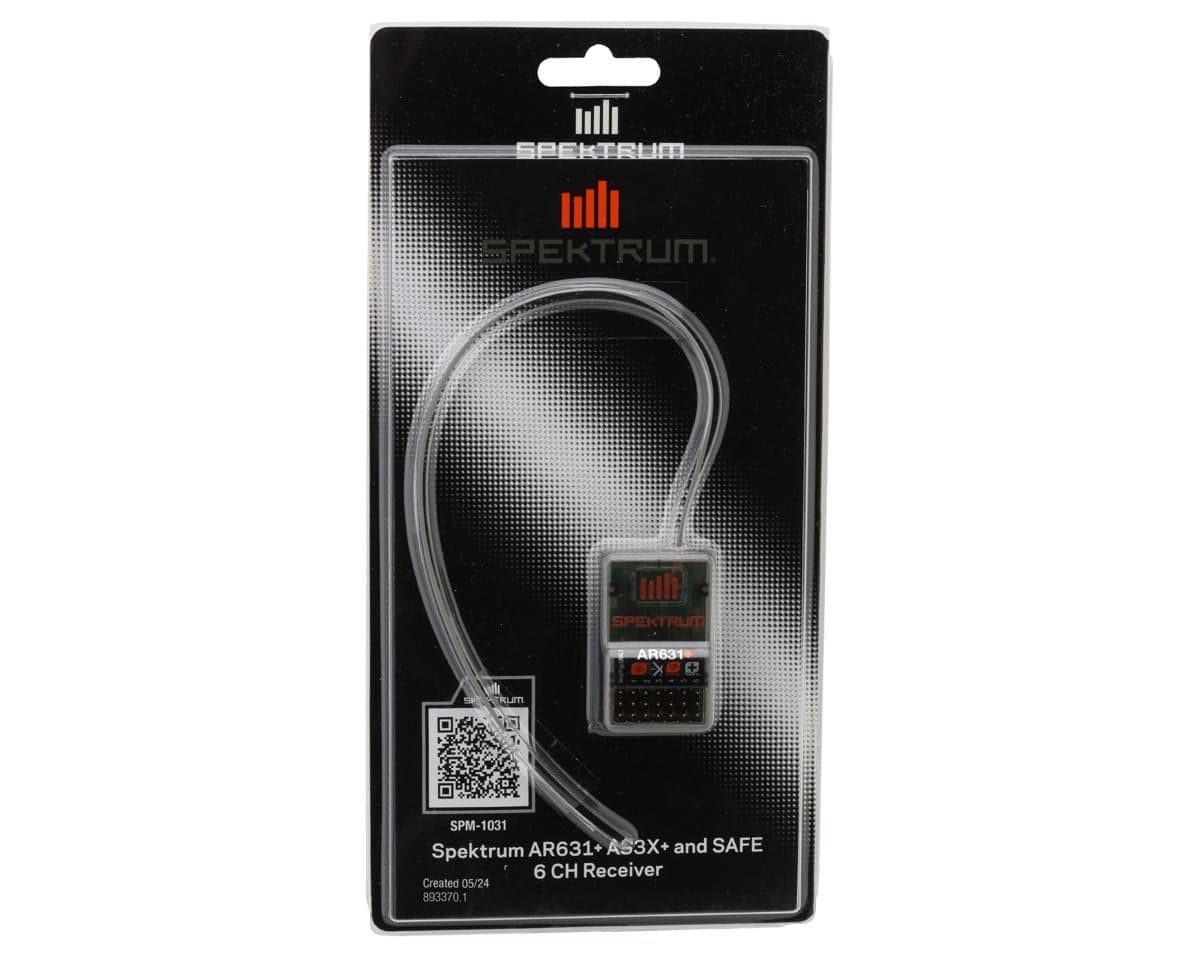

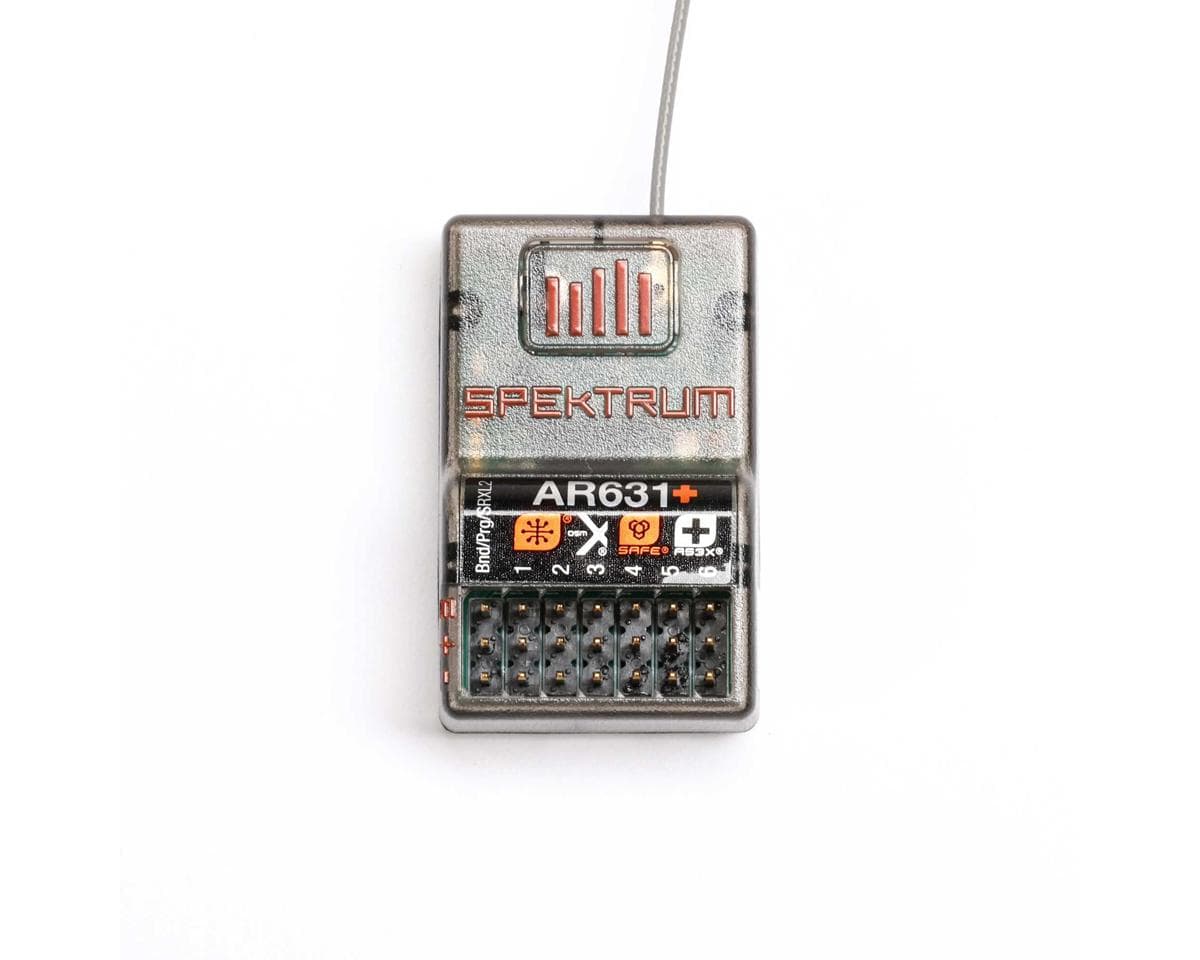

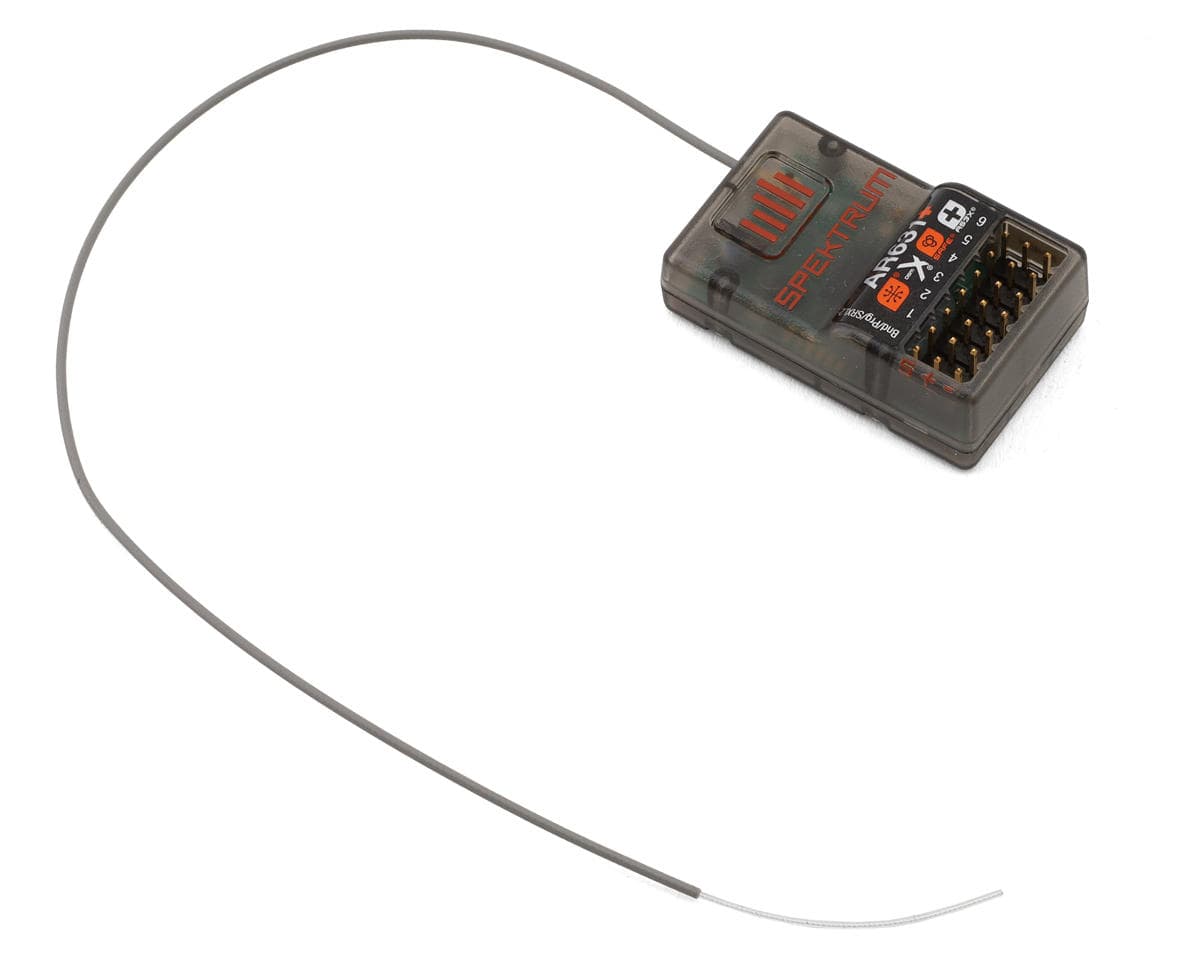

Spektrum RC AR631+ DSMX 6-Channel Aircraft Telemetry Receiver w/AS3X+ & SAFE
About this part
Receiver Overview:
The Spektrum AR631+ AS3X+ Telemetry Receiver is a versatile, full-range 6-channel receiver designed for a wide variety of aircraft. Equipped with both AS3X+ and SAFE stabilization technology, it provides enhanced stability and control, countering the effects of wind, turbulence, and torque. With Smart telemetry capabilities, this receiver offers seamless integration with compatible Spektrum Smart ESCs for real-time data and requires minimal setup.
Ideal for both park flyers and larger sport models, the AR631+ includes a long 230mm antenna, ensuring flexible installation options for optimal signal reception. Bind effortlessly with the built-in bind button, eliminating the need for a bind plug, and enjoy advanced failsafe settings via forward programming from your Spektrum transmitter.
Note: The AR631+ receiver is not recommended for turbine-powered aircraft.
Features:
- Smart Transmitter File Download for easy updates
- 230mm antenna for versatile installation options
- Built-in AS3X+ Stabilization System with SAFE technology
- AS3X+ and SAFE setup via forward programming
- Ready to use with Spektrum Smart ESC for one-wire telemetry
- Streamlined, top-pin design in a lightweight hard-case
- Bind button for easy, plug-free binding
- DSMX protocol with DSM2 backward compatibility
- Fly-by range telemetry support
- Standard servo connectors
Specifications:
- Application: Airplane, Sailplane
- Modulation: DSMX
- Band: 2.4GHz
- Bind Method: Button
- Channels: 6
- Input Voltage: 3.5 - 9V
- Technology: AS3X+, SAFE
- Resolution: 2048
- Length: 1.53in (39mm)
- Width: 0.94in (24mm)
- Height: 0.55in (14mm)
- Weight: 0.28oz (8g)
Includes:
- (1) AR631+ 6-Channel AS3X+ & SAFE Receiver
- (1) Product Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews2.0 · 1 review
I got this reciever to use as3x in my one plane, I tried it in a friend's plane and it did help stabilize the plane in windy conditions some which is nice. Except one major problem, I had a few questions on how to set it up and how to update my dx8 g2 controller to be able to accept this reciever. Tried calling and live chatting Horizon/Spektrum, and got nothing back. Found out they have completely shut down communications with the average customer so I'm screwed, and only some hobby shops can sometimes get ahold of them to get any answers on anything. So this will be the last Horizon product I buy.
