Spektrum RC
Spektrum RC Avian 130A 6S Brushless Smart ESC (Version A)
Part # SPMXAE1130A5.0(1)
Fits
Where to buy
$129.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Spektrum Avian 130A 6S Brushless Smart ESC is a great choice for those needing longer wiring leads in their model. Designed specifically for the E-flite Viper 90mm Jet, the Avian 130A features 17.71in throttle lead, 15.75in battery leads and 5.12in motor leads. This allows for the ESC to be mounted in an area that will receive better airflow. Package includes one ESC with pre-soldered IC5 and motor bullets.
Avian Smart Air ESCs do much more than regulate power. They provide a direct path to the vital operating data you need to reach peak performance. Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
Avian Smart Air ESCs do much more than regulate power. They provide a direct path to the vital operating data you need to reach peak performance. Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
Specifications:
Input Voltage: 3S - 6S LiPo
Maximum Continuous Current: 130A
Maximum Burst Current: 160A
Connector Type: IC5
Input Voltage: 3S - 6S LiPo
Maximum Continuous Current: 130A
Maximum Burst Current: 160A
Connector Type: IC5
Brakes: Yes
Forward: Yes
Low-Voltage Cutoff Programmable: Yes
Reverse: Yes
Technology: Smart
Programmable: Yes
Auto Cutoff: Yes
Overload Protection: Yes
BEC: Yes
BEC Continous Current: 8A
BEC Maximum Burst Current: 25A
BEC Type: Switch-Mode
BEC Voltage: 6V / 7.4V / 8.4V Adjustable
Battery Input Lead: 15.75 in (400mm) 12AWG with IC5 connector

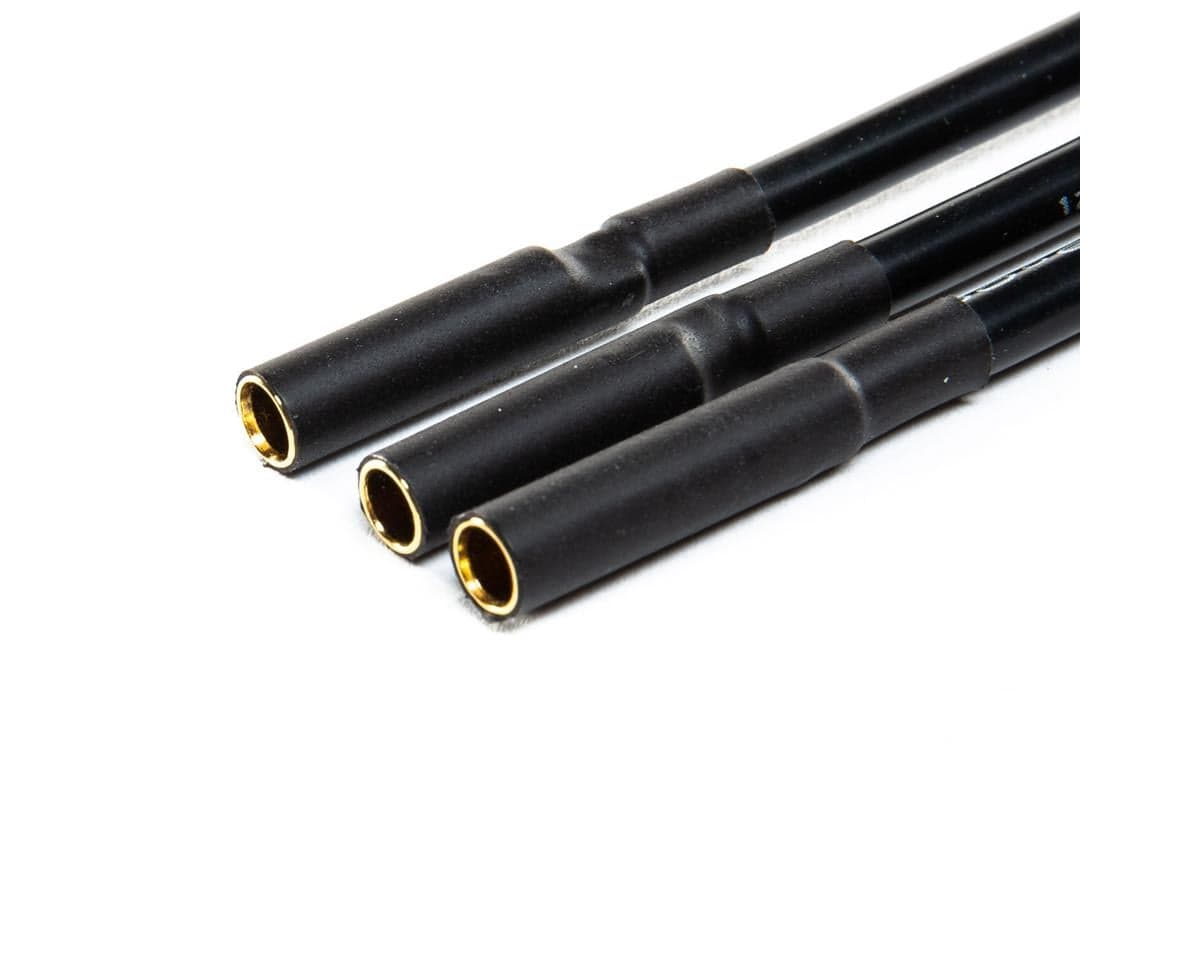

Motor Output Lead: 5.12 in (130mm) 12AWG with 4.0mm bullet connector
Motor Output Lead: 5.12 in (130mm) 12AWG with 4.0mm bullet connector
Product Length: 3.3" (84 mm)
Product Width: 1.4" (36 mm)
Product Height: 1.3" (33 mm)
Product Weight: 126g (4.4 oz)
Product Height: 1.3" (33 mm)
Product Weight: 126g (4.4 oz)
