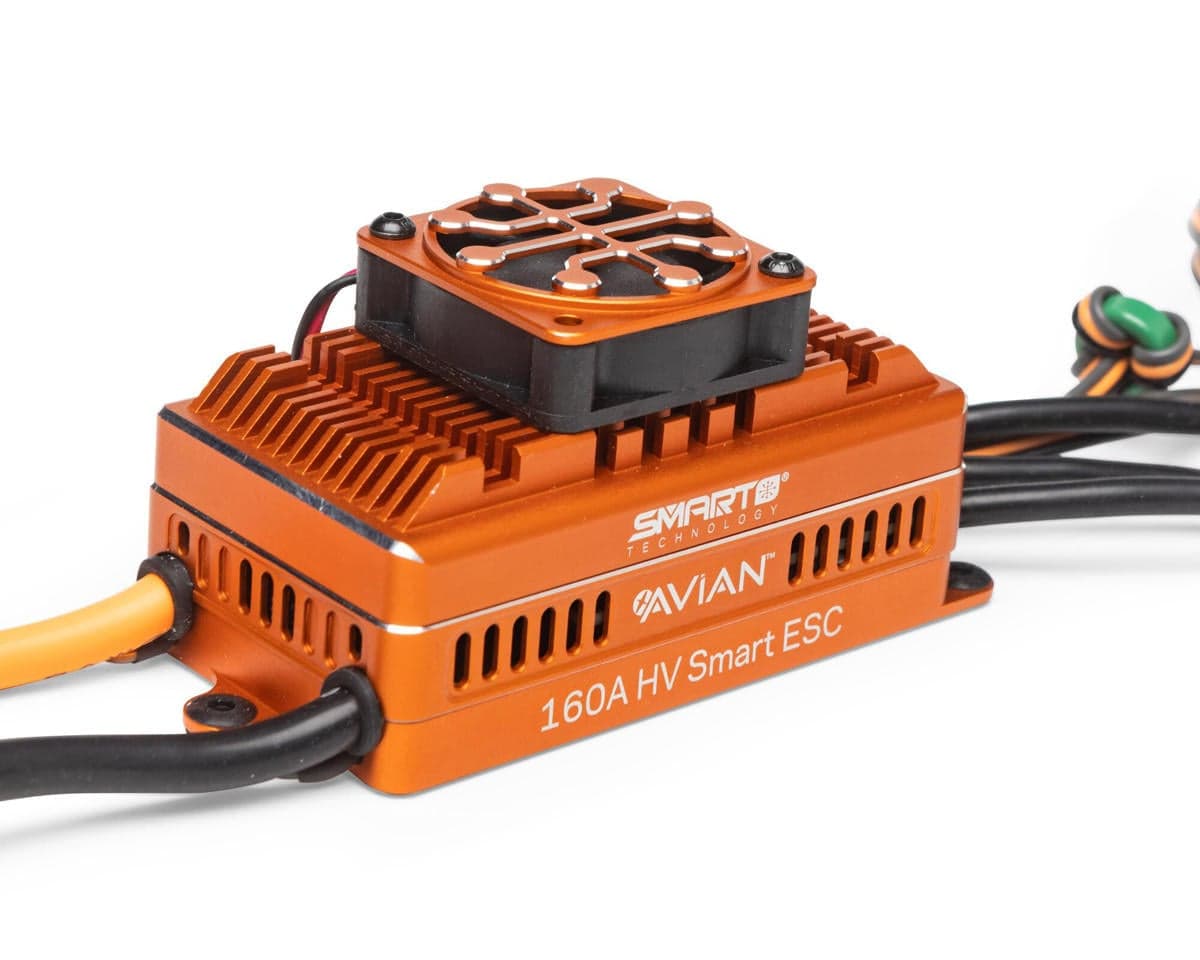

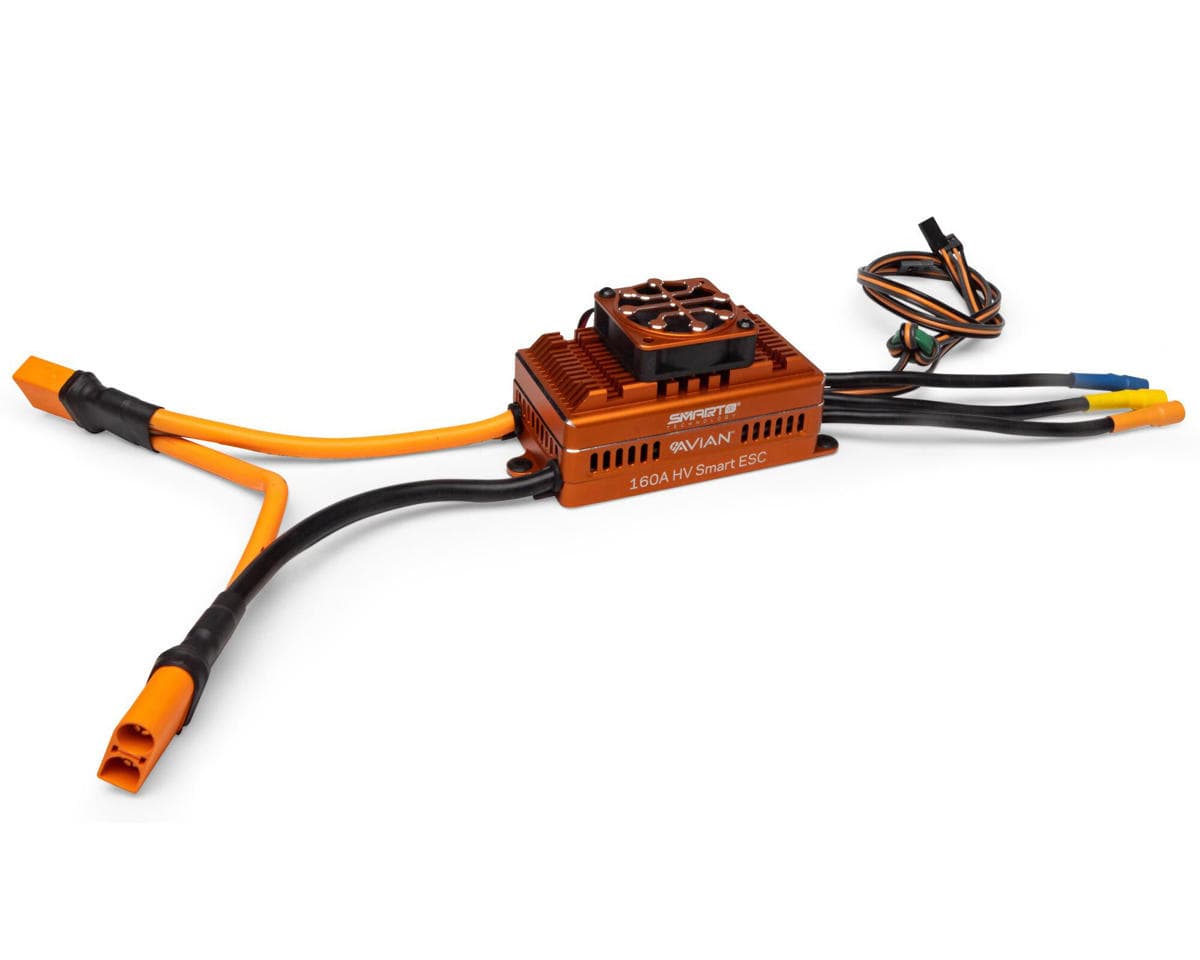

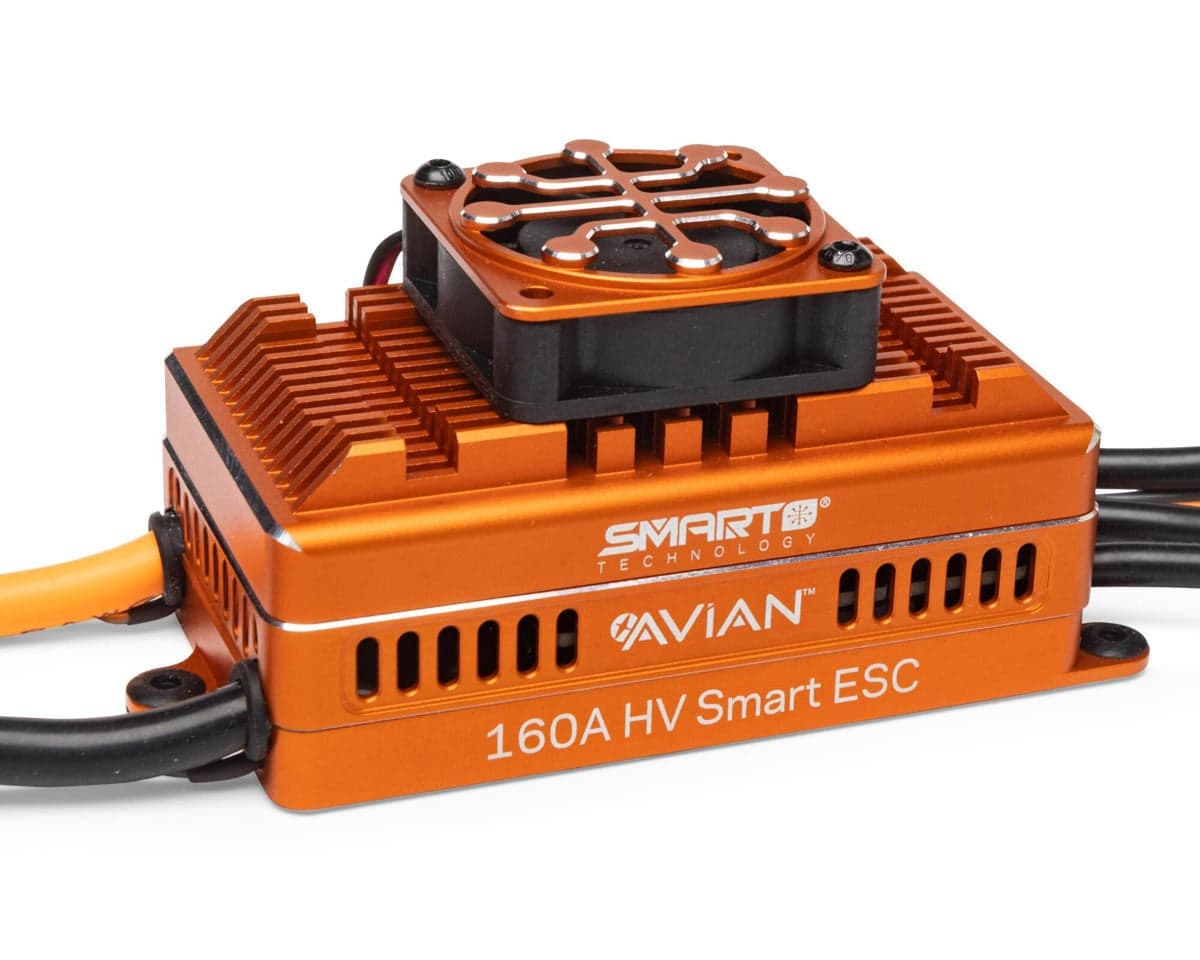

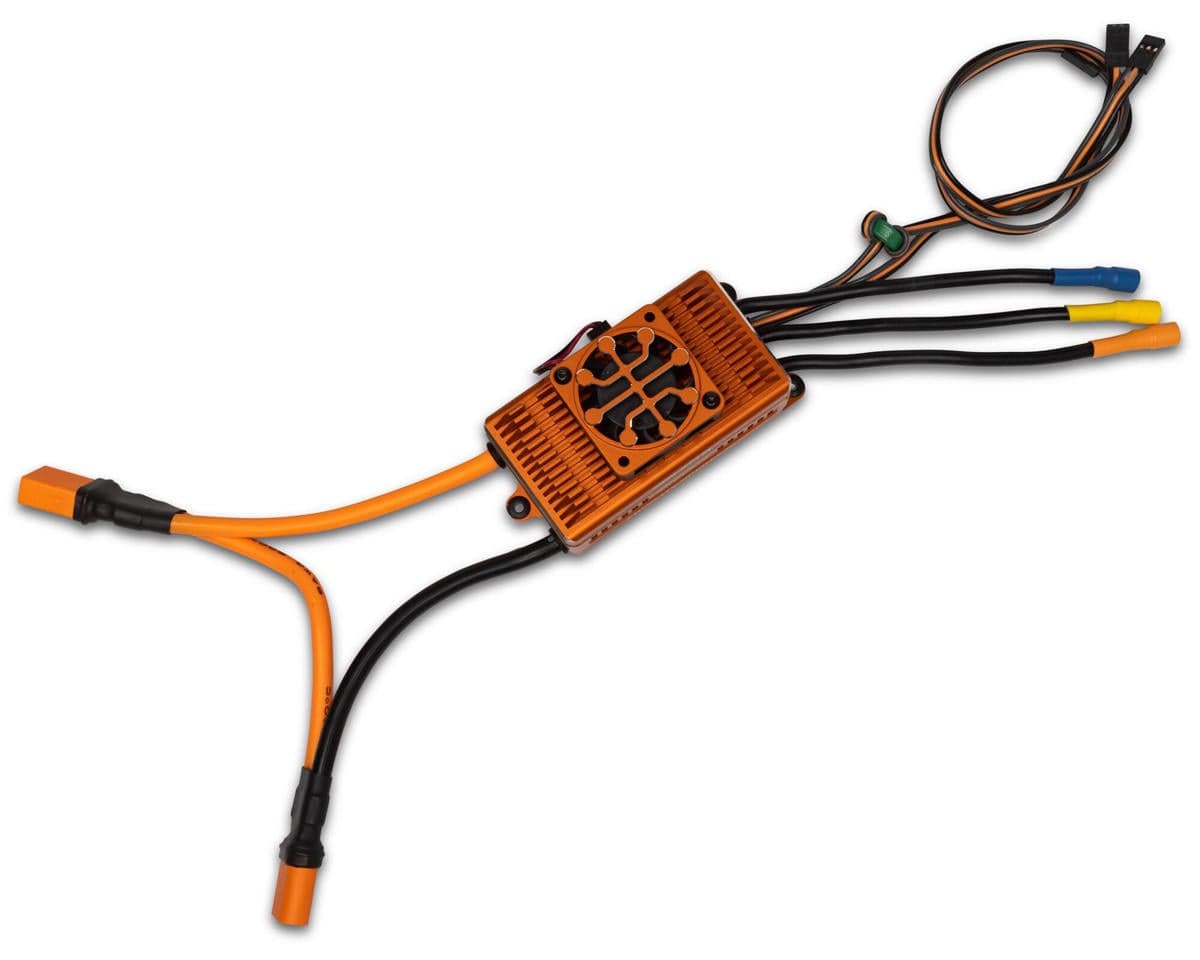

Spektrum RC Avian 160A HV Brushless Smart ESC 6S-14S

ESC Overview:

The Spektrum Avian 160Amp Brushless Smart ESC offers seamless integration within the Spektrum Smart ecosystem. With its "plug-and-play" simplicity and communication capabilities with other Smart electronics, it delivers unparalleled performance for your aircraft.

Avian Smart Air ESCs offer more than power regulation, they act as a virtual engineer within your model, providing direct access to vital operating data for peak performance. With Avian Smart Air ESCs, you gain confidence in optimal electronic operation without the need for additional independent components. It provides streamlined connectivity to your aircraft, eliminating the requirement for extra wires, modules, or links. An Avian ESC offers a one-wire solution for telemetry data, including current, voltage, cell balance, temperature, and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features:

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Multiple options for easy programming: Smart ESC Programming Box, SmartLink USB Updating and Programmer application, Throttle stick programming
• Multi-point protection: Over-current protection, Automatic LiPo low-voltage cutoff, Thermal protection, Failsafe protection
• Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Heat dissipating design
• Dual BEC power connectors
• Firmware updatable through the Smart ESC Programming Box and SmartLink PC application

Specifications:

• Current:
• Continuous: 160A
• Peak: 200A
• Input Voltage: 6S 22.2V-14S 44.4V
• Input Connector: IC5
• Length: 3.5in (89mm)
• Width: 1.9in (50mm)
• Height: 1.4in (36mm)
• Weight: 13.3oz (376g)
• BEC Voltage: 6V/7.4/8.4V Adjustable

Includes:

• (1) Spektrum Avian Smart ESC
• (1) Spektrum Smart sticker sheet
• (1) Product Manual
