Spektrum RC

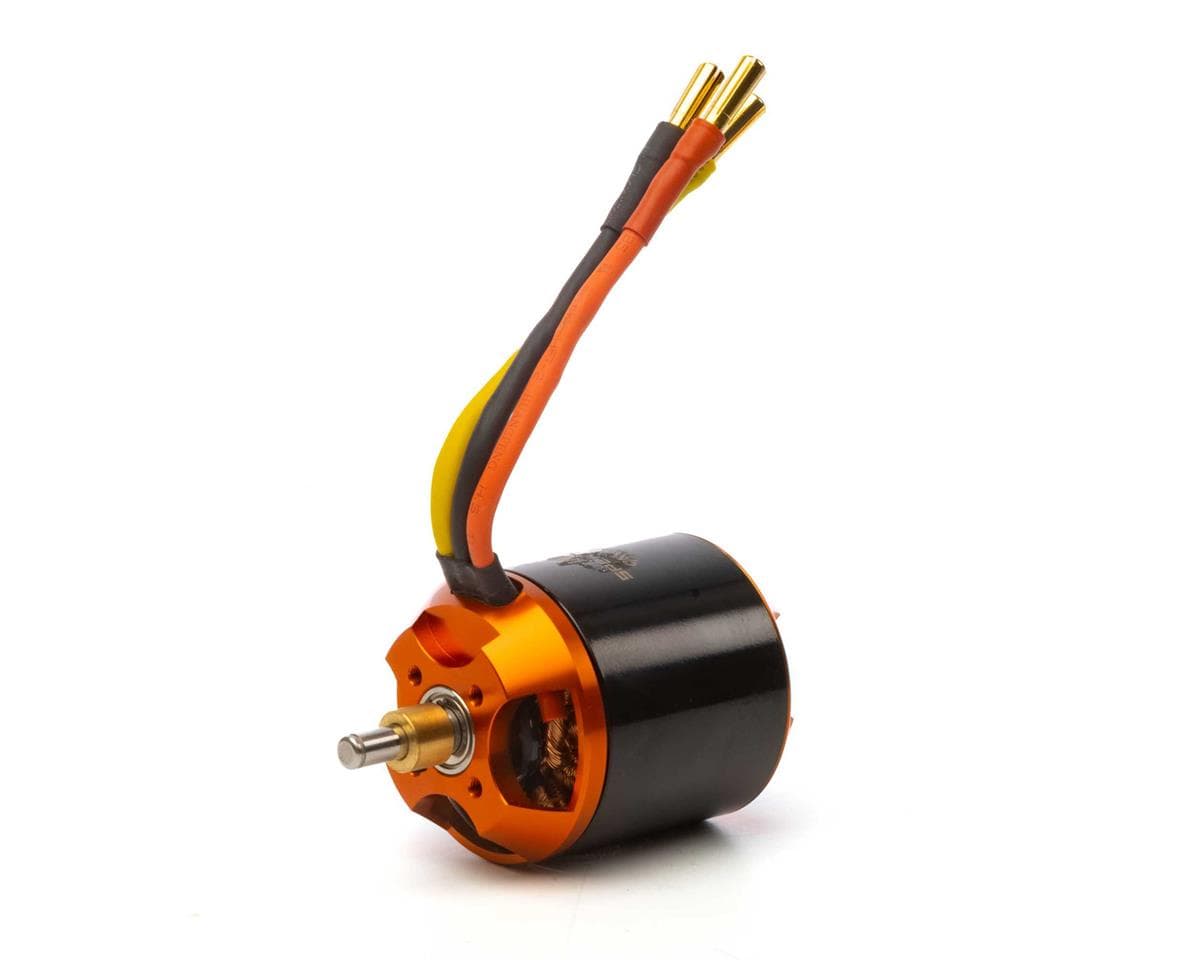

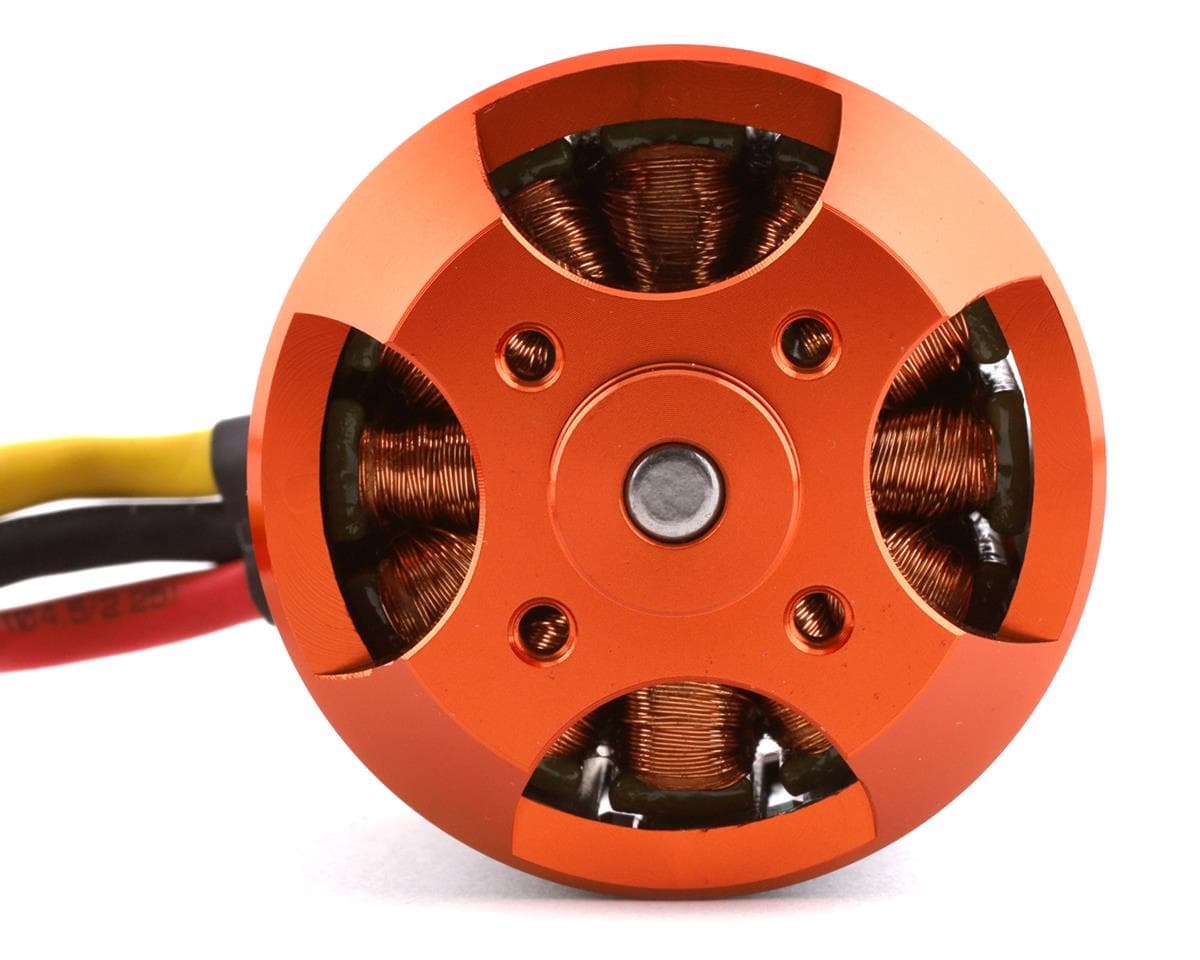

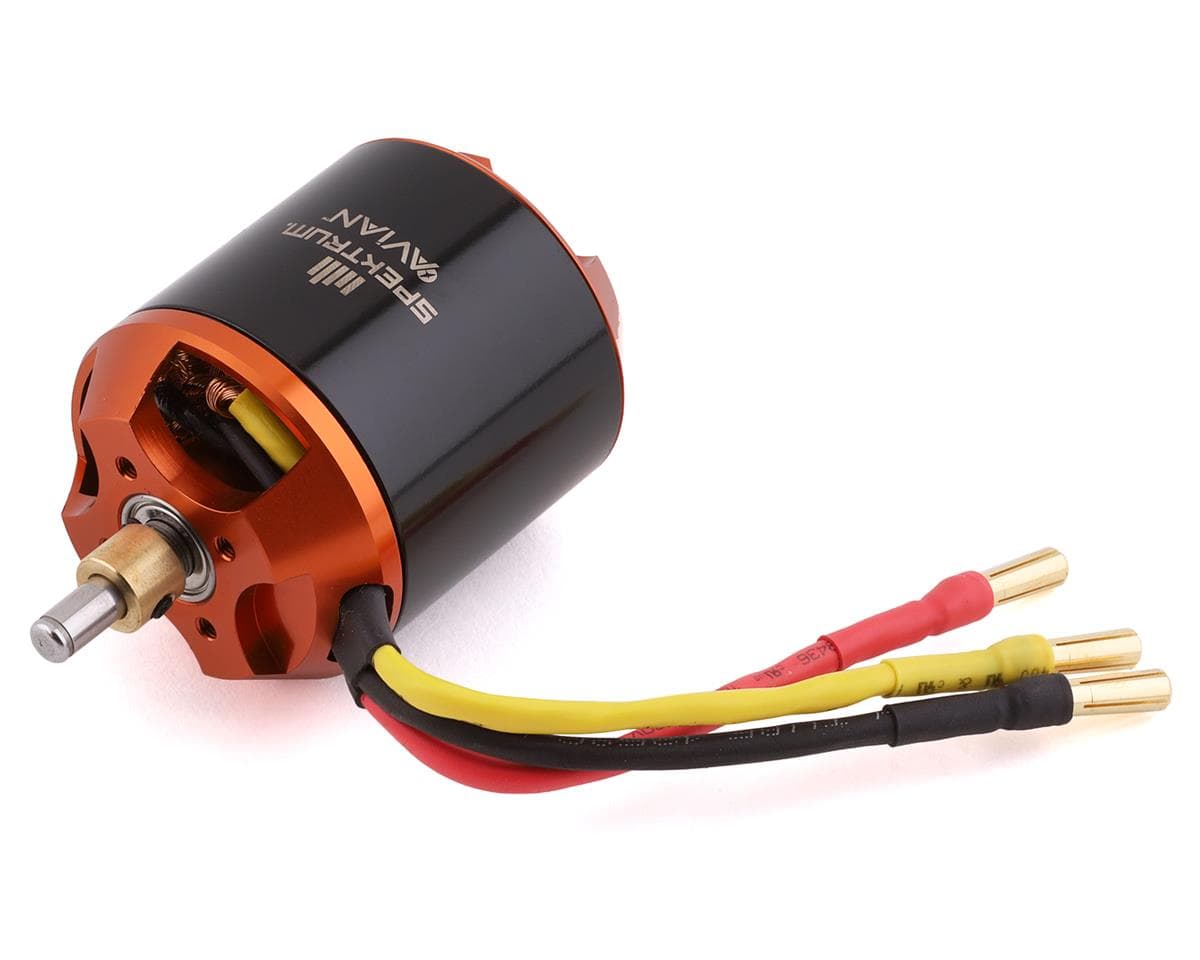

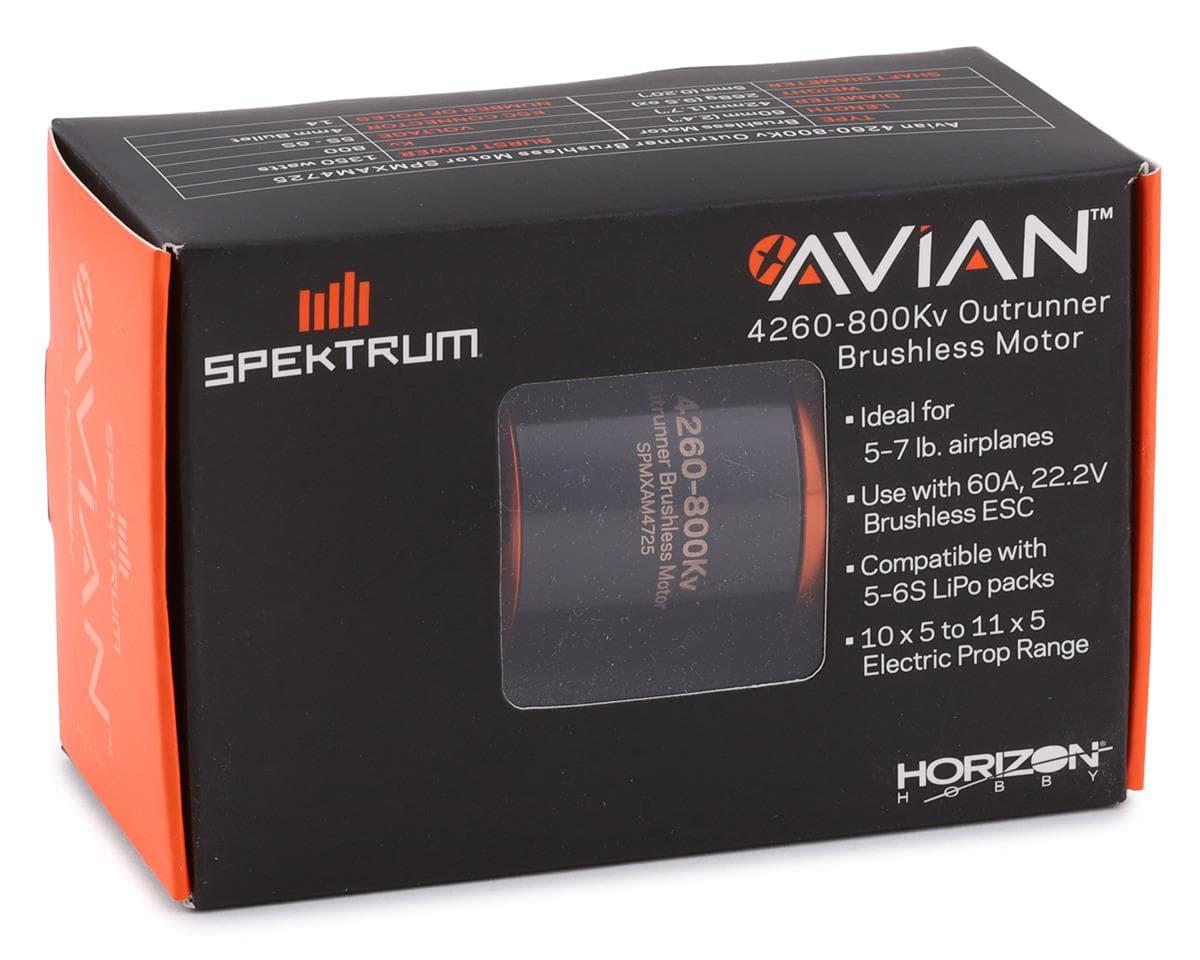

Spektrum RC Avian 4260 Brushless Outrunner Motor (800Kv)
Part # SPMXAM47255.0(1)
Where to buy
$109.99
Prices are as last seen at the store; stock is not tracked.
About this part
Spektrum Avian line of motors are built for high reliability, impressive performance, and crafty features that allow pilots make their next brushless motor choice an easy one. The line up of motors is wide, and cover a wide variety of aircraft sizes, performance levels, and general applications. Whether you're an electric guru, or someone looking to convert a combustion airplane to electric power, the Avian motors are a great choice for any project.
Pilots are looking for not only simplicity, but performance as well for their RC aeromodeling needs. The engineers behind the Spektrum Avian brushless motors recognize this, and built the motors with the foundation to deliver fast and smooth power delivery, excellent cooling to ensure the highest performance, low maintenance requirements thanks to double shield bearings, and precision balancing at the factory. In summary, the Avian line of motors gets it done for any type of pilot, and any type of aircraft.
Features at a Glance:
Pilots are looking for not only simplicity, but performance as well for their RC aeromodeling needs. The engineers behind the Spektrum Avian brushless motors recognize this, and built the motors with the foundation to deliver fast and smooth power delivery, excellent cooling to ensure the highest performance, low maintenance requirements thanks to double shield bearings, and precision balancing at the factory. In summary, the Avian line of motors gets it done for any type of pilot, and any type of aircraft.
Features at a Glance:
- Built with Rare-Earth neodymium magnets
- 14 pole stator that delivers smooth power delivery
- Pre installed gold plated 4mm bullet connectors
Specifications:
- Application:
- Sport Airplanes: Up to 7.5lbs (3402g)
- 3D High Performance Airplanes: Up to 5lbs (2268g)
- Stator Size: 4260
- kV (RPM/Volt): 800
- Input Voltage: 18.5-22.2V (5-6s LiPo)
- Continuous Current: 1000W
- Burst Current: 1850W
- Prop Suggestions: 10x5 - 11x5 Electric
- Prop Adapter Specifications:
- Diameter: 5mm
- Length: 29mm
- Motor Dimensions:
- Diameter: 1.7" (43mm)
- Length: 2.36" (60mm)
- Weight: 9.5oz (268g)
- ESC Suggestions: 60-80A
Includes:
- (1) Spektrum Avian Motor

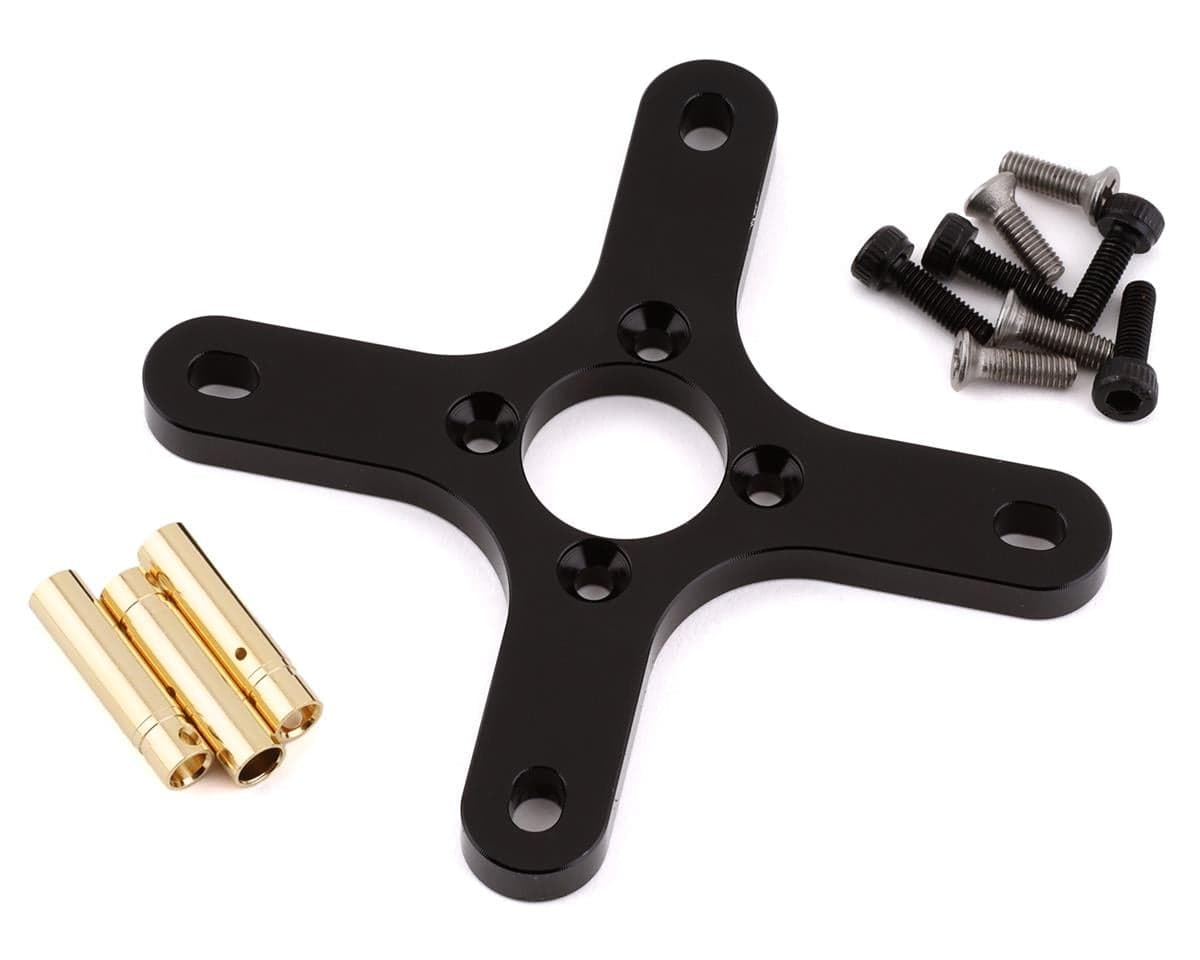

- (1) X Style Motor Mount
- (1) Set of 4mm Female Bullet Connectors

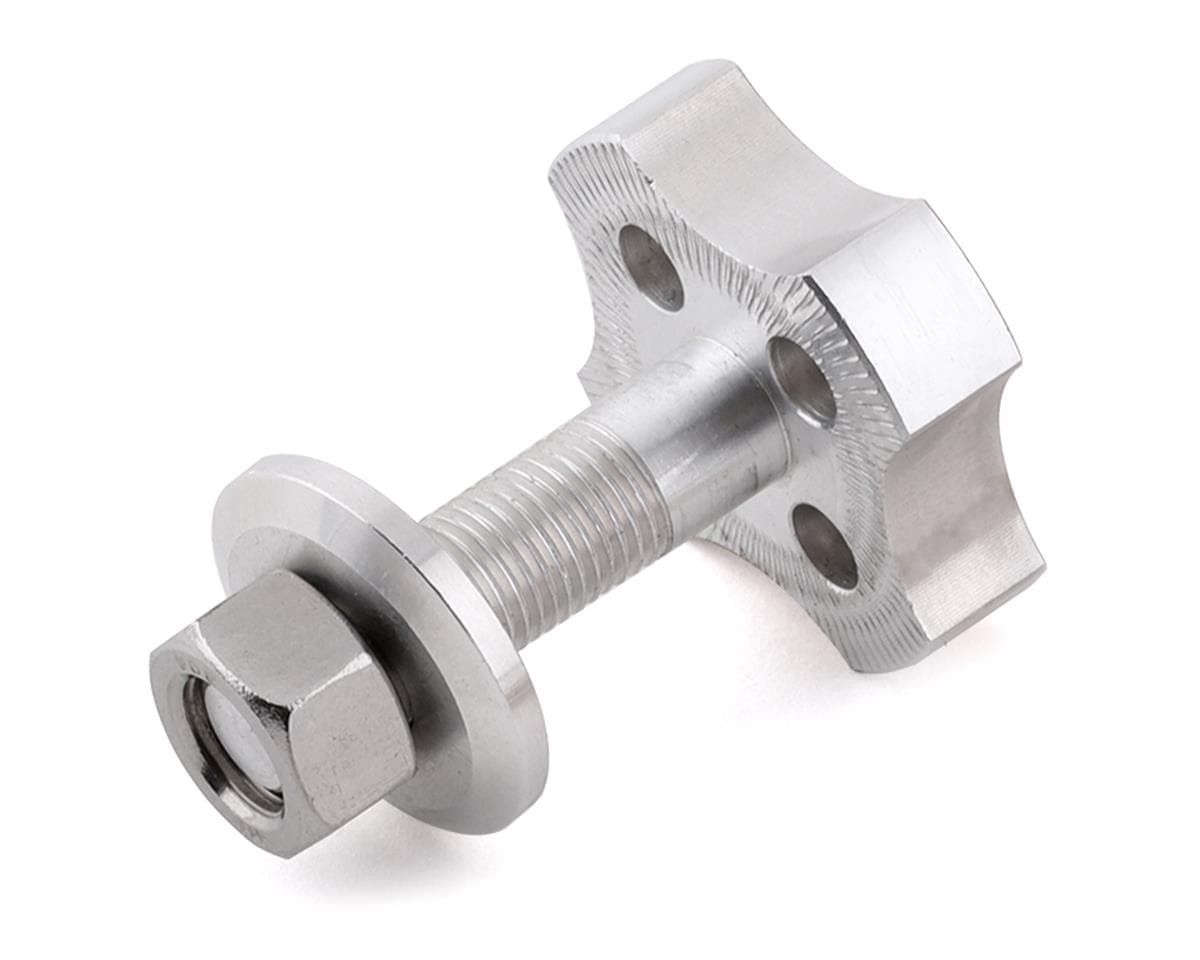

- (1) Prop Adaptor
- (1) Hardware pack
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
JOHN GILDROYVerified owneron Spektrum RC Avian 4260 Brushless Outrunner Motor (800Kv)
I bought this motor for a modification/build of a plane I have. It's a float flyer so I won't know how it preforms until then. I am impressed with it's weight and hand turning the outrunner casing. I think it will work very well for my purpose. I am also impressed at which you were able to deliver it. Thank You, Jack Gildroy
