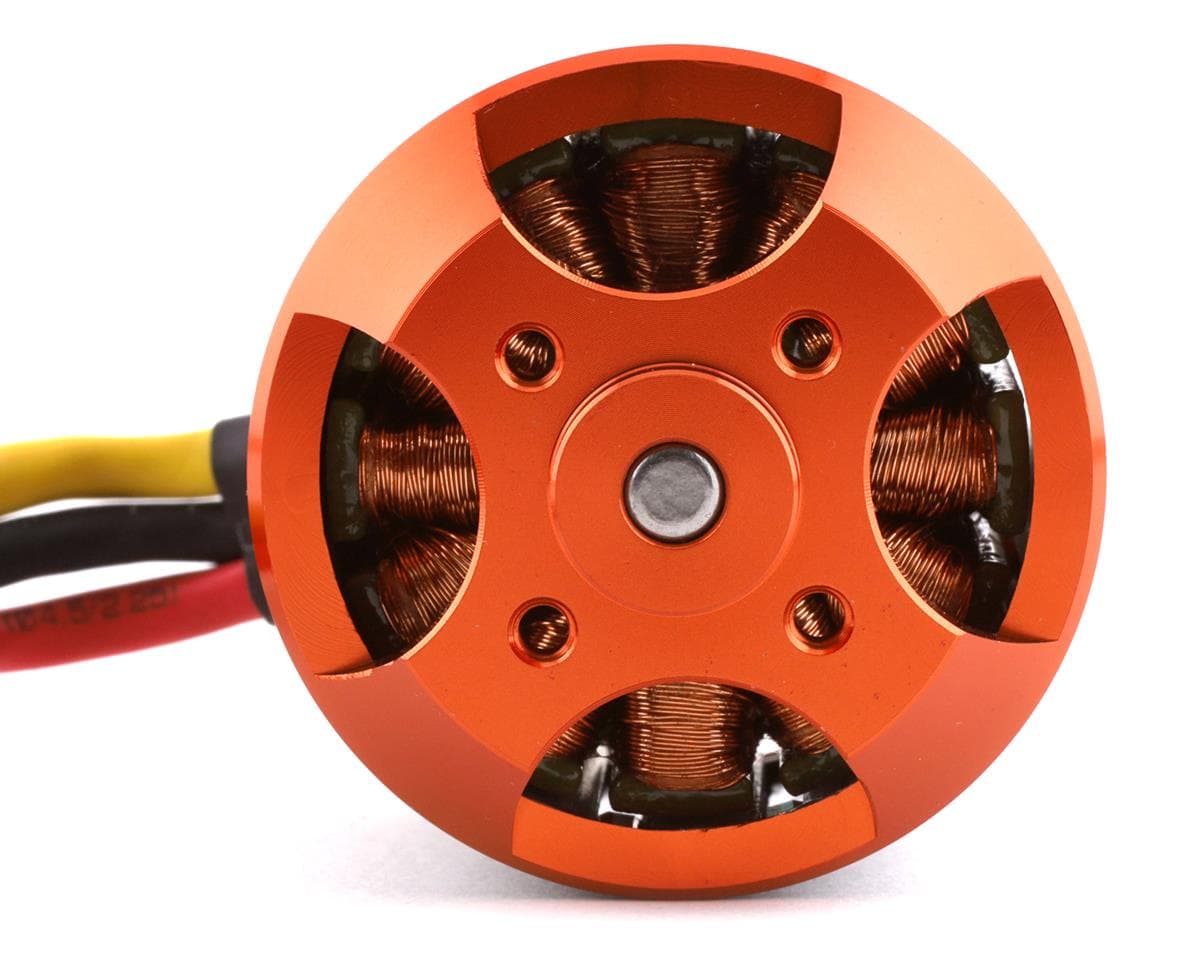

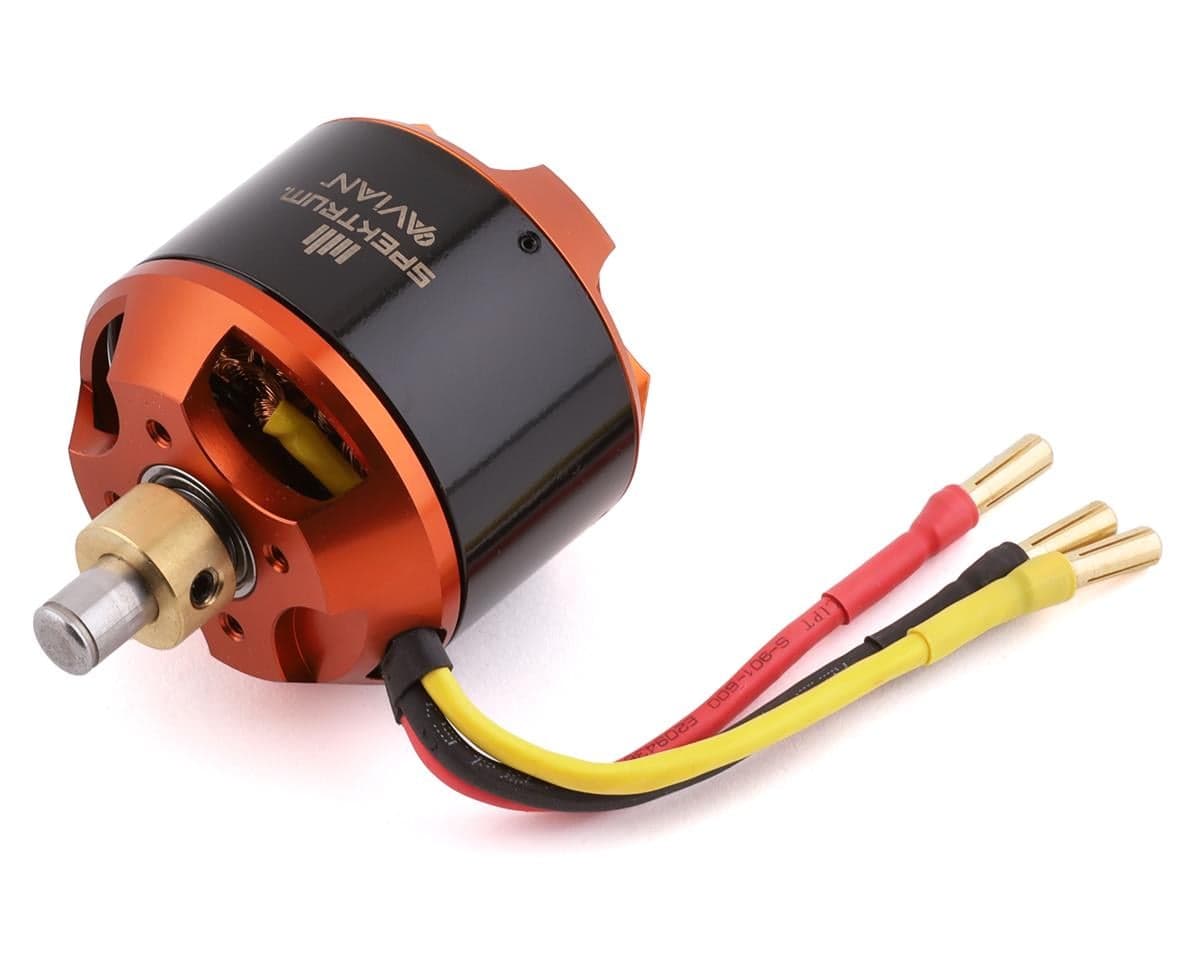

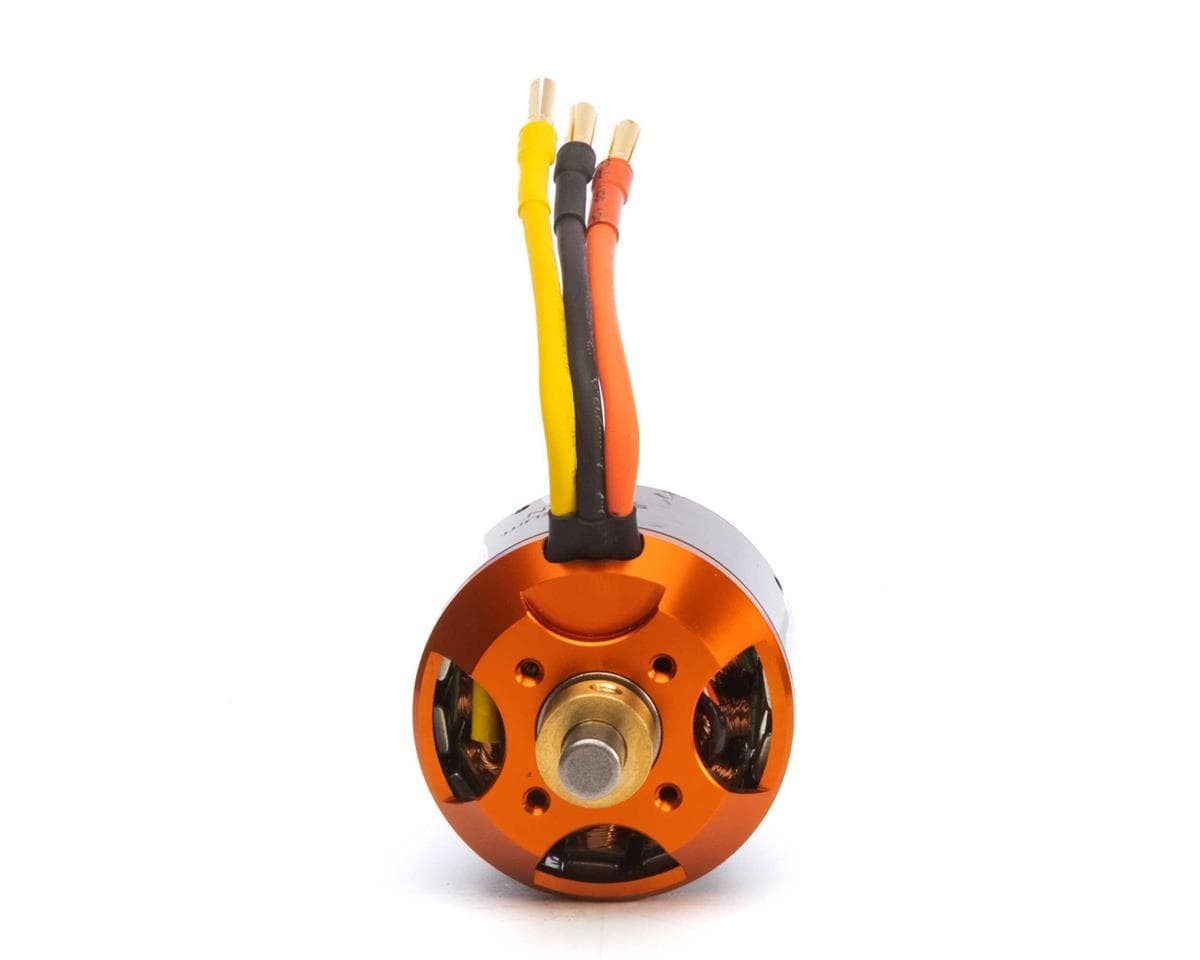

Spektrum RC Avian 5055 Brushless Outrunner Motor (500Kv)

Spektrum Avian line of motors are built for high reliability, impressive performance, and crafty features that allow pilots make their next brushless motor choice an easy one. The line up of motors is wide, and cover a wide variety of aircraft sizes, performance levels, and general applications. Whether you're an electric guru, or someone looking to convert a combustion airplane to electric power, the Avian motors are a great choice for any project.

Pilots are looking for not only simplicity, but performance as well for their RC aeromodeling needs. The engineers behind the Spektrum Avian brushless motors recognize this, and built the motors with the foundation to deliver fast and smooth power delivery, excellent cooling to ensure the highest performance, low maintenance requirements thanks to double shield bearings, and precision balancing at the factory. In summary, the Avian line of motors gets it done for any type of pilot, and any type of aircraft.

Features at a Glance:

• Built with Rare-Earth neodymium magnets
• 14 pole stator that delivers smooth power delivery
• Pre installed gold plated 4mm bullet connectors

Specifications:

• Application:
• Sport Airplanes: Up to 11.5lbs (5215g)
• 3D High Performance Airplanes: Up to 7lbs (3175g)
• Stator Size: 5055
• kV (RPM/Volt): 500
• Input Voltage: 18.5-22.2V (5-6s LiPo)
• Continuous Current: 900W
• Burst Current: 1500W
• Prop Suggestions: 15x6 - 15x8 Electric
• Prop Adapter Specifications:
• Diameter: 8mm
• Length: 32mm
• Motor Dimensions:
• Diameter: 1.97" (50mm)
• Length: 2.17" (55mm)
• Weight: 10.5oz (298g)
• ESC Recommendations: 60A

Includes:

• (1) Spektrum Avian Motor

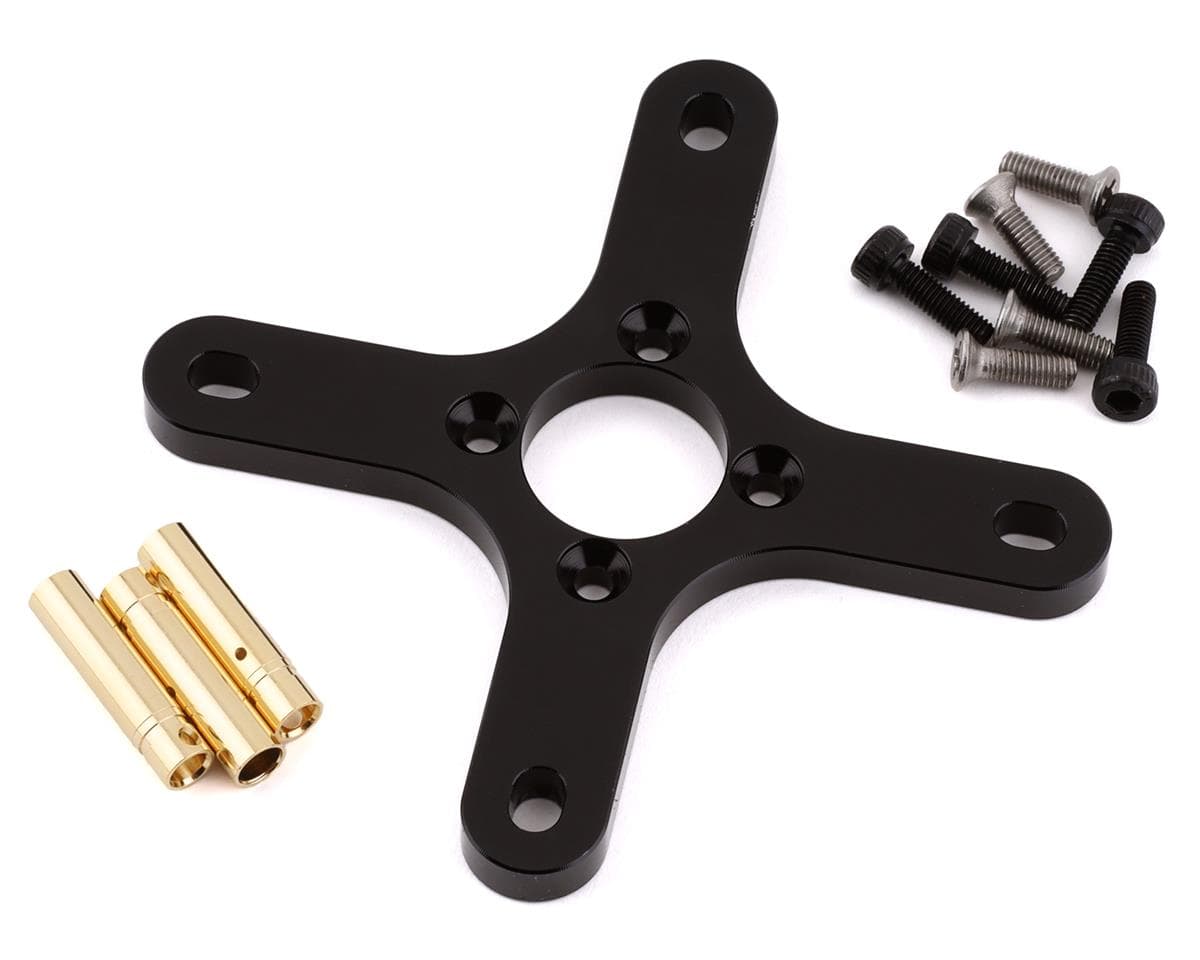

• (1) X Style Motor Mount
• (1) Set of 4mm Female Bullet Connectors

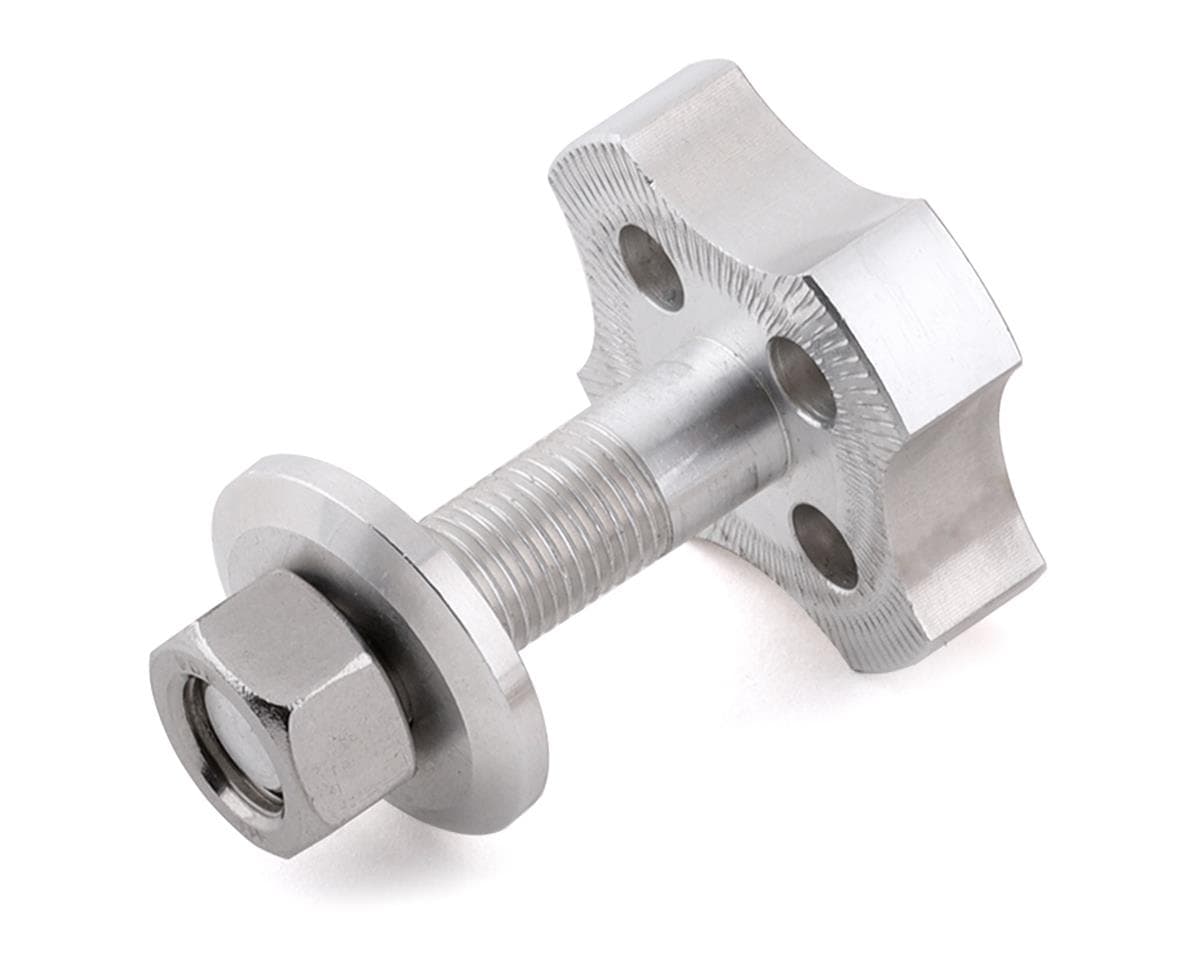

• (1) Prop Adaptor
• (1) Hardware pack
