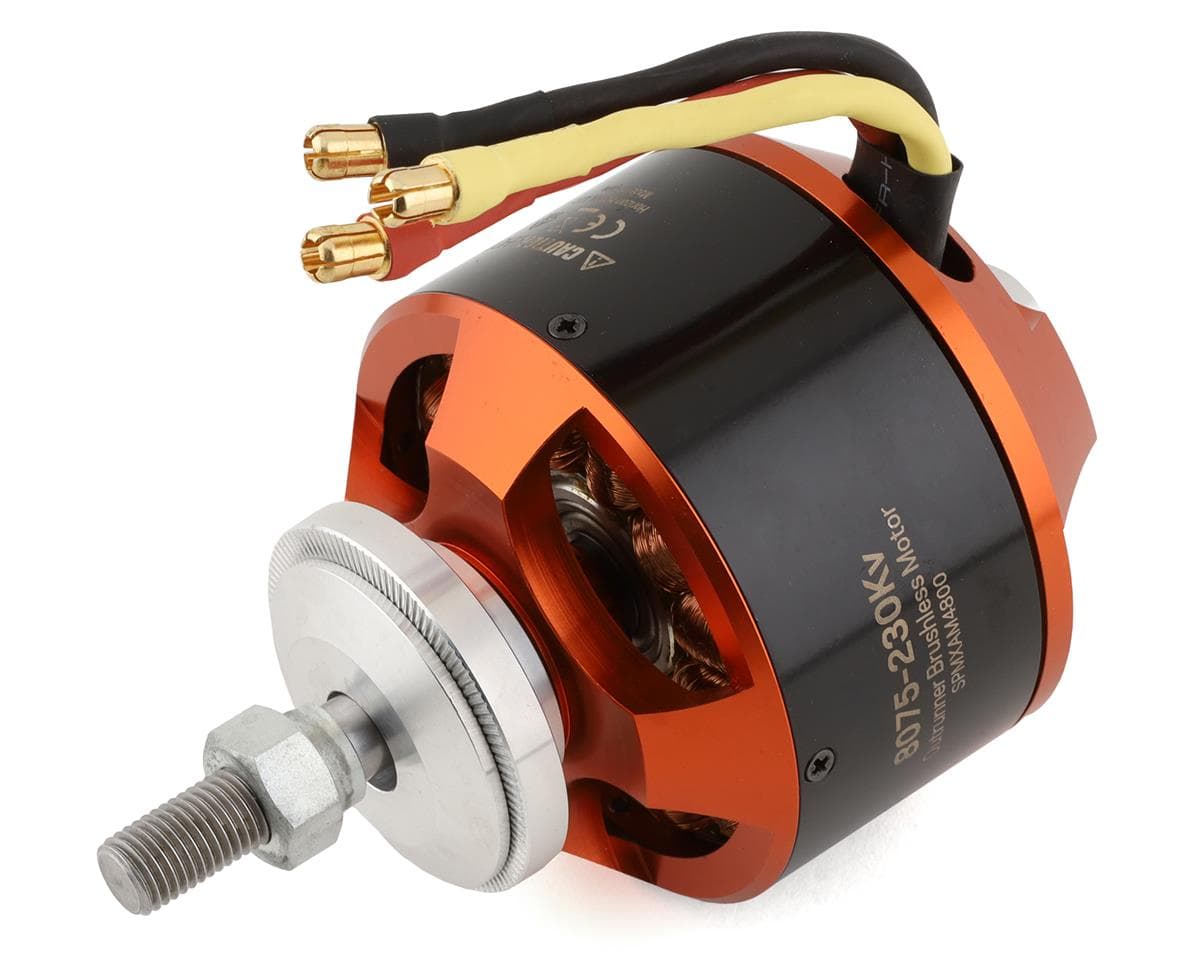

Spektrum RC Avian 8075 Brushless Outrunner Motor (230Kv)
Spektrum RC

Spektrum RC Avian 8075 Brushless Outrunner Motor (230Kv)

Part # SPMXAM4800
Where to buy
$319.99
AMain Hobbies
Seen Oct 12, 2026
$319.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

The Spektrum Avian 8075 - 230Kv Brushless Outrunner Motor offers a combination of superior performance, high reliability and user-friendly features that make it an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Benefits
  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Features:
  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion

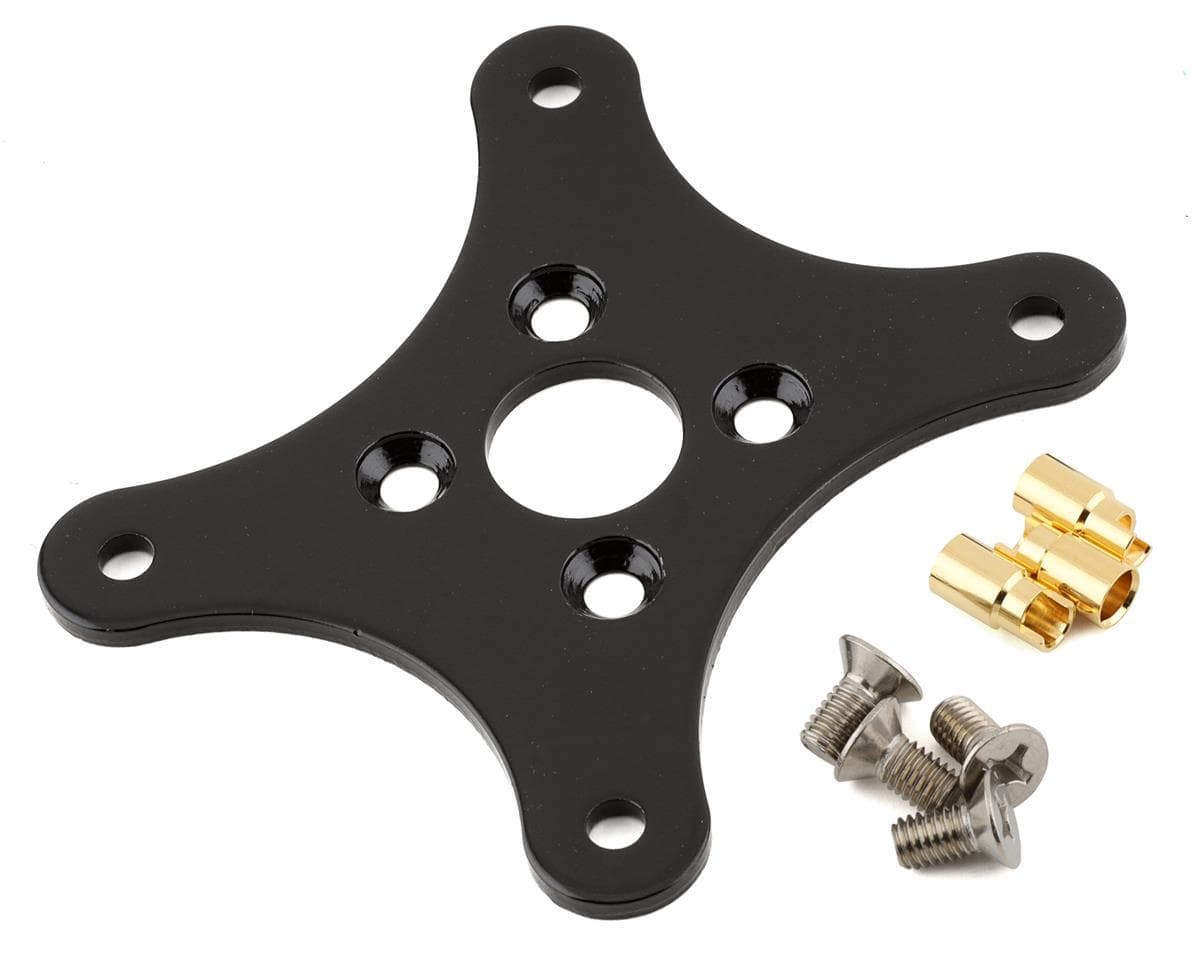

  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 120 amp HV ESC
  • Perfect electric conversion upgrade for 50cc size gas combustion power systems
Specifications:
Adjustable Timing: No
Application: 3D Airplanes up to 18.0lb (8.17kg), Sport Planes up to 28.0lb (12.7kg)
Connector Type: 4mm Bullet
Input Voltage: 33.3 - 55.5V
Maximum Burst Current: 135A
Maximum Continuous Current: 110A
Constant Watts: 3750W
Burst Watts: 6250W
Motor Type: Brushless - Outrunner
Number of Poles: 14
Outer Diameter: 3.14" (80 mm)
Product Length: 2.9" (74 mm)
Product Weight: 44.1oz (1250g)
Recommended Speed Control: 80 - 100A
RPM/Volt (Kv): 230
Shaft Diameter: 0.39" (10 mm)
Shaft Length: 0.79" (20 mm)
CA Residents Prop 65 Warning WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...
