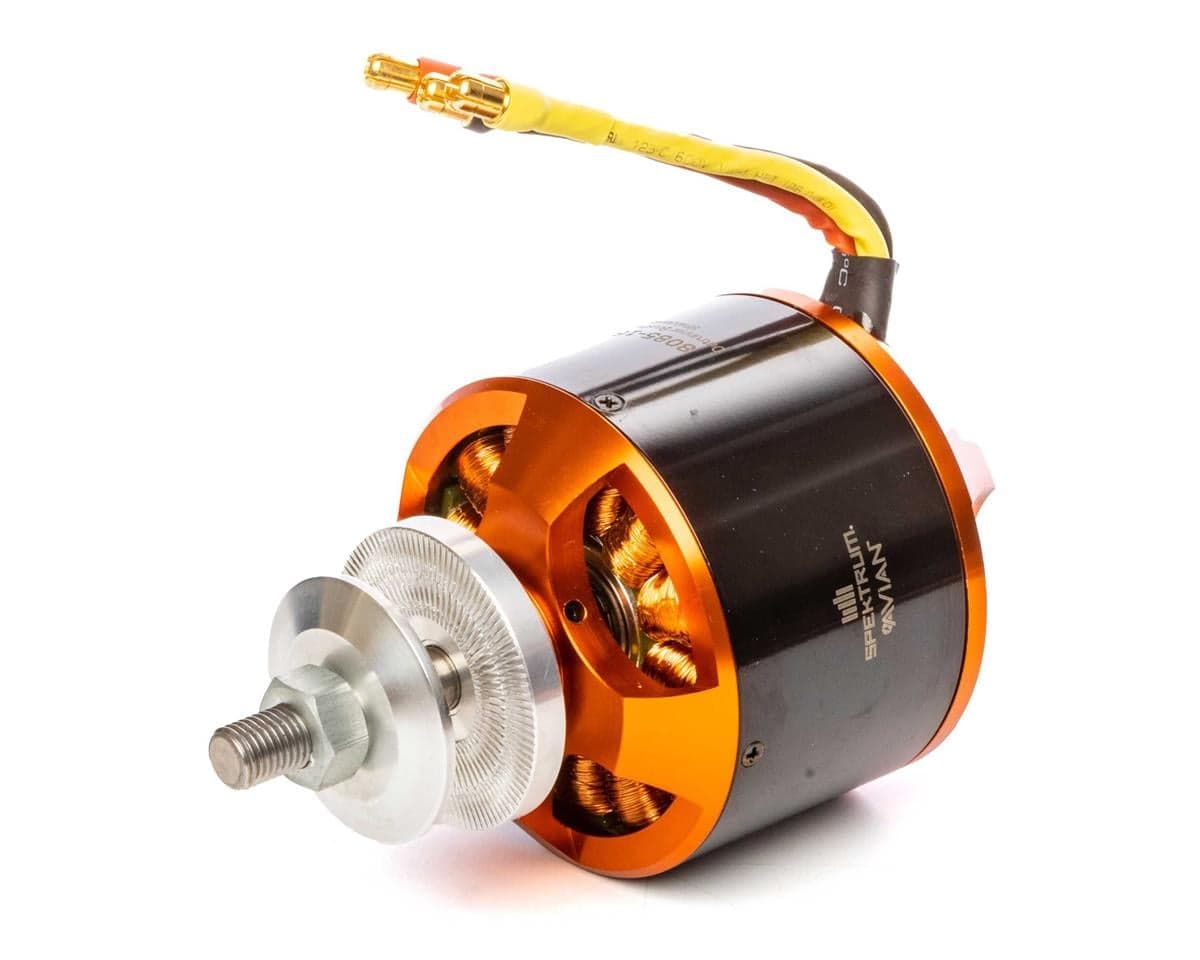

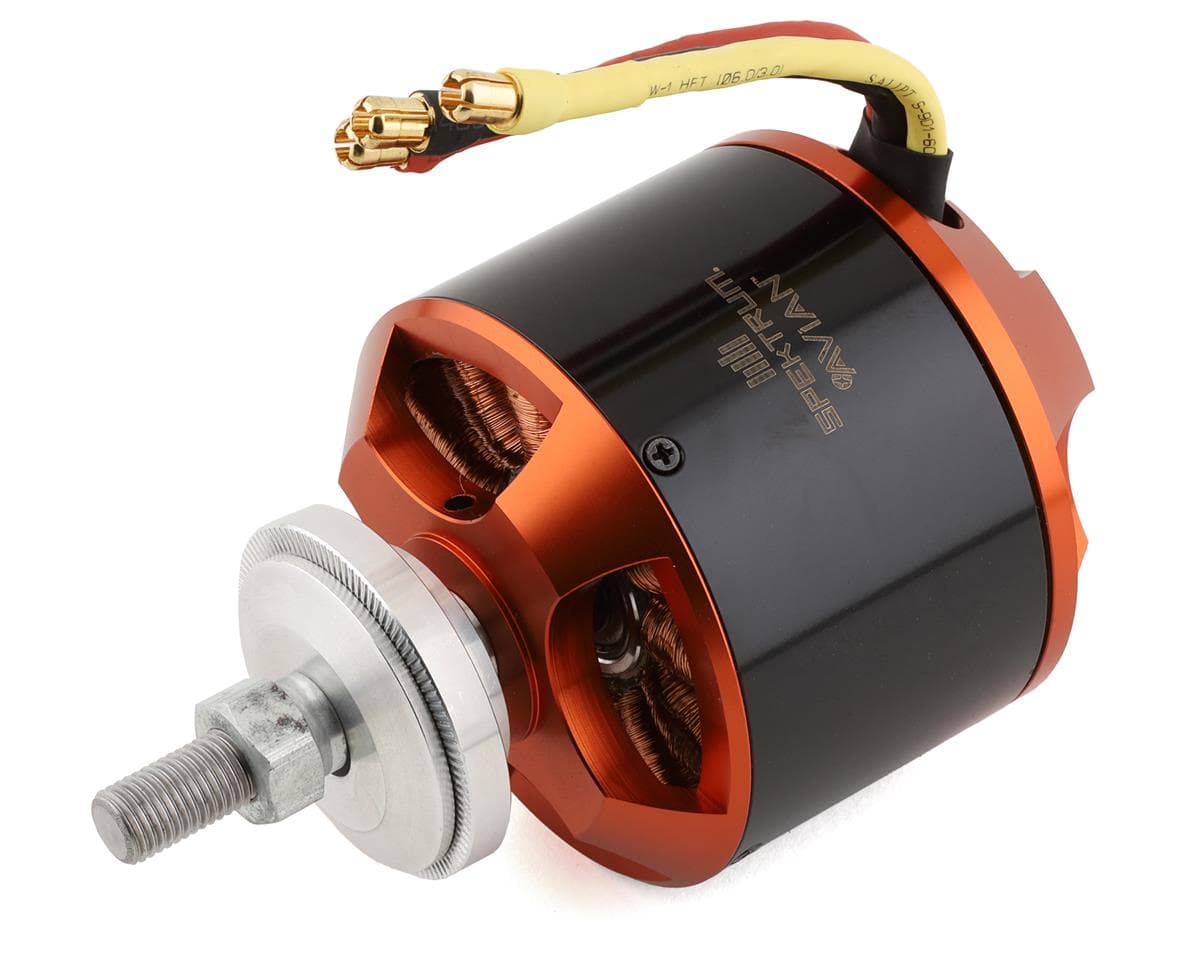

Spektrum RC Avian 8085 Brushless Outrunner Motor (160Kv)

The Spektrum Avian 8085 - 160Kv Brushless Outrunner Motor offers a combination of superior performance, high reliability and user-friendly features that make it an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Benefits

• Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
• Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
• Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features:

• Lightweight design
• Powerful and durable Rare-Earth Neodymium magnets
• 14-pole stator for smooth and precise propulsion

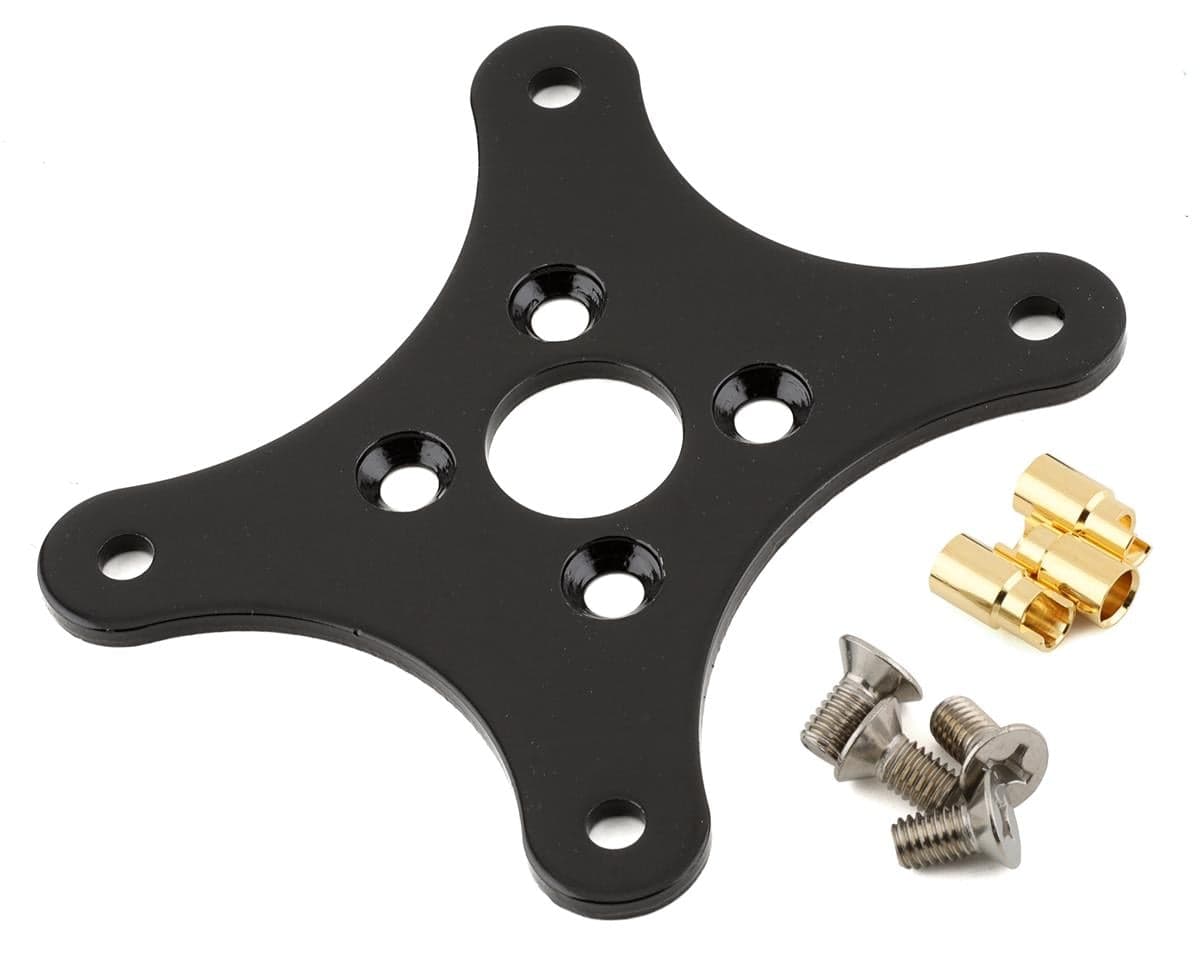

• Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
• Perfect electric conversion upgrade for 65cc size gas combustion power systems

Specifications:

RPM/Volt (Kv): 120

Application: Sport airplanes up to 42lbs (19,050g) and 3D airplanes up to 26lbs (11,793g)

Recommended Prop Range: 22x10 - 26x12 Electric Prop

Adjustable Timing: No

Connector Type: 6mm Bullet

Input Voltage: 33.3-55.5V (9-15S)

Constant Watts: 6500W

Burst Watts: 8400W

Motor Type: Brushless - Outrunner

Number of Poles: 14

Outer Diameter: 3.14" (80mm)

Product Length: 3.35" (85mm)

Product Weight: 52.5oz (1480g)

Recommended Speed Control: 160A

Shaft Diameter: 0.31" (8mm)
