About this part

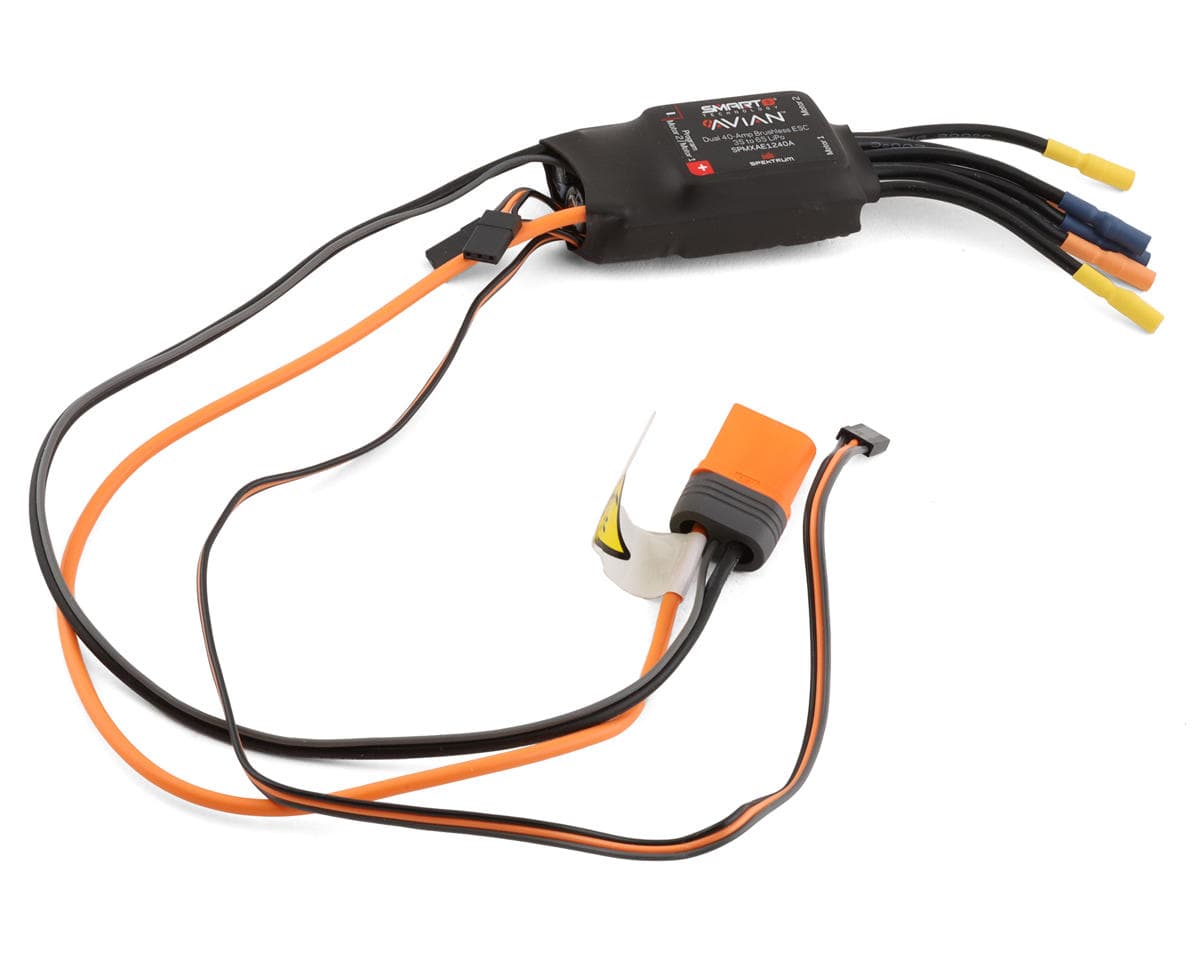

Spektrum RC Avian Dual 40 Amp 3-6S Brushless Smart ESC. This unique dual ESC is the perfect upgrade for 3S-6S twin EDF jets and other twin-powered models. Like other Spektrum Avian ESCs, this ESC delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection.
Features:
- Smart all-in-one telemetry
- Smart ESC Thrust Reversing
- 2 x 40 Amp continuous current
- Fast, powerful 32-bit ARM M4 processor
- 2 Program wires with multiple programming options:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Compact for easy installation in most applications
- Heat dissipating design
- Ready to install — no soldering required
- High heat-resistant IC5 connector, is backwards compatible with EC5 connectors
- Limited 1-year warranty
Specifications:
- Length: 2.36" (60mm)
- Width: 1.37" (35mm)
- Height: 0.78" (20mm)
- Weight: 105g
- Maximum Burst Current: 60A
- Maximum Continuous Current: 40A
- Input Voltage: 3S-6S LiPo
- Max Input Voltage: 22.2V
- BEC Voltage: 5.0V / 7.4V Adjustable
- BEC Continuous Current: 7A
- BEC Maximum Burst Current: 20A
- Motor Output Lead: 4mm
- Connector Type: IC5
Includes:
- (1) Avian Dual 40 Amp 3-6S Brushless Smart ESC
