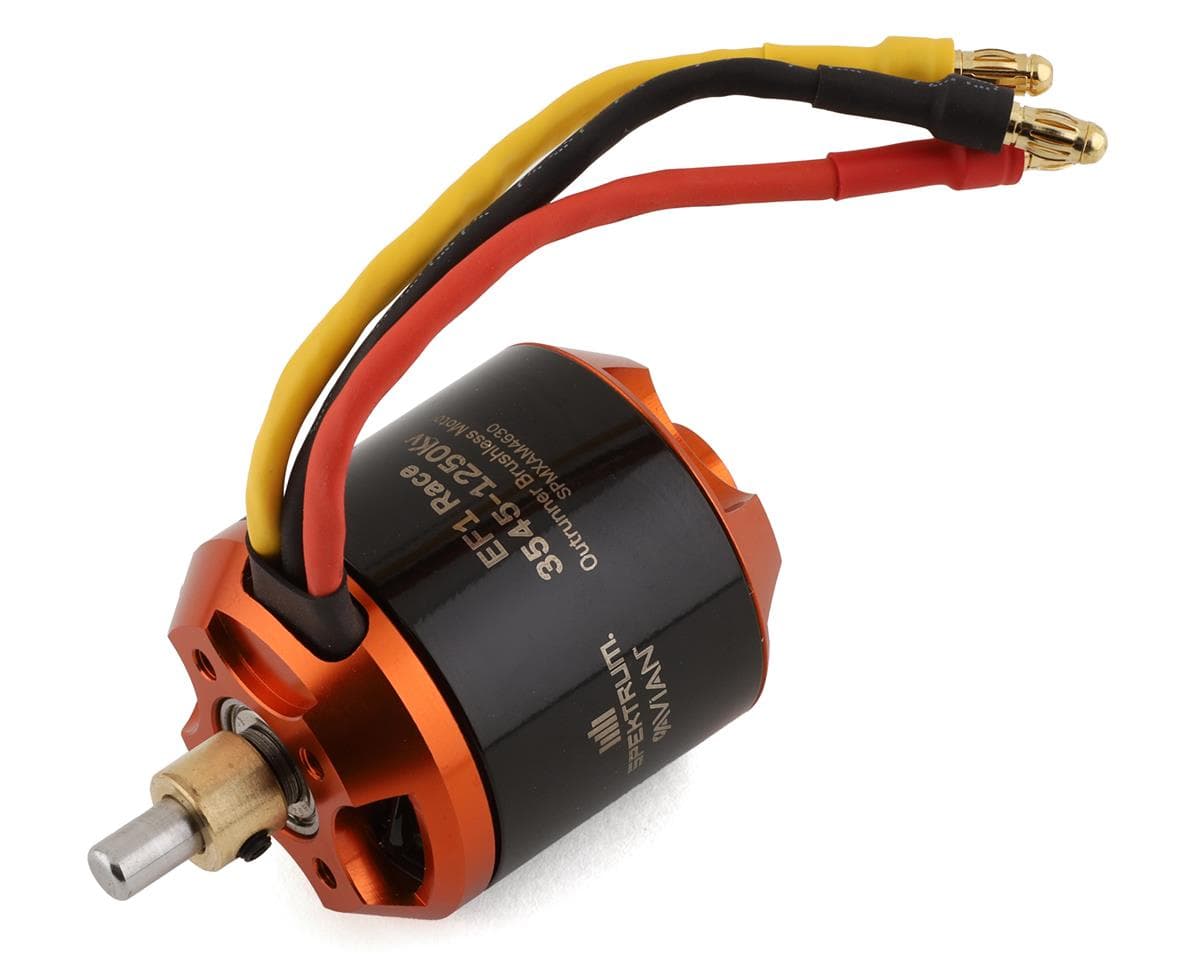

Spektrum RC Avian EF1 Race 3545 Brushless Outrunner Motor (1250Kv)

The Spektrum Avian 3545 - 1250Kv Brushless Outrunner Motor offers a combination of superior performance, high reliability and user-friendly features that make it an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Benefits

• Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
• Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
• Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features:

• Lightweight design
• Powerful and durable Rare-Earth Neodymium magnets
• 14-pole stator for smooth and precise propulsion

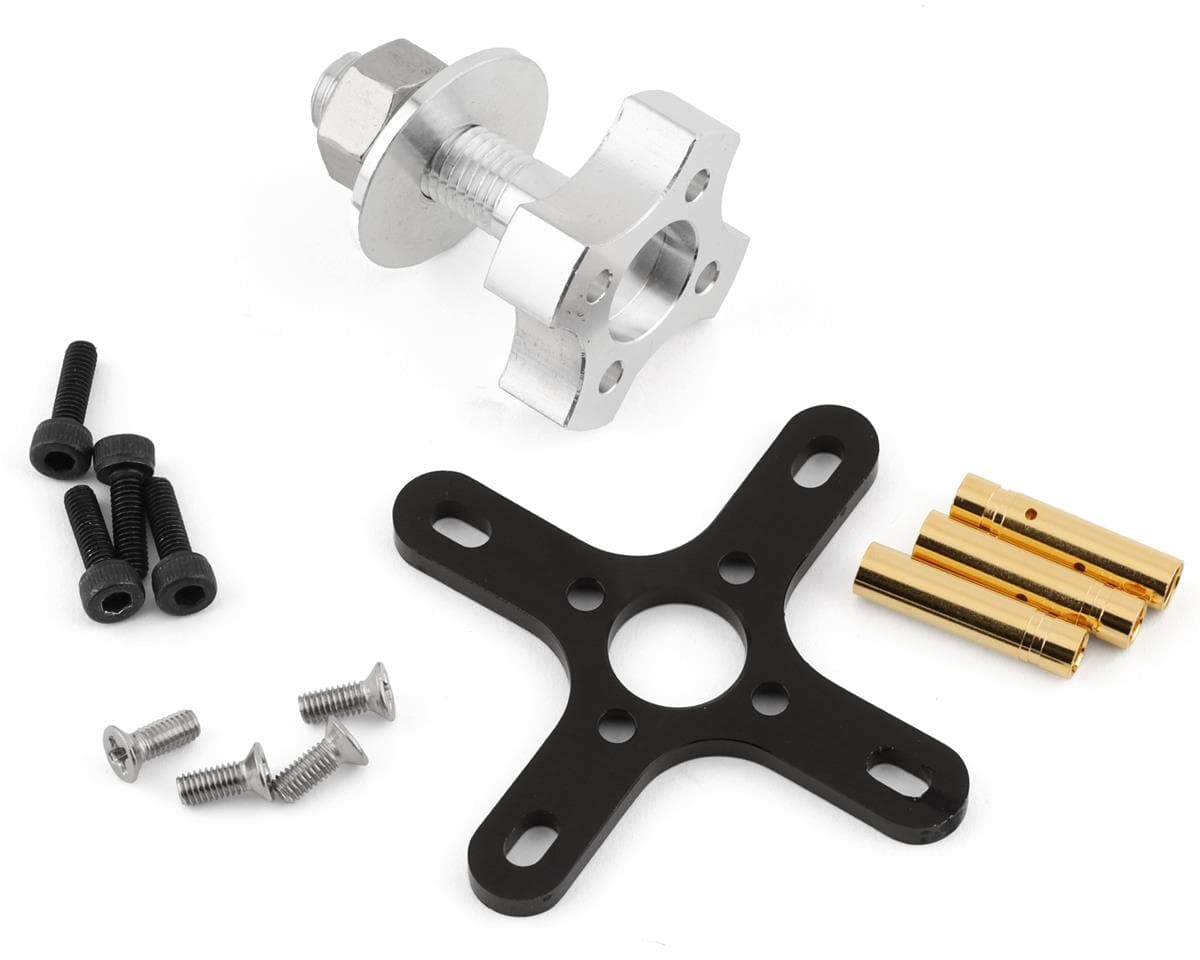

• Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
• Perfect match for the Spektrum Smart Avian 80 amp ESC

Specifications:

RPM/Volt (Kv): 1250

Application: Sport airplanes up to 3.5lbs (1585g)

Recommended Prop Range: 8x8 Electric Prop

Adjustable Timing: No

Connector Type: 3.5mm Bullet

Input Voltage: 7.4-14.8V (2-4S)

Maximum Burst Current: 45A

Maximum Continuous Current: 35A

Constant Watts: 700W

Burst Watts: 1000W

Motor Type: Brushless - Outrunner

Number of Poles: 14

Outer Diameter: 1.4" (35mm)

Product Length: 1.77" (45 mm)

Product Weight: 5.6oz (159g)

Recommended Speed Control: 80A

Shaft Diameter: 0.2" (5 mm)
