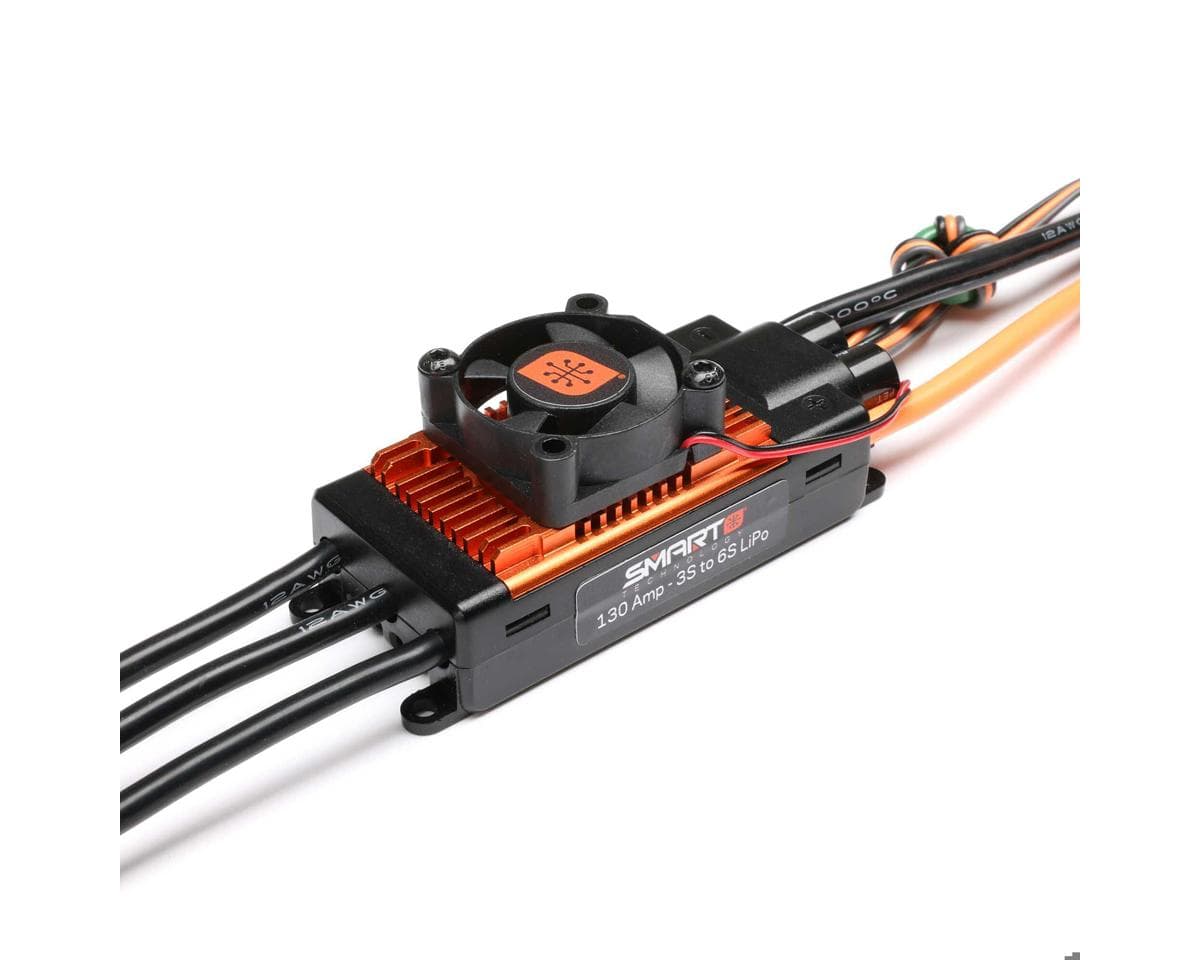

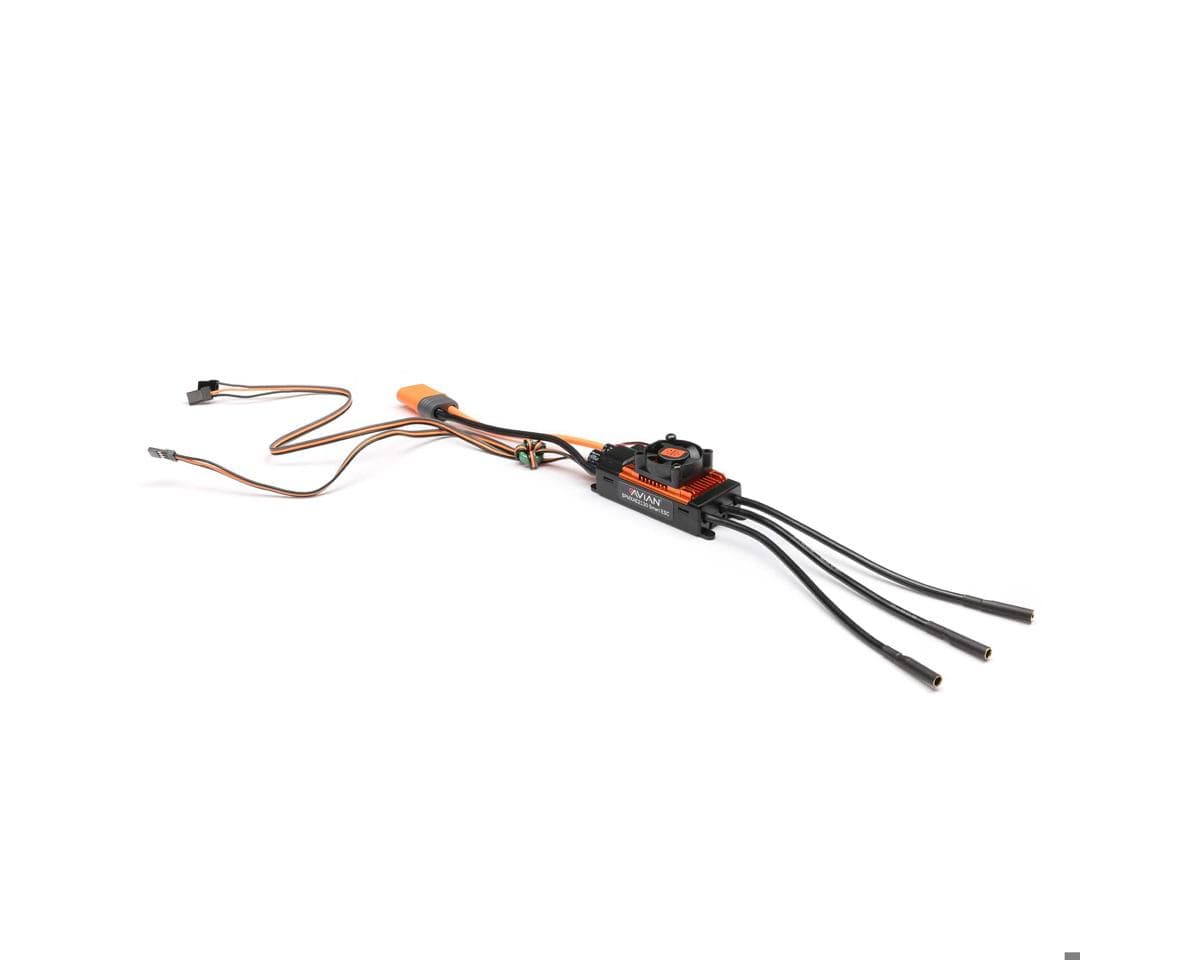

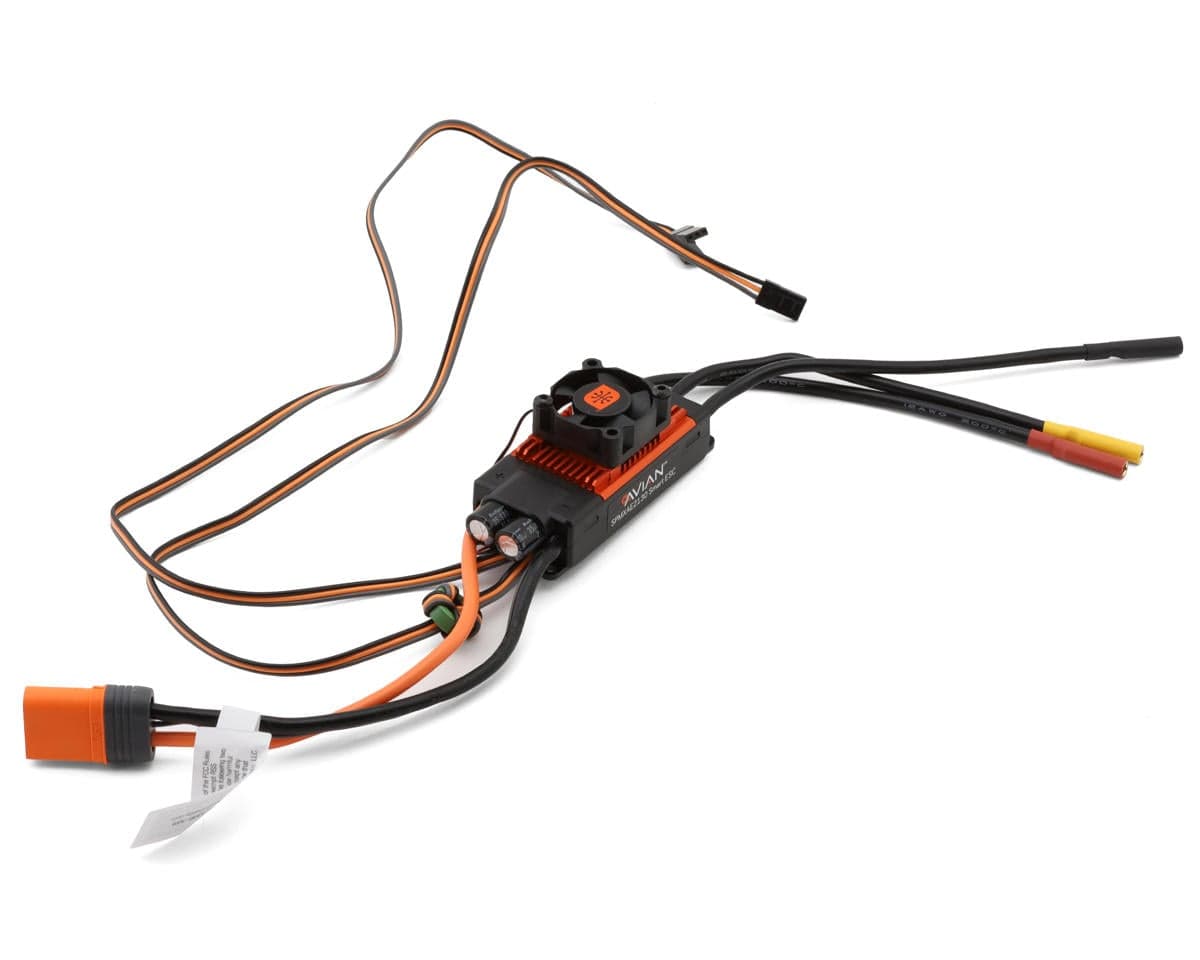

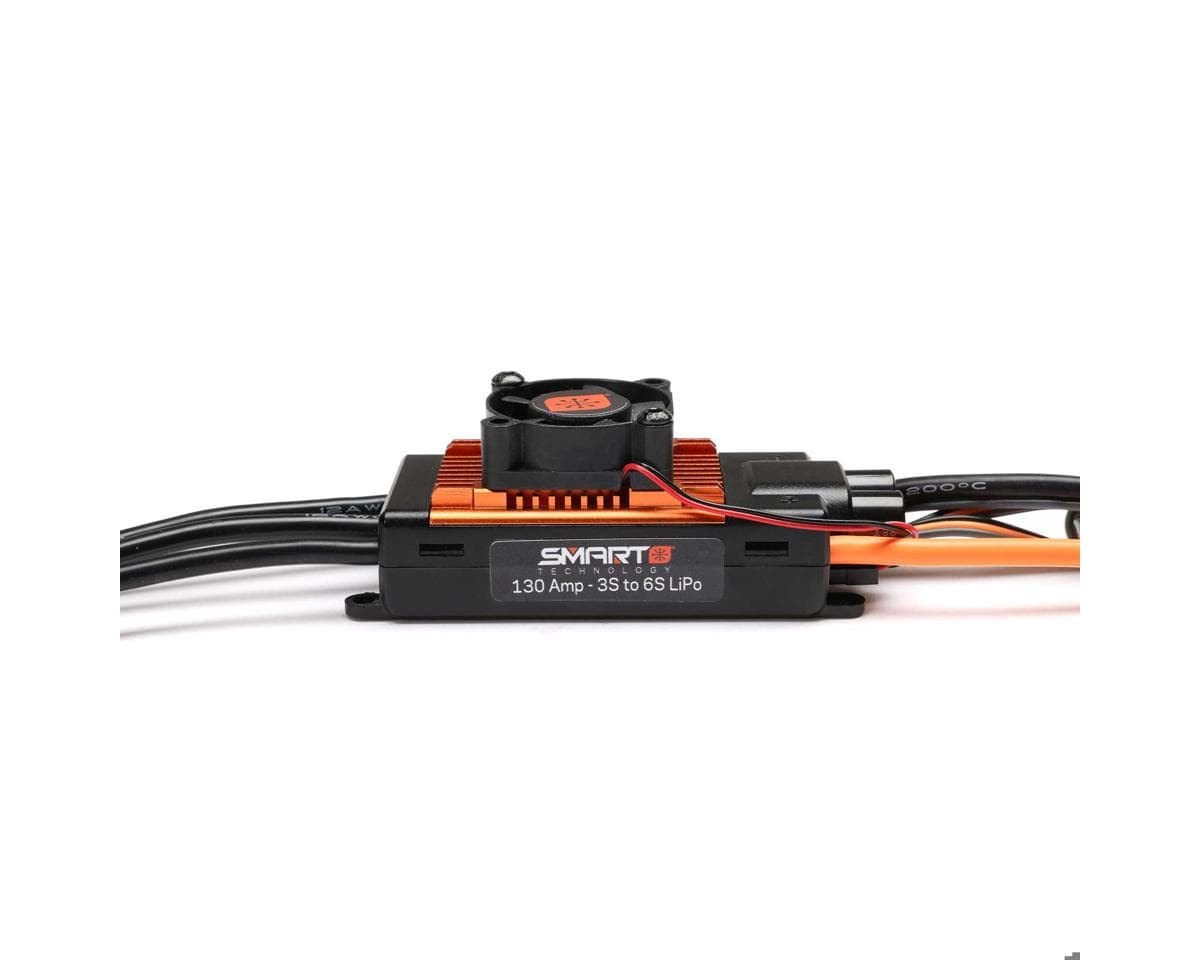

Spektrum RC Avian™ 130 Amp Pro Brushless Smart ESC w/IC5 Connector
About this part
Feature-Rich ESC with Advanced Technology
The Avian™ 130 Amp Pro Brushless Smart ESC by Spektrum™ is designed to bring unmatched performance and intelligence to your RC aircraft. With advanced Smart technology, it seamlessly integrates with other Smart electronics to provide real-time telemetry and enhanced control. The Avian Smart ESC eliminates the need for extra components and wiring, simplifying your setup while delivering critical flight data directly to your transmitter. Elevate your flying experience with a system that is both powerful and intuitive.
About the Avian Brushless Smart ESC
Smart All-in-One Telemetry
The Avian 130 Amp Pro Smart ESC delivers real-time telemetry data, keeping you informed during every flight. It provides vital information such as current, voltage, cell balance, temperature, and RPM without requiring additional modules or wires. This streamlined system ensures you have all the data you need at your fingertips, enhancing safety and performance without added complexity.
High-Performance Processing Power
Equipped with a fast and powerful 32-bit ARM M4 processor, the Avian Smart ESC delivers rapid and precise control. This advanced processor optimizes motor performance and responsiveness, ensuring smooth power delivery and efficient operation. Whether you're performing aerobatic maneuvers or maintaining steady flight, the high-speed processing power guarantees a seamless experience.
Enhanced Protection & Versatility
The Avian Smart ESC features multi-point protection to safeguard your electronics from overcurrent, over-temperature, and short circuits. Additionally, the high-voltage BEC output includes a twelve-volt option, providing flexibility for a variety of aircraft systems. With multiple programming options, you can fine-tune settings to match your specific flight requirements, giving you complete control over your aircraft's performance.
Features:
- High voltage BEC output options
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Multi-point protection
- Multiple programming options
- Seamless integration with Spektrum Smart ecosystem
- Real-time data transmission to transmitter
- One-wire telemetry solution
- Optimized for performance and efficiency
Includes:
- (1) Spektrum Avian 130 Amp Pro Brushless Smart ESC w/IC5 Connector
- Product Manual
Specifications:
| Suggested Application | Air |
|---|---|
| Motor Type | Brushless |
| Input Voltage | 3-6S LiPo (11.1-22.2V) |
| Continuous Current | 130A |
| Burst Current | 160A |
| Dimensions (LxWxH) | 3.3x1.4x1.3in (83.82x35.56x33.02mm) |
| Weight | 4.4oz (126g) |
| Motor Limits | - |
| BEC Voltage | 6/7.4/8.4/9/12V (Adjustable) |
| BEC Continuous Current | 10A |
| BEC Peak Current | 35A |
| Motor Connector | 4mm Bullets |
| Battery Connector | IC5 |
| Motor Wire | - |
| Battery Wire | - |
| Programmable | Yes* |
*Tech Note: Programming the ESC can be achieved through a series of throttle stick movements and corresponding tones or by using the optional Spektrum RC Smart ESC Programming Update Box (SPMXCA200 - sold separately).
