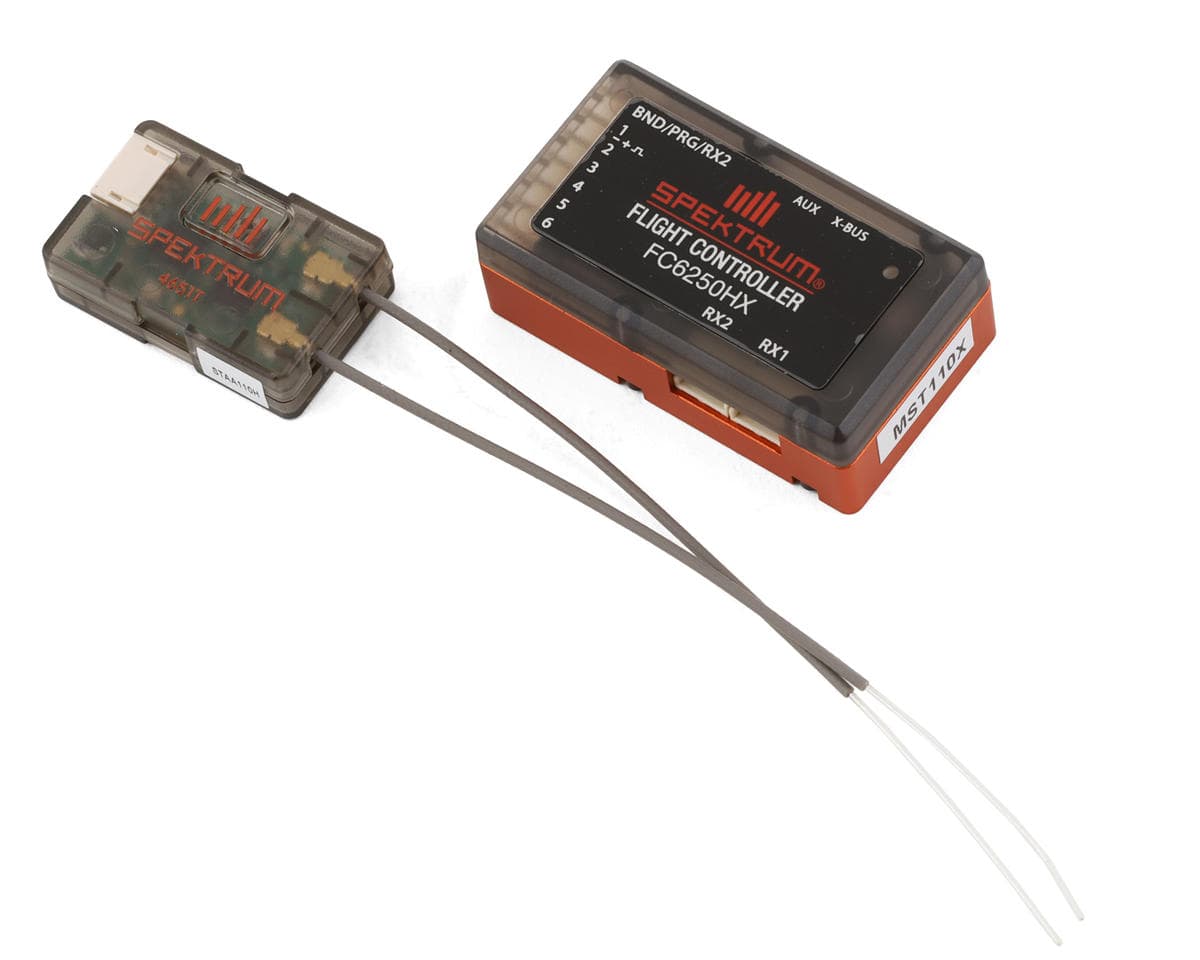

Spektrum RC FC6250HX Helicopter Flybarless Control System
About this part
The Spektrum RCFC6250HX is a powerful flybarless helicopter stabilization system that features the latest AS3X and SAFE Stabilization technology to deliver an extremely user friendly and precise Helicopter flying experience. Ideal for 3D aerobatic, F3C Precision, and Scale helicopter models up to 700 size. Featuring a leading edge 6-axis M.E.M.S. inertial gyro, powerful and fast 32 bit ARM M4 Cortex processor and proprietary Advanced Adaptive Flight Control Algorithms, pilots will enjoy predictable and precise flight characteristics, excellent tail holding and rock-solid piro-compensation with the added security of assignable SAFE technology.
Included with the FC6250HX is the latest SRXL2 Serial Receiver, the 4651T. This receiver is engineered to give Heli and Multirotor pilot’s extraordinary performance with both control range and telemetry range. Featuring the latest SRXL2 serial communication protocol, pilots will have a control of 20 channels to their flight controller of choice, and when paired with the FC6250HX, allows for Smart ESC, Battery telemetry and forward programming to be transmitted to a compatible Spektrum Transmitter with no extra modules needed.
Smart ESC Ready
Heli Pilots will be able to easily monitor Voltage, Current, Rotor head RPM and more when combined with a Spektrum Smart ESC. No extra modules, wires or connections required. All this data will automatically be displayed on a compatible Spektrum Transmitter for easy viewing, logging and alarm warnings.
Forward Programming
Forward Programming allows pilots to easily setup, program, and tune the FC6250HX with no need for extra hardware, devices, or computers. Pilots can quickly make tuning changes on the flight line to the swashplate, tail rotor, SAFE stability, flight modes and more, right from their compatible Spektrum transmitter. And if the sensor needs calibrated after a crash or repair to your model, it can easily be done in the Forward Programming menu. All this is available with all current DX and iX transmitter models (update maybe required)
Advanced AS3X Stability and SAFE Technology
Built into the latest DSMR receivers is the newest failsafe mode for surface applications, Gas Mode Failsafe. Easyily selectable during binding, Gas Mode allows users to preset the failsafe position of all available channels. Additionally drivers can utilize SmartSafe failsafe which drops throttle to the lowest point and holds the last known command on the rest of the available channels.
Compact Design Ready for Mini to 700+ Size Heli Models

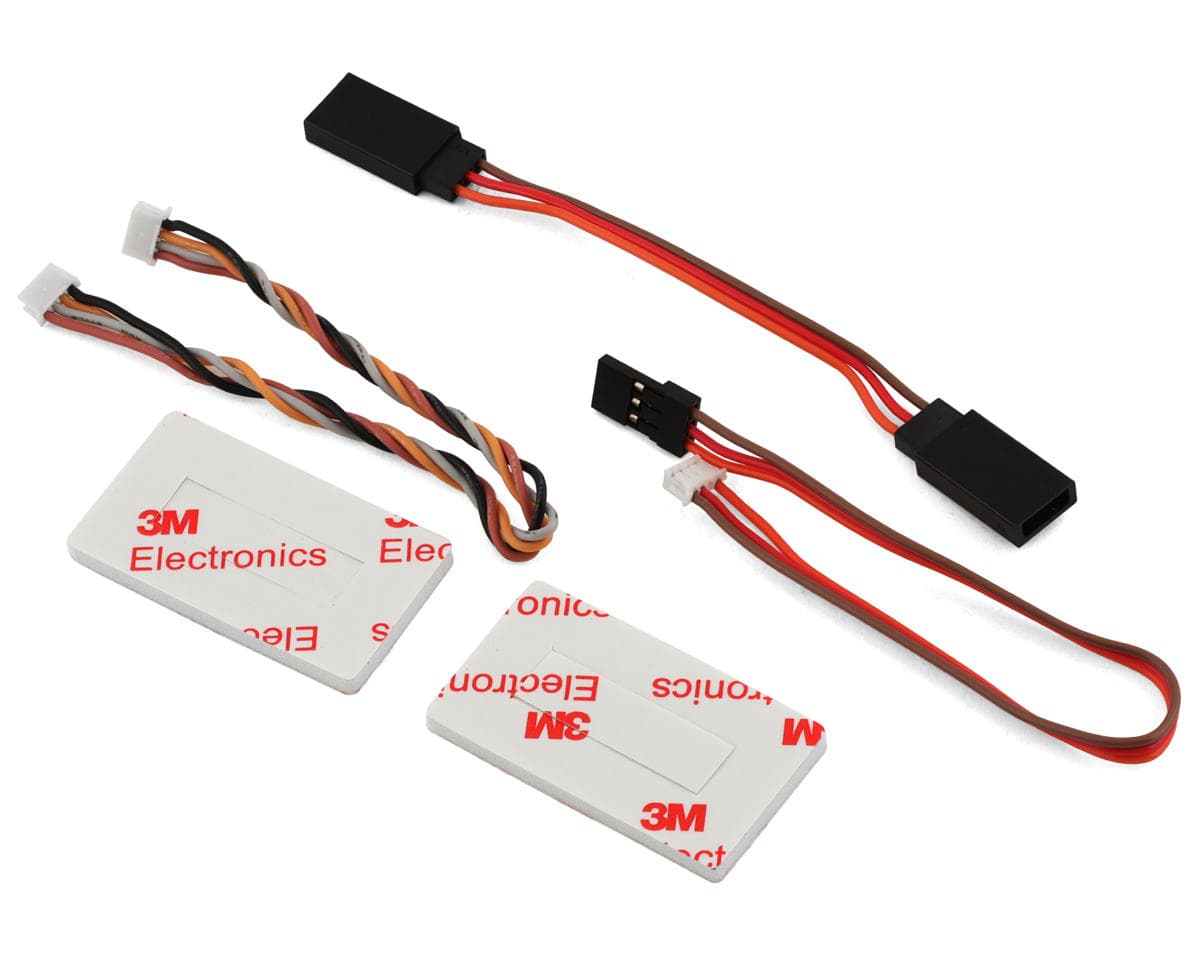

Ideal for 3D aerobatic, F3C Precision, and Scale helicopter models up to 700 size. Featuring a leading edge 6-axis M.E.M.S. inertial gyro, powerful and fast 32 bit ARM M4 Cortex processor and proprietary Advanced Adaptive Flight Control Algorithms, pilots will enjoy predictable and precise flight characteristics, excellent tail holding and rock-solid piro-compensation. Vibration is effortlessly rejected thanks to the CNC mounting case and included high quality dampening mounting pads.
Tech Note: When choosing to add a 2nd Receiver, SPM9745 should be connected to RX1 in conjunction with the SPM4651T Receiver connected to the Bind/PRG/RX2 Port.
Compatibility Note:
For quick reference, below are the series of radios which support "Forward Programming" which is required for the FC6250HX Controller. A full list of compatible radios can be found >>here<<, and reference "Forward Programming."
Spektrum Radio Guidelines for Compatibility:
- DX Series, Gen2 or newer
- iX Series
- NX Series
Specifications:
- Type: Flybarless Helicopter Receiver and Flight Controller
- Modulation: DSMX/DSM2
- Length: 1.7" (42.5mm)
- Width: 0.94" (24mm)
- Height: 0.53" (13.6mm)
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.2 · 13 reviews
!!!! Update on satellite receiver . I Purchased the FC6250HX to set up on Align 550 Helicopter. As the manual says anything larger than 360 To run additional satellite receiver which would be the SRXL2 satellite remote. Each satellite would be plugged into RX1and RX2 which would be on the receiver. The cables that are included with the receiver and if you order an additional satellite are the wrong cables to plug in these ports. Talk to Horizon and they don’t know any time in which they will have these control wires available. So you can’t at this point run 2 satellites for the bigger Helicopters. The problem is the satellites require JST-SH 4 pin connector and the receiver on RX1and RX2 are JST-SH 3 pin connectors. For safety concerns and to follow the manual I’m going to wait on the availability of these cables for safety reasons to use this new FC6250HX. It’s a bummer they come out with this new product and don’t have the required wires to make it work as per manual. And now with this health scare going on who knows when they’ll get them in. XXXXX Looks like they’ve updated the satellite receiver which would be SPM9745. They still did not update the manual. But that receiver checking with customer service has a three wire output which would be compatible to the three wire input on the receiver. A main hobbies shows it and Horizon doesn’t. Ordered the new Satellite it’s on its way still haven’t flown with that new Receiver yet.
Easy to setup, very tunable, works great. I have used Beastx on most of my helicopters, it is easier to setup than Beastx.
Good product , easy to use , good pricing ! A must buy for your helicopter Flybarless only .
Great product from Spektrum. I have set up Spirit, and most recently a Rotor Flight (Nexus). Spektrum is hands down the easiest. All done with forward programming from your transmitter, and very helpful videos on line. I would like to try an Ikon but if they don't support Mac, I don't support them... haha. The Spektrum FBL seems expensive, but when you consider it comes with a SRXL2 satellite receiver, I think it is hard to beat the price. Nice to be able to set up FBL in 20 minutes, fly the Heli and tune without a computer right from the transmitter in the field.
Setup and Forward Programming is super easy with NX10,8,6 Spektrum Tx Radio. Used in an Align 500x, Hobbywing 80amp ESC, SRXL2 satellite Rx. It's nice to be able to program right from he NX radio instead of hooking up a program card, interface cable or dragging out laptop. I'm able to make setting changes on the fly after landing. Tail hold is awesome. Tested auto level and it works well if you're into that. Can make it fly like a drone or a very loosened up in auto level. I'm using the old firmware 5.03.0 on this FBL. I have seen some issue with others using the newer firmware, but maybe its the user. Spektrum should have better documentation on this FBL, more than what's included in the "pamphlet" comes with this FBL. You need to be a genius to make this FBL work right. After I got mine figured out and flying, I found this video that would have helped. YouTube video title, "Full Set Up Guide to Spektrum 6250HX Flybarless System with Coe Show and a Blade Fusion 550" He knows what he's talking about and its in align with what I now know too. Or this link https://www.youtube.com/watch?v=ufjG5Rkg4Jo&t=5s My settings on the Align 500x differed vastly from the Video's, for grins I did plug in his settings and my bird flew close to the same but not as quite dialed in. Video is good starting point for newbies. Would I buy again? Absolutely. Edit: June 18 2023. Purchased 2nd one. Work great in SAB Goblin 420 Raw. Works fine with 420 RAW
Reviewers generally find the Spektrum FC6250HX easy to set up and program directly from compatible Spektrum transmitters, without a computer, and several praise its stability, tail hold and fail-safe/bailout modes. Some note clear forward-programming videos and value, especially with the included SRXL2 satellite. Recurring issues include a reported incompatibility with multiple satellite receivers on larger helicopters, where one reviewer says RX1/RX2 need different cables and the satellite needs a DSMX SPM9745 rather than the SPM9645 for binding, plus manual clarity concerns. One reviewer reported a unit that arrived defective and needed repair, and another reported a configuration not saving after exiting forward programming. Some reviewers mention a slight drift in SAFE mode and firmware-related issues. Several reviews are short or do not report flight testing, so overall coverage is limited.
- + Easy setup and forward programming from Spektrum transmitters
- + Stable flight and tunable settings
- + Useful fail-safe and bailout modes
- + Good value with included SRXL2 satellite
- − Satellite receiver compatibility and cabling issues on larger helicopters
- − Manual clarity and documentation concerns
- − Reported defective unit requiring repair
- − Configuration not saving in one case
