Spektrum RC Firma 4-Pole Brushless Motor (800kV)
Part # SPMXSM2600
Where to buy
$169.99
Prices are as last seen at the store; stock is not tracked.
About this part

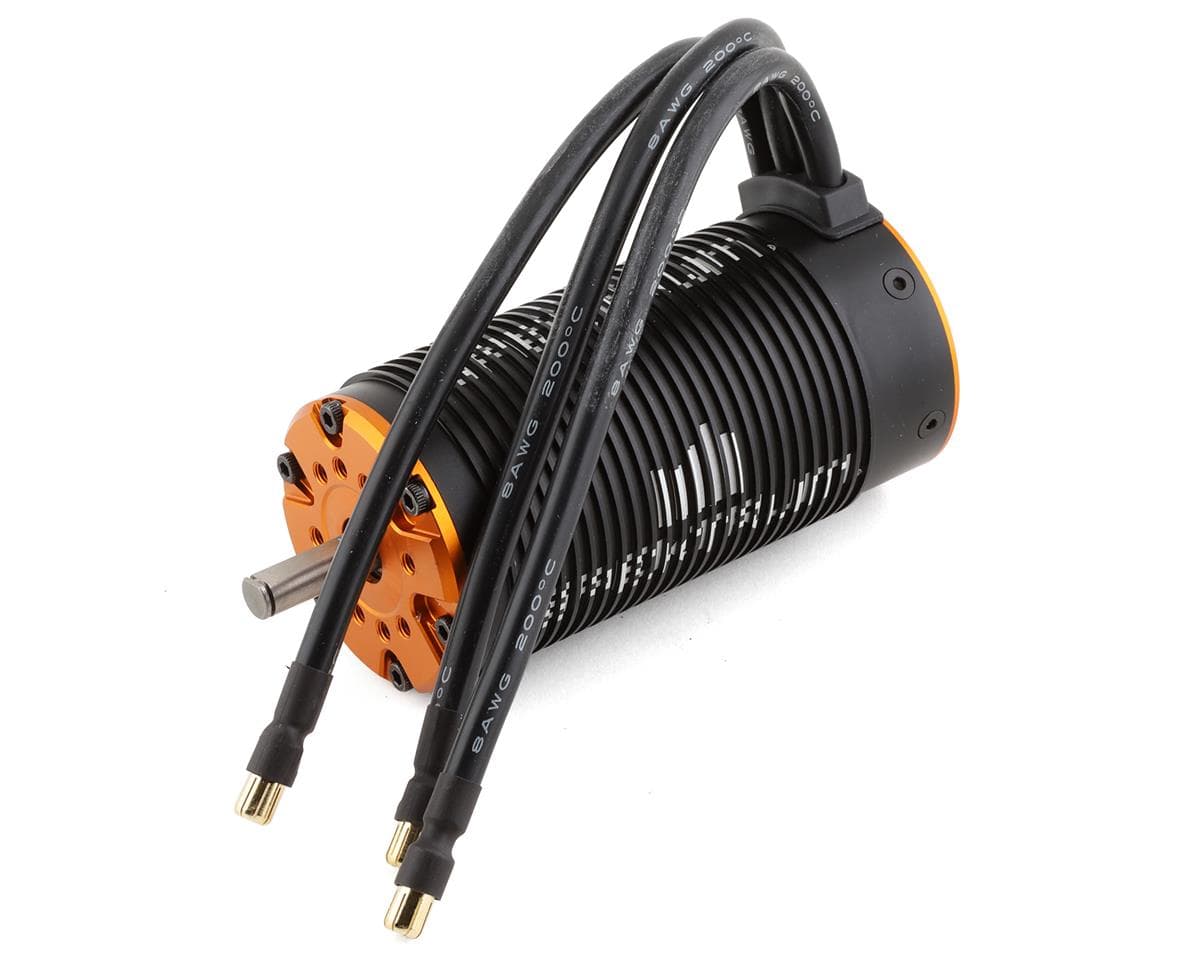

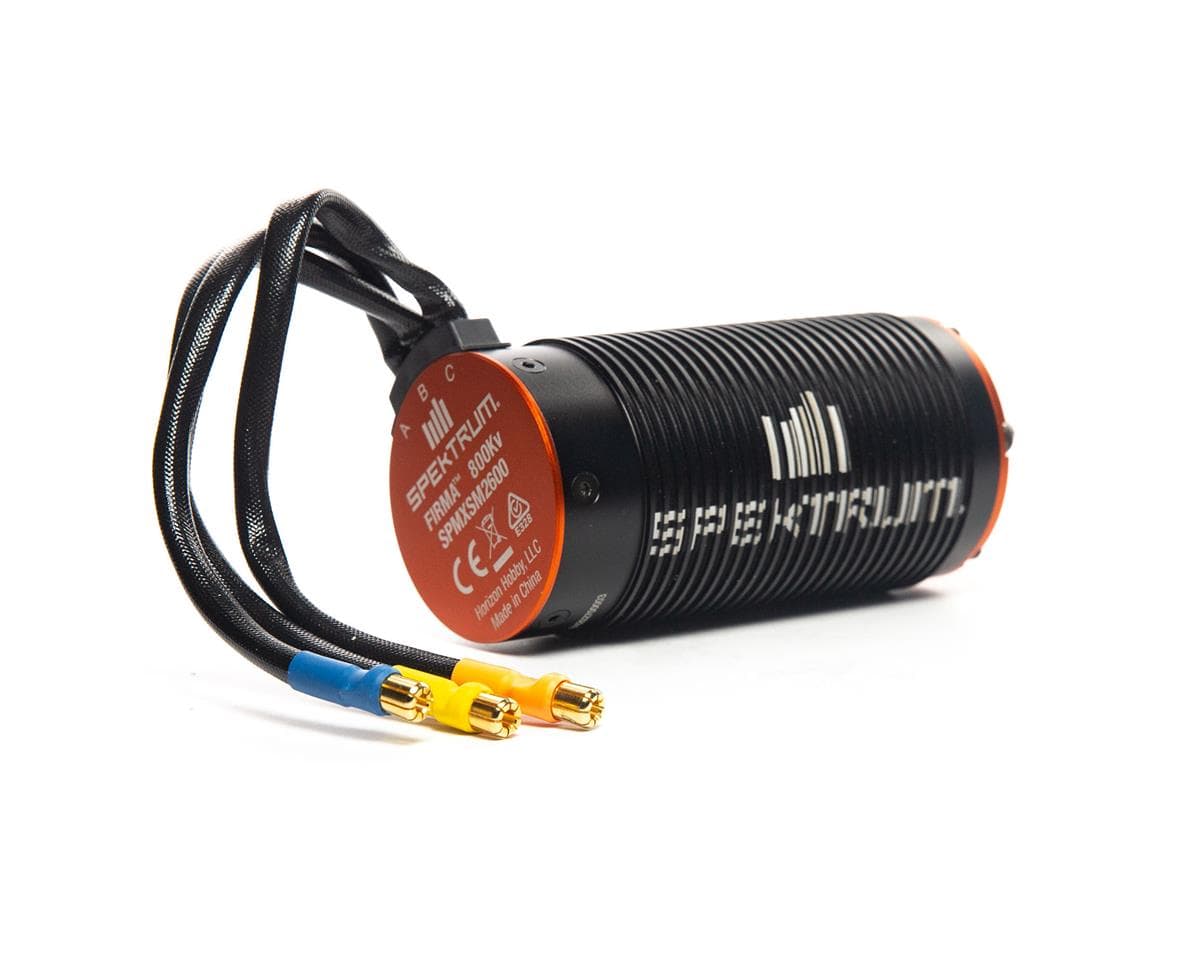

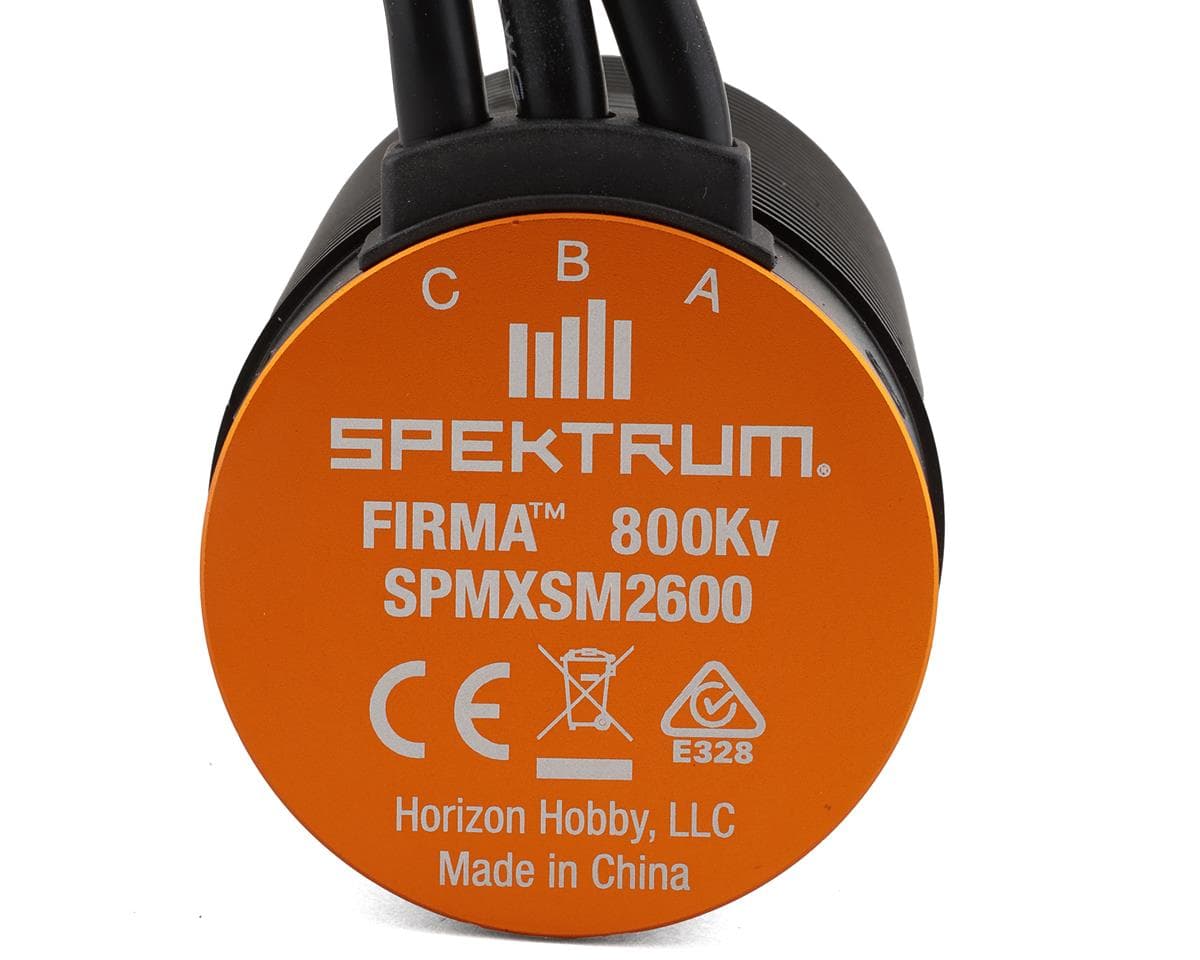

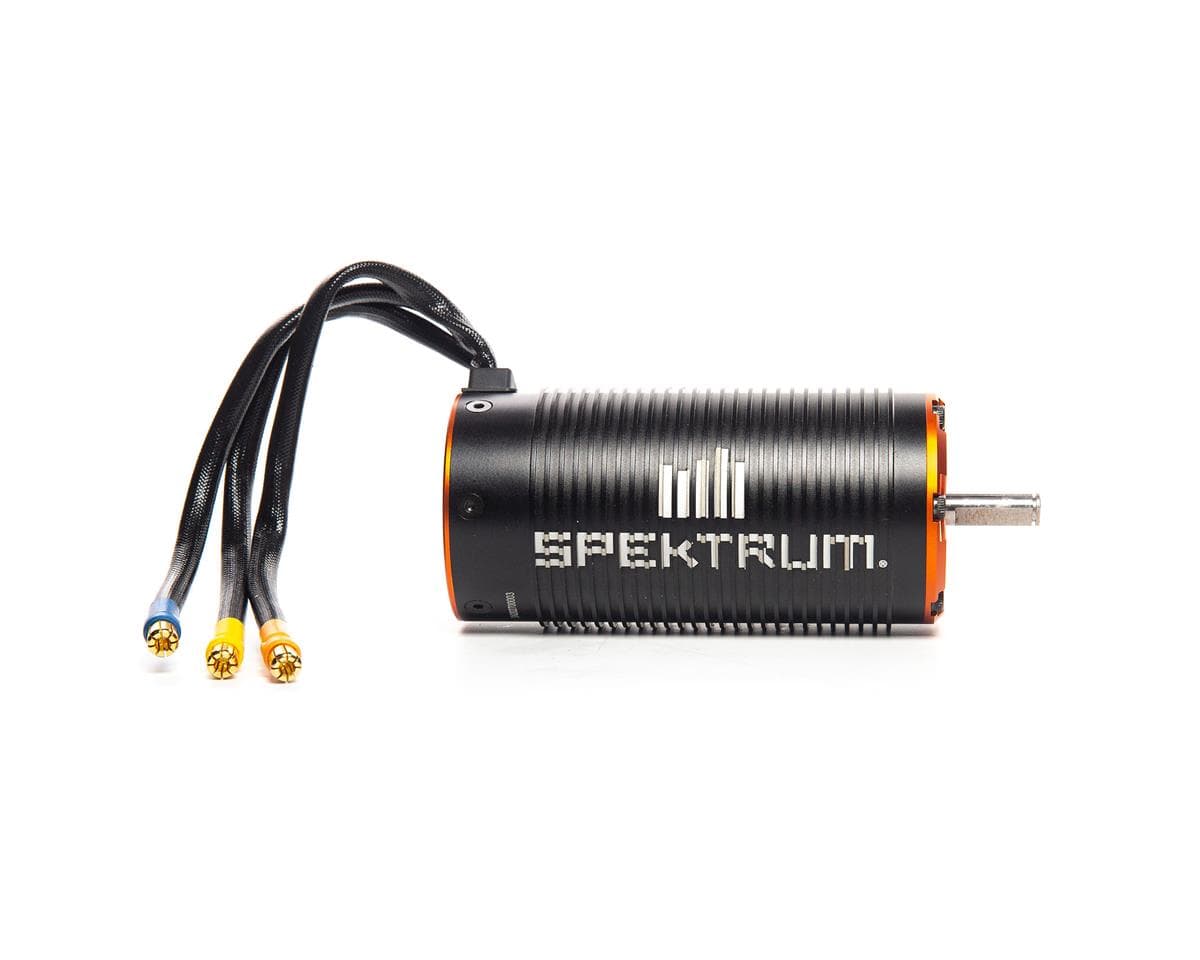

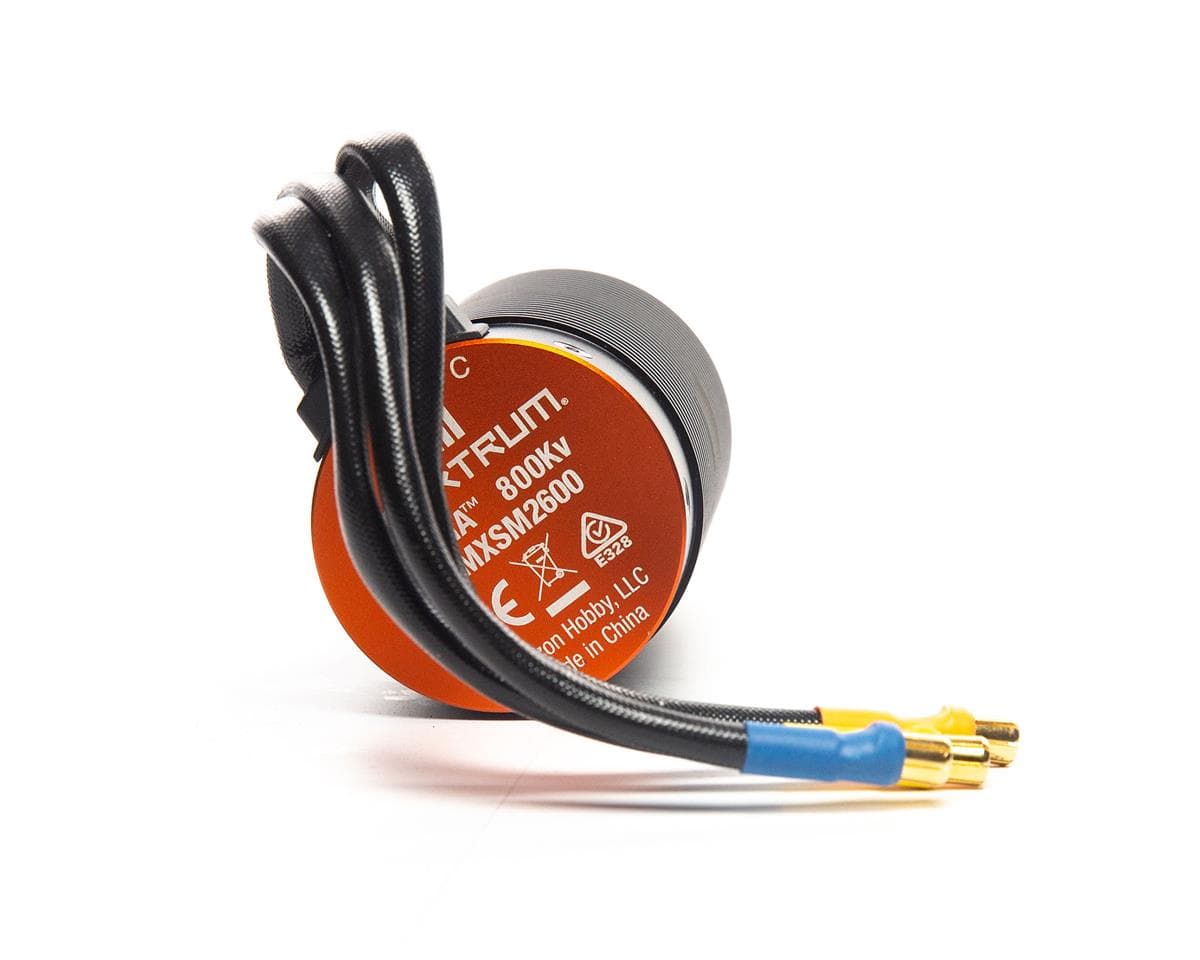

The Spektrum RC Firma 4-pole Brushless 800kV Motor is a great option for Arrma Roller kits, as well as 1/5 scale bashers and monster trucks running on 3-8S LiPo. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC (SPMXSE1160CP - Not included). Package includes one brushless motor.
Features:
Features:
- Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
- High efficiency design
- 8S LiPo power capable
- High-quality 4-pole sintered rotor
- 6.5mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 8mm shaft
- Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip
Specifications:
Resistance: .0049 ohms
Connector Type: 6.5mm Bullet
Bushing Or Bearing: Bearing
Motor Size: 5611
Adjustable Timing: No
Maximum Continuous Current: 110A
Input Voltage: 11.1 - 29.6V (3 - 8S)
Outer Diameter: 2.2" (56 mm)
Product Weight: 39.86oz (1130g)
Motor Design: Inrunner
Shaft Diameter: 0.3" (8 mm)
Application: Arrma Roller Kits
Product Length: 5.23" (133 mm)
RPM/Volt (Kv): 12,475 / 15V
Shaft Length: 0.867" (22 mm)
Connector Wire Length: 7.48" (190 mm)
Number of Poles: 4
Efficiency: 87%
Recommended Speed Control: Spektrum Firma 160A Brushless Smart
