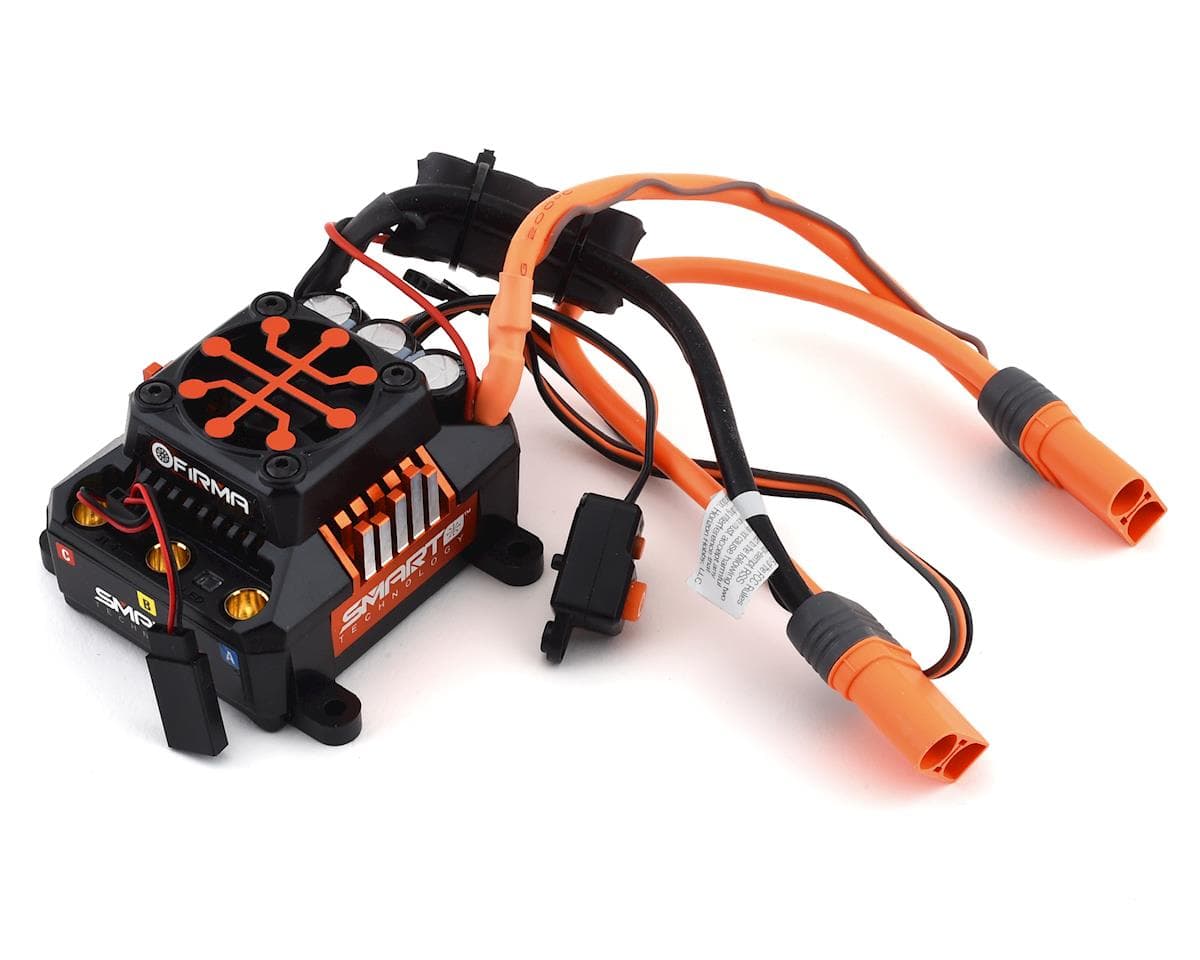

Spektrum RC Firma 8S 160 Amp Brushless Smart ESC
Part # SPMXSE1160CP5.0(1)
Fits
Where to buy
$189.99
Prices are as last seen at the store; stock is not tracked.
About this part
This is the Spektrum RC Firma 8S 160 Amp Brushless Smart ESC, a feature packed ESC that delivers power and intelligence in an all-in-one package - no additional vehicle module or links required. This 160A brushless ESC gives your large scale vehicle the ultimate drive while feeding real-time telemetry straight to your radio.
Features:
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Multiple programming options
- Multi-point protection
Specifications:
Continuous Current: 160A
Peak Current: 1050A
Motor: Sensorless Brushless
Applications: Large Scale Surface
Input: 3S-8S Lipo
BEC Output: 6V/8.4V @ 5A
Dimensions: (LxWxH) 70mmx55mm (77mm At tabs) x44mm (2.8"x2.2" (3.0" at Tabs) x 1.7")
Battery Connector: IC5 (EC5 Compatible)
Motor Connector: Female 6.5mm bullet
Weight: 280g (9.9oz)
Modes: Forward/Reverse/Brake; Forward/Brake; Forward/Reverse
Fan: Yes
Construction: Plastic with aluminum heat sink
Weight: 280g (9.9oz)
Modes: Forward/Reverse/Brake; Forward/Brake; Forward/Reverse
Fan: Yes
Construction: Plastic with aluminum heat sink
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
Andres ChavezVerified owneron Spektrum RC Firma 8S 160 Amp Brushless Smart ESC
It took a lil longer than expected but worth the wait. With all that's going on in the world you should expect some sort of delay. Was highly reccomened from the rcmonstergarage!
