Parts/Electric power/Motor & ESC combos/Spektrum RC Firma Brushless Motor/ESC 2-in-1 Combo (5200Kv) w/IC2 Connector
Spektrum RC

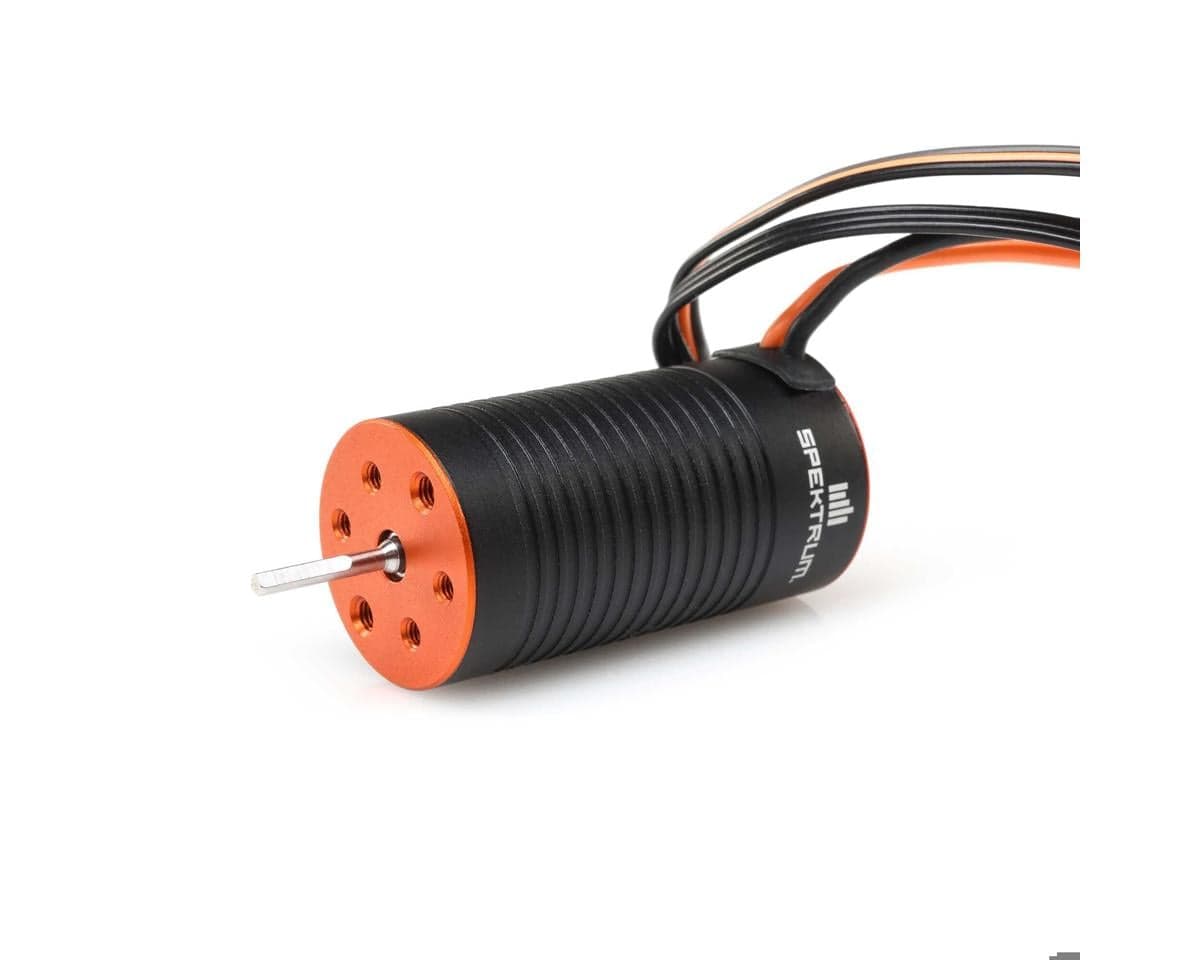

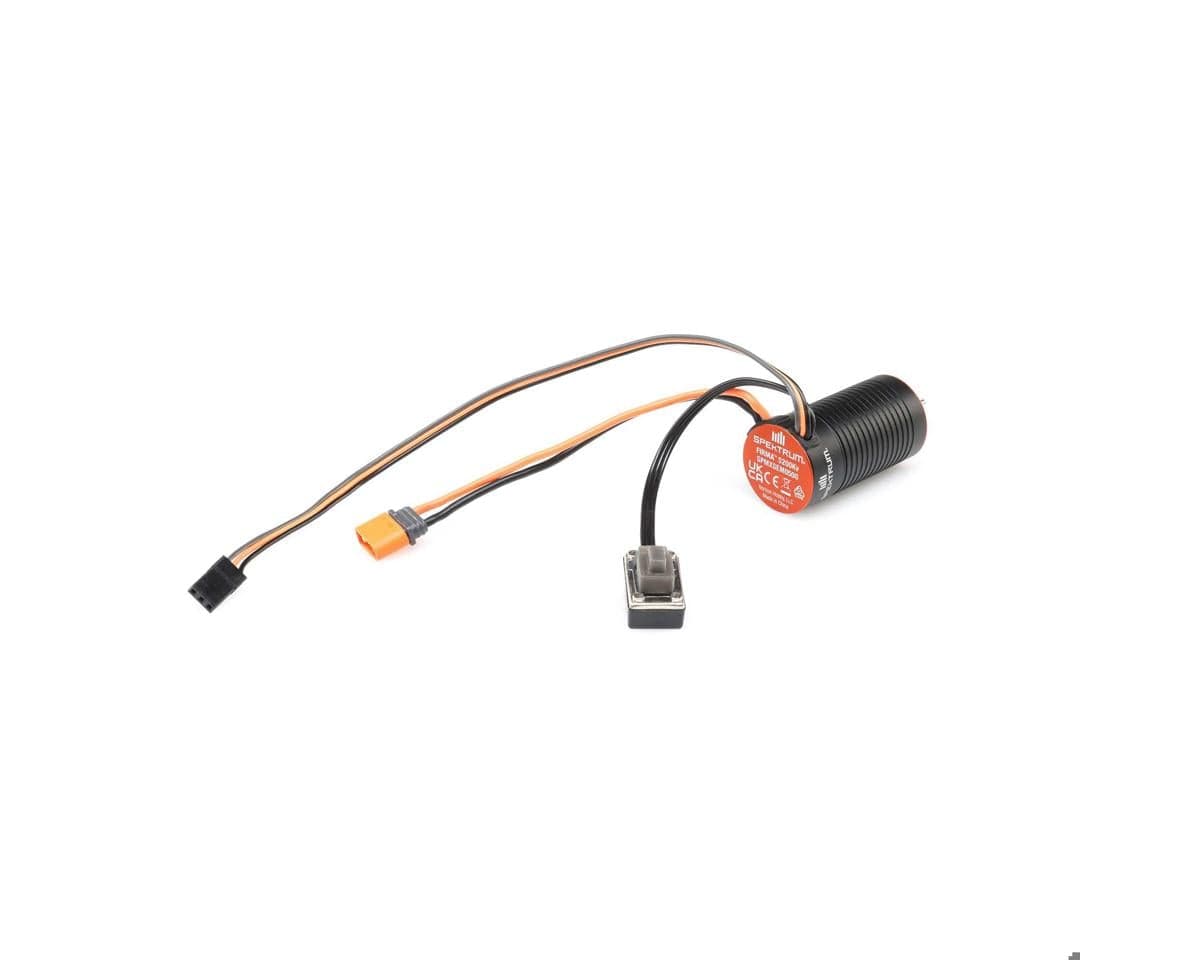

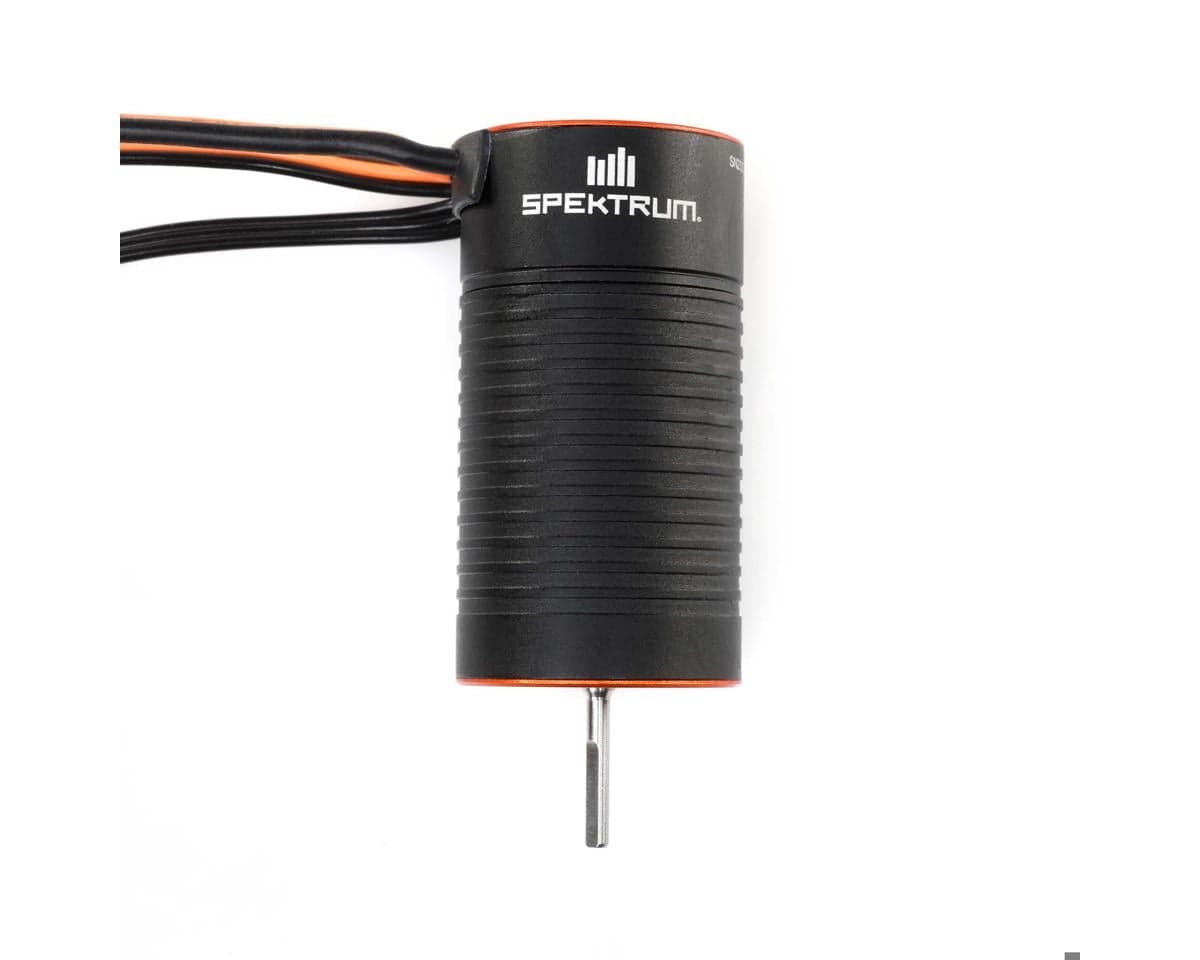

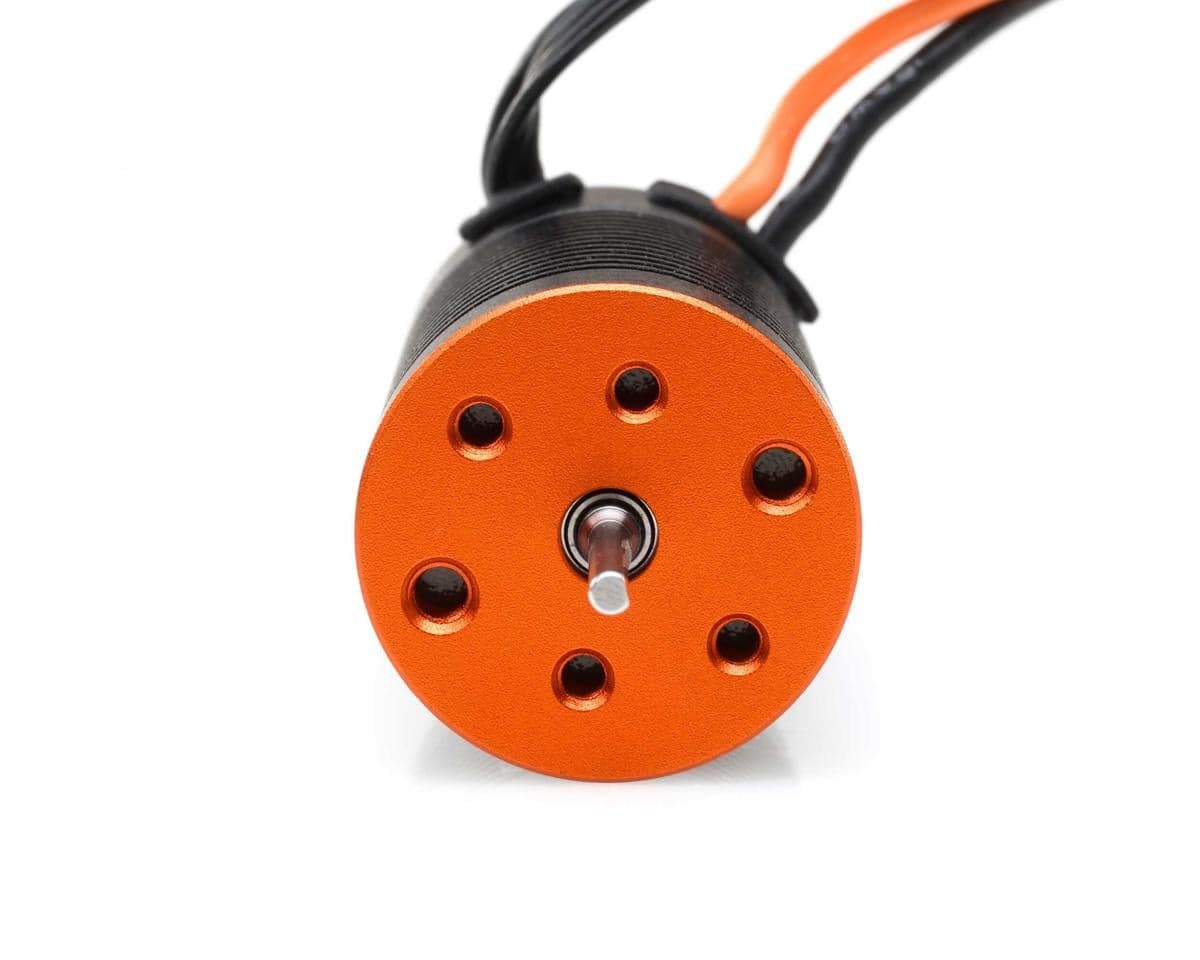

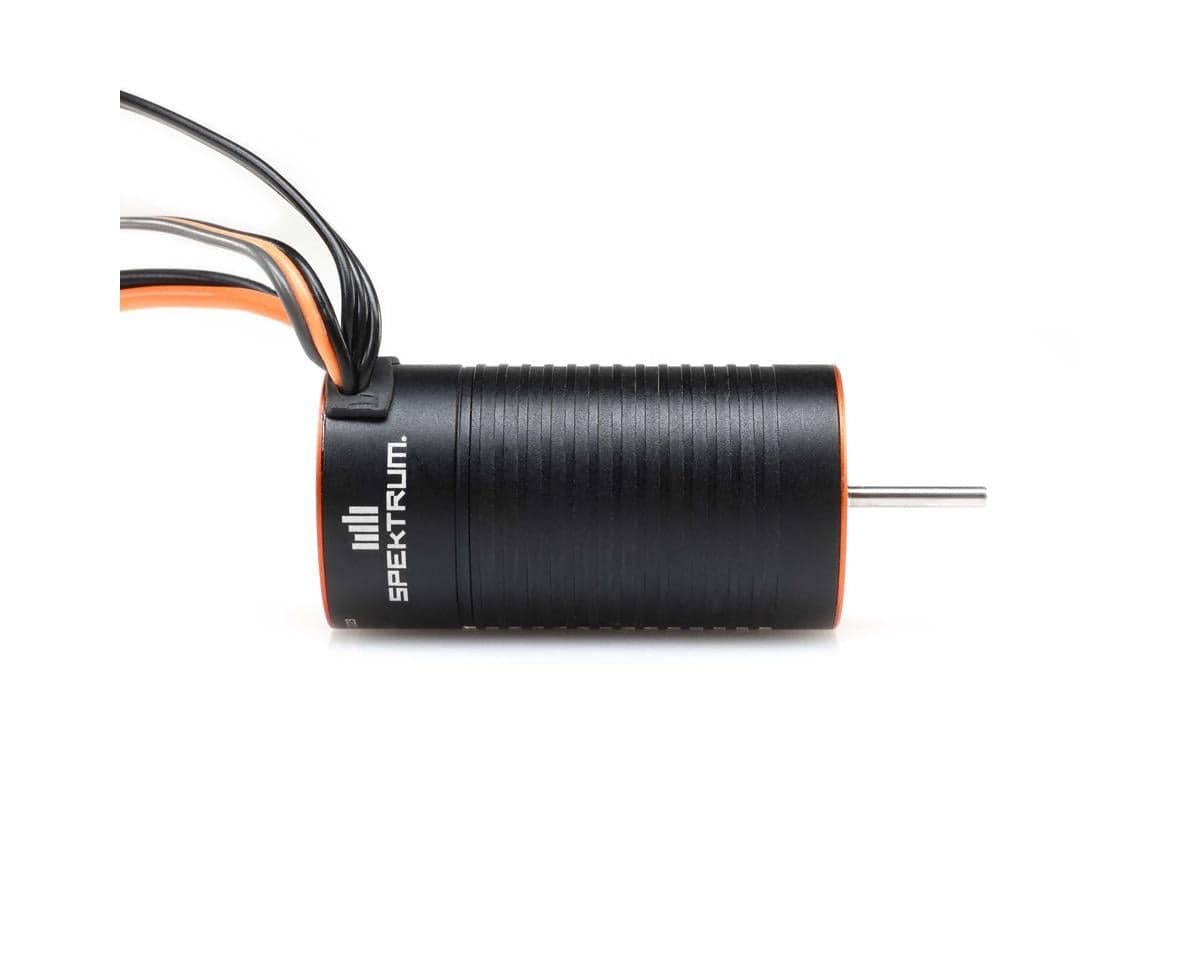

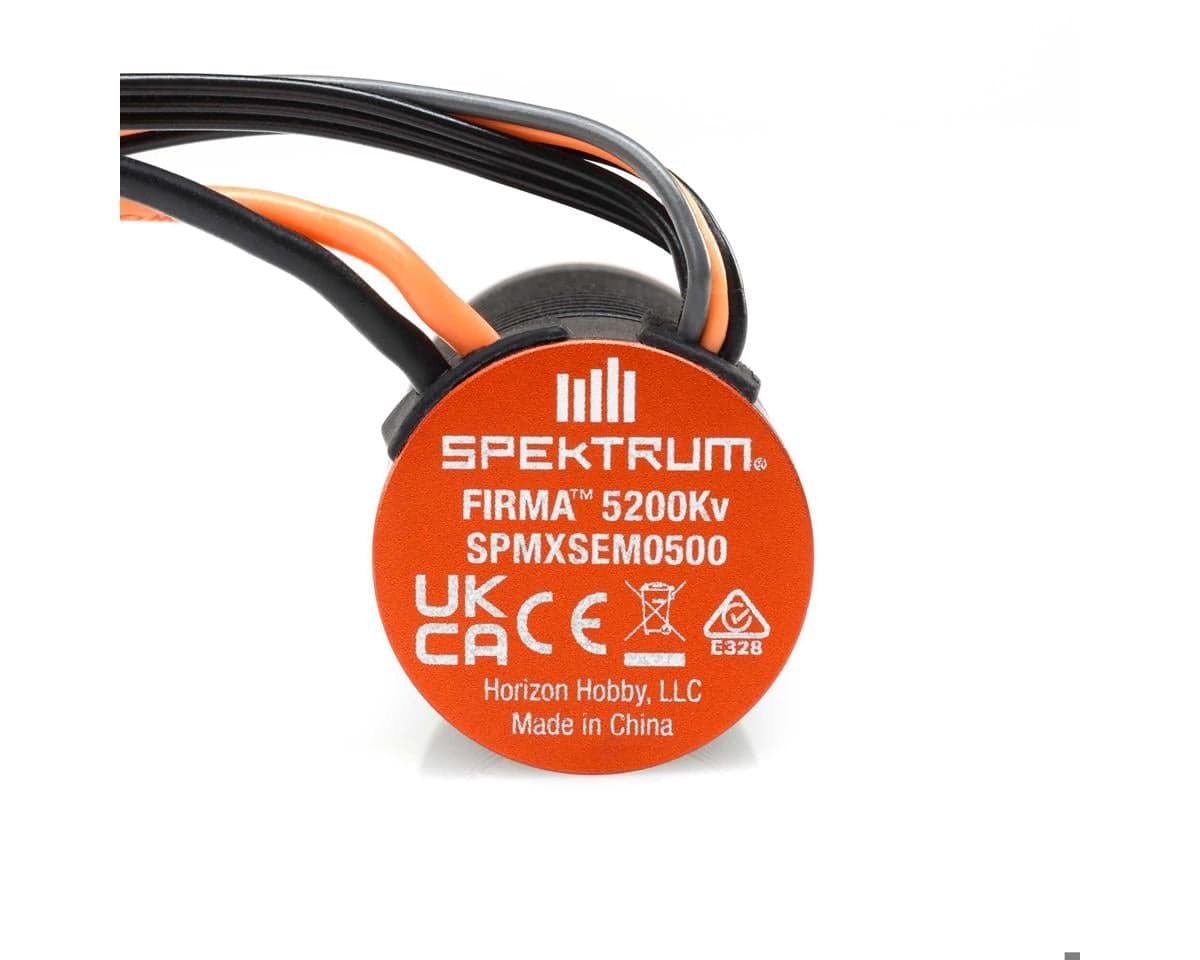

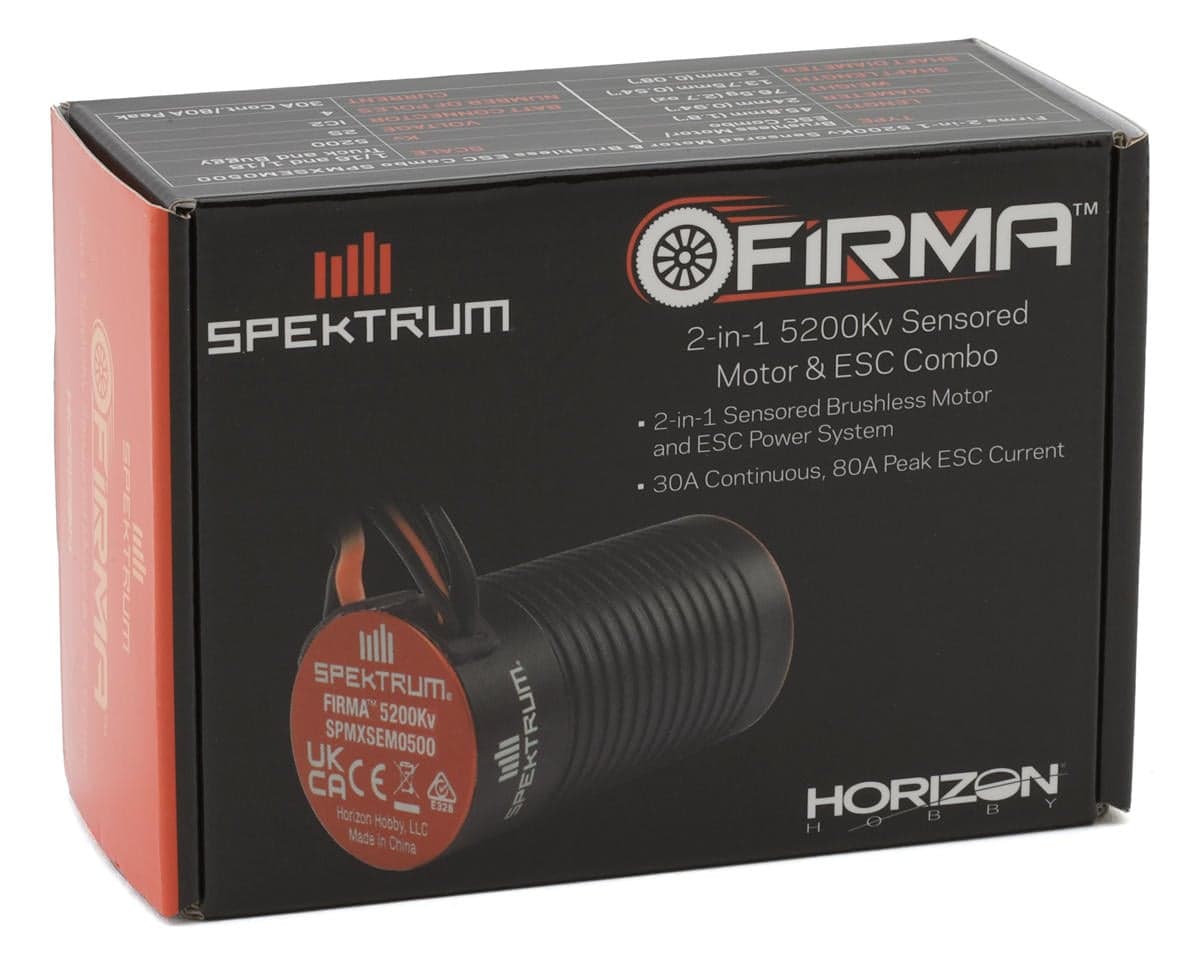

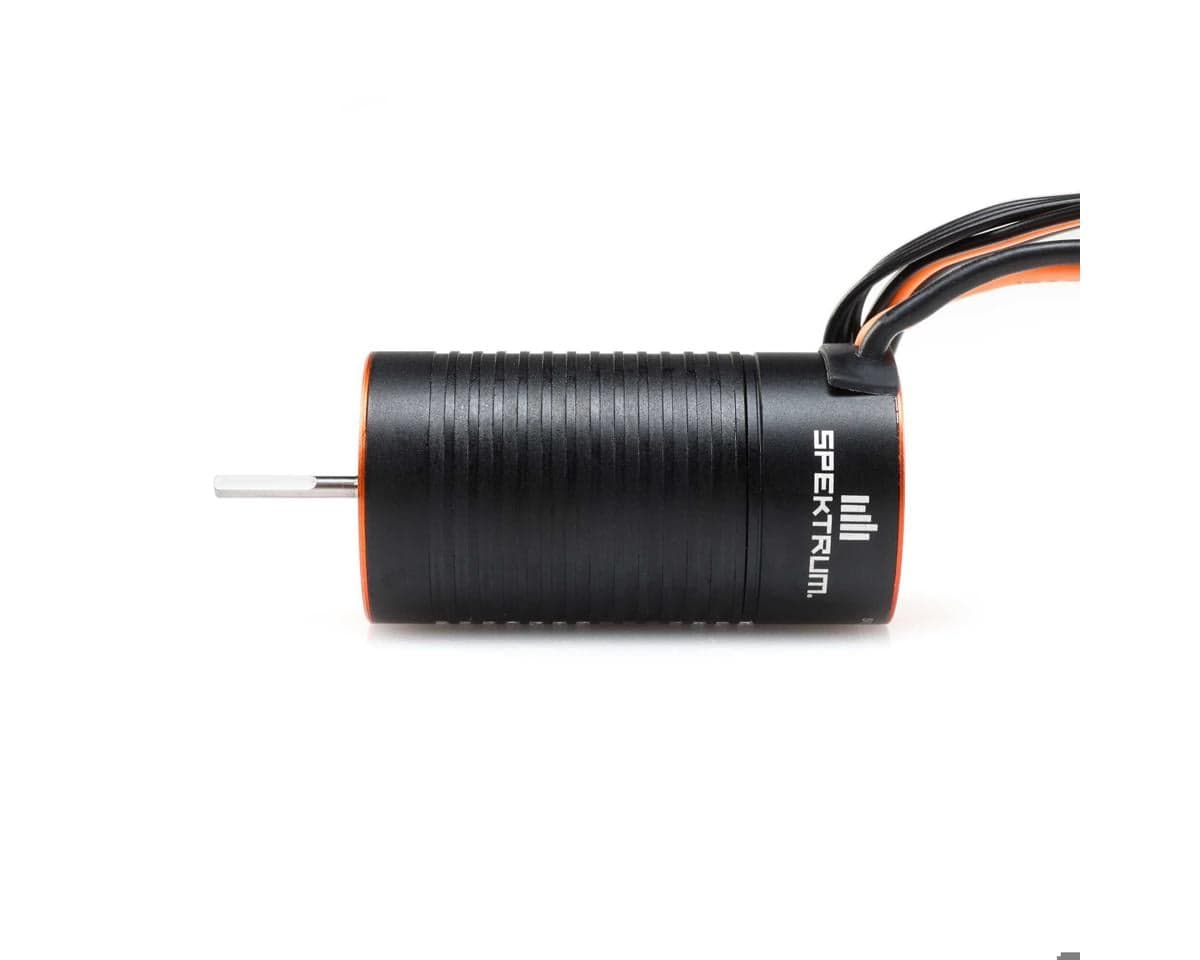

Spektrum RC Firma Brushless Motor/ESC 2-in-1 Combo (5200Kv) w/IC2 Connector
Part # SPMXSEM05005.0(1)
Fits
Where to buy
$95.99
Prices are as last seen at the store; stock is not tracked.
About this part
Motor & ESC Combo Overview:
This is the Firma Brushless Motor/ESC 2-in-1 Combo from Spektrum RC. Designed specifically for the 1/18 Losi Mini LMT 4X4 Monster Truck, this waterproof combo offers unmatched precision, efficiency, and durability, making it an ideal choice for bashing or competing on 2S or 3S LiPo power.
Features:
- High-precision magnetic encoder and rotor position sensor for precise control
- Waterproof design for all-weather performance
- Multi-point protection with over-current, low-voltage, thermal, and failsafe features
- Aluminum construction for heat dissipation
- Compact design with easy, no-solder installation
Specifications:
- Suggested Application: 1/18 Monster Truck
- Motor Type: Brushless
- Input Voltage: 2-3S LiPo (7.4-11.1V)
- Continuous Current: 30A
- Peak Current: -
- Dimensions (LxWxH): 1.8x0.53x0.94in (46x13x24mm)
- Weight: 2.7oz (76.5g)
- BEC Voltage: 6V/7.4V
- BEC Continuous Current: 2A
- BEC Peak Current: -
- Motor Connector: 3 Pin
- Battery Connector: IC2
- Motor Wire: -
- Battery Wire: -
- Programmable: Program Button
Includes:
- (1) Firma Brushless Motor/ESC 2-in-1 Combo (5200kV)
- (1) Product Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
Matt OVerified owneron Spektrum RC Firma Brushless Motor/ESC 2-in-1 Combo (5200Kv)
This really wakes up the mini LMT. Perfect fit. I ended up going with a Spektrum SR315 receiver to pair it with.
