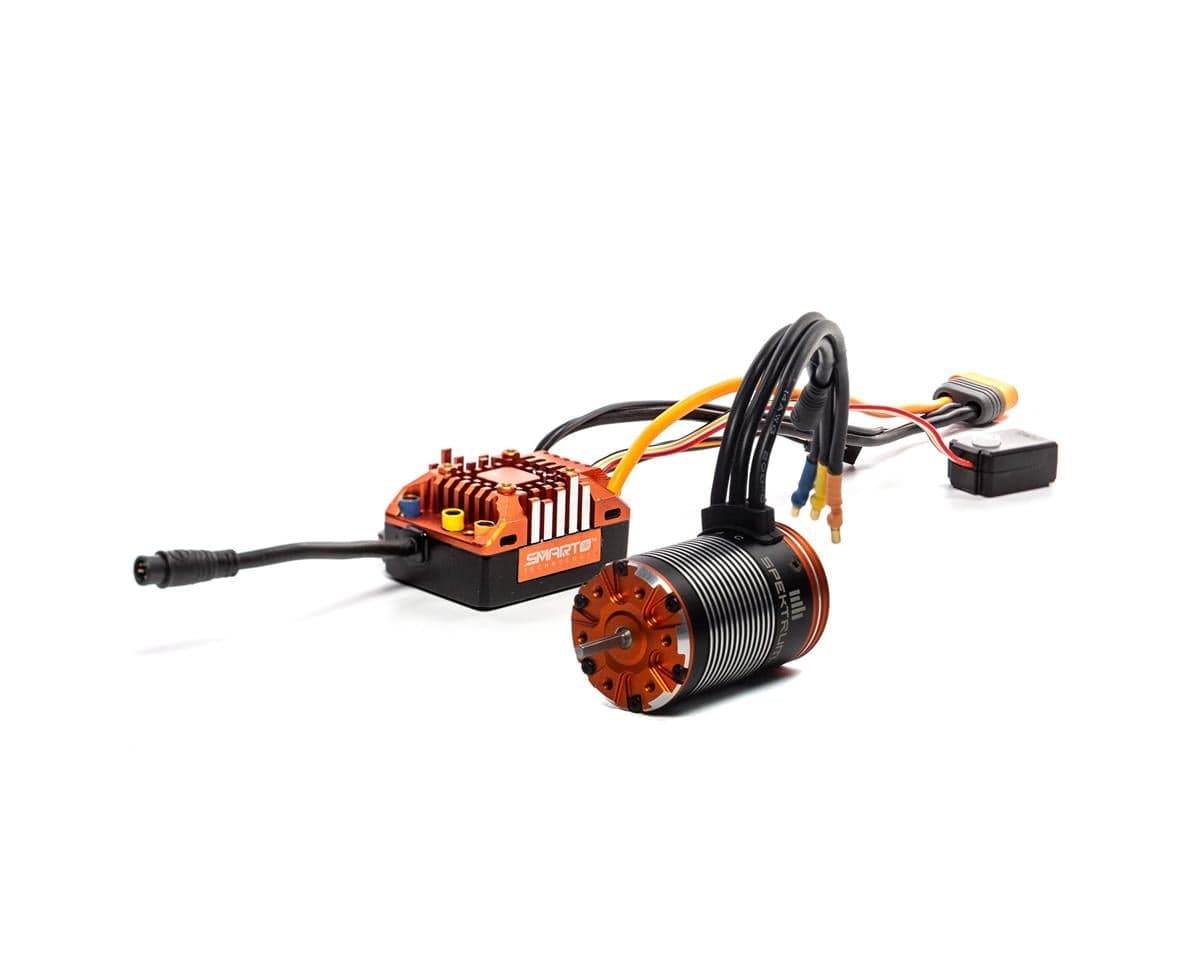

Spektrum RC Firma Crawler Sensored Brushless Smart ESC & Motor Combo (2100kv)
About this part
- Smart all-in-one telemetry
- Pro-level Performance Sensored Motor and ESC
- Fast, powerful 32-bit ARM M4 processor
- Waterproof ESC
- Waterproof sensor wire with locking plug and gasket
- Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Programming from Transmitter via Text Gen Telemetry
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Aluminum heat sink for high efficiency
- Includes Optional Cooling fan
- Adjustable high-power BEC (6V or 7.4V)
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Motor:
- Type: Crawler
- Motor Size: 1/10
- Application: 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
- Connector Type: 4mm Bullet
- Product Length: 2.27" (58mm)
- Recommended Speed Control: Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
- Reverse: Yes
- Water-Resistant: Yes
- Forward: Yes
- Maximum Continuous Current: 38A
- Bushing Or Bearing: Bearing
- Number of Poles: 4
- Motor Type: Brushless - Sensored
- RPM/Volt (Kv): 2100Kv
- Input Voltage: 7.4 - 11.1V
- Outer Diameter: 1.42" (36mm)
- Shaft Diameter: 0.125" (3mm)
- Overall Length: 2.27" (58mm)
- ESC:
- BEC Voltage: 6V/7.4V
- Product Weight: 2.89oz (82g)
- Maximum Continuous Current: 60A
- Product Height: 0.96" (24 mm)
- Forward: Yes
- Product Width: 1.4" (36 mm)
- Overload Protection: Yes
- BEC: Yes
- Brakes: Adjustable drag brake force
- Connector Type: IC3
- Reverse: Yes
- Maximum Burst Current: 360A
- Low-Voltage Cutoff Programmable: Yes
- Motor Limit: Only Spektrum sensorless motors
- Programmable: Yes
- Technology: Smart
- BEC Continuous Current: 3A
- BEC Type: Switchable
- Product Length: 1.9" (48 mm)
- Water-Resistant: Yes
- (1) Spektrum RC Firma 60A Sensored Brushless Smart Crawler ESC
- (1) Firma Sensored 540 Brushless Crawler Motor (2100Kv)
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.2 · 5 reviews
Fantastic Combo for Crawling. I have this setup in two of my SCX10II rigs and couldn't be happier. The low end control is perfect, you can crawl as slow as the throttle potentiometer in your TX will allow, and still retains plenty of wheel speed for ascents and mud should you need it. The ESC setting are great as well, pretty much what you would expect from a Hobbywing AXE plus Spektrums compatibility.
Very good quality. Lots of programming options. Will continue to buy these.
Love this system! I installed this into my Axial Ryft Crawler build and it is amazing! The throttle control is unbelievable and drag brake is flawless. My Ryft is heavy as well,all Vitavon portals with brass,Vitavon axle in the rear with 4ws and front Treal axle with all brass options so she's thick and this system don't miss a beat. I even took the fan off the Esc immediately,never ran it and it has never gotten hot. If you would like to see it in action on my Ryft check out my YouTube,Hardlines&fullsendRc
Got it wet once and don’t work won’t even cut on or show a light brand new battery charged and balanced and still don’t work waste of money better off sticking with the mamba
I recently installed the Spektrum Firma Crawler Sensored Brushless Smart ESC & Motor Combo (2100Kv) in my Axial Capra 1.9, and I couldn’t be happier with the upgrade. Compared to the stock motor and ESC, the improvement is immediately noticeable. The low-speed control is outstanding. I spend most of my time technical rock crawling, and this combo delivers incredibly smooth throttle response. It allows me to creep over rocks and obstacles with much more precision and confidence than the stock setup ever could. The sensored system eliminates the jerky starts and makes the truck feel much more predictable in technical terrain. Power is another huge improvement. It has more than enough torque to tackle steep climbs and difficult obstacles while still providing smooth, controllable power exactly when I need it. Even under heavy load, the motor stays responsive and never feels like it’s struggling. Installation was straightforward, and once everything was calibrated, it performed flawlessly. The Smart features are a nice bonus, but what really impressed me is how much more capable my Capra feels on the trail. It has completely transformed the driving experience. If you’re looking for one of the best upgrades you can make to a Capra 1.9, I highly recommend this combo. I’m thoroughly enjoying it, and it has exceeded my expectations in every way!
Four of five reviewers rate this sensored brushless ESC and motor combo highly, praising low-speed throttle control for crawling, smooth response on technical terrain, programming options, and build quality. Reviewers describe it as a strong upgrade over stock setups in SCX10 II, Axial Ryft and Capra 1.9 builds, with one reviewer noting the fan was removed without overheating. One reviewer reports the unit did not power on after getting wet, despite a fully charged battery, and recommends a competing product instead. The reviews mention several different chassis, so the experience appears to span multiple platforms.
- + Smooth low-speed throttle control
- + Good torque and wheel speed
- + Extensive programming options
- + Strong upgrade over stock setup
- − Unit failed after getting wet
- − Failure reported on a new unit
