Spektrum RC

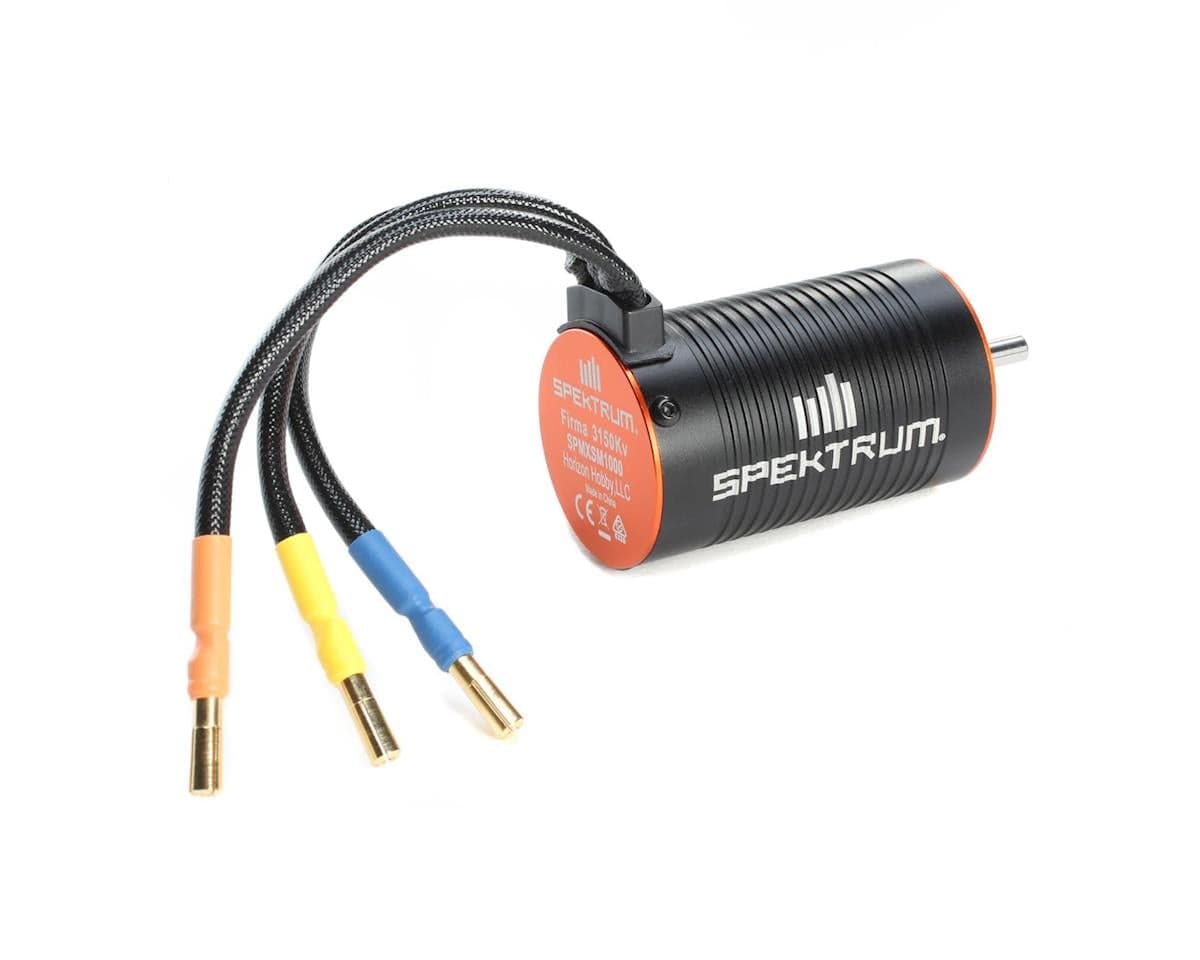

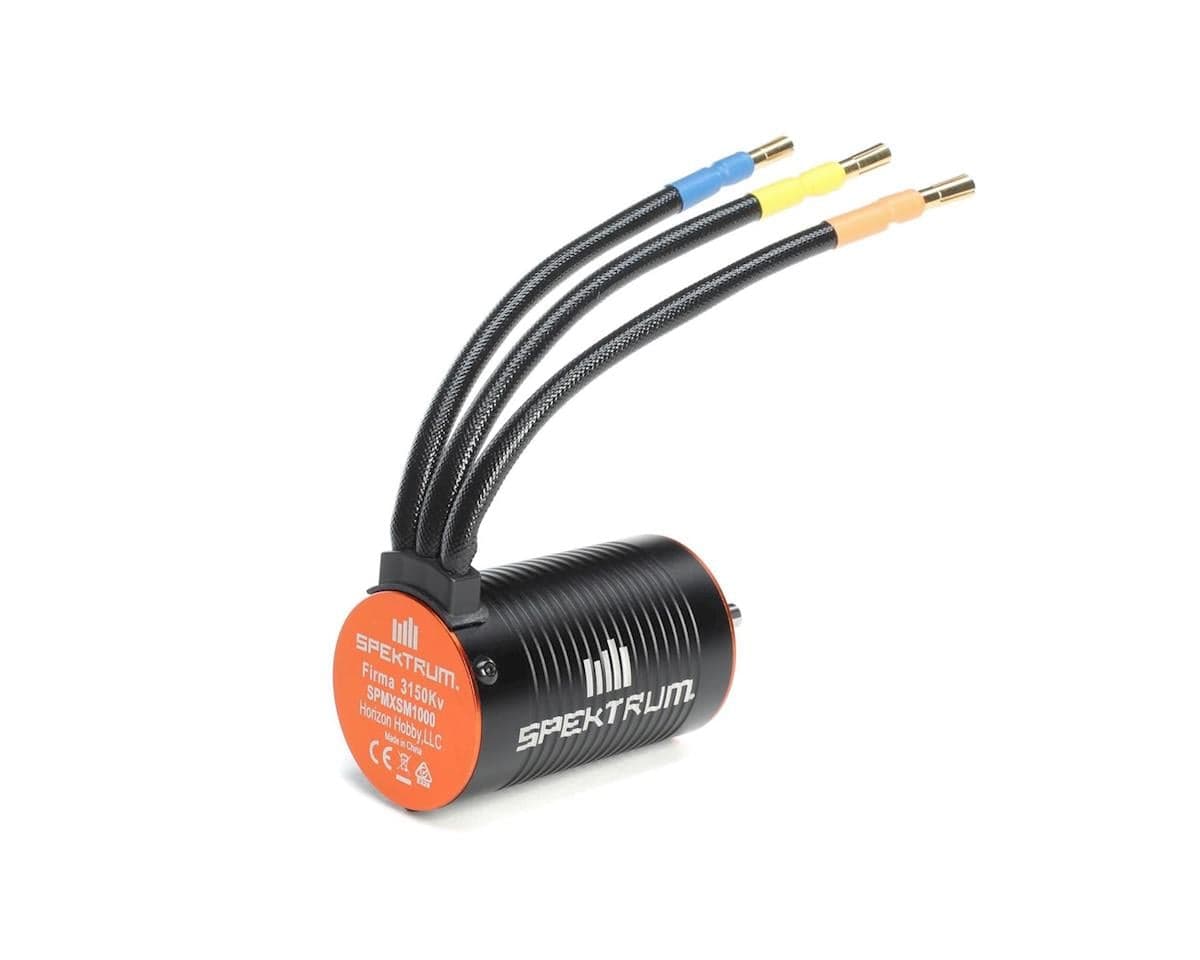

Spektrum RC Firma Sensorless Brushless Motor (3150Kv)
Part # SPMXSM10001.0(2)
Where to buy
$64.99
Prices are as last seen at the store; stock is not tracked.
About this part
Specifications
| Number of Poles | 4 |
| Wire Gauge | 12 AWG |
| Overall Diameter | 1.4" (36mm) |
| Input Voltage | 6-13.2V |
| Output | 1300W |
| Shaft Diameter | 3/16" (5mm) |
| Bearings or Bushings | Bearings |
| Maximum Continuous Current | 100A |
| Connector Type | 4mm Bullet |
| Efficiency | 90% |
| Recommended Speed Control | Spektrum Firma 130 Smart ESC |
| Motor Type | Brushless, Brushless |
| Overall Length | 2.4" (60mm) |
| RPM/Volt (Kv) | 3150Kv |
| Cells | 2-3S LiPo, 4-9 cell NiMH |
| Size | 3660 |
| Weight | 8.7oz (247g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews1.0 · 2 reviews
Marcus Baileyon Spektrum RC Firma Sensorless Brushless Motor (3150Kv)
Definitely won't be buying another spektrum motor. I've been running it normally with no overheating issues but within around two months time the bearings in the motor have gone out, as much as I paid for it I'm not at all pleased with this product!
3 found this helpful
Dean WellsVerified owneron Spektrum RC Firma Sensorless Brushless Motor (3150Kv)
installed motor last week after my shoulder surgery. motor did not work.
