Spektrum RC

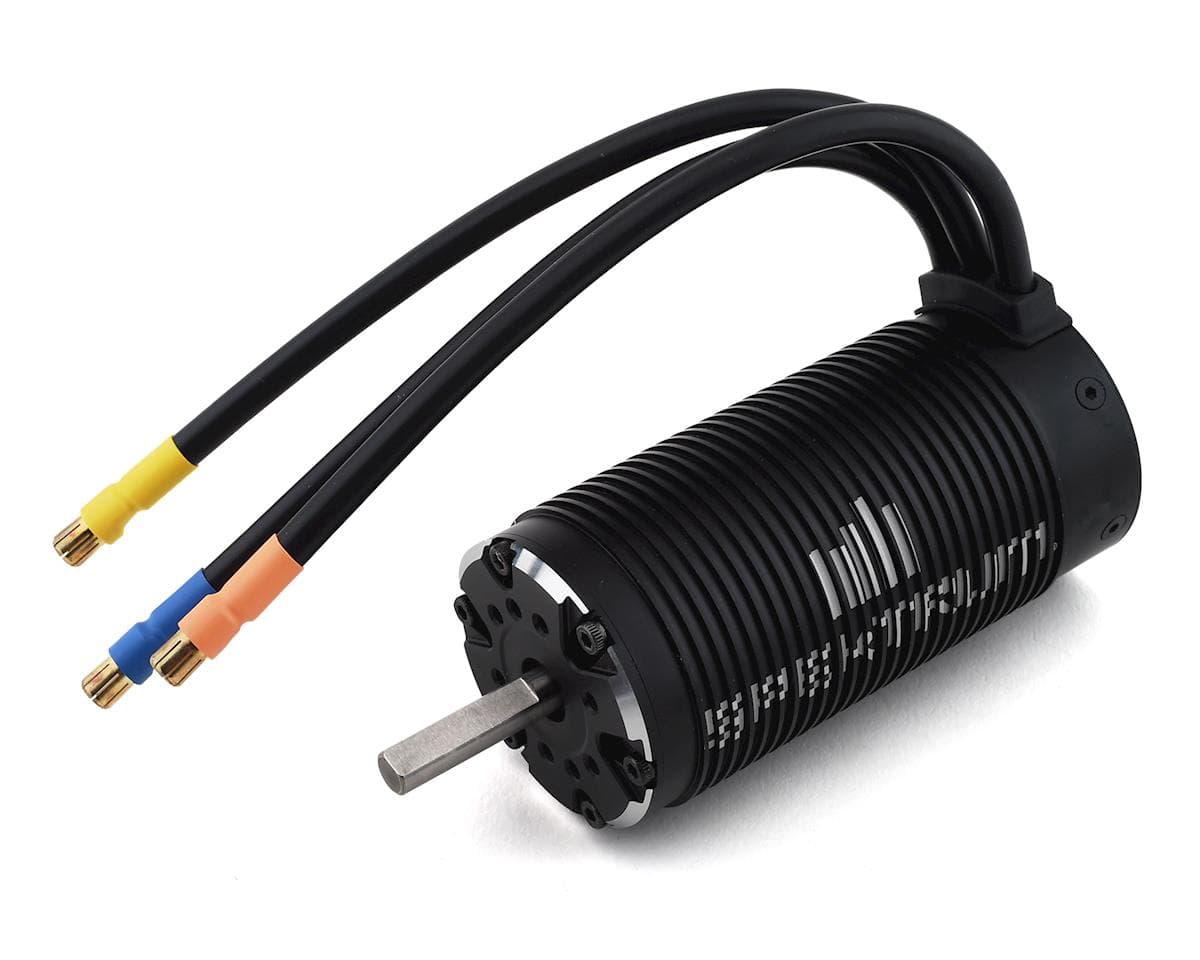

Spektrum RC Firma Sensorless Brushless Motor (780Kv)
Part # SPMXSM1100
Where to buy
$199.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Spektrum Firma 780kv Sensorless Brushless Motor is recommended for 1/5th scale models running 8S LiPo. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing with heat sinking fins, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors. Perfectly matched to the Firma 160 Smart ESC.
Features:
- Heat sinking designed CNC aluminum housing
- 8S LiPo power capable
- Hgh efficiency design
- High-quality 4-pole sintered rotors
- Includes 6.5mm gold plated bullet connectors
- Precision ball bearings and hardened steel 8mm shaft
Specifications:
Bushing Or Bearing: Bearing
Cells: 4-8S LiPo
Efficiency: 90%
Input Voltage: 12-35.2V
Maximum Continuous Current: 200A
Motor Design: Inrunner
Motor Type: Brushless
Number of Poles: 4
Outer Diameter: 2.2 in (56mm)
Output: 7000W
Overall Length: 4.4" (113mm)
Product Weight: 43oz (1220g)
Recommended Speed Control: Spektrum Firma 160 Smart ESC
RPM/Volt (Kv): 780Kv
Shaft Diameter: 5/16" (8mm)
Wire Gauge: 10 AWGSpektrum Firma 5613-780Kv Sensorless 1/5 Brushless Motor with 6.5mm Gold Plated Bullet Connectors
Wire Gauge: 10 AWG
Includes:
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews
