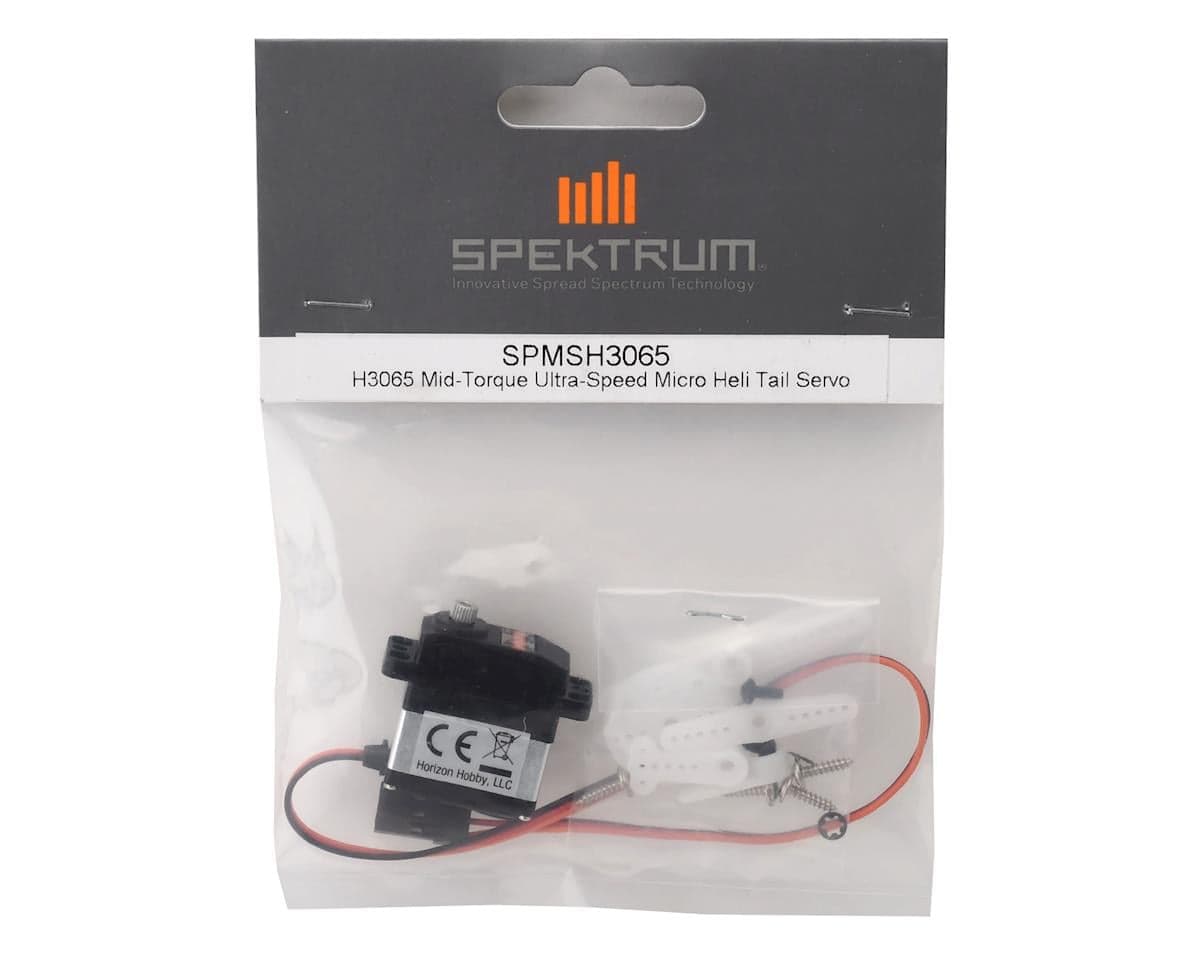

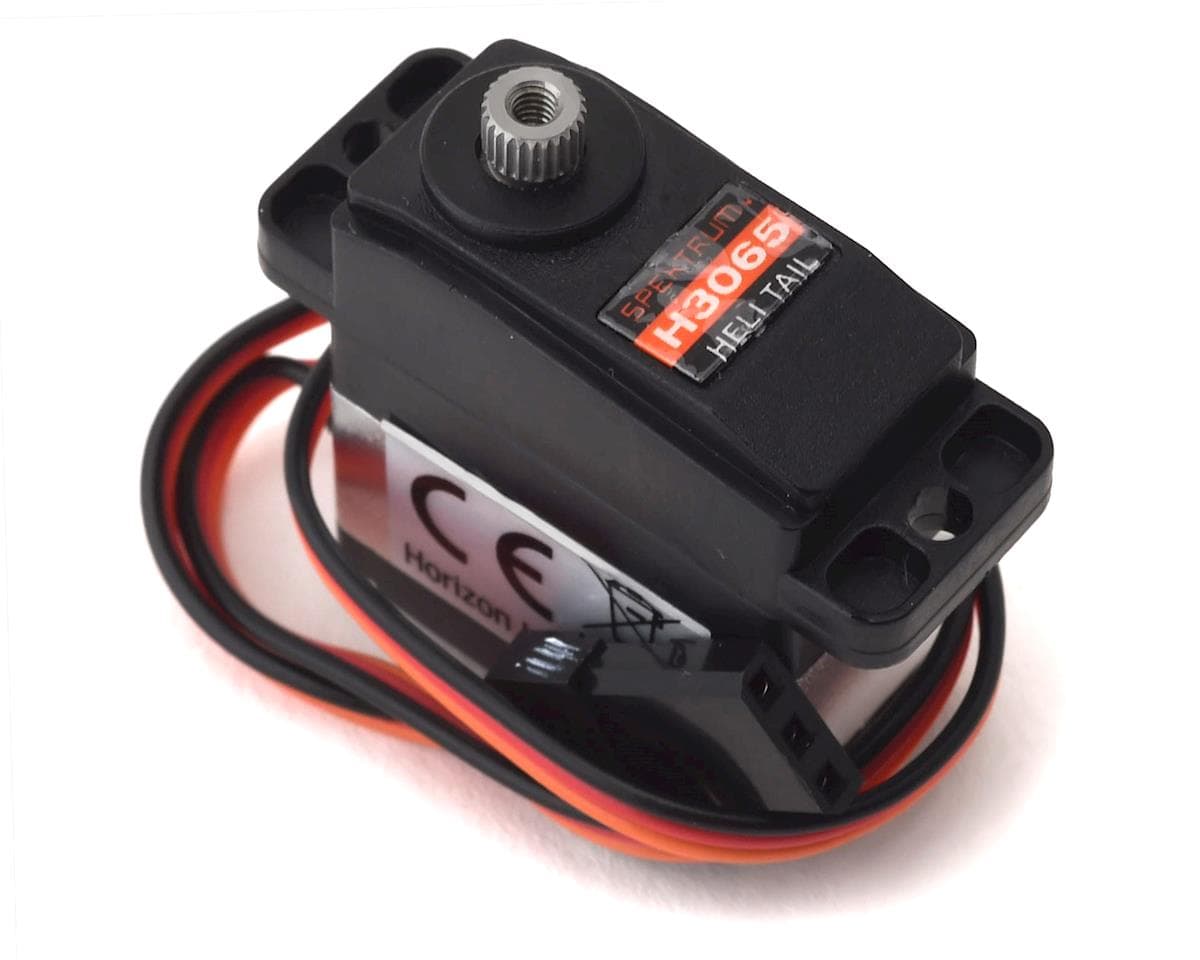

Spektrum RC H3065 Micro Tail Servo
Part # SPMSH30654.0(1)
Fits
Where to buy
$22.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Spektrum RC H3065 Micro Tail Servo is a great wat to upgrade your 250-450 size heli tail servo with the high speed and accurate H3065 Servo. Touting a blazing fast .029 transit speed and impressive position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor.
Features:
- Ideal upgrade tail servo on 250-450 size helis
- Sub-micro size
- Fast 0.029 sec/60 deg transit speed at 6V
Specifications:
Size Category: Minis and Micros
Type: Digital
Application: 250 - 450 size heli, tail
Torque: 15.75 oz-in (1.1kg-cm) @ 6.0V,
Speed: 0.036 sec/60deg @ 4.8V, 0.029 sec/60deg 6V,0.029 sec/60° @ 6.0V
Length: 0.91" (23mm)
Width: 0.47" (12mm)
Height: 1.17" (29.6mm)
Weight: 0.46 oz (12.9 g)
Bushing Or Bearing: Bearing
Bearing: Single
Connector Type: Universal
Gear Type: Metal
Voltage: 4.8V to 6.0V
Deadband: 2
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.0 · 1 review
Craig ThomanVerified owneron Spektrum RC H3065 Micro Tail Servo
FAST as all hell.. but forever whinging... constantly making that noise that makes you concerned a servo is not happy...
2 found this helpful
