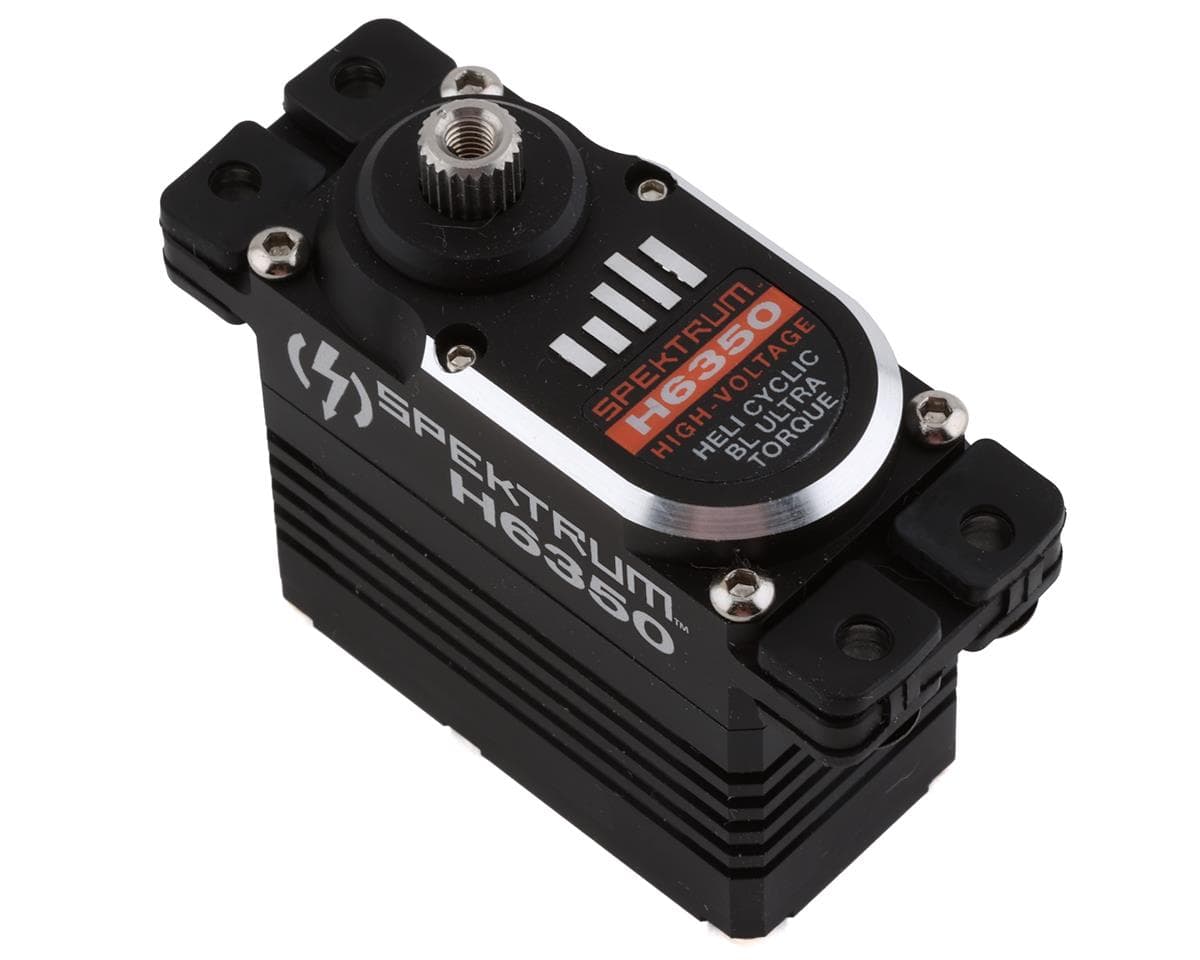

Spektrum RC H6350 Ultra Torque High Speed Heli Cyclic HV Servo
About this part
Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-powerful/ultra-fast heli performance more efficiently than servos with conventional motors. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminum case provides the ultimate solution in durability and heat dissipation. Precision metal gears satisfy even the most critical heli pilot who wants hassle-free control.
The Spektrum H6350 cyclic servo uses this solid foundation, to achieve an outstanding balance of performance, durability and value, in addition to the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding swashplate control choice for 550- to 700-class electric and nitro helicopters.
Specifications:
- Size Category: Standard
- Type: Digital
- Application: Heli Cyclic
- Torque: 416.4 oz-in (30.0 kg-cm) @ 8.4V
- Speed: 0.062 sec/60° @ 8.4V
- Dimensions (WxLxH): 0.79 x 1.57 x 1.49
- Length: 1.57 in (40mm)
- Width: 0.79 in (20mm)
- Height: 1.49 in (37.8mm)
- Weight: 2.54 oz (72.0 g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Brushless
- Connector Type: Z-Connector
- Gear Type: Metal
- Gear Material: Metal
- Voltage: 6.0-8.4V
- Deadband: 2 - 3 µs
