Parts/Batteries & charging/Chargers/Spektrum RC S155 G2 AC Smart Charger (2-4S/5A/55W)

About this part

The Spektrum S155 G2 AC Smart Charger makes advanced, user-friendly Smart G2 charging technology affordable for any RC hobbyist. It is a great option for cost-conscious drivers and pilots who want the features and functions only a Smart charger can provide.

This charger comes compatible with 4S LiPo, LiFe, Li-Ion, or LiHV batteries as well as 1-12S NiMH and NiCd packs, equipped with a IC3 or IC5 connector. Generation 2 Smart technology enables the S155 to both charge and balance Smart G2 batteries using one simple connection. No separate balance lead is needed. When connected to a Smart battery, its Auto Charge feature recognizes the correct charging parameters instantly and begins safe, proper charging automatically.

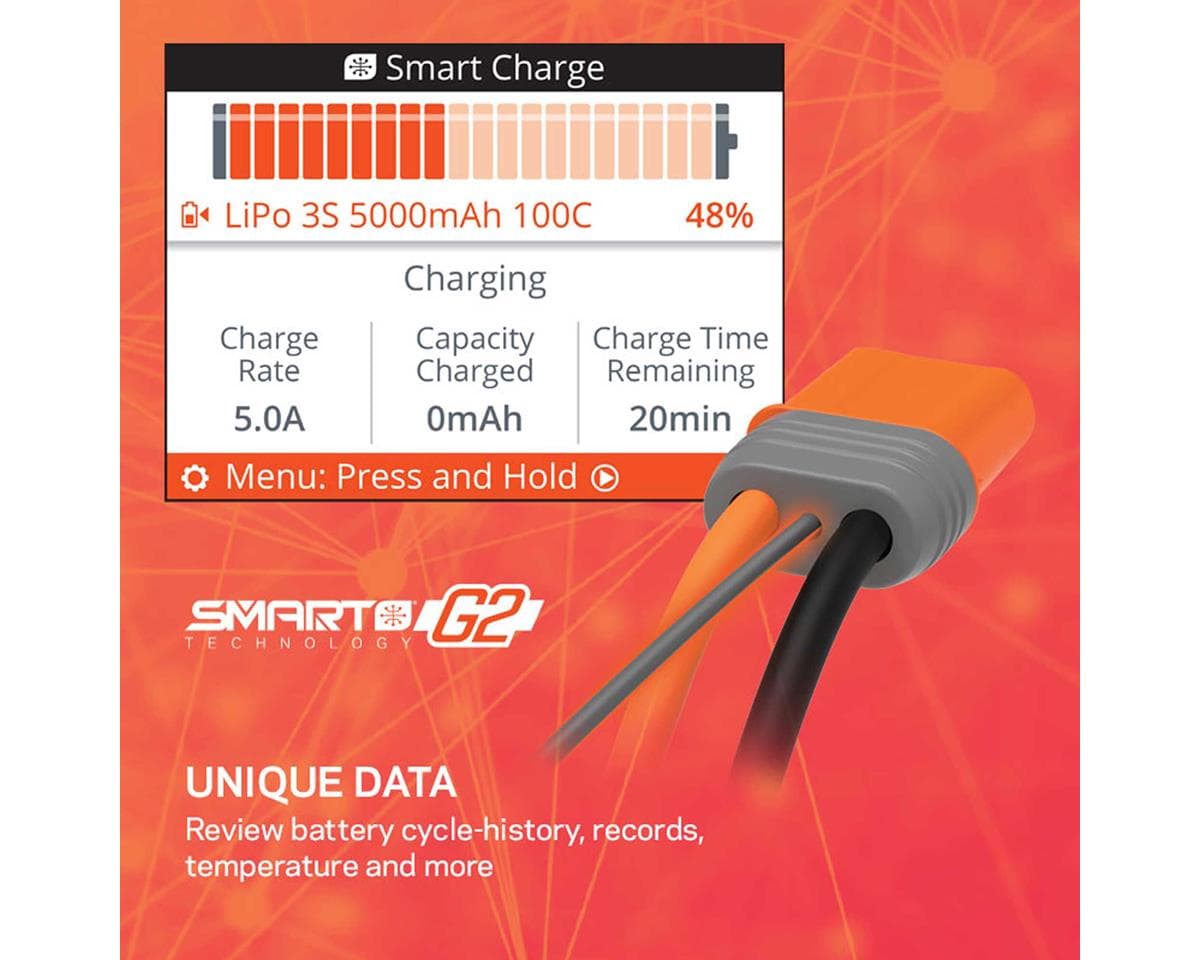

The LCD screen with improved menus, icons, and navigation tools allows users to monitor charging progress and make setting changes with ease. An on-screen clock counts down the minutes in real time until your Smart battery is fully charged and ready to use.

Features:
  • Advanced, user-friendly Smart G2 charging technology that fits into any hobby budget
  • Delivers 55W of charging power
  • Includes selectable IC3 and IC5 charging ports — no separate adapters required
  • Charges up to 4S LiPo/LiFe/Li-Ion/LiHV batteries and 1-12S NiMH/NiCd packs

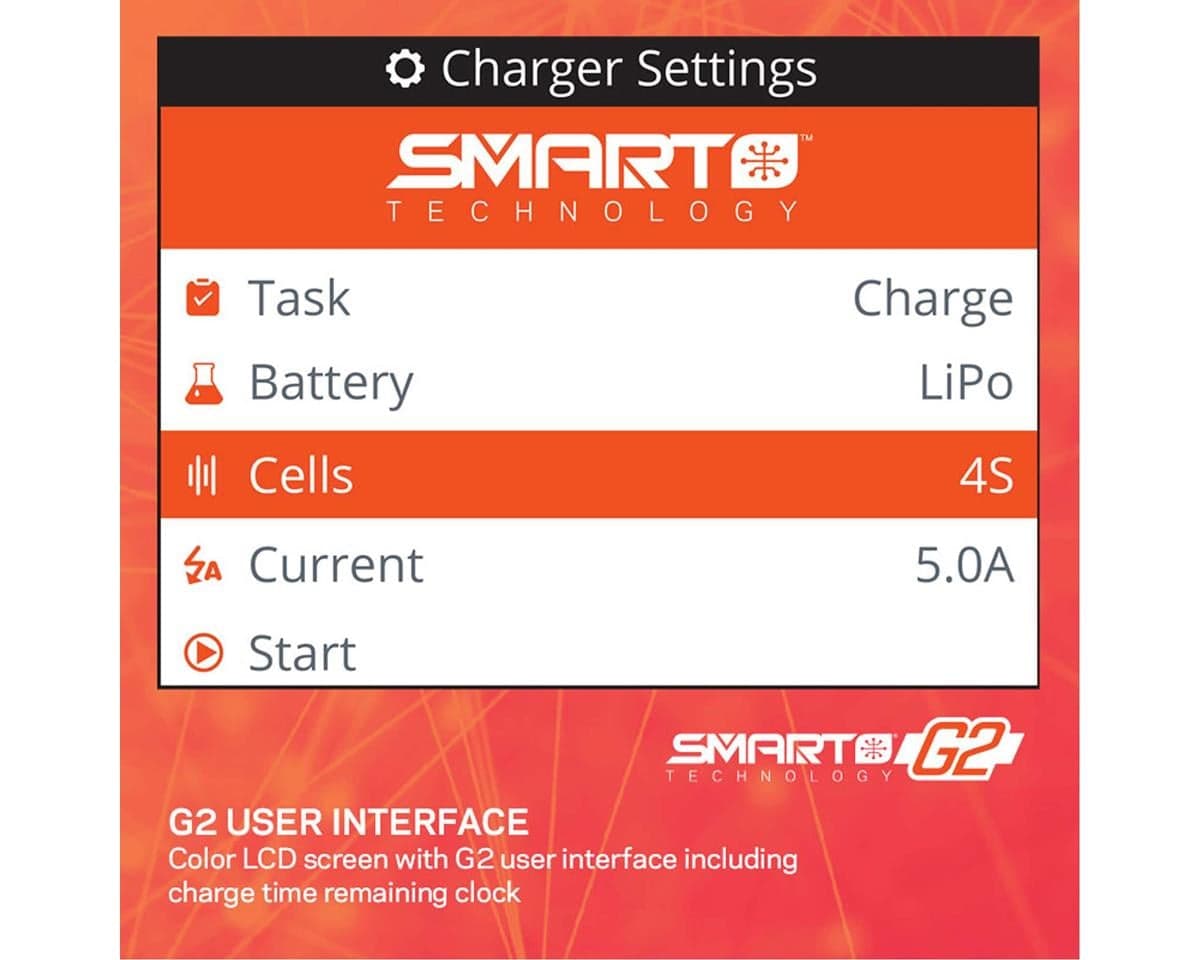

  • Color LCD screen interface features intuitive menus, icons, and navigation tools
  • Clock counts down remaining charge time until your Smart battery is fully charged and ready to use
  • Auto Charge recognizes Smart battery charging parameters and starts charging automatically when connected
  • USB input for updating firmware
  • Sleep mode
  • Detachable power cord
  • Sleek, sturdy case fits well on your workbench and in pit/field bags
Specifications:
Input Voltage: 100-240V, 50-60Hz
Cell Count: 2-4S
Battery Type: LiPo (3.7V per cell)
Maximum Charge Rate: 18.4V, 5A (Max)
Length: 4.4" (112 mm)
Width: 2.4" (61 mm)
Height: 2.4" (61 mm)
Weight: 12.2 oz (345 g)
Output Connector: IC3 and IC5 (Selectable)
Battery Balance Connector: JST_XH
Display: LCD

Includes:

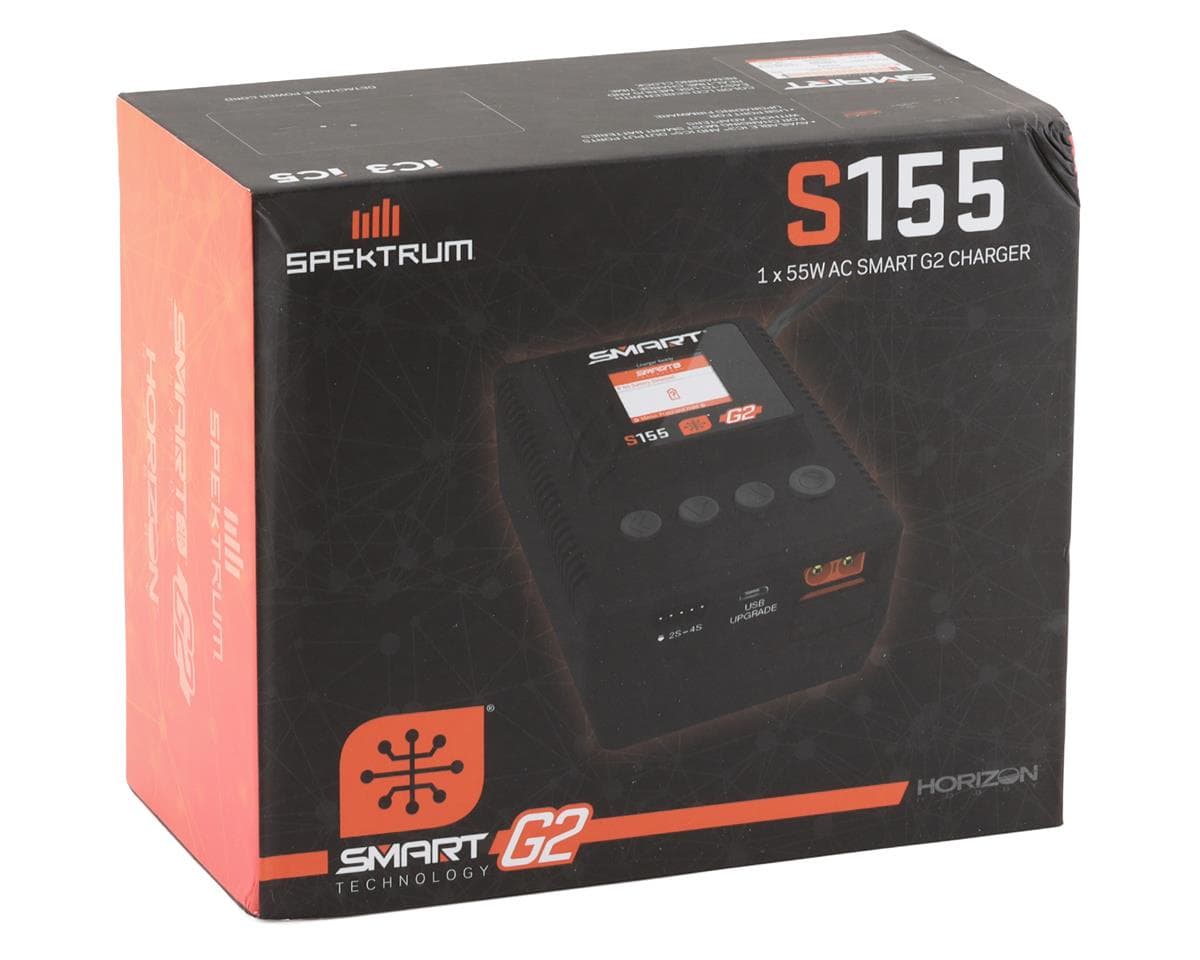

  • (1) Spektrum S155 AC Smart Charger

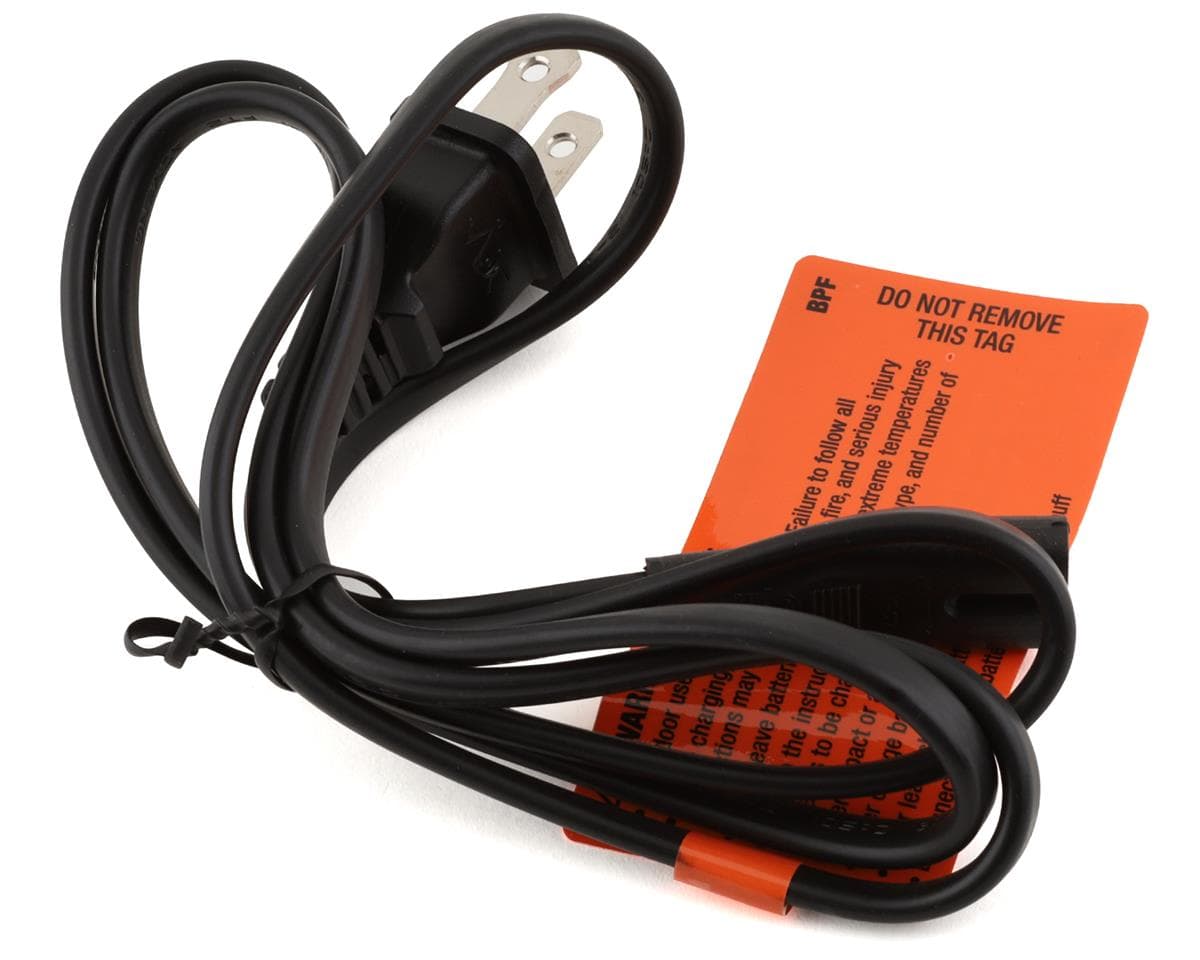

  • (1) Power Chord
  • (1) Manual
CA Residents Prop 65 Warning WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...

Reviews3.7 · 9 reviews

L2theWon Spektrum RC S155 G2 AC Smart Charger (2-4S/5A/55W)

It is a decent charger but it gets hot!! Why did they cheap out and not put a fan in this even the cheapest Traxxas charger has a fan and its only rated for 3s spend a few more dollars and get the S1100

7 found this helpful
Ryder Hurdon Spektrum RC S155 G2 AC Smart Charger (2-4S/5A/55W)

great charger from the stock mini b charges the mini b battery in half the time.it takes 30 minutes to charge with the stock charger and it takes me 15 minutes to charge with this charger. this is critical for Raceday's even though I have not raced but it gives me more time to practice. One tip is to make sure you are charging closes to the top ampage for my battery its 4A but the stock setting charges at 0.1A I think? so, change that before you lose time at the local track. #everysecondcounts Edit I just figured out this did not have a storage button which is stupid, so I do not recommend this charger just get a different brand don't get stuck in spectrum ecosystem.

1 found this helpful
Lloyd RawlsVerified owneron Spektrum RC S155 G2 AC Smart Charger (2-4S/5A/55W)

Awesome super easy website this place always feels like as getaway thanks again

Stephen KowalczykVerified owneron Spektrum RC S155 G2 AC Smart Charger (2-4S/5A/55W)

Device does not function at all. It is supposed to simply start charging a G2 battery when plugged in. It reverts to the setup screen but absolutely nothing happens. I have to go back to the little chargers supplied with the cars.

Pete SwallowVerified owneron Spektrum RC S155 G2 AC Smart Charger (2-4S/5A/55W)

Part of the screen backlight burned out within a few hours making it very difficult to read the screen. Had to return.

What reviewers say

Reviewers are mixed. Several report fast, simple plug-and-go charging, including for Mini B packs, and one describes a good price. Recurring criticisms are that the charger gets hot without a fan and that it lacks a storage mode, although one reviewer says storage is set through the battery chip and another calls the storage function absent. Two reviewers report hardware faults: one unit did not charge, and another had a screen backlight fail within hours. Some comments concern the retailer's service and website, which are not about the charger itself.

  • + Fast charging for Mini B packs
  • + Simple plug-and-go operation
  • + Good price for the features
  • − Gets hot without a fan
  • − No storage mode reported
  • − Unit reported not charging
  • − Screen backlight failed early
Summary generated from the reviews above.
