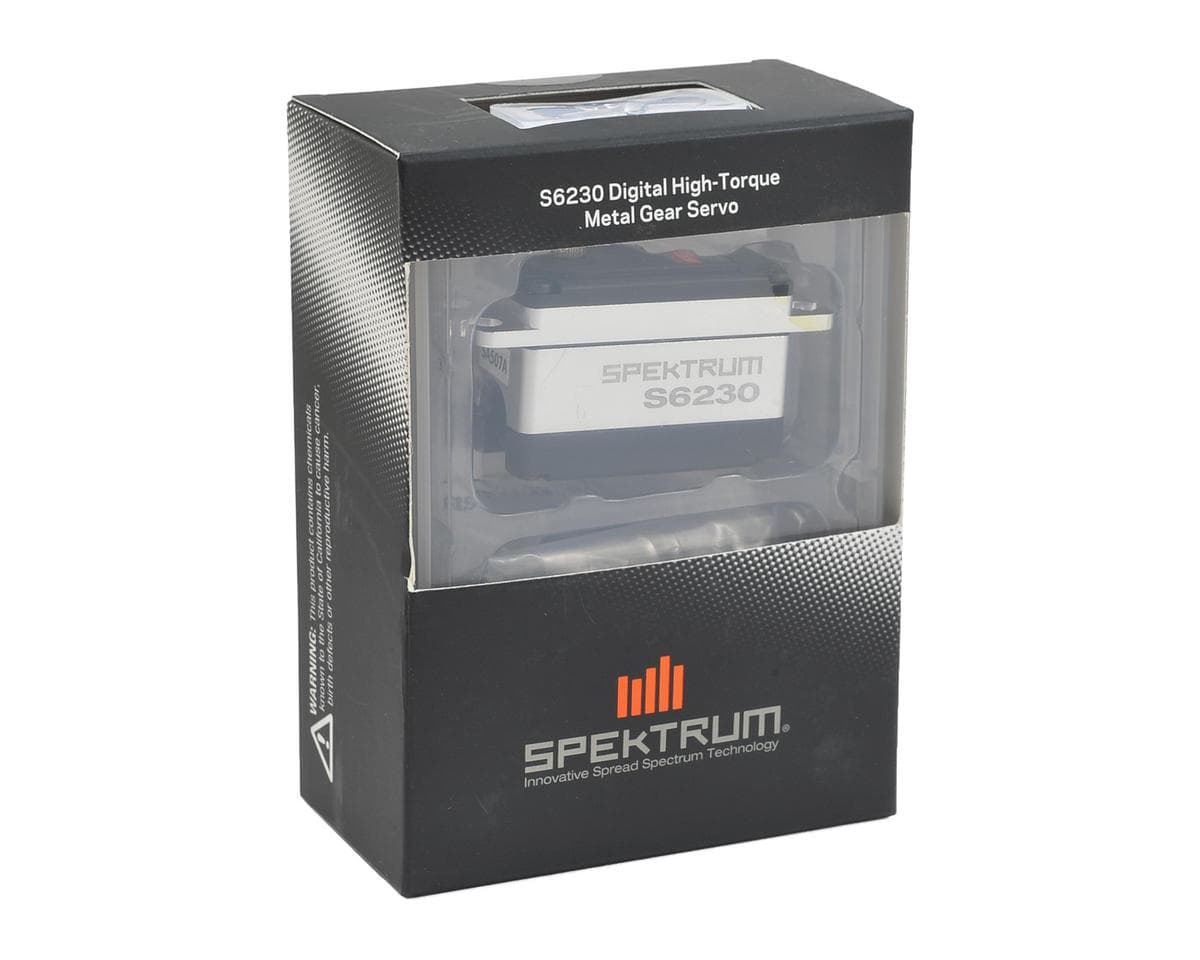

Spektrum RC S6230 Digital Steel Gear High Torque Low Profile Servo
About this part
The Spektrum S6230 servo offers a high-torque solution in a compact form factor for 1/10 class vehicles. For select 2wd and 4wd buggy platforms, a shorty style servo is preferred to allow for extra real-estate to mount electronics in the chassis. Additionally rock crawlers, monster trucks, and touring cars can benefit from this servos smaller than average size.
Key Features:
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
Specifications:
- Size Category: Specialty
- Type: Digital
- Application: 1/10 Buggy, Truck, On-Road
- Torque: 311 oz-in (22.4kg-cm) @ 6.0V
- Speed: 0.14 sec/60 deg @ 6.0V, at no load
- Length: 1.61 in (41mm)
- Width: 0.82 in (20.8mm)
- Height: 1.18 in (30mm)
- Weight: 2.1 oz (59.5g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z-connector, removable
- Gear Type: Metal
- Gear Material: Steel, Aluminum
- Current Draw Idle: 9.8 mA @ 6.0V
- Current Draw Stall: 4900mA @ 6.0V
- Voltage: 6.0V
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 4 reviews
Great servo, used on SMT10 with Renegade 5.6 tires and easily turned the wheels no matter the surface. Perfect for axle mounted servo vehicles as the wire unplugs at the servo end for easy removal / maintenance.
I'm not sure why people are down on Spektrum servos. This is a great servo, I'm using it in the Losi Lasernut and it's super responsive and reliable. Before I purchased this servo, I purchased an EcoPower WP120T that failed immediately and then a MKS X5 that was so loud! This servo is silent and powerful. You do have to switch the steering on your transmitter, this servo steers the opposite direction.
I run this servo in both my techno EB48 2.1 and ET48 2.0 1/8 scales buggy and truggy and very happy with these!
Put this servo in my Axial Yeti Kit build and I couldn't be happier. I put a couple HiTech and Savox servos and they were both quite loud at all times, even with a glitch buster. These Spektrum servos are fantastic, completely silent and it turns my big aluminum wheels/tires without a problem at all. Plenty of torque for the Yeti platform. Speaking of platforms, I also put a 6240 high speed servo in my Losi Baja Rey and that thing is lightning quick and doesn't chatter/buzz like most Savox servos do on 6v too. I'm a big fan of these servos, so I'll be purchasing more going forward.
All four reviewers rate this Spektrum S6230 digital steel-gear low-profile servo 5 out of 5. Reviewers report it is quiet compared with other servos they tried, including HiTech, Savox, MKS and EcoPower models. They describe it as powerful enough for large wheels and tires on Axial, Team Associated and Losi-type vehicles, and one notes it is responsive and reliable. One reviewer found it steers in the opposite direction, so the transmitter steering setting must be reversed. One reviewer mentions the wire unplugs at the servo end, which suits axle-mounted installations. No recurring problems are reported, though the sample is small and one reviewer comments that others are 'down on' Spektrum servos without specifying why.
- + Quiet operation
- + Strong torque for large tires
- + Responsive and reliable
- + Easy-disconnect wire for axle-mounted servos
- − Steers opposite to standard, requires transmitter reversal
- − Limited sample of reviews
