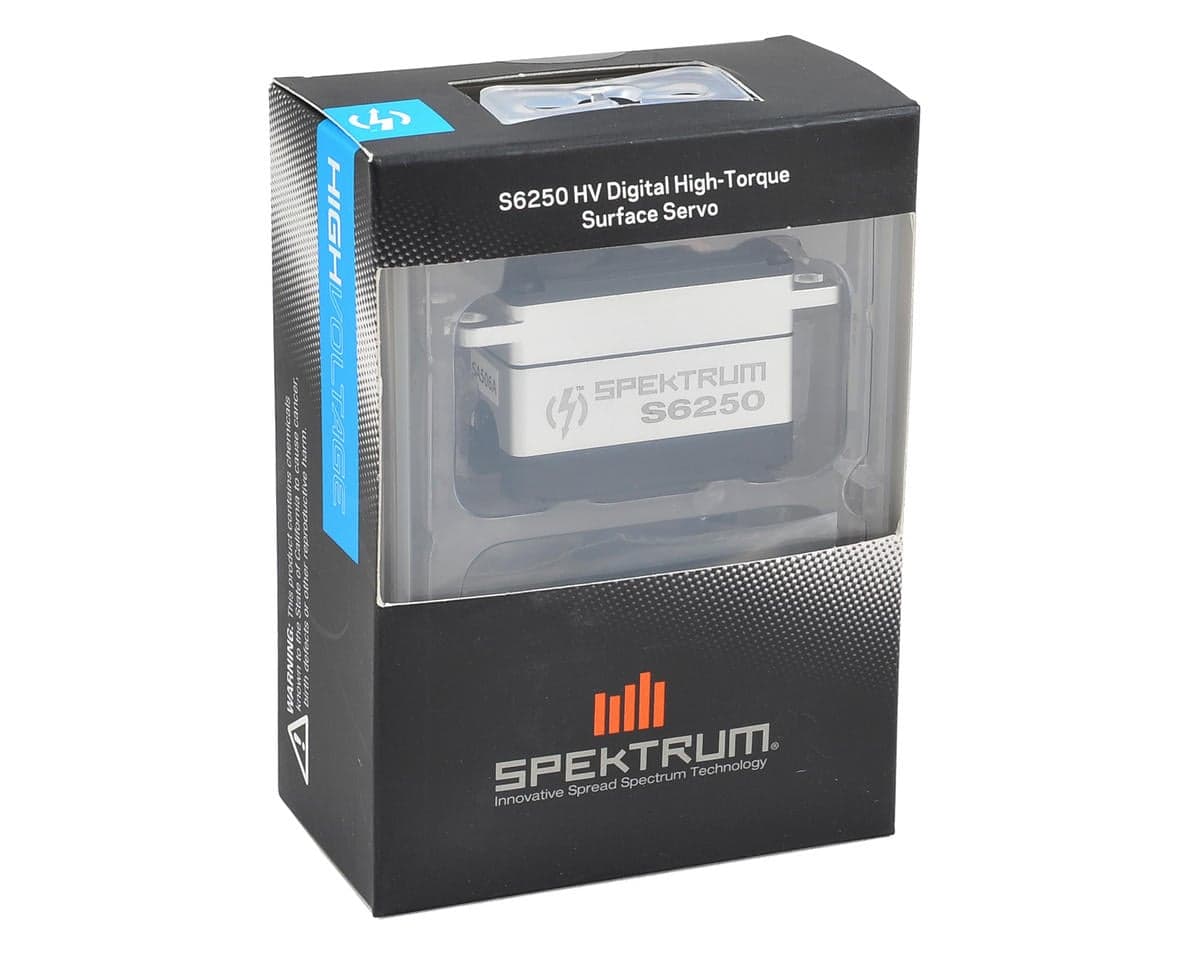

Spektrum RC S6250 Digital High Torque Low Profile Servo (High Voltage)
About this part
Key Features:
- High Voltage capabilities for improved speed and torque ratings
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
Specifications:
- Size Category: Specialty
- Type: Digital
- Application: 1/10 Buggy, Truck, 1/8 Buggy, Truck
- Torque:
- 271 oz-in (19.5kg-cm) @ 6V
- 339 oz-in (24.4kg-cm) @ 7.4V
- 382 oz-in (27.5kg-cm) @ 8.4V
- Speed:
- 0.13 sec/60 deg @ 6.0V
- 0.11 sec/60 deg @ 7.4V
- 0.09 sec/60 deg @ 8.4V
- Length: 1.61 in (41mm)
- Width: 0.82 in (20.8mm)
- Height: 1.25 in (31.8mm)
- Weight: 2.3 oz (65.2g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z-connector, removable
- Gear Type: Metal
- Gear Material: Steel, Aluminum
- Current Draw Idle: 9.8 mA @ 6.0V
- Current Draw Stall: 4900mA @ 6.0V
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.0 · 4 reviews
Do not but this servo! it lasted less than 10 minutes in a X-ray xb4. So very disapointed!
Currently installed in Typhon TLR. Minor modification was required to fit Typhon due to pigtail design on servo. Otherwise, no complaints. Servo is operating at 7.4v. Fast, strong.
This was quick to install on my Losi Baja Rey. I had no difficulty wiring it up etc. What an improvement over stock! Front wheels have the torque to turn now. Easily one of the best upgrades I've done. I've put this servo on two Baja Reys and been very happy.
This is a great servo. First run had a few problems but horizon replaced them no problem. Works great with spektrum radio and your 23 tooth stuff. I use it on a tlr 3.0 4x4. Works great.
Reviewers of the High Voltage variant of the Spektrum S6250 low-profile digital servo mostly report strong performance in short-course and crawler applications, including on Losi Baja Rey and TLR chassis, with praise for torque, speed and easy installation. One 1/5 review reports the servo failing within ten minutes in an X-Ray XB4, though no cause is given. A 5/5 reviewer noted a minor modification was needed to fit a Typhon due to the pigtail design. Another reviewer reported initial problems that the seller replaced without difficulty. Review count is small, so the picture is limited.
- + Strong torque
- + Fast response
- + Easy installation
- + Works well with Spektrum radios
- − One review reports rapid failure
- − Pigtail design required modification on Typhon
- − Initial unit had problems
