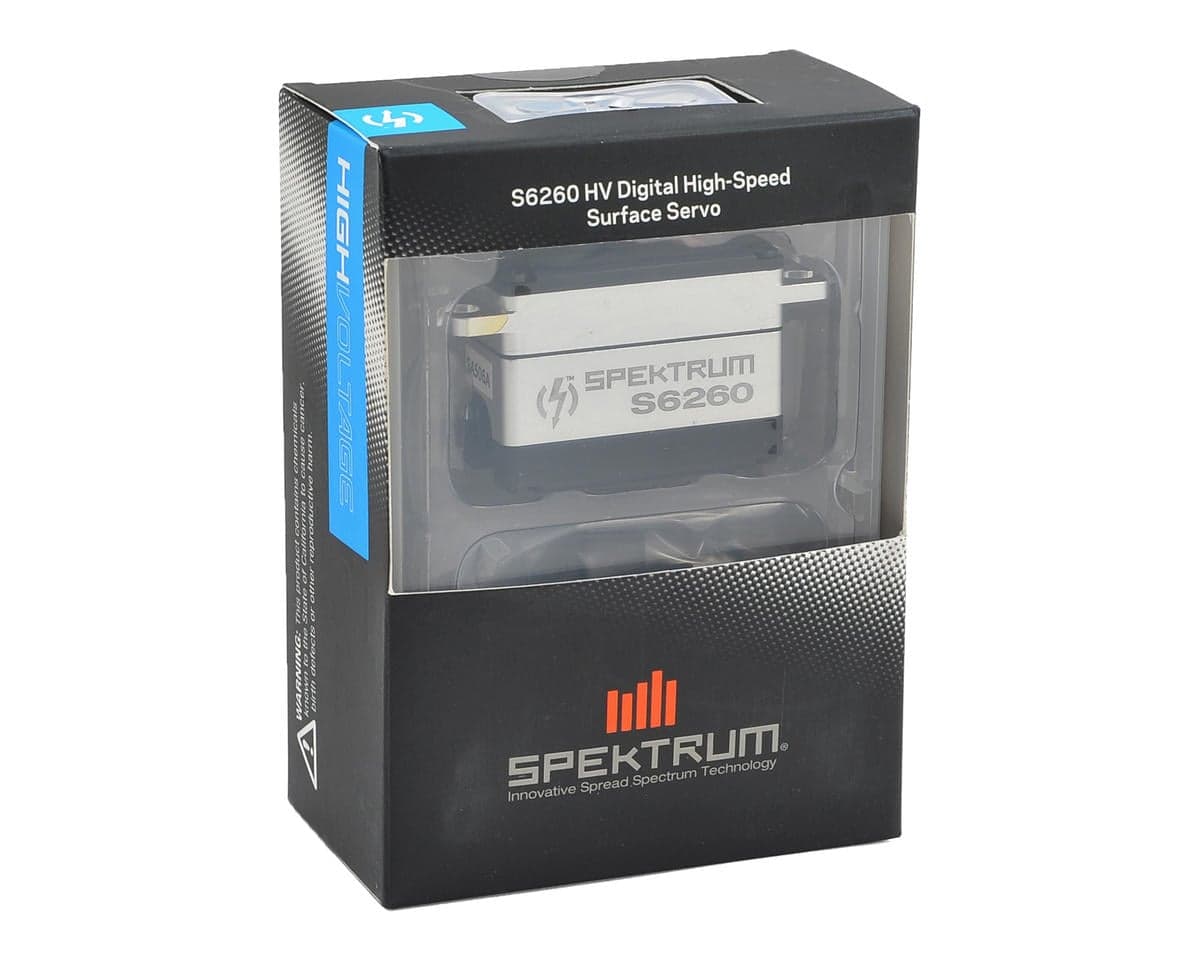

Spektrum RC S6260 Digital High Speed Low Profile Servo (High Voltage)
About this part
The Spektrum S6260 is a high voltage upgrade from Spektrum's budget minded S6240 series servo. Offering all the same benefits in a slim package, but packing a major upgrade in speed and torque with the addition of a high voltage capable motor. The S6260 supports a standard servo mounting form factor, which makes it a universal fit for 1/10 class vehicles.
Key Features:
- High Voltage capabilities for improved speed and torque ratings
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
Specifications:
- Size Category: Specialty
- Type: Digital
- Application: 1/10 Buggy, Truck, 1/8 Buggy, Truck
- Torque:
- 167 oz-in (12.0kg-cm) @ 6V
- 210 oz-in (15.1kg-cm) @ 7.4V
- 241 oz-in (17.4kg-cm) @ 8.4V
- Speed:
- 0.08 sec/60 deg @ 6.0V
- 0.07 sec/60 deg @ 7.4V
- 0.06 sec/60 deg @ 8.4V
- Length: 1.61 in (41mm)
- Width: 0.82 in (20.8mm)
- Height: 1.25 in (31.8mm)
- Weight: 2.3 oz (65.2g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z-connector, removable
- Gear Type: Metal
- Gear Material: Steel, Aluminum
- Current Draw Idle: 9.8 mA @ 6.0V
- Current Draw Stall: 4900mA @ 6.0V
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.6 · 5 reviews
Performs as Expected, Good Value Servo. Will by again
Good little servo had to replace the gears before a year was up but its up and runnng specs are decent I think I would buy again
I use this servo in numerous vehicles such as my RC8B3.1e, EB410,ET410 & B6.1. Have had no issues with extremely quick response and great power. Will be ordering another couple for next models being obtained as well.
Great servos, I use on all my touring cars! The Kimbro servo savers work great with these!

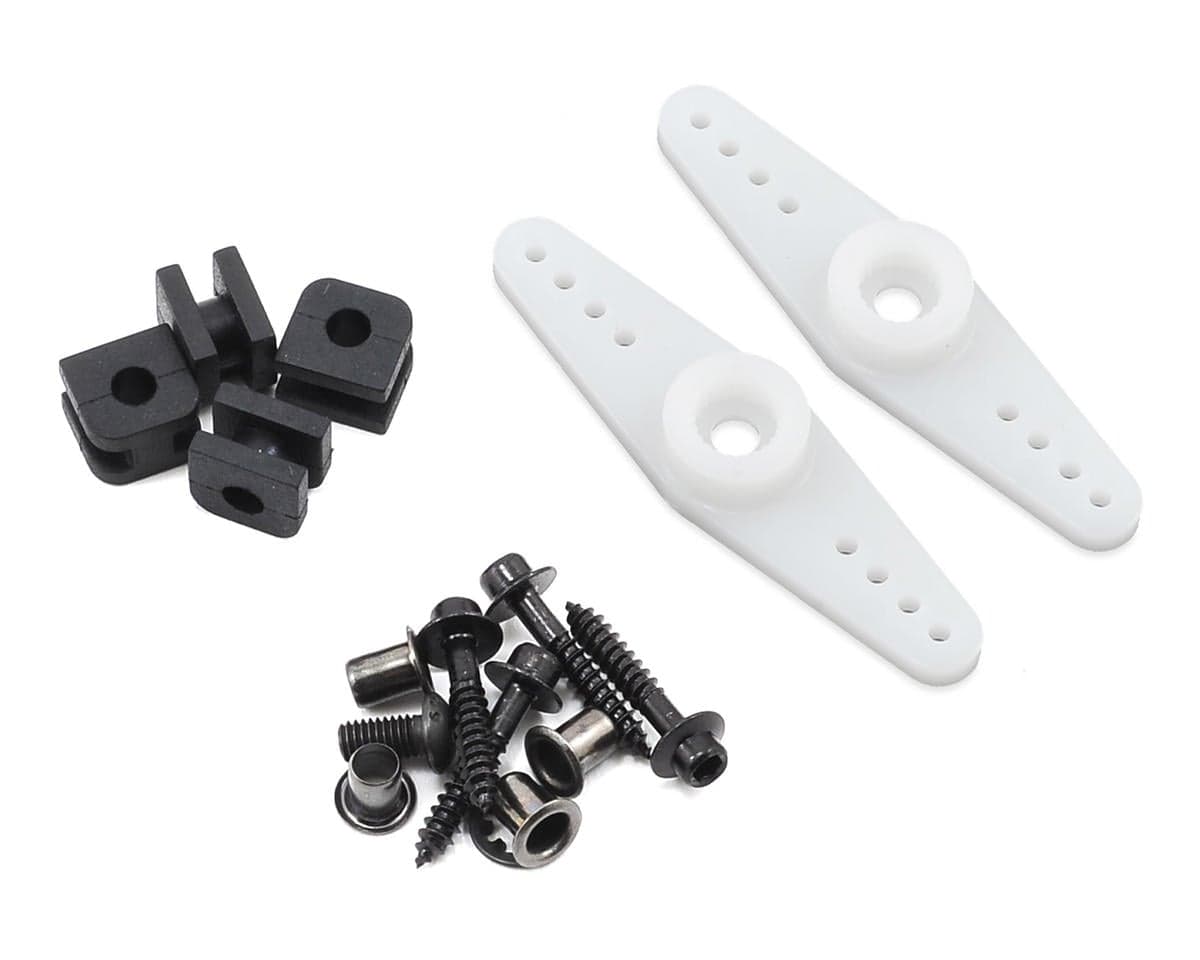

Good servo ,but , i had a hard time finding a servo arm that fit, i counted 23T on the servo. I tried 23t , 24t and 25t hudy arms inlcuding the plastic arms i received in the xray xb2 kit but no luck. I found a cheap Gforce arm that fit. if anyone has found an arm that fits, please post.
Reviewers generally rate the S6260 high-speed low-profile servo well, describing it as good value with quick response and solid power in several vehicles. One reviewer found it hard to source a servo arm that fits the 23-tooth spline, with several Hudy and included arms not working and a cheaper aftermarket arm eventually fitting. Another reported having to replace the gears within a year, though they still felt the specs were decent. Most reviewers say they would buy again.
- + Quick response
- + Good power
- + Good value
- + Performs as expected
- − Hard to find fitting servo arm (23T spline)
- − Gears needed replacement within a year
