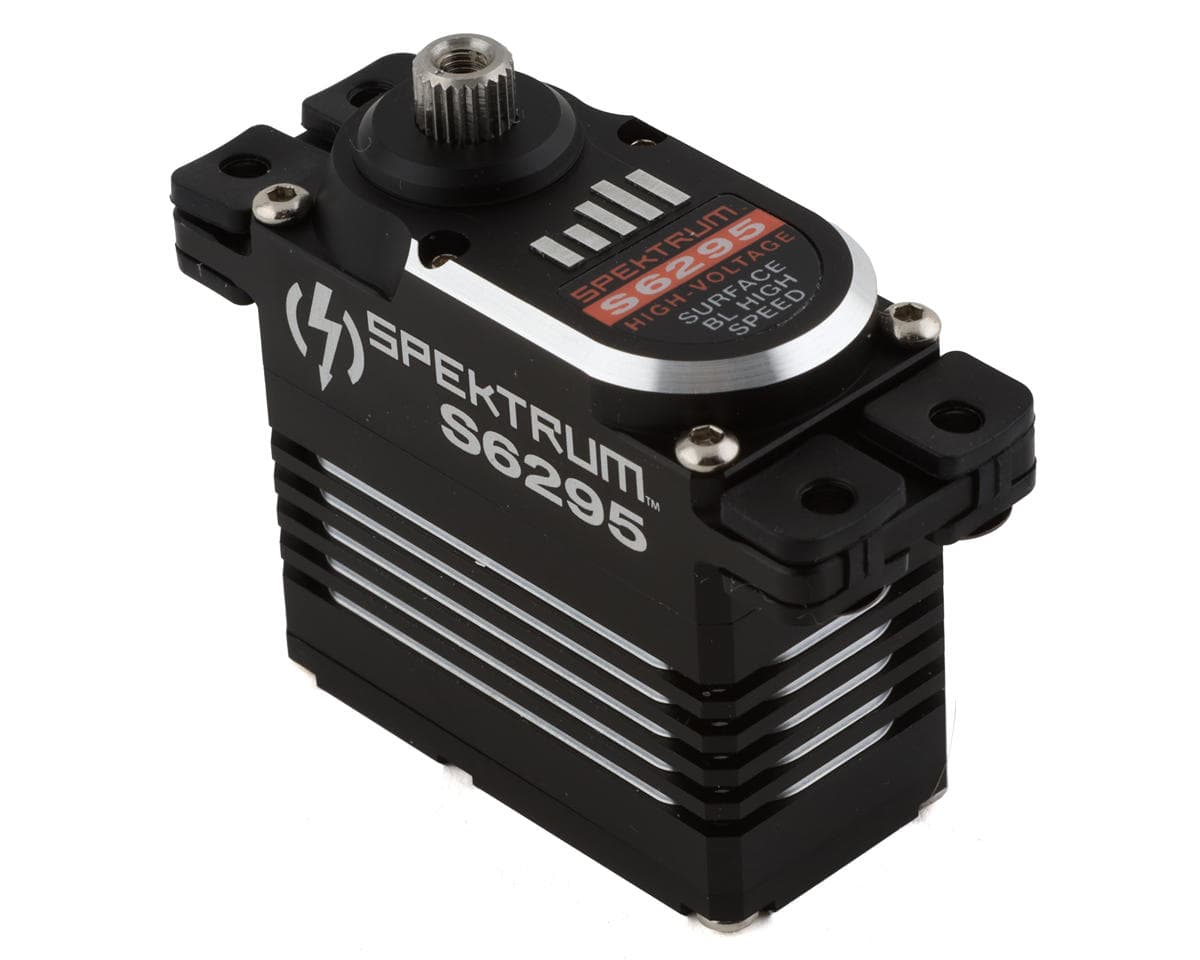

Spektrum RC S6295 1/8 Digital High Speed Metal Gear Servo (High Voltage)
Part # SPMSS6295
Where to buy
$99.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Spektrum S6295 1/8 Digital High Speed Metal Gear Servo is designed to deliver power, precision, and performance. The full aluminum case boasts incredible heat dissipation and keeps the metal gear drivetrain in a proper mesh. Package includes one high-voltage servo.
Features:
- Full Aluminum Case
- Powerful Coreless Motor
- High Voltage HV Capable (6.0v-8.4v)
- 23T output Spline
- Hardened steel gears
- Excellent steering servo option for 1/8th Scale Racers, RC Crawlers, and Scalers
Specifications:
- Spline Count: 23 - Tooth
- Length: 1.57" (40 mm)
- Width: 0.78" (20 mm)
- Height: 1.12" (28 mm)
- Torque: 416oz-in (30kg-cm) at 8.4V
- Operating Voltage: 6.0 - 8.4V (HV)
