Spektrum RC S9120BL 1/5 Brushless High Torque Metal Gear Servo (High Voltage)
Spektrum RC

Spektrum RC S9120BL 1/5 Brushless High Torque Metal Gear Servo (High Voltage)

Part # SPMSS9120BL5.0(5)
ServosAircraftLandcraftWatercraft
Fits
Losi 5IVELosi Super Baja ReyLosi DBXL
Where to buy
$199.99
AMain Hobbies
Seen Oct 12, 2026
$199.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

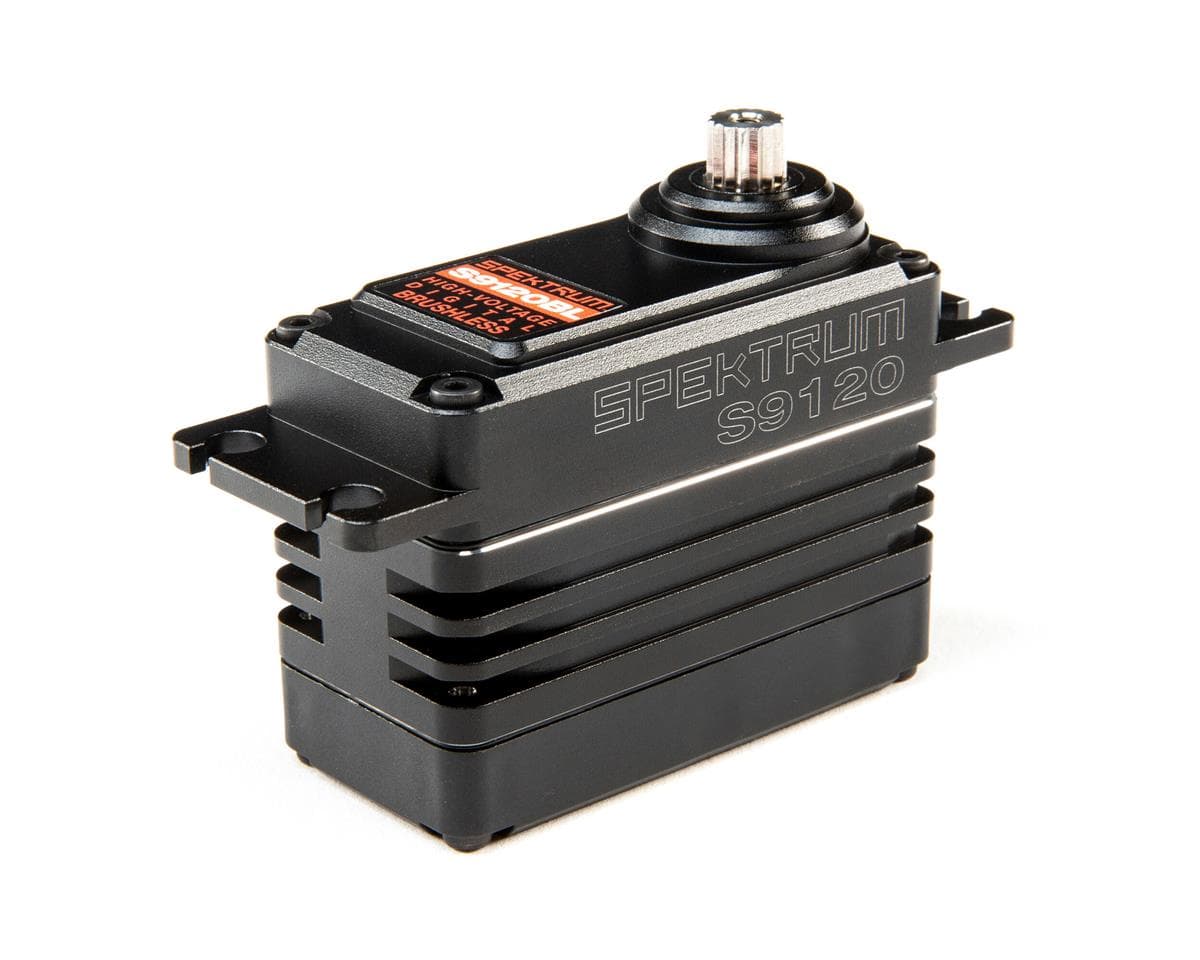

The Spektrum S9120BL 1/5 Digital Brushless High Speed High Torque Metal Gear Servo was developed to give 1/5 enthusiasts the huge torque and precision that can only come from brushless technology. Starting with a full aluminum case design with improved support for pins holding the gears, and an aluminum top plate with re-designed bearing house, the S9120 is tough. Brushless motor technology delivers more power than any previous Spektrum servo – the S9120 is rated at 1454 oz-in of torque, with a speed of 0.21 sec/60? at 8.4V. Additional improvements include a stealth black design and a thicker 18awg detachable wire. Plus, this servo is already race proven, having won the 2020 1/5 Worlds Buggy Class at So Cal Nitro.

Specifications:
Application: 1/5 scale off-road
Bushing Or Bearing: Bearing
Connector Wire Gauge: 18 AWG
Connector Wire Length: 6 in (152mm)
Deadband: Micro sec: <1
Gear Material: Steel

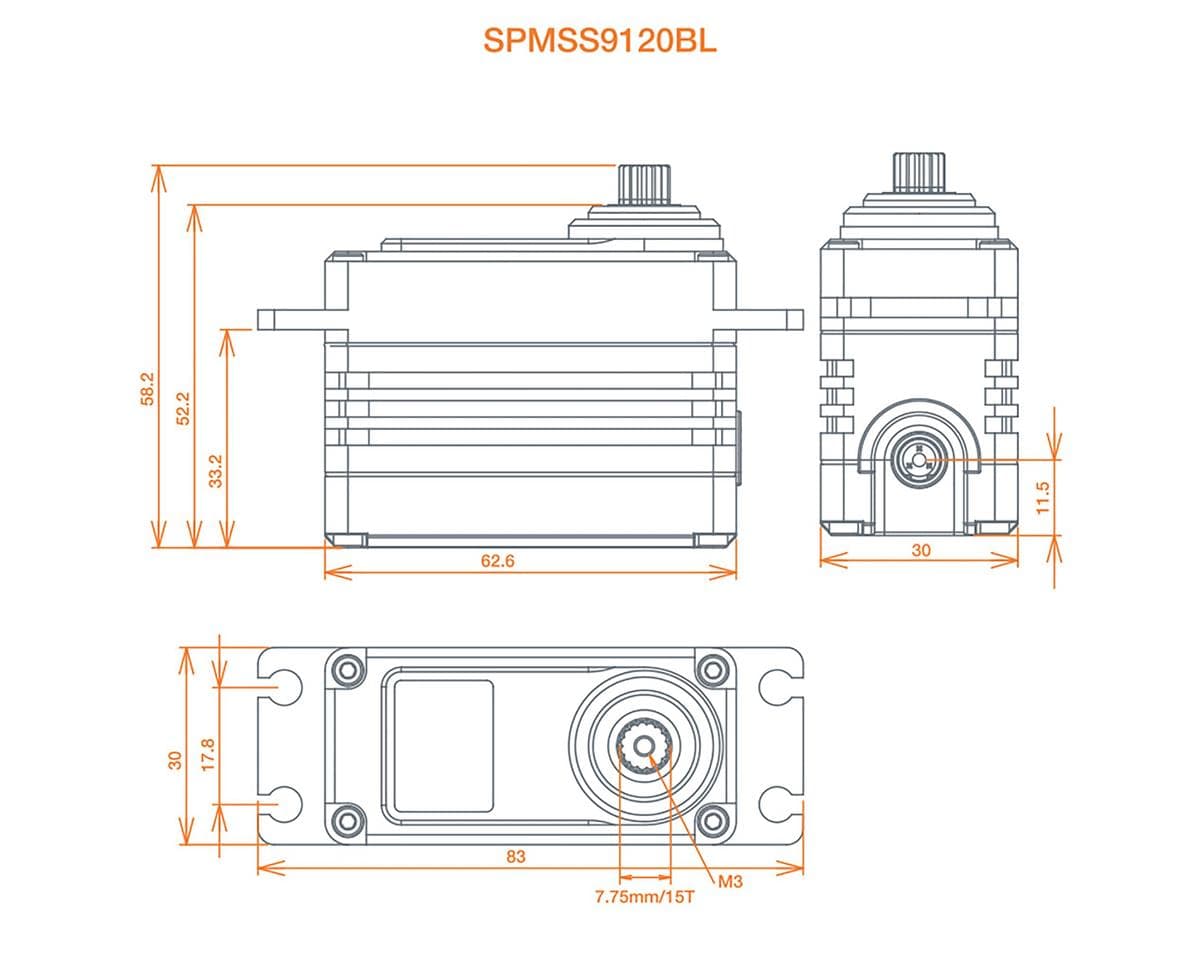

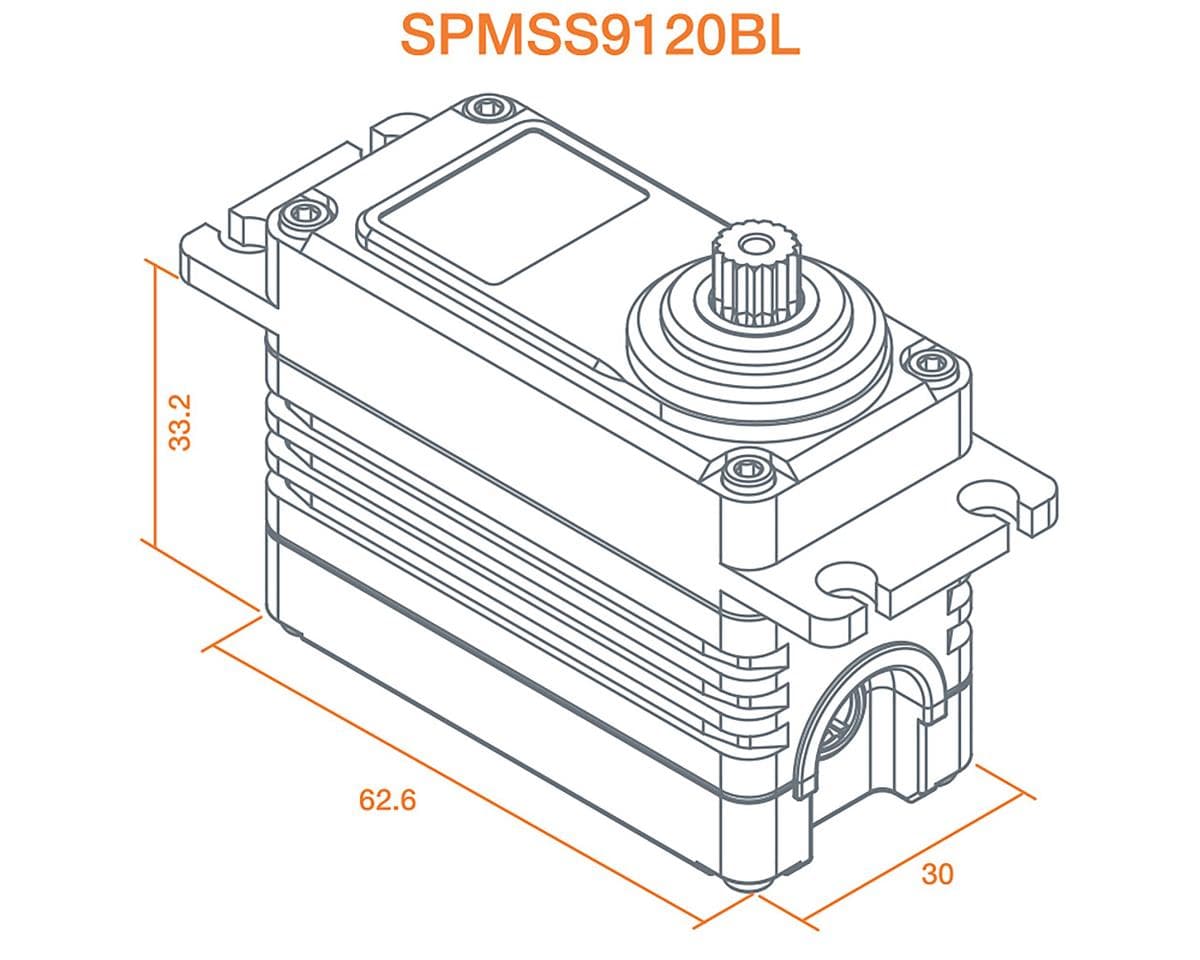

Height: 1.84 in (27.2mm)
Length: 2.47 in (62.7mm)
Motor Type: Brushless
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Custom
Speed: 0.29 sec/60 deg @ 6.0V, 0.23 sec/60 deg @ 7.4V, 0.21 sec/60 deg @ 8.4V
Spline Count: 15 Teeth (15T Mega)
Torque: 1173oz-in (84.47 kg-cm) @ 6.0V, 1209 oz-in (87.06 kg-cm) @ 7.4V, 1453.5 oz-in (104.66 kg-cm) @ 8.4V
Type: Surface
Weight: 6.3 oz (178.6g)
Width: 1.18 in (30mm)
CA Residents Prop 65 Warning WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...

Reviews5.0 · 5 reviews

Troy ConradVerified owneron Spektrum RC S9120BL 1/5 Brushless High Torque Metal Gear Servo (High Voltage)

Awesome servo has great torque for fifth scale racing

1 found this helpful
Rick BumcrotVerified owneron Spektrum RC S9120BL 1/5 Brushless High Torque Metal Gear Servo (High Voltage)

Works great, could be a little faster ,but other than that it's a solid servo !

1 found this helpful
Grevelle BladenVerified owneron Spektrum RC S9120BL 1/5 Brushless High Torque Metal Gear Servo (High Voltage)

I always get good service when I deal with amain and will continue to do business with them in the near future.

1 found this helpful
Frank AcostaVerified owneron Spektrum RC S9120BL 1/5 Brushless High Torque Metal Gear Servo (High Voltage)

Servo works good was hoping for a bit faster due to it being 8.4 volts but overall good

1 found this helpful
Darren JonesVerified owneron Spektrum RC S9120BL 1/5 Brushless High Torque Metal Gear Servo (High Voltage)

Excellent service. Great product and fast delivery

1 found this helpful
What reviewers say

Reviewers consistently rate this high-voltage brushless metal gear servo highly, with all five reviews at 5/5 from verified owners. Buyers say it delivers strong torque for 1/5 scale racing and works well overall. Two reviewers note the servo could be faster, one linking this to running on 8.4V. Two reviews also praise the seller's service and fast delivery, which are not comments on the servo itself. Overall feedback is positive, though the sample is small and speed is the only recurring criticism.

  • + Strong torque for 1/5 scale racing
  • + Works well overall
  • + Good seller service
  • + Fast delivery
  • − Could be faster
  • − Speed below expectations on 8.4V
Summary generated from the reviews above.
