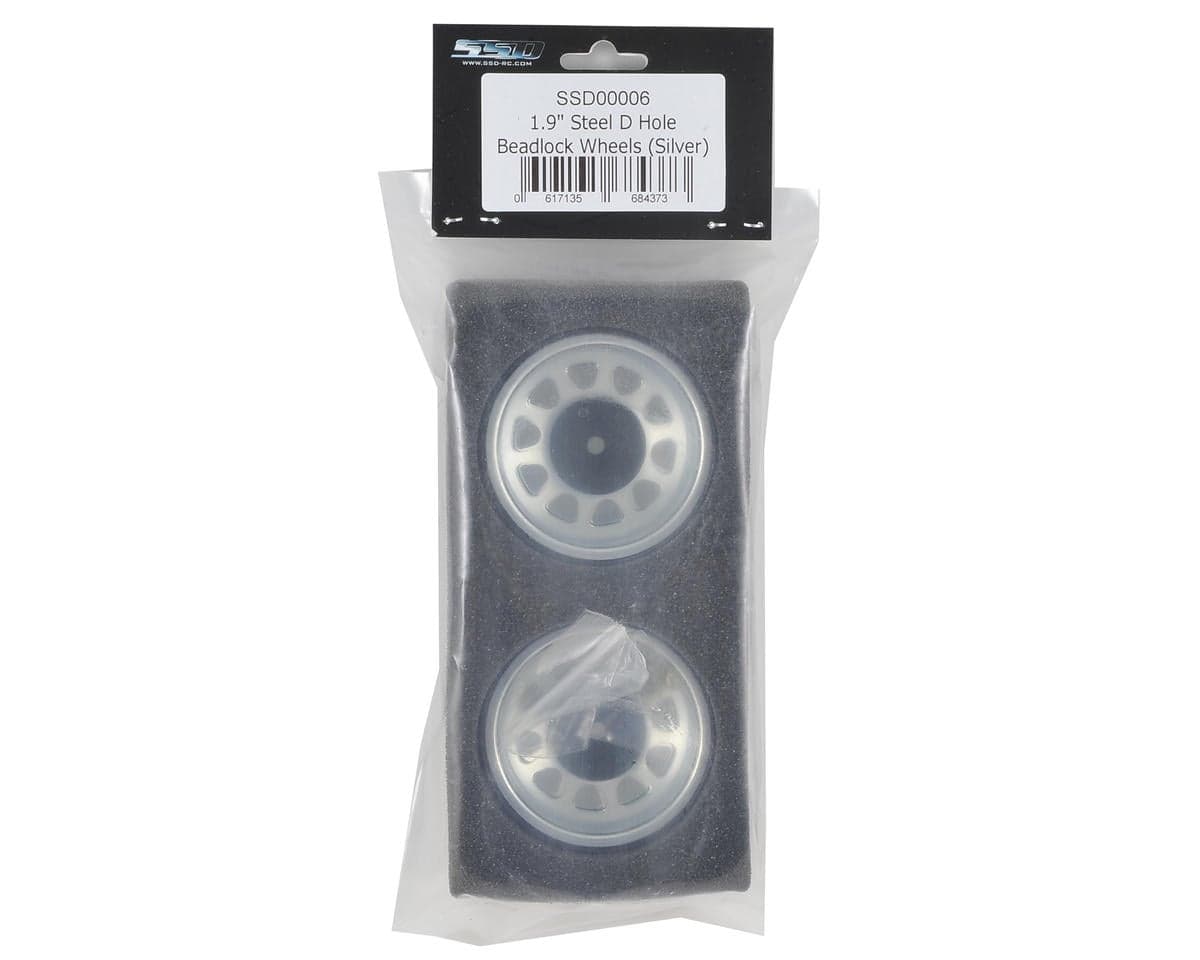

SSD RC D Hole 1.9" Steel Beadlock Crawler Wheels (Silver) (2)
About this part

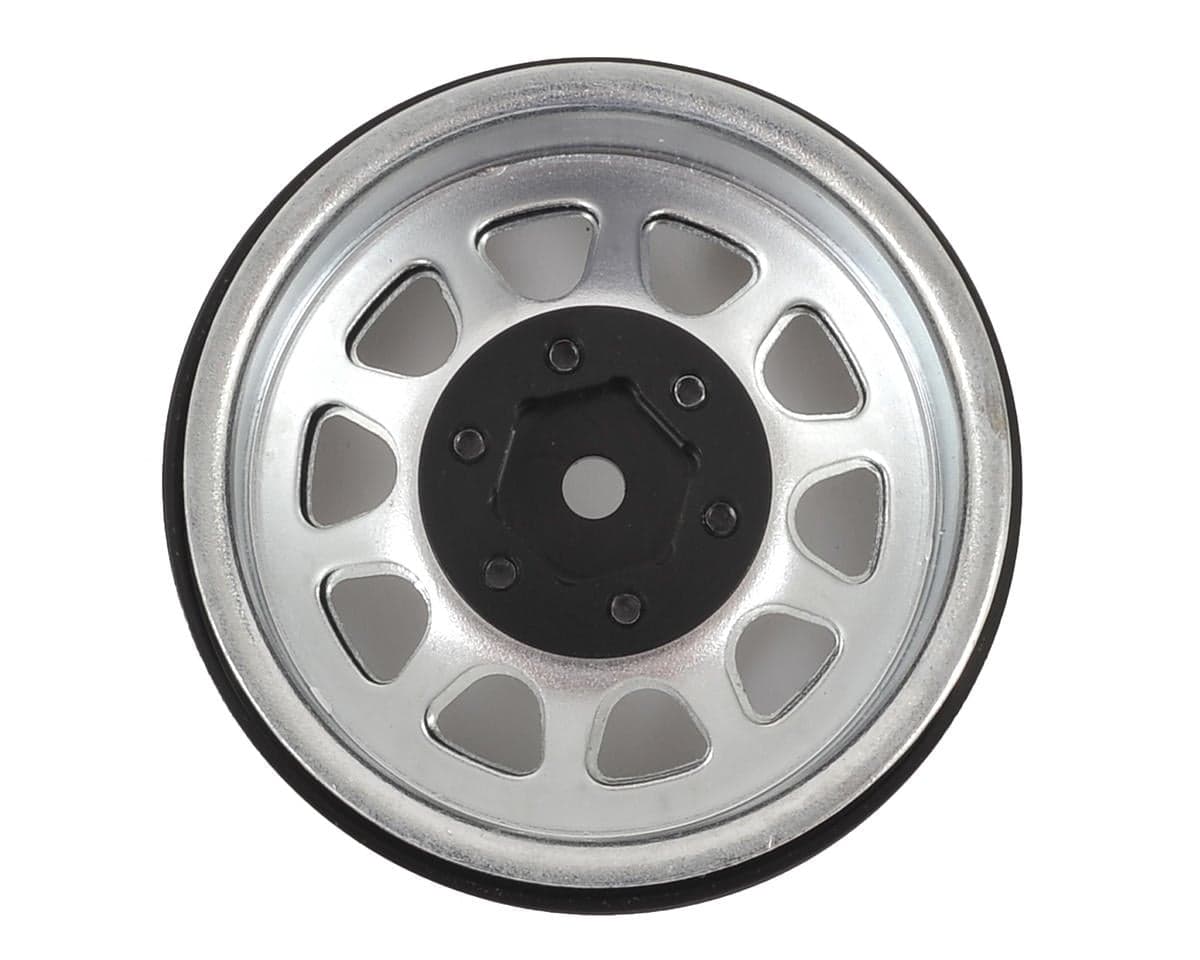

SSD D Hole 1.9" Steel Beadlock Wheels feature a plated finish, machined aluminum 12mm hubs and beadlock rings, combined with an internal beadlock design and SSD scale hex head bolts to round out the package.
Features:
- Standard 1.9" wheel size
- Standard 12mm hex mount
- Internal beadlock system
- Removable hub
- Stamped steel wheel with black or zinc plated finish
- CNC machined aluminum hub and rings

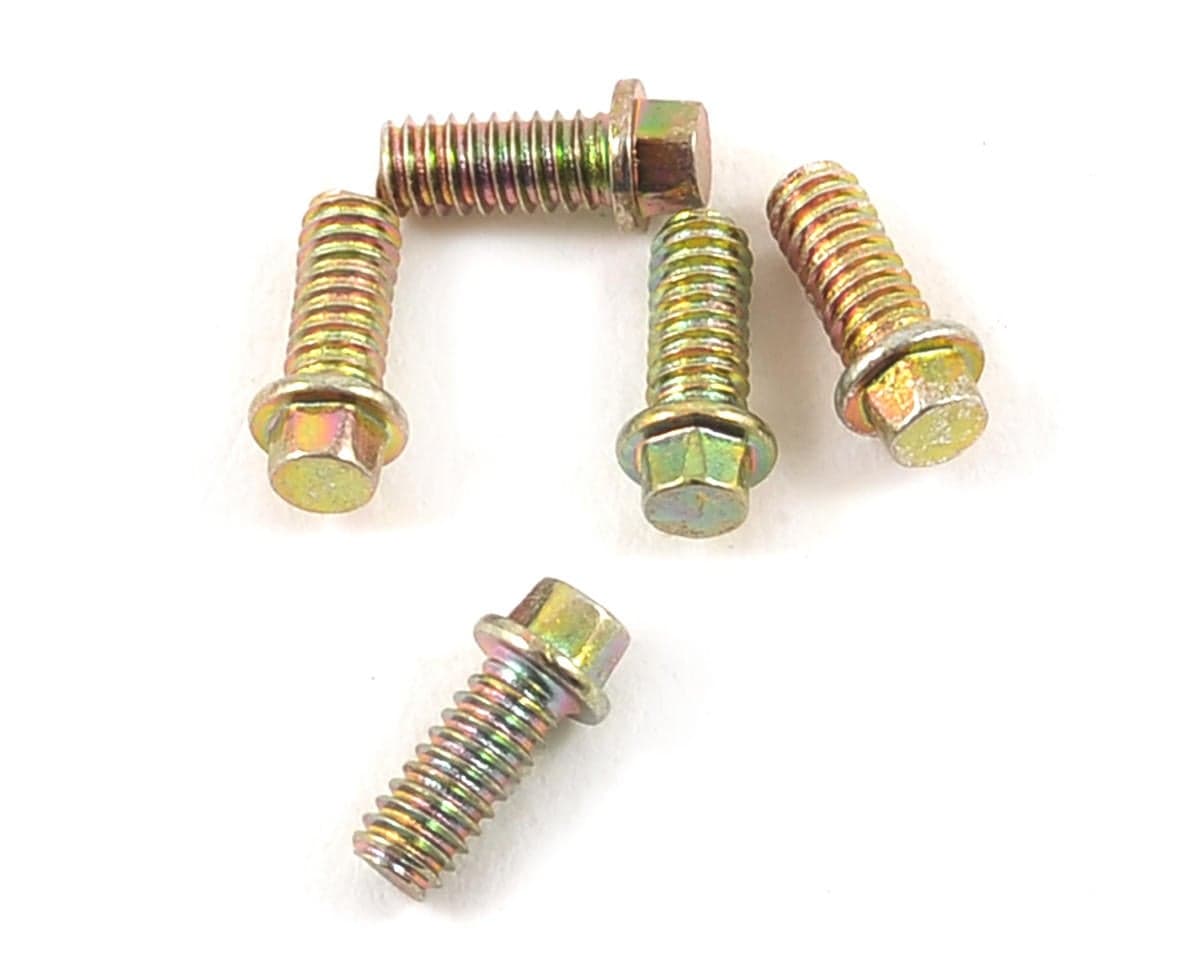

- Specially made scale steel 2mm hex head bolts with yellow zinc plating
- Finish off the scale look with SSD Scale Locking Hubs
NOTE:
- A 2mm (M2) hex socket is required. This tool is not included and must be purchased separately (SSD00053).
- Scale hex bolts may need to be tightened or threadlock before use.
Specifications:
Width: 22mm
Offset: +1.5mm
Backspacing: 10.5mm
Weight: 76g
Includes:
- (2) Complete assembled wheels
Reviews3.7 · 3 reviews
I have these on my TRX4, no issues and they are by far the easiest beadlock wheels to setup. The scale hardware is good, make sure you have tool to fit it though or it will strip. Be careful using loctite, if you use too much it will never come apart.
These wheels will not fit on the 5mm axles of the TRX4. The holes in the wheel are 4mm. Furthermore, I found it virtually impossible to properly mount the stock Canyon Trail wheels on.
Wheels look awesome and are very well made. Hardware is horrible. Every screw head rounds out and strips
Reviewers describe these silver steel beadlock wheels as well made and straightforward to set up on a TRX4, with one reviewer finding them the easiest beadlock design they have used. The main recurring complaint is the included hardware: two reviewers report screw heads rounding out or stripping, and one advises having the correct tool and caution with threadlocker, which can make parts very hard to separate later. Fitment is disputed by one verified owner, who reports the wheel holes are 4mm and will not fit TRX4 5mm axles, and who also struggled to mount the stock Canyon Trail wheels. The other reviews do not mention fitment problems, so the axle issue is reported by a single reviewer.
- + Well made, attractive appearance
- + Easy beadlock setup
- + Scale-looking hardware when it works
- − Screw heads round out and strip
- − Reported 4mm holes not fitting 5mm TRX4 axles
- − Difficult to mount stock wheels
