Parts/Complete vehicles & kits/Kits (unassembled)/Tamiya 1/10 Blitzer Beetle 2011 Off Road Buggy Kit
Tamiya
Tamiya 1/10 Blitzer Beetle 2011 Off Road Buggy Kit
Part # TAM585025.0(1)
Where to buy
$214.90
Prices are as last seen at the store; stock is not tracked.
About this part

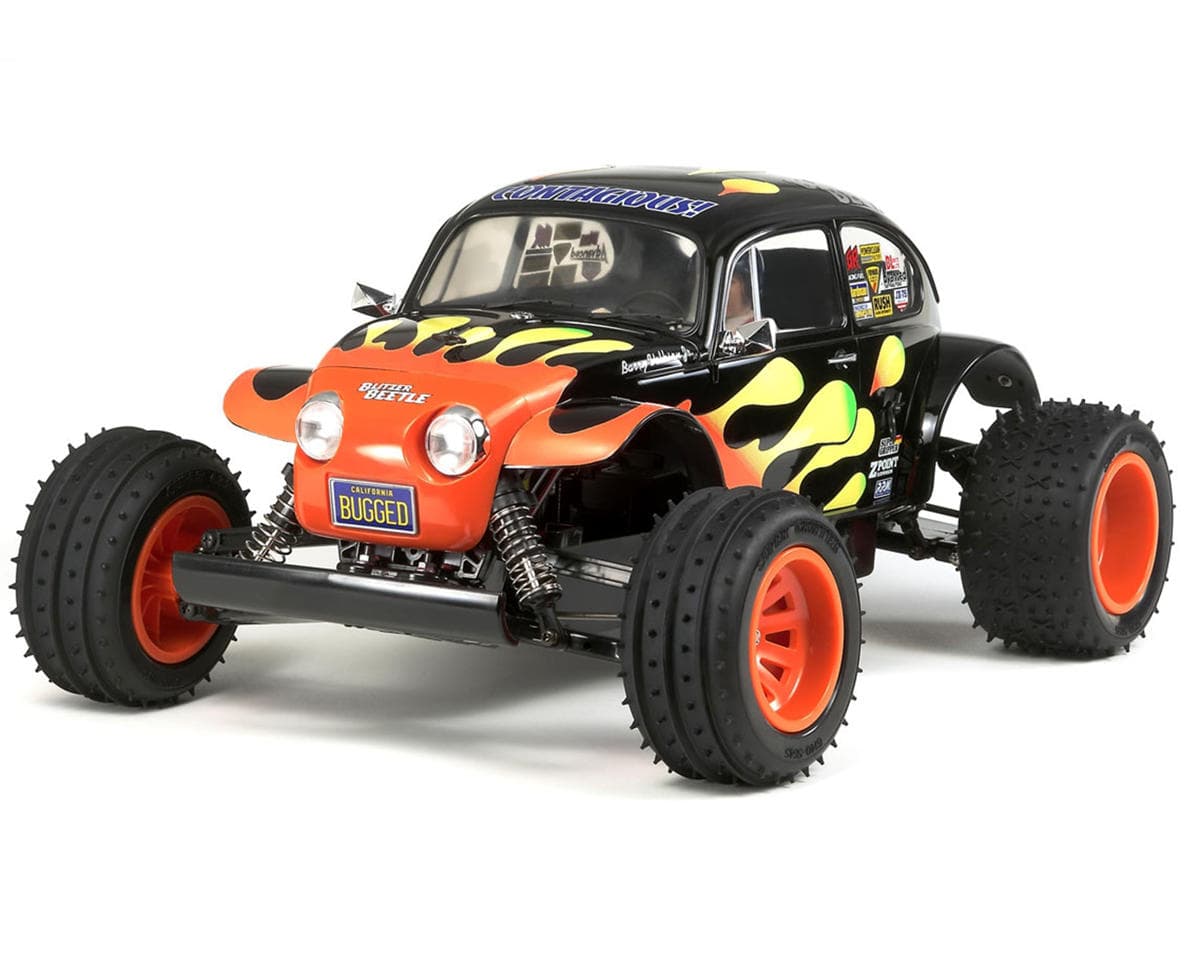

This is the Tamiya 1/10 Electric Blitzer Beetle 2011 Off-Road Kit, a 1/10 scale R/C assembly kit of the Blitzer Beetle, which was inspired by the exciting off-road desert racer designs seen in the United States. This chassis is equipped with 4-wheel double wishbone suspension, CVA shock units, and high-grip off-road tires to offer superb driving performance on rough terrain. The injection-molded body features metal-plated light covers and side mirror parts for greater realism.

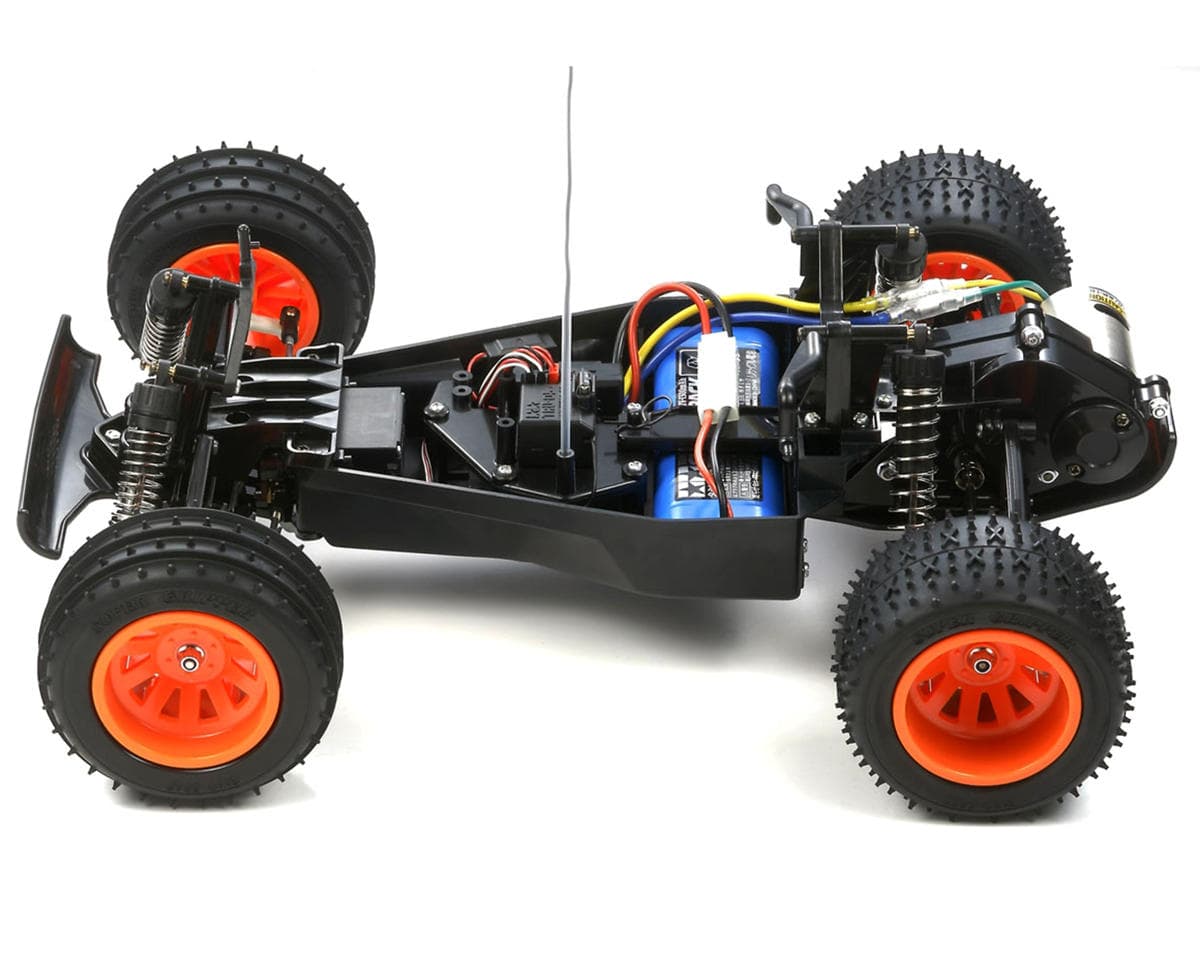

2WD Off-Road Chassis
This tough, lightweight ABS bathtub chassis features a rear-mounted motor, rear-wheel drive layout. Fully-enclosed gearbox protects against dirt and debris and is equipped with differential gears to offer smooth cornering. 4-wheel independent double wishbone suspension is equipped with C.V.A. shock units and extremely durable monocoque-type lower arms. The front spiked tires feature three ribs for enhanced stability while the rear tires feature both spikes and an X-shaped tread pattern along the center to ensure high levels of grip.
NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- ABS Bathtub Type Chassis Frame
- Injection-Molded Body with Driver Torso Figure
- Rear-Mounted Motor, Rear-Wheel Drive
- 3-Bevel Differential Gears
- F/R Double Wishbone Suspension
- F/R CVA Shock Units
- Type 540 Motor included
- Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
Specifications:
Length: 394mm
Width: 295mm
Height: 182mm
Wheelbase: 260mm
Tread: 248mm (Front), 242mm (Rear)
Tire Width/Diameter: 45/98mm (Front), 52/99mm (Rear)
Needed to Complete:
- 2 channel radio system
- Steering servo
- Polycarbonate paint for body
- 7.2V - 7.4V Battery w/Tamiya Connector (Must use round type battery pack. Square shaped batteries will not fit battery compartment.)
- Compatible Battery Charger
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
Timmy Klatteon Tamiya 1/10 Blitzer Beetle 2011 Off Road Buggy Kit
Great kit for a custom build if that's your thing. I've seen lots of different color schemes-and the box art is cool too. The Torque Tuned 540 will get it going fairly well-but you will eventually upgrade. The DT02 chassis is pretty good for all-around bashing and quite durable. I found the stock rear tires to be somewhat lacking in dirt traction-but okay for pavement. If you replace the rear tires, it transforms the little car. It will hold up to a brushless set up-but I prefer the old school brushed motors with NIMH 7.2v batteries. Mine now has a 15t Dynamite motor with a Hobbywing 1060 and it flies!!!
4 found this helpful
