Tamiya 2021 Ford Bronco 1/10 4WD Scale Truck Kit (CC-02)
Tamiya

Tamiya 2021 Ford Bronco 1/10 4WD Scale Truck Kit (CC-02)

Part # TAM58705-60A5.0(1)
Kits (unassembled)Landcraft
Where to buy
$303.80
AMain Hobbies
Seen Oct 12, 2026
$303.80Buy
Prices are as last seen at the store; stock is not tracked.

About this part

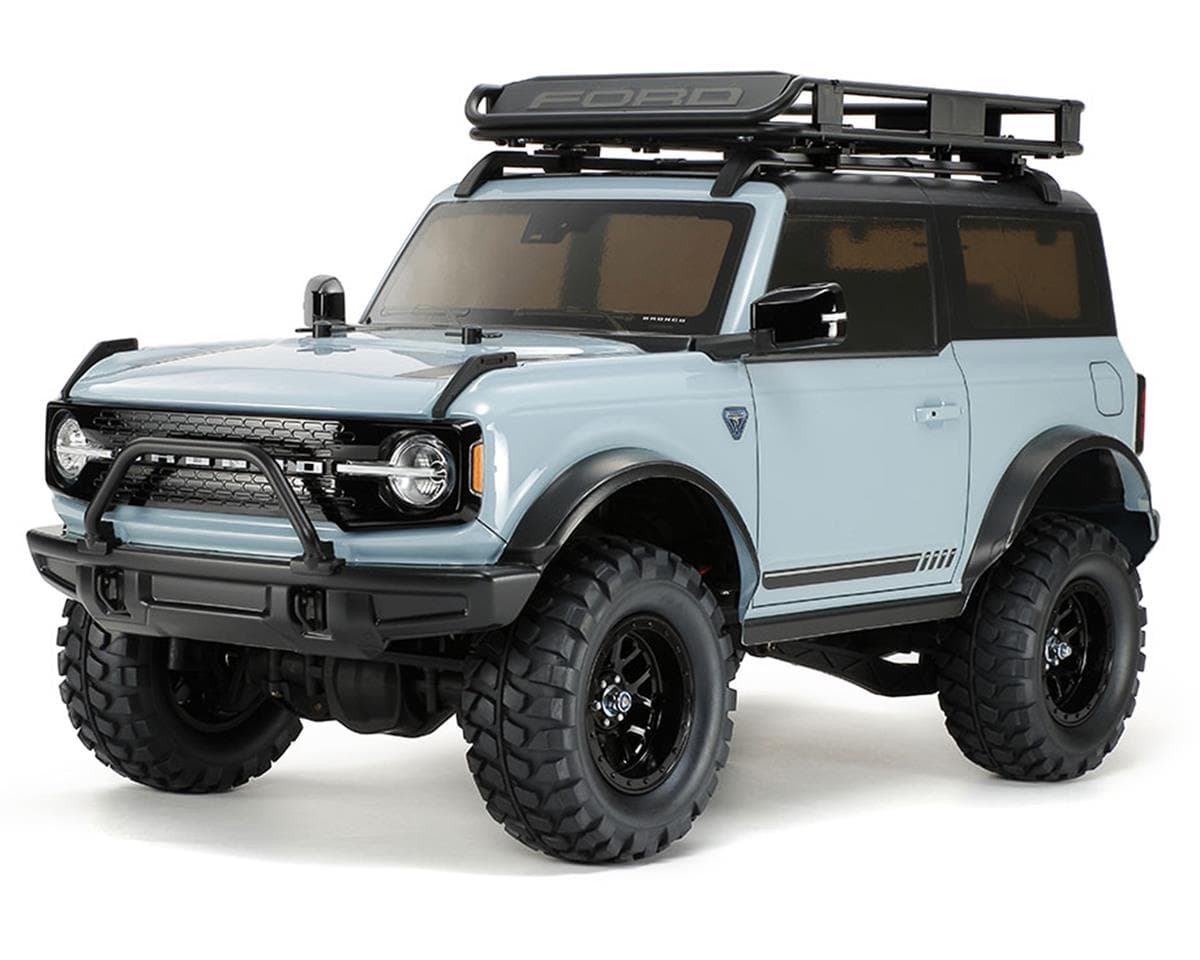

The Tamiya 2021 Ford Bronco 1/10 4WD Scale Truck Kit encompasses the iconic styling of the Ford Bronco in this 2021 model. With great anticipation the 2021 Ford Bronco has been a highly sought after truck and is now available with the CC-02 chassis. This body depicts the two door first edition version of this vehicle with highly detailed molded plastic scale parts bringing every detail to life.

CC-02 Chassis
Designed for a wide range of off-road environments, including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with red wheels and grippy block pattern tires.

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

Features:
  • 1.2mm thick polycarbonate body.

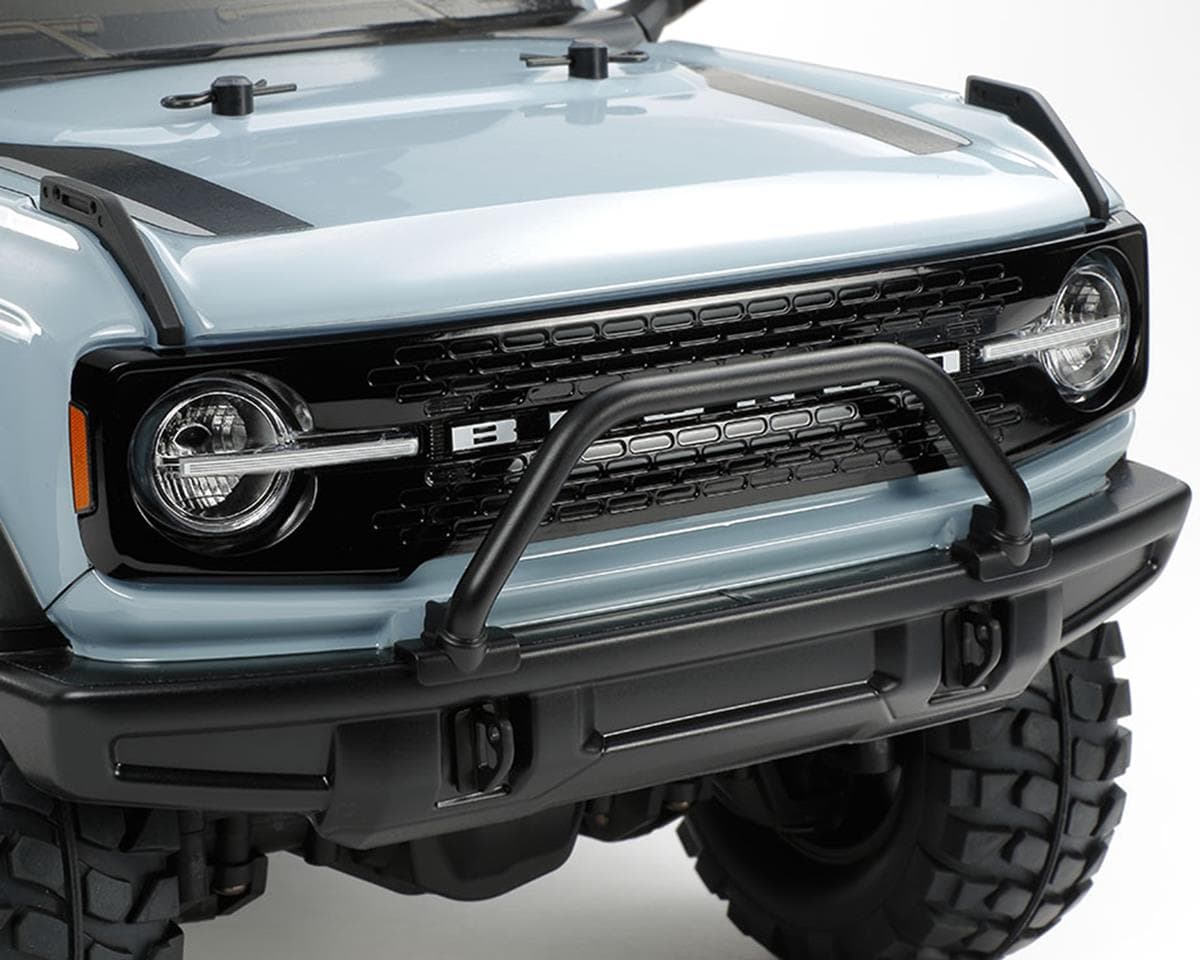

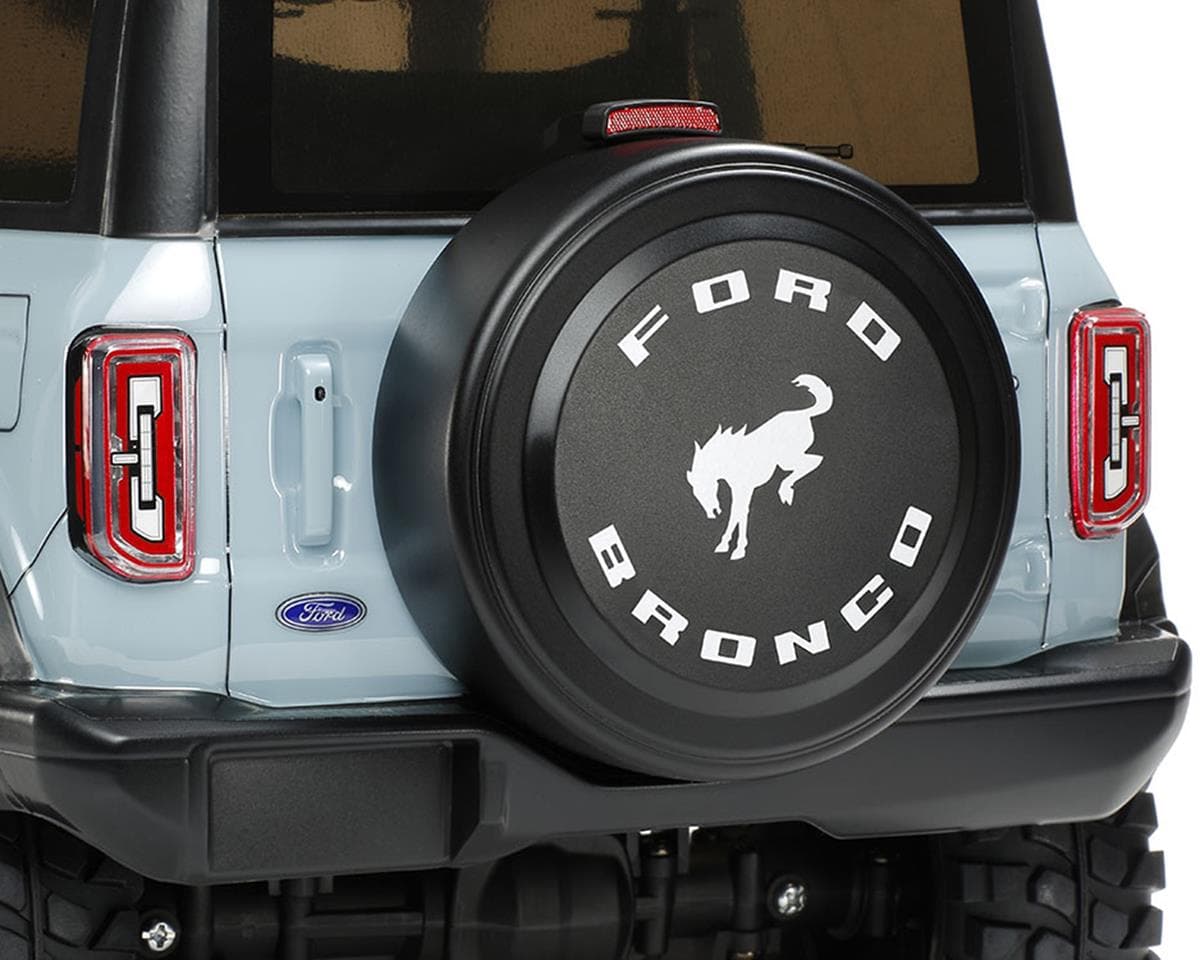

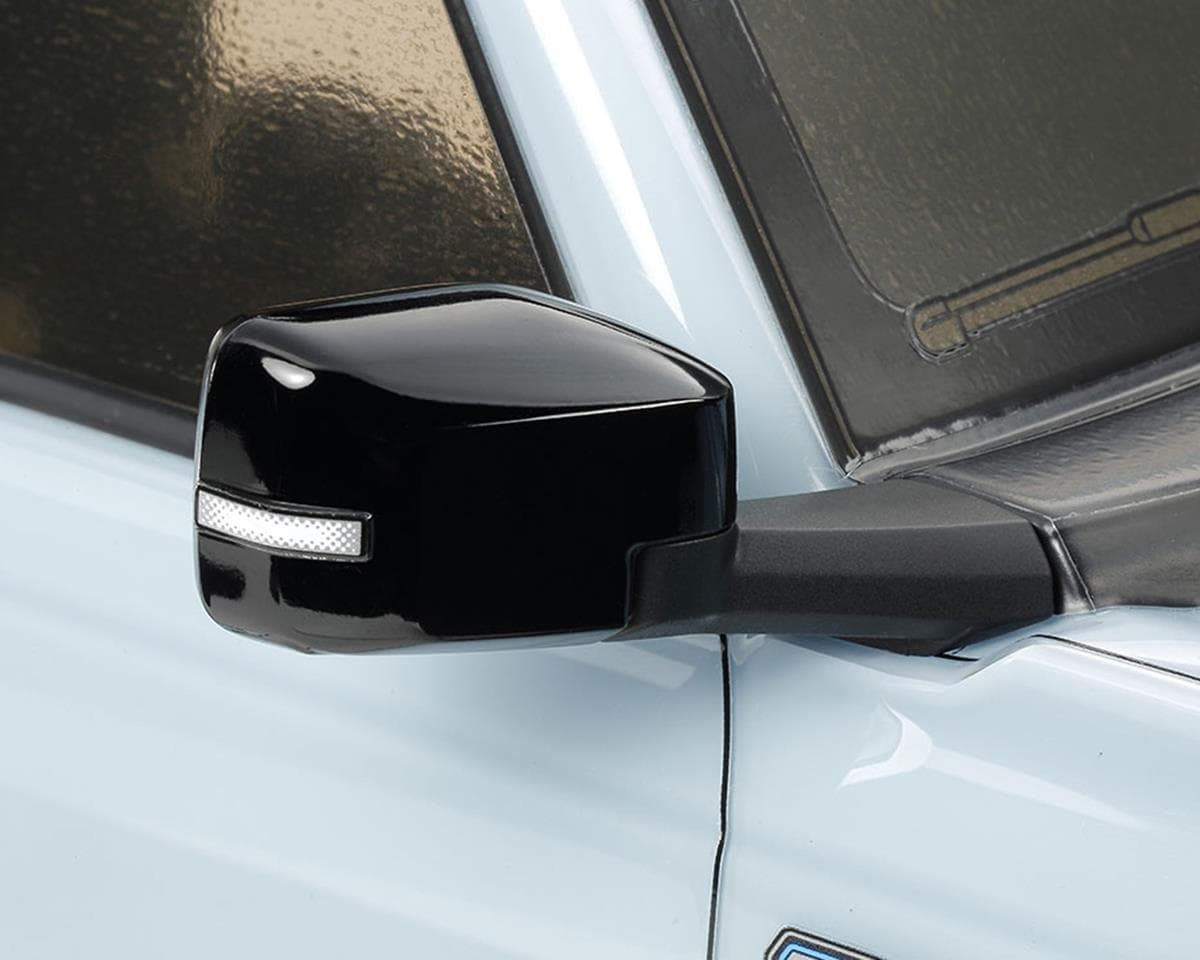

  • Features PC-ABS H parts (grilles, mirrors, spare tire cover and door handles) and metal-plated K parts (light cases).

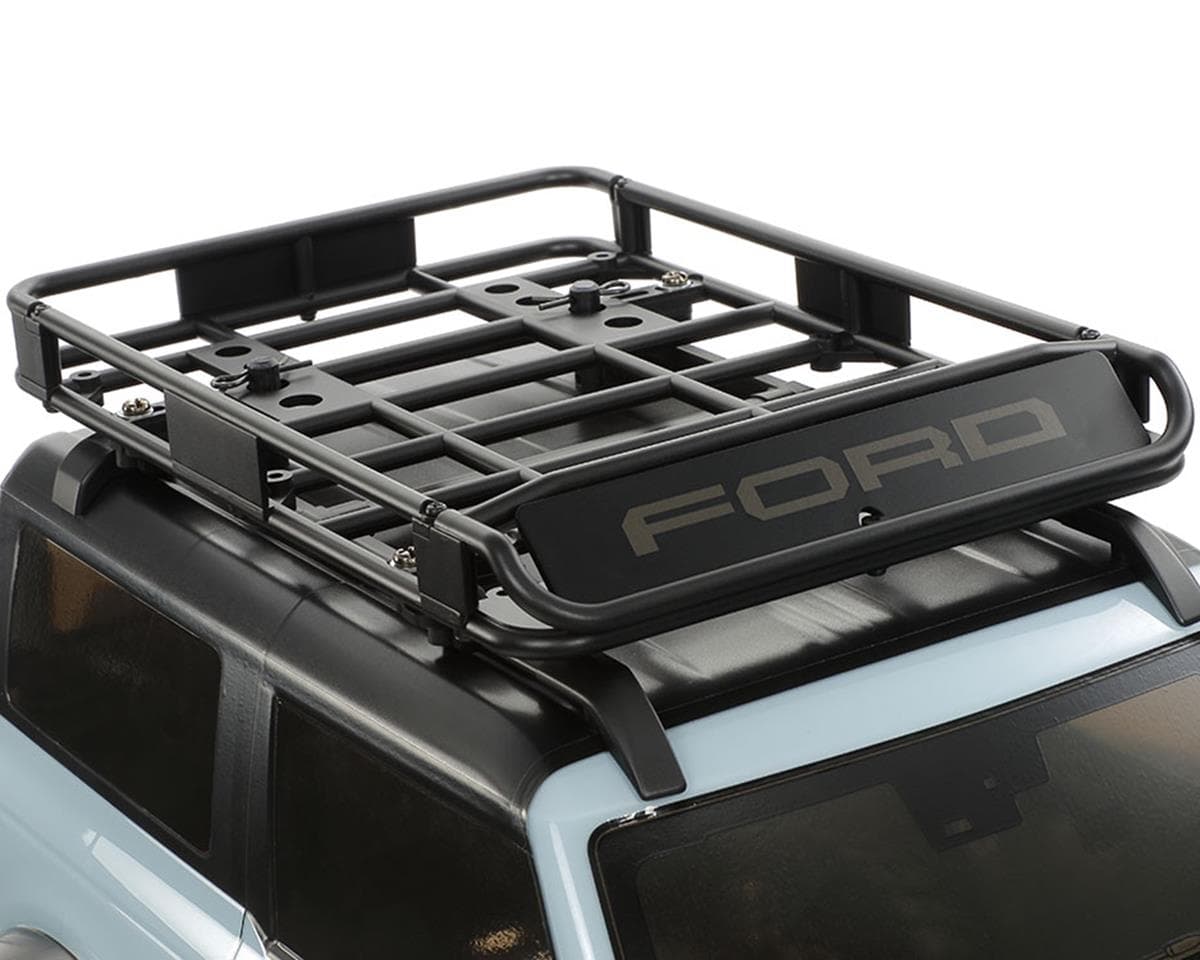

  • ABS plastic roof rack included.
  • LED light kit included!
  • The CC-02 chassis inspired by full-size vehicles

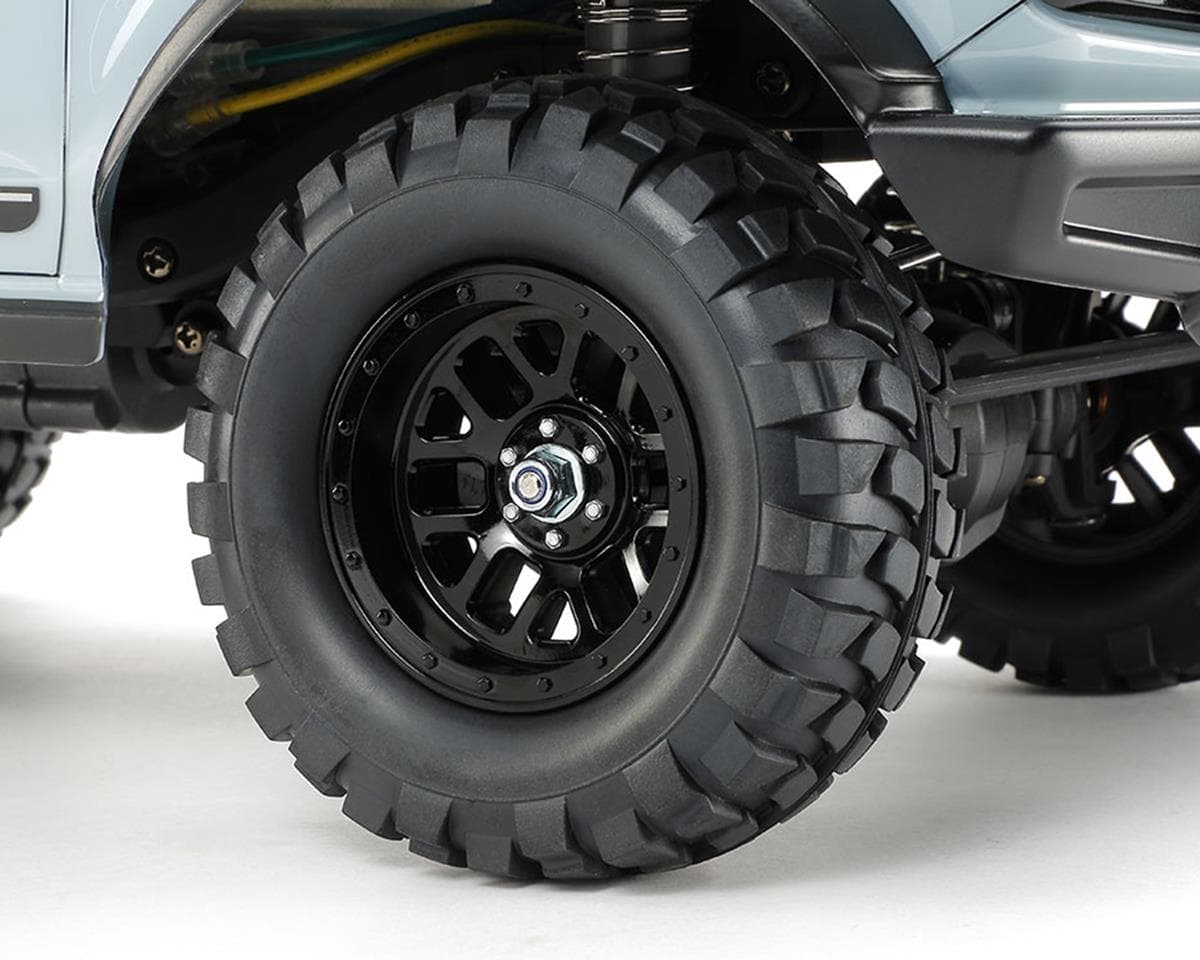

  • 12-spoke black wheels are paired with semi-pneumatic rubber tires.
  • Type 540 motor and Hobbywing THW 1060 (2-3S) with Tamiya plug ESC included.
Specifications:
Scale: 1/10
Length: 447mm
Width: 204mm
Height: 233mm
Wheelbase: 252mm (Medium)

Needed to Complete:
  • (1) 2-Channel Radio and Receiver
  • (1) Steering Servo
  • (1) 7.2-7.4V Battery with Tamiya Connector
  • Compatible Charger
  • Tamiya PS paint
  • Misc. Building Tools

Reviews5.0 · 1 review

Brad WestVerified owneron Tamiya 2021 Ford Bronco 1/10 4WD Scale Truck Kit (CC-02)

Pretty fun build. I really like all the details especially for a Lexan body. The areas I did differently were painting the top all black and the side windows black, vrs not painting the side windows and using the included window stickers. I didn't care for the look of the window stickers as you have a bunch of edges. The fender flares are a black sticker vrs I decided to tape them off and paint them black. Looks so much better. I also painted all the black detail parts with Tamiya TS-29 Semi Black paint. I also replaced the tires with Pro-Line BFGoodrich Krawlers. They are very close to the same size, a tad taller. Ohh and I recommend when building to stand the servo up vers laying it down in the chassis. The servo horn would touch the steering links on full compression. Easy to change if you do it later. The truck drives great. Works perfect for lite duty stuff. I have it in low gear and locked diffs.

3 found this helpful
